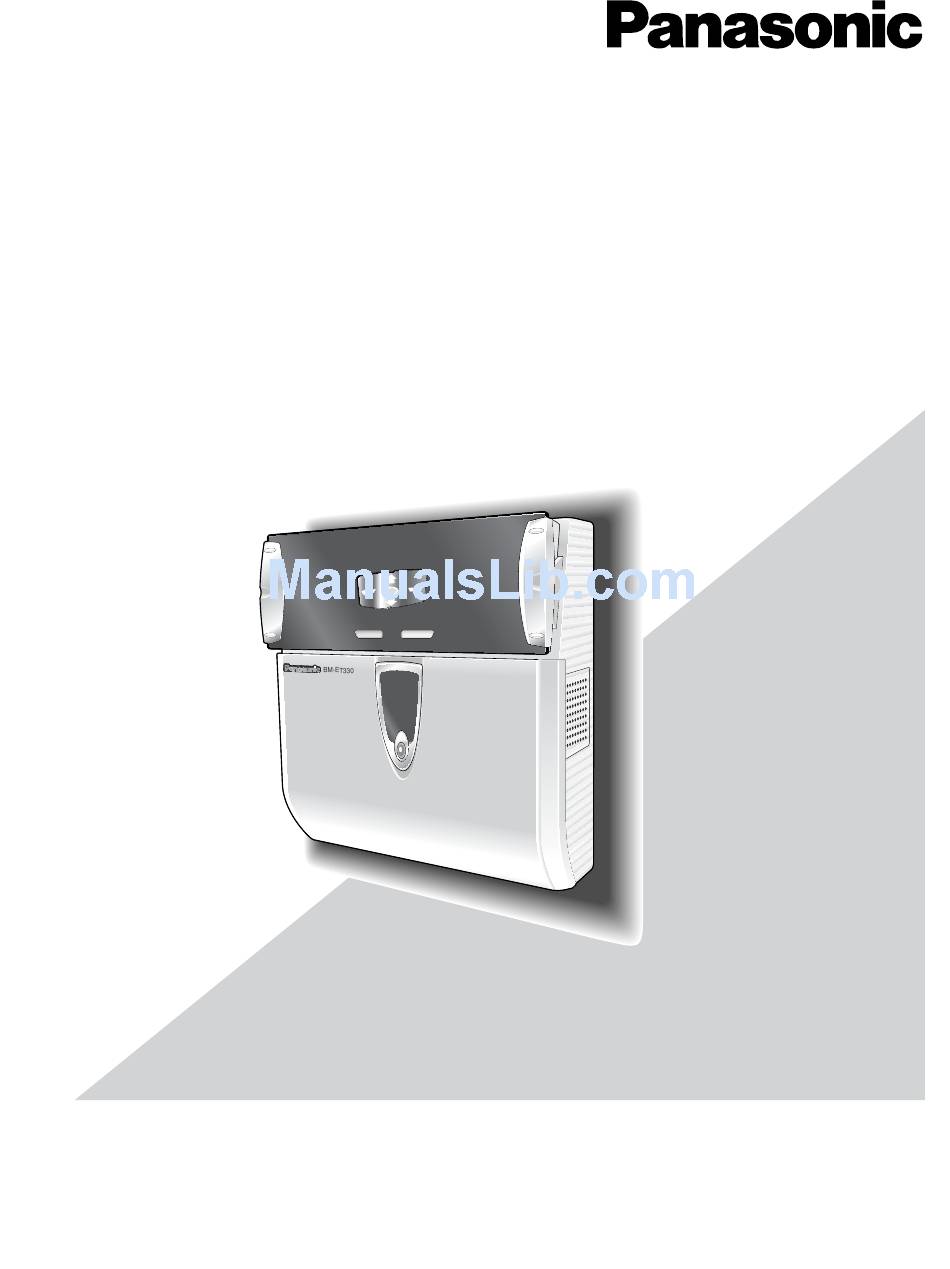

- Page 1 Iris Reader Setup Manual BM-ET330E Model No. REJECT ACCEPT Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
-
Page 2: Limitation Of Liability
LIMITATION OF LIABILITY This Product is used to recognize an individual person by using Iris data, and is not designed to protect against “theft” or “crime” independently. IN NO EVENT SHALL MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR... - Page 3 CONTENTS LIMITATION OF LIABILITY ............2 TRADEMARKS AND REGISTERED TRADEMARKS .
-
Page 4: Preface
PREFACE Iris Reader BM-ET330E is used in an access control system. The iris reader, which captures a user's iris image, is available for following uses. • As an enrollment iris reader for iris image capturing and iris server enrollment To activate iris recognition, it is necessary to capture the iris images of a user and enroll the iris data in the iris server. -
Page 5: Features
By using the iris server and a card writer, you can write the iris data of user into a card. When the user passes the card through the card reader connected to an iris reader, recognition is available. (Refer to BM-ET330E Operating Instructions for details on available card readers.) -
Page 6: Precautions
When the dirt is hard to remove, use a mild deter- electric locks. gent and wipe gently. Panasonic is NOT RESPONSIBLE FOR ANY CRIME OR TROUBLE CAUSED BY USING THIS APPLIANCE. • Do not use the appliance beyond operating requirements. - Page 7 • The settings of this appliance are configured by the iris server. The operational setting of this appliance is configured by the optional Administration Software BM-ES330E*, which is to be installed in the iris server. Depending on the settings, the voice guidance will not be output or the live indicator will be off at all times.
-
Page 8: Document Convention
LAN, which carries out certification. The setting in the administration software will determine whether to carry out server certification. User Licence Software: Panasonic User Licence Software BM-EU30000E Series that is required to enroll iris data You need to purchase the software which supports the total number of users enrolled. (Administration Software BM- ES330E supports 25 user licences.) -
Page 9: Notification About This Document
NOTIFICATION ABOUT THIS DOCUMENT • This document describes setup instructions of Iris Reader BM-ET330E. To use this iris reader for iris recognition, it is nec- essary to do setup after installation. (Refer to BM-ET330E Operating Instructions for the instructions of basic operation and installation.) -
Page 10: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS Video surveillance camera System Instruction The lens is fixed. Do not touch. <Rear Panel> <Rear Panel> Rear tamper detection switch qwFront/Rear tamper detection switch e LAN connector These switches protect the internal data and setup data This connector, supporting 10 Base-T/100 Base-TX, is of the iris reader. - Page 11 • “Setup” mode y Tamper detection buzzer volume controller To activate the “setup” mode, set Switch 1 and 3 as fol- This controller is used for adjusting the sound level of lows. buzzer, which is output while the "tamper detection" mode is activated.
-
Page 12: Setup Procedure
SETUP PROCEDURE ■ Installation of the Setup ● Initial Setup Procedure Software and Setup Procedure You will connect the iris reader and setup PC with the setup Installation and connections are completed. Note: The power should be turned off. cable supplied to the administration software, and carry out the setup using the setup software installed from the CD- ROM into the setup PC. - Page 13 z Detaching the Cover c Connection between the Iris Reader and Setup PC Detach the front cover from the iris reader by removing the tamperproof screws with the supplied tamperproof screw Connect the iris reader and setup PC with the exclusive driver tool.
-
Page 14: Setting Parameters Of The Setup Software
■ Setting Parameters of the Setup 3. Edit the parameters. Refer to "Setting Parameters of the Setup Software" for Software each parameter. (Refer to "Setting Parameters of the Setup Software".) 4. Click "Store". Or select " Connection (C) " – " Store (S)"... - Page 15 Enter a new password in the box "New password". Subnetmask: The subnet mask of the network, to Then, enter the password again in the box "Confirm which the iris reader is connected, is entered. new password". After the entry, click on "OK". Default setting: 255.255.255.0 Version (V): When you click on this item, the version of the setup software is displayed.
- Page 16 Matsushita Electric Industrial Co., Ltd. Osaka, Japan http://www.panasonic.co.jp/global/ © 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. N1004-2015 3TR003079CAB Printed in Japan...
