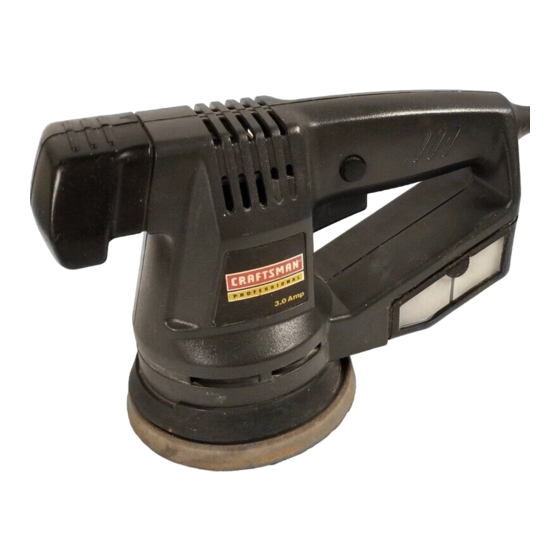

Craftsman 315.277171 Owner's Manual

Professional random orbit sander (double insulated)
Hide thumbs Also See for 315.277171:
Table of Contents

Advertisement

Quick Links

Owner's Manual
PROFESSIONAL RANDOM ORBIT SANDER
PROFESSIONAL RANDOM ORBIT SANDER
Double Insulated
Double Insulated
Model No.
315.277171
Save this manual for
future reference
CAUTION:
Read and follow
all Safety Rules and Operating
Instructions before first use of
this product.
Customer Help Line:1-800-932-3188
Sears Roebuck and Co., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
972000-556
9-00
• Safety
• Features
• Operation
• Maintenance
• Parts List
