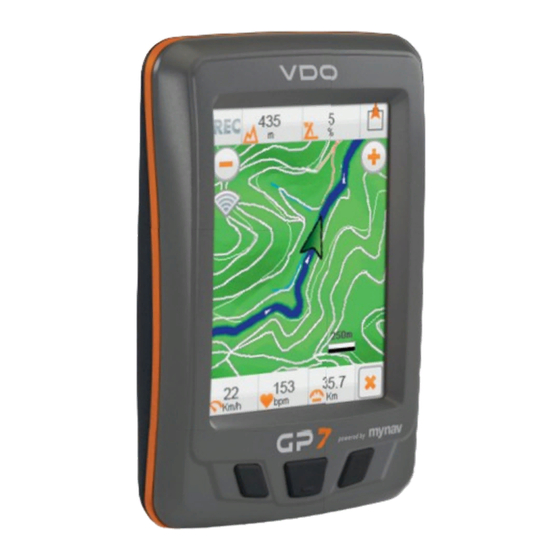

Page 1: Outdoor Navigation
Outdoor Navigation MN710 Cycle Parts GmbH... - Page 2 Cycle Parts GmbH holds the copyright on this instruction manual. No part of the content in this instruction manual can be duplicated or used in any forms or means without prior consent of Cycle Parts GmbH This instruction manual can be altered without prior notice for product improvement. This instruction manual is currently made and it may contain technical and editorial errors or omissions.
- Page 3 FCC notice to users and product statements This device complies with part15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Table of Contents Cautions Music Player -Cautions on product……… p3 -Setting default screen… p16 -Cautions on power supply p4 -Selecting play list ……… p17 -Cautions on driving …… p4 -Equalizer Screen ……… p18 -How to use……………… p19 -Cautions on GPS ………… p4 -Cautions on battery ……... -
Page 5: Cautions On Product
Cautions Warning - For correct and safe use of this product, users should be fully aware of the following. Cautions on product Use the product at the proper temperature. This device works properly at 0℃~60℃. Do not use it above or below the proper temperature. Do not leave the product exposed to direct sunlight for a long time. -
Page 6: Cautions On Power Supply P4
Cautions on power supply Use the power supply with capacity, thermal resistance and durability required for the system. Improper power sources other than pre-defined one can cause fire or malfunction of the device. Do not touch the electric plug with wet hands. Put the plug into the socket fully and firmly. -
Page 7: Cautions On Battery
Cautions on battery Battery works at 0℃~45℃. Do not leave any heat-generating equipment or chemicals around the battery. Do not attach any wet and soaked battery to the product. Do not keep the battery in the car or in the place which is exposed to the sunlight for a long time. Particularly, after kept in the car in summer, the battery need cooling down by using the air conditioner or opening the car window before connection to the power supply. -
Page 8: Product Components
Product Components - Check out if the product consists of the parts and accessories below. - If there is any missing part, contact the re-sellers or the customer center. Handlebar bike mount Holder cradle Main unit Car mount USB cable Micro SD Card (Option) Cycle Parts GmbH... -
Page 9: Name & Function Of Each Part
Name & function of each part DEVICE-FRONTVIEW RUBBER RING DEVICE-REARVIEW SPEAKER GPS SENSOR-SIRFIII BATTERY SCREW LI-ION BATTERY MICRO SD SLOT LANYARD HOLE 3.5” TFT TOUCHSCREEN (A) KEY (B) ON / OFF KEY DISPLAY (C) KEY 24 PIN CONECTOR I/O Cycle Parts GmbH... -
Page 10: Copying & Deleting Data On Sd Card
Copying and deleting data on SD card Copying data Put the micro SD card into the micro SD adapter. Put the adapter into the SD card reader. Connect the SD card reader to the computer. (The card reader is available separately.) Run My Computer in My PC. -
Page 11: Main Menu
Main Menu Battery indicator Main menu includes Navi, Movie, Music, Bluetooth and Setting features. NAVI -It is an automatic indicator of the location of the car based on the GPS technology. MOVIE -A service features fast browsing several frames of moving pictures with voice and music. -
Page 12: Movie Player
Movie Player How to use 1.Click on the Movie Player button on the main screen. 2.Click on the List on the default screen of the Movie Player. 3.Select the file you want to see from the List window.(Selected file is tick-marked on its right side.) 4.Selected file is played by clicking on the OK button on the upper right corner of screen. -
Page 13: Movie Player -Default Screen Features
Movie Player –default screen features File name to play Play screen Progress Present play time status/ running time Play icon Call List Fini Screen ratio Cycle Parts GmbH... - Page 14 Movie Player - selecting play list Close play list Show list Go to next page Previous Present page page Cycle Parts GmbH...
- Page 15 Movie Player – how to use Double click on the Movie icon on main screen. Select the file to play from the list and click Selected file is played. on the OK button. To see the full screen, touch the screen or On touching the screen it will return to the default choose the button above and the screen vertical screen.
- Page 16 Movie Player - Play and Screen icons Previous file Pause Play Stop Next file Screen ratio of 4:3. Selected file rotates in horizontal direction. Screen ratio of 16:9. Cycle Parts GmbH...
-
Page 17: Music Player
Music Player How to use To play all music 1.Click on the Music Player icon on the main menu. 2.It converts into the Music Player mode and a window pops up for playing all music. Click on the Confirm button. How to play the music selected 1.Click on the Music Player icon on the main menu. - Page 18 Music Player – default screen menu File to play Play Attributes of the time file being played File status in play Play time status/running Progress time File being played Play list Play icons Fini Call List Repeat equalizer Random Return to main entire play screen...
- Page 19 Music Player – selecting play list File path Close play list List Next page Present page Previous page Cycle Parts GmbH...
- Page 20 Music Player – equalizer screen close EQ On / Off EQ Reset EQ Ok Setting EQ EQ type Cycle Parts GmbH...
-
Page 21: How To Use
Music Player – How to use Double click on Music Player icon on the main Select a file to play from the list and click Selected file is played. screen. on OK. Repeat playing entire Random play. music. Cycle Parts GmbH... - Page 22 Setting The Setting Menu features volume up, down and on/off; backlight brightness up, down and on/off; screen revision and horizontal version of Navi screen. Cycle Parts GmbH...
-
Page 23: Setting Screen Menu
Setting – screen menu battery Volume On / Off Backlight On / Off Screen rotation -Navi screen rotates in left or right direction. USB Type - When connected to PC, users can select Storage or GPS Data Reception. Touch calibration Returning to the previous screen Cycle Parts GmbH... -
Page 24: How To Use
Setting- How to use Double click on the Setting icon on main screen. Change main unit setting. Volume Off/On Selecting Off on Volume leads to Mute. Selecting On button on Volume menu leads to releasing Mute status and clicking on ‘+’ or ’-’ button adjusts the volume. - Page 25 Backlight Off/On Selecting Off button on Backlight Pressing on ‘-’ or’+’ button on Backlight item turns off the Backlight. item adjusts the brightness of Backlight. Rotate Navi Display Navi screen rotates left or right. Cycle Parts GmbH...
-
Page 26: Ant Description
The ANT+ managed networks are designed to promote interoperability of a new generation of sports and health devices. They combine the global 2.4GHz ANT RF products with common branding and an interface specification to allow manufacturers to build interoperable communicating sports and health equipment. Operational Description MN710/GP7 Heart rate Data Data... -
Page 27: Specifications - H/W & S/W
Specifications – H/W & S/W Items Descriptions S3C2442 – 400MHz(ARM9 Core) Memory NAND Flash – 128MB SDRAM – 64MB SDRAM SIRF star III Smart Type Patch 10 x 10(mm) Internal Antenna Speaker 1Watt Mono(4/8 Ω) SD/MMC Micro SD Card (Up to 16GB) Display 3.5 inch TFT-LCD with Touch Screen 240x320 Barometer (Option) -
Page 28: Gps Terminology
GPS Terminology Altitude (Height above sea level) The height above sea level. Horizontal line. Bearing (direction degrees to destination) Represents the direction to destination with degrees. When destination direction is 60 degrees from the north and present location is 25 degrees from the north, the difference, 35 degrees, to move is called bearing. -
Page 29: Faqs
FAQs 1.SD card is not read. -> Rub the metal part of SD card with soft cloth and insert it again or format the SD card and use it. 2. Pressing buttons will not return any response. -> Press the Hold button or if it does not work even after pressing the Hold button, press the Reset button to restart. -
Page 30: Warranty
Product warranty This product is manufactured under a thorough product quality management. This product is covered by 1-year warranty of free repair, so do not forget to fill out the form given and present it when requesting free repair. Without this warranty or with the warranty form not filled out, warranty period begins on the date marked by the factory on the date of delivery of this product, which is saved on the computer.
