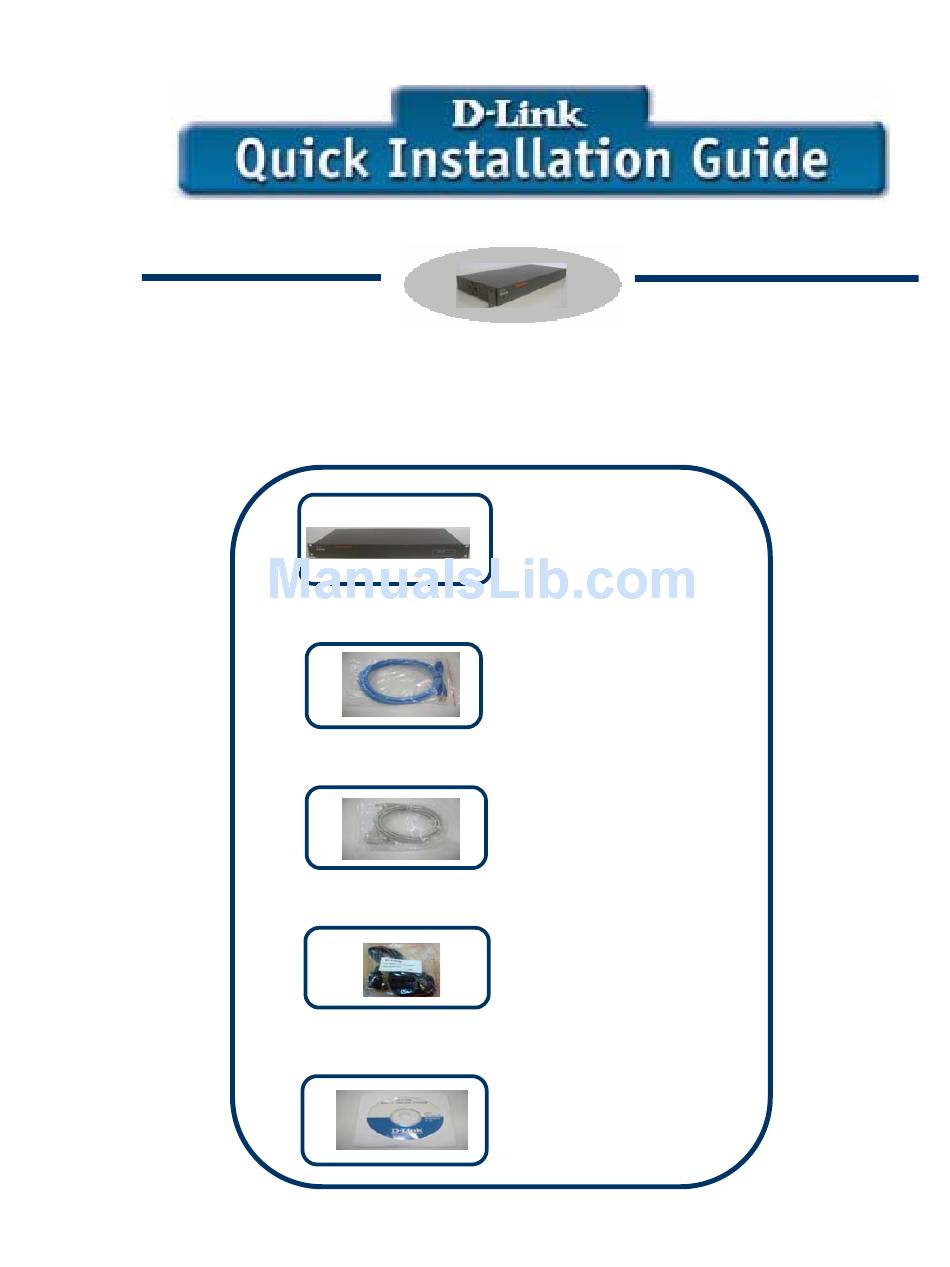

- Page 1 DVX-3500 IPPBX Review Package Contents Make sure that the package contains the following items. • DVX-3500 • 1 Straight Ethernet cable • 1 RJ-45 to DB-9 Cable • 2 Power cords • 1 User Manual CD...
-
Page 2: Before You Begin
Clamps and screws Before You Begin The default IP address for the DVX-3500 is 10.0.0.1 with a Subnet Mask of 255.0.0.0.You will need to assign your computer a static IP address within the same range as the DVX- 3500 IP address (10.0.0.x), e.g. 10.0.0.2 to configure it. To restore DVX-3500 to factory default, Press the reset switch placed at the front side of the unit. -
Page 3: Front View
Front View Power PSU 1 PSU 2 Alarm Reset Buzzer Switch Switch Rear View 10/100Tx CONSOLE Dual 220V AC LAN Port Port Power Supply... - Page 4 Connecting DVX-3500 A. Connect two Power cords to the two Power Supply modules of DVX-3500 and power ON the unit. The Power Led will turn ON. B. Connect the LAN interface to the hub or switch connected to your internal network using ethernet cable.
- Page 5 A computer connected on your LAN network must be assigned an IP address and subnet mask from the same range as the IP address and Subnet mask assigned to DVX-3500. The IPPBX by default is assigned an IP address of 10.0.0.1 with a subnet mask of 255.0.0.0.
- Page 6 To change the IP use the following command Set ip < IP address> <netmask> Use the following command to change the ip address...
- Page 7 3. Connect to http://<IP address> using Internet Explorer. Check whether the PC is in the same IP range and the Proxy is disabled. The Security Alert window will appear. Click on ‘yes’...
- Page 8 4. Login page will appear User Extension: ‘ippbx’ Password: ‘ippbx’ Type: Admin login Click on...
- Page 9 5. D-Link welcome page will appear and you can browse through it.
- Page 10 The above figure explains the setup on how to add users in DVX-3500. Use preconfigured IP phones which are in the same subnet as that of DVX-3500. The gateway of the IP phones should be that of the IPPBX. Settings which are to be made on...
- Page 11 1. Open the DVX-3500 web page and go to Call server> users Click on ‘Add a new user’...
- Page 12 User details to be configured as below User Name : 111 User Extension:111 Select User Group and click, “Apply”...
- Page 13 Similarly add the second user, i.e. 222 following the same above procedure. User Name : 222 User Extension:222 Select User Group and click, “Apply”...
- Page 14 3 To view the users go to Call Server> Users. Here you can view the Users. Here you can view the users configured...
- Page 15 4 To view registrations, first save settings and restart the IP phones. Then on web configuration of DVX-3500 go to Call Server> Registrations.
- Page 16 5 Now make a call from one phone to the other i.e. from 111 to 222. The status of the active call can be seen on the Device manager home page.
- Page 17 Note: - RPS Functioning PSU 1 PSU 2 IPPBX can be Powered UP using either one or both the Power Supply modules. The Load will be taken by PSU1 or PSU2 whichever is switched ON first. If one PSU fails then the other PSU will Power the Product without affecting the normal working of the Product.
- Page 18 Appendix Assigning a Static IP address for your network adapter The examples below are using a Microsoft Windows 2000 OS. Note: Screens in other Operating Systems will look a bit different, but the steps are the same. 1. Right Click ‘My Network Places’ Right Click ‘local Area Connection’...
- Page 19 2. In the general tab of the Local Area Connection Properties menu, highlight Internet protocol (TCP/IP). Click on Properties 3. Configure the below page as follows Select Use the following IP address Assign the following: IP address: 192.168.100.1 Subnet mask: 255.255.255.0 Default Gateway: 192.168.100.254 Click OK...
