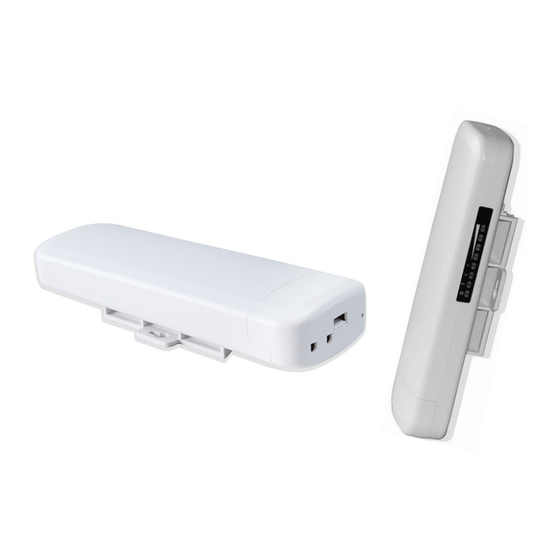

Manual of Wireless Access Point
This is the manual of outdoor CPE, which will approximate guide you how to set and apply the outdoor CPE, it provide
a convenient graphical interface for network construction and maintenance person, as well as a user through a simple
and accurate operation, and configuration management of the CPE.
s t
1
Connection and Power Supply
Shenzhen Yunlink Technology Co., Ltd
Advertisement
Related Manuals for Yunlink CPE870
Summary of Contents for Yunlink CPE870
- Page 1 This is the manual of outdoor CPE, which will approximate guide you how to set and apply the outdoor CPE, it provide a convenient graphical interface for network construction and maintenance person, as well as a user through a simple and accurate operation, and configuration management of the CPE. Connection and Power Supply Shenzhen Yunlink Technology Co., Ltd...
- Page 2 2. Press the Reset Button on CPE more than 15 seconds, then release, the device will reboot and restore to factory settings The connection way of CPE, PoE Adapter and PC: Connection diagram of CPE and PoE adapter Shenzhen Yunlink Technology Co., Ltd...
- Page 3 1）Connect the CPE with computer as P2 picture 2 ） Configure the PC’s local connection IP address as 192.168.188.X (X is number from 2 to 254), subnet mask is 255.255.255.0, follow P3 and P4 to finish. P3 Setting of computer’s IP address Shenzhen Yunlink Technology Co., Ltd...
- Page 4 P 4 Setting of computer’s IP address 3) Input 192.168.188.253 into IE browser, then pop up the login page, the default login user name: Admin, Passwords: admin, pls do following P5 P5 Login 5. After login, then P6 will be showed: Shenzhen Yunlink Technology Co., Ltd...
- Page 5 F. Then if SSID should be broadcast under repeater mode, pls click “Advanced Settings” , then “2.4GHz Repeater” will pop up. If want to bridge another AP’s SSID, then can setup in this part and Apply changes. Shenzhen Yunlink Technology Co., Ltd...
- Page 6 Plug and Play to transmit wireless signal for wireless end users form wired networking. In this part, user can mark the AP’s location and name for easy problem checking. Then can change SSID, Key, Channel as request. Shenzhen Yunlink Technology Co., Ltd...
- Page 7 In this operation mode, user should confirm the WAN access type at first, then set the SSID, key, Channel as request. P17 WIPS Mode ⑤ Advanced Settings: 1. System Status Click “ Advance Settings”, will show system status, such as firmware version, build time, System uptime... Shenzhen Yunlink Technology Co., Ltd...
- Page 8 If want to check LAN status, pls check following picture P20 LAN Status 2. Operation Mode: Set operation mode manually, choose the right operation mode, then apply changes. The function of this part will be same as Quick Setup step. Shenzhen Yunlink Technology Co., Ltd...
- Page 9 P21 Operation Mode 3. 2.4GHz Wireless: In this part, use can scan AP’s SSID, disable or enable AP’s SSID, modify Channel, Security.. P22 2.4GHz Wireless Shenzhen Yunlink Technology Co., Ltd...
- Page 10 2.4GHz Access Control P23 2.4GHz Advanced Note: The frequency selection feature is disabled by firmware for devices marketed to the US. only channels 1-11 will be used in North America. Country code selection is disabled. Shenzhen Yunlink Technology Co., Ltd...
- Page 11 Pls click Upgrade Firmware, then browse and choose the firmware should upgrade, then click upgrade to upgrade the firmware. P26 Firmware Upgrade After finish firmware upgrade, pls click Save/Reload Settings, then reset settings to default. Shenzhen Yunlink Technology Co., Ltd...
- Page 12 7. Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet. Shenzhen Yunlink Technology Co., Ltd...
- Page 13 (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shenzhen Yunlink Technology Co., Ltd...
