CAMTREE HUNT
Multipurpose Cage Shoulder Mount
Rig
(CH-MPC-SRP)
INSTRUCTION MANUAL
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.
Advertisement
Related Manuals for Camtree Hunt CH-MPC-SRP
Summary of Contents for Camtree Hunt CH-MPC-SRP
- Page 1 CAMTREE HUNT Multipurpose Cage Shoulder Mount (CH-MPC-SRP) INSTRUCTION MANUAL All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by...
- Page 2 Camtree Hunt Multipurpose Cage Shoulder Mount Rig INTRODUCTION A culmination of art and engineering, designed from the ground up, Using best materials, trendy design with electrifying performance. Sophisticatedly balanced and adjustable system with a myr- iad of unending mounting options gives maximum stability and comfort that a cameraman actu- ally desires.
- Page 3 Camtree Hunt Multipurpose Cage Shoulder Mount Rig ASSEMBLING YOUR HUNT CAMERA CAGE WITH HANDLE & BASEPLATE Mount the camera on base plate and secure it by tightening provided screws with help of screw driver. Mount the base plate with tripod mounting plate and tighten it with help of screw driver.
- Page 4 Camtree Hunt Multipurpose Cage Shoulder Mount Rig Attach side brackets of cage on both sides of Base plate with provided allen bolts & tighten with allen key. Now loosen the allen bolts from top plate of cage & attach it to side brackets with allen bolts &...
- Page 5 Camtree Hunt Multipurpose Cage Shoulder Mount Rig Now remove the cap from lens mount of the camera in order to attach the lens. Attach the 15mm rod adapter with the rear of Base Plate and tighten it with allen key.
- Page 6 Camtree Hunt Multipurpose Cage Shoulder Mount Rig Now screw in four provided screws to the battery mount of the camera in order to attach quick back battery plate. Attach the quick back battery plate to camera & then connect the 4-pin Lemo connector to camera and attach V-mount battery to battery plate.
- Page 7 Camtree Hunt Multipurpose Cage Shoulder Mount Rig Now mount the flexible shoulder mount at the end of rods and tighten the knob to secure. Then, loosen the knobs of shoulder mount to adjust the length, then tighten all the knobs to secure.
- Page 8 Camtree Hunt Multipurpose Cage Shoulder Mount Rig Attach flexible gear belt on your camera’s outer focusing ring diameter and secure the gear belt using the provided screw. Now mount the solid gear follow focus on 15mm rods, align it with gear ring and tighten the side knob to secure.
- Page 9 Camtree Hunt Multipurpose Cage Shoulder Mount Rig Attach knicker on conversion ring, then attach the ring with conversion ring holder and tighten the knot. You can easily insert the filter holders as shown in the image. Note: The filter holder supports the use of 4x4” square filters, kit includes 2pcs of filter holders;...
- Page 10 Camtree Hunt Multipurpose Cage Shoulder Mount Rig Insert MB-20 CF matte box to rails and secure with provided knob. Attach knicker to camera lens barrel properly and tighten the knot. Attach the handle set to 15mm front rails and secure the handles by pressing the locks.
-
Page 11: Warranty

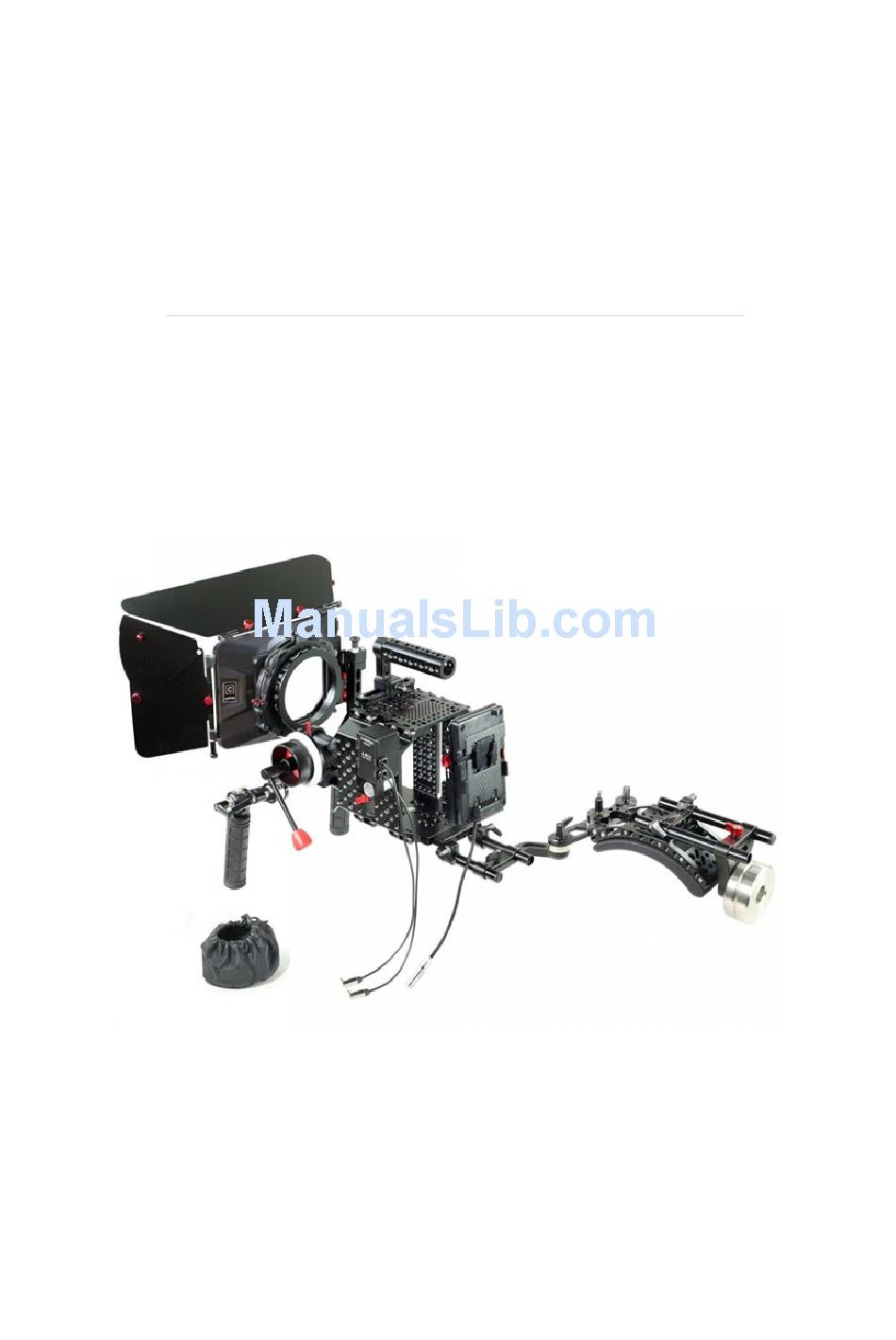

Camtree Hunt Multipurpose Cage Shoulder Mount Rig CAMTREE HUNT MULTIPURPOSE CAGE SHOULDER MOUNT RIG ALL DRESSED UP AND GOOD TO GO (SHOWN WITH OPTIONAL ACCESSORIES) WARRANTY We offer a one year warranty for our products from the date of purchase.
