Page 1: Installation Instructions

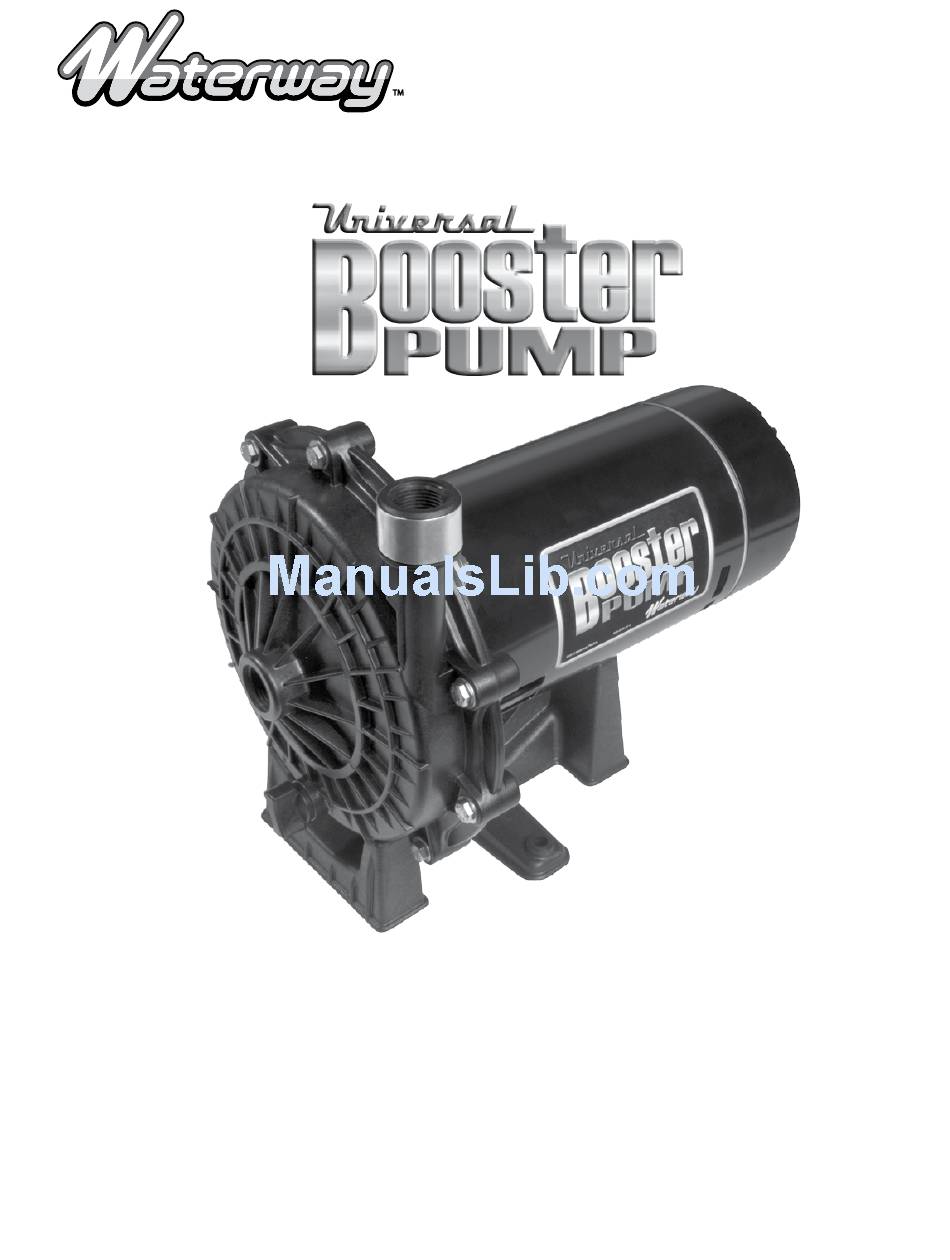

Installation Instructions IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS ©2017 Waterway Plastics 810-4800.1017... -
Page 2: Important Safety Information
WARNING: DO NOT open the pump if the pump has been operating without water. Pumps operated in these circumstances may experience a build up of vapor pressure and may contain scalding hot water. Opening the pump may cause serious personal injury. ©2017 Waterway Plastics 810-4800.1017... -

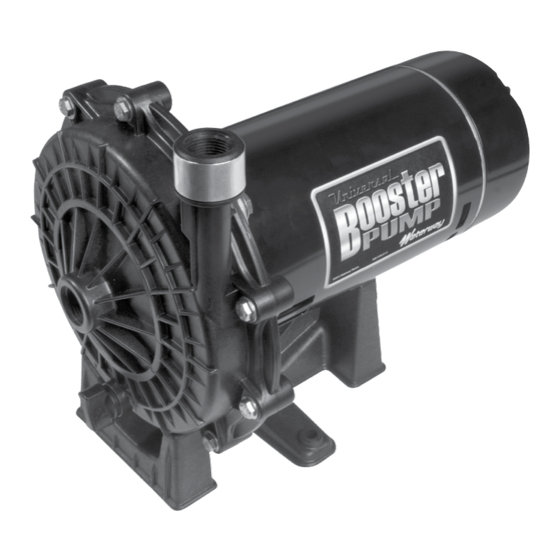

Page 3: Booster Pump
The starting current of the booster pump motor may exceed 15 amps. It is recommended that a 20 amp service breaker be used for the pump. The booster pump motor is factory wired for 240 volts, but can be wired for either 120 or 240 volts. To rewire to 120 volt, follow the instructions on the name plate located on the back of the motor or the sizing plate on the side of the motor. -
Page 4: Typical Installation
• The booster pump inlet connection line should be at least 3/4” pipe. The supplied 3/4” barb fitting is designed to work with the Waterway supplied reinforced hose. -
Page 5: Exploded View
Checking Water Flow After the system is plumbed, verify water flow to the booster pump by turning on the filtration pump and disconnecting the inlet supply line at the pump. Water should flow from the line. If there is no flow: •...
