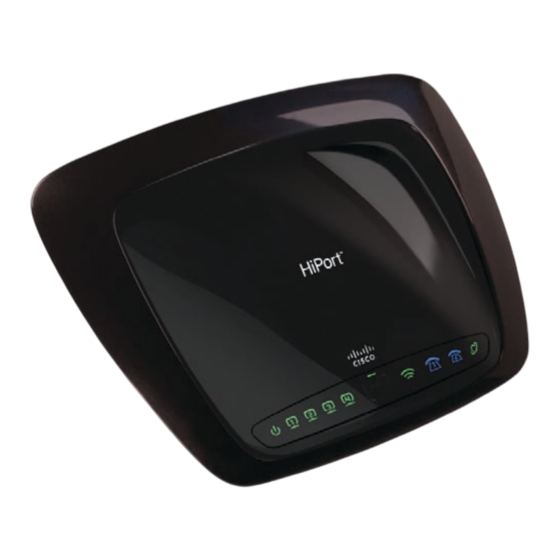

Summary of Contents for Cisco T-Mobile HIPORT+
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Product Overview Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Back Panel . - Page 3 Table of Contents Appendix C: Warranty Information Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Appendix D: Regulatory Information FCC Statement .
- Page 4 .linksys .com/glossary Network Security www .linksys .com/security Copyright and Trademarks Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems, Inc . and/or its affiliates in the U .S . and certain other countries . Copyright © 2008 Cisco Systems, Inc .
-
Page 5: Chapter 1: Product Overview
Overview Chapter 1 Back Panel Chapter 1: Product Overview Front Panel Reset The Reset button serves two purposes . The HiPort +™ LEDs are located on the front panel . You can restore its factory default settings or reboot the HiPort . To restore the factory default •... -
Page 6: Chapter 2: Wireless Security Checklist
Wireless Security Checklist Chapter 2 Chapter 2: 4. Enable encryption Wireless Security Checklist Encryption protects data transmitted over a wireless network . Wi-Fi Protected Access (WPA/WPA2) and Wired Wireless networks are convenient and easy to install, so Equivalency Privacy (WEP) offer different levels of security homes with high-speed Internet access are adopting them for wireless communication . -
Page 7: Chapter 3: Installation
Installation Chapter 3 Chapter 3: Installation SIM Card Installation To install the SIM card, follow these steps: Before connecting the HiPort+, turn it over . Insert a SIM Card Cover Closed . coin into the the SIM card cover slot . Press on the coin and the cover will open . -
Page 8: Connections
Installation Chapter 3 Connect a standard RJ-11 phone cable to the HiPort+’s Connections Phone port . This port should correspond to the SIM slot into which the SIM card was installed . Then connect the other end to a telephone . If you have a second Power down your network devices . -
Page 9: Table Or Wall Mount Instructions
Installation Chapter 3 Table or Wall Mount Instructions Follow these instructions: Determine where you want to mount the HiPort+ . Horizontal Placement Make sure that the wall you use is smooth, flat, dry, and sturdy . Also make sure the location is within reach The HiPort+ can be placed on a level surface near an of an electrical outlet . -
Page 10: Chapter 4: Configuration
Configuration Chapter 4 Chapter 4: Setup > Basic Setup Configuration The Basic Setup screen is the first screen you see when you access the web-based utility . For details on connecting the HiPort+, please refer to the Installation chapter . This chapter will describe each screen of the web-based utility and each screen’s key functions . - Page 11 Configuration Chapter 4 Connect on Demand: Max Idle Time through a dynamic IP address . (This option usually applies You can configure to cable connections .) the HiPort+ to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time) . If your Internet connection has been terminated due to inactivity, Connect on Demand enables the HiPort+ to Internet Connection Type >...
-
Page 12: Network Setup
Configuration Chapter 4 Connect on Demand: Max Idle Time Optional Settings You can configure the HiPort+ to cut the Internet connection after it has been Some of these settings may be required by your ISP . Verify inactive for a specified period of time (Max Idle Time) . If with your ISP before making any changes . -
Page 13: Setup > Ddns
Configuration Chapter 4 Static DNS 1-3 The Domain Name System (DNS) is how the Internet translates domain or Website names into Internet addresses or URLs . Your ISP will provide you with at least one DNS Server IP Address . You can enter up to three DNS Server IP Addresses here . -
Page 14: Setup > Mac (Address) Clone
Configuration Chapter 4 Setup > MAC (Address) Clone Every computer hardware device, including the network adapter of your computer has a unique code called a MAC address . Some Internet Service Providers (ISPs) require you to register this address with them in order to access the Internet . -
Page 15: Setup > Advanced Routing
Configuration Chapter 4 Setup > Advanced Routing WAN (Internet) This option enables dynamic routing for the WAN side . The Advanced Routing screen allows you to configure the Both This option enables dynamic routing for the WAN dynamic and static routing settings . and LAN connections . -
Page 16: Wireless > Basic Wireless Settings
Configuration Chapter 4 Wireless > Basic Wireless Settings Wireless > Wireless Security The basic settings for wireless networking are set on this The Wireless Security settings configure the security of screen . your wireless network . There are six wireless security mode options supported by the HiPort+: WPA Personal, WPA Enterprise, WPA2 Personal, WPA2 Enterprise, RADIUS, and WEP . - Page 17 Configuration Chapter 4 server is connected to the HiPort+ .) WPA2 Enterprise This option features WPA2 used in coordination with a RADIUS server . (This should only be used when a RADIUS server is connected to the HiPort+ .) Security Mode > WPA Enterprise WPA Algorithm WPA supports two encryption methods, TKIP and AES, with dynamic encryption keys .
-
Page 18: Wireless > Wireless Mac Filter
Configuration Chapter 4 Wireless > Wireless MAC Filter IMPORTANT: If you are using WEP encryption, always remember that each device in your Wireless access can be filtered by using the MAC addresses wireless network MUST use the same WEP of the wireless devices transmitting within your network’s encryption method and encryption key, or else radius . -
Page 19: Wireless > Advanced Wireless Settings
Configuration Chapter 4 Wireless > Advanced Wireless Settings CTS Protection Mode CTS (Clear-To-Send) Protection Mode should remain disabled unless you are having severe This Wireless > Advanced Wireless Settings screen is used problems with your Wireless-G products not being able to set up the HiPort+’s advanced wireless functions . -
Page 20: Security > Firewall
Configuration Chapter 4 Security > Firewall Security > VPN The Firewall screen offers a firewall and filters that block The VPN Passthrough screen allows you to allow VPN specific Internet data types . tunnels using IPSec, L2TP, or PPTP protocols to pass through the HiPort+ . -
Page 21: Access Restrictions > Internet Access
Configuration Chapter 4 Access Restrictions > Internet Access affected by the policy . The List of PCs screen will appear . You can select a PC by MAC address or IP The Internet Access screen allows you to block or allow address . -
Page 22: Applications & Gaming > Port Range Forward
Configuration Chapter 4 Applications & Gaming > Port Range Applications & Gaming > Port Triggering Forward This screen instructs the HiPort+ to watch outgoing data for specific port numbers . The IP address of the computer Port range forwarding sets up public services on your that sends the matching data is remembered by the network, such as web servers, FTP servers, e-mail servers, HiPort+, so that when the requested data returns through... -
Page 23: Applications & Gaming > Dmz
Configuration Chapter 4 Applications & Gaming > DMZ Applications and Gaming > QoS The DMZ screen allows one local user to be exposed to Quality of Service (QoS) ensures better service to the Internet for use of a special-purpose service such as high-priority types of network traffic, which may Internet gaming and videoconferencing . -
Page 24: Administration > Management
Configuration Chapter 4 Administration > Management Priority Select High or Low in the Priority column . The HiPort+’s four ports have been assigned low priority by When you click the Administration tab, you will see the default . Management screen . This screen allows you to change Flow Control If you want the HiPort+ to control the the HiPort+’s access settings and configure the UPnP... -
Page 25: Administration > Log
Configuration Chapter 4 Administration > Log Remote Router Access Remote Management To permit remote access of the When you click the Administration tab, you will see the HiPort+, from outside the local network, select Enable . Log screen . It provides you with a log of all incoming Otherwise, keep the default setting, Disable . -
Page 26: Administration > Diagnostics
Configuration Chapter 4 available on the right side of the screen . Help information is available on the right side of the screen . Administration > Diagnostics Administration > Factory Defaults The diagnostic tests (Ping and Traceroute) allow you to The Factory Defaults screen allows you to restore the check the connections of your network devices, including HiPort+’s configuration to its factory default settings . -
Page 27: Administration > Firmware Upgrade
Configuration Chapter 4 Administration > Config Management Administration > Firmware Upgrade The Firmware Upgrade screen allows you to upgrade the HiPort+’s firmware . Do not upgrade the firmware unless you are experiencing problems with the HiPort+ or the new firmware has a feature you want to use . Administration >... -
Page 28: Status > Router
Configuration Chapter 4 Status > Router DNS1-3 Shown here are the DNS (Domain Name System) IP addresses currently used by the HiPort+ . The Router screen displays information about the HiPort+ Shown here is the MTU (Maximum Transmission and its current settings . The on-screen information will Unit) setting for the HiPort+ .
