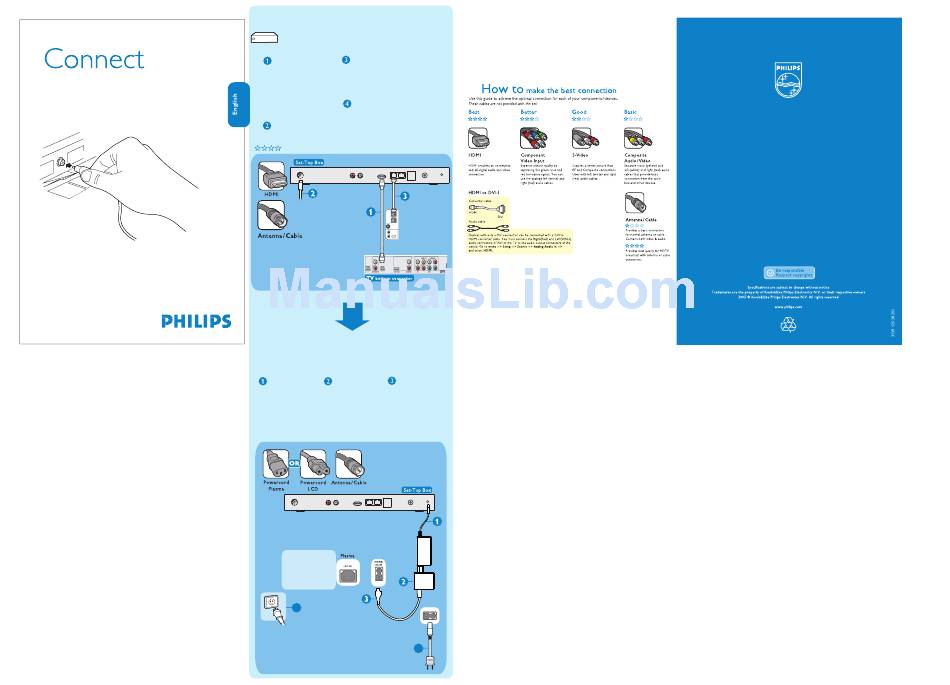

Philips RJ12 Connecting Manual

1. Connect
Antenna and Display Cables
Note: Some TV sets may already have the cables connected.
Use a RJ12 Data cable to
Use a HDMI connector cable to
connect the Set-Top box to the
connect the Set-Top Box to the
TV. Attach one end of the RJ12
TV. Attach one end of the
Data cable to the jack labeled
HDMI cable to the jack labeled
DISPLAY on the Set-Top box
HDMI Out on the Set-Top
and the other end to the jack
Box and the other end to the
labeled DATA1 on the TV.
HDMI jack on the TV. If the TV
has 2 HDMI jacks, ensure that
After connecting all the cables,
the cable is connected to the
proceed to the next section and
jack labeled HDMI 1 on the
connect the Power cables.
TV.
Connect the antenna cable to
the antenna input of the
Set-Top Box.
RF IN AUDIO OUT CONTROL NETWORK DIGITAL AUDIO
HDMI OUT
DISPLAY PPV
2. Connect
Power Cables
Note: Some TV sets may already have the cables connected.
Connect the power cable
Connect the power cable Attach the Mains Power
from the Mains Power
from the External Power Splitter to the External
Adaptor to the jack Power Adaptor. Splitter to the AC-Inlet
labeled Power on the on the TV.
Set-Top Box.
Connect the main power
' ( After connecting all
cord (packed with your cables and devices, plug in
TV) into the opening on the main power cord to
the Mains Power Splitter. the wall outlet and switch
on the TV.
RF IN AUDIO OUT CONTROL NETWORK DIGITAL AUDIO POWER
HDMI OUT
DISPLAY PPV
26" 32" 37"
CAUTION : This is a
42" LCD
Class 1 apparatus. It
must be connected to a
MAINS socket out with
a protective earthing
connection.
5
4
3.
POWER
