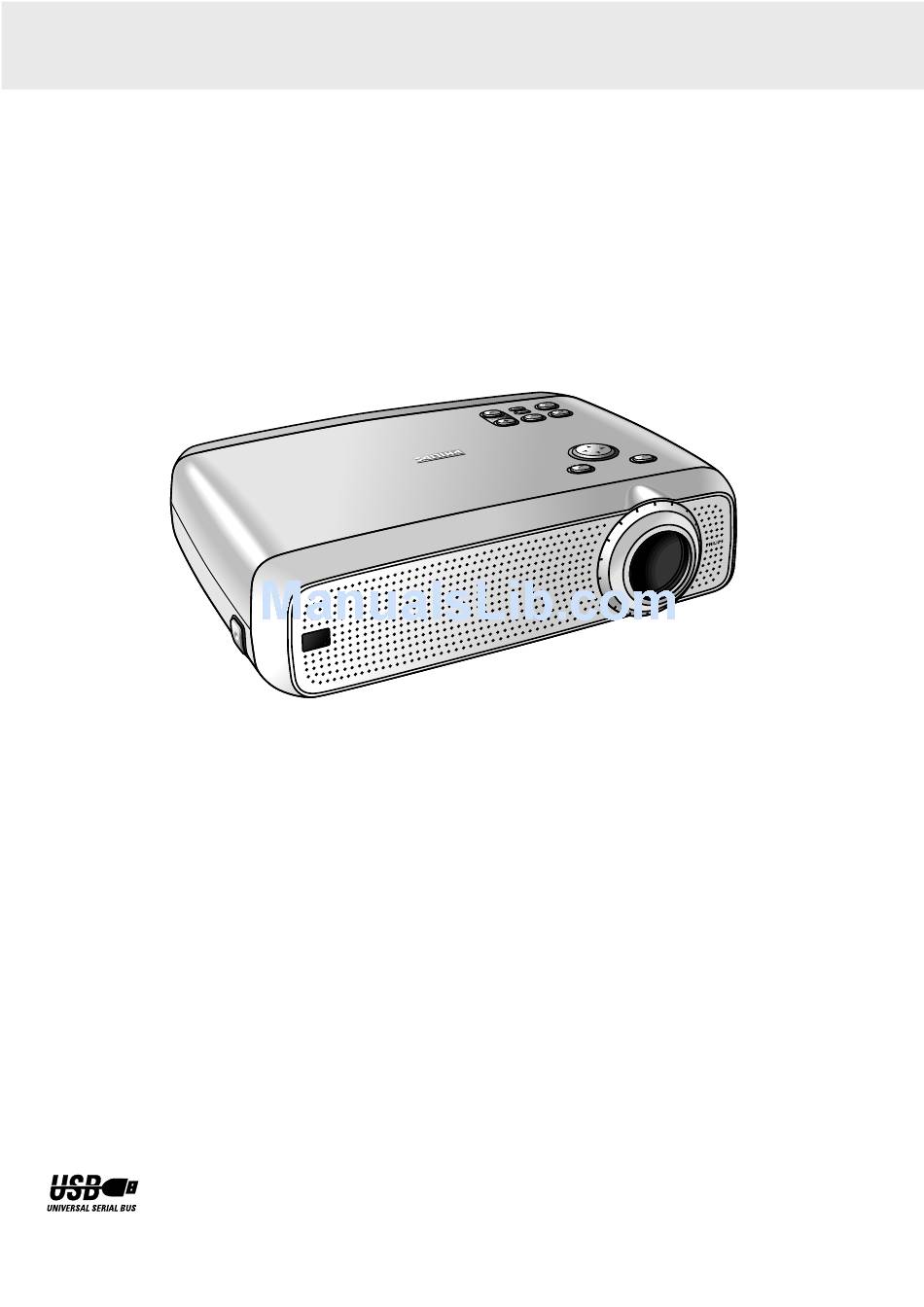

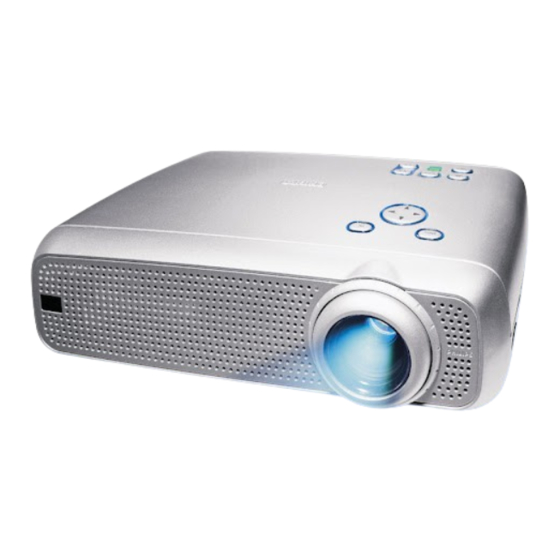

- Page 1 Philips multimedia projector cBright 2 Series User guide English...
-
Page 2: Controls And Connections
0. Controls and connections Laser Left Left MOUSE Mouse Right Right Volume VOLUME Menu MENU Stand by Stand by AV MUTE AV Mute SOURCE Source D-FREEZE D-Freeze D-ZOOM D-Zoom Laser pointer remote control Audio out Audio out Data audio-in Data audio-in Compact remote control fig. -
Page 3: Table Of Contents
NOTE: This Philips projector uses three LCD (Liquid Crystal Display) panels.These panels contain a total of 1,440,000 (for SVGA projectors) or 2,359,296 (for XGA projector) pixels. As with any equipment, certain tolerances apply to the performance specification of the product. -
Page 4: Important Safeguards
Do not use a chemical duster or polisher-cleaner because it can adversely affect the unit and peel the paint. 3. Do not use attachments not recommended by PHILIPS, as they may cause hazards. 4. Do not use the projector near water- for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, etc. -
Page 5: Projector Features
7. High reliability and excellent brightness The Philips UHP lamp guarantees long life, excellent brightness over the lamp’s lifetime and excellent colour reproduction. Furthermore, the projector has an excellent brightness- and colour uniformity over the entire picture. -
Page 6: Functional Overview
4 Standby To switch the projector in or out of the power standby mode. When the projector is in standby mode, the ring around the button lights up red. When the projector is operating, the ring is green. -
Page 7: Connections
5. Functional Overview On compact remote control (fig. 3) 1 Stand by On To switch the projector in or out the the power standby mode. 2 Mouse Left/Right Function as the Left and Right mouse keys of your PC. 3 – Volume + To adjust the volume. -
Page 8: Set Up
Mains supply 1. Insert the mains lead into the projectors Power socket and connect it to the wall socket. Note: The standby indicator lights up red, the projector is now in the Power/Standby mode. 2. Remove the lens cap. 3. Press the Stand by button to switch on the projector. -
Page 9: Moving The Projector
‘Keystone Correction’ option in the ‘Settings’ menu of the On Screen Display (OSD) menu. Moving the projector 1. Press the Stand by On button to put the projector in stand by. The standby indicator lights up red. 2. Wait until the cooling fan has stopped (about 3 minutes after the projector has been switched off) and disconnect the mains lead and all other cables. -
Page 10: Installation
RCA/Jack adapter Video/computer cables and adapter These accessories (1 to 5) are supplied with the product for connecting the projector to computer/AV equipment. The numbers in the left-hand column correspond with the numbers in the connection diagrams on the following pages. -
Page 11: Connecting To A Computer
If your computer is equipped with a 3 row connector no adaptor is needed. 2. Connect the USB (upstream) socket (b) of the projector to the USB downstream port of the computer. For this, use the VGA/USB cable (1) supplied. -
Page 12: Connecting To Video Equipment
Video 1. Connect the Video out socket of a VCR, Laser Disc player, video camera or TV to the Video socket (e) of the projector. For this, use the video/audio connection cable (2) supplied. 2. Connect the Audio out L/R sockets of the VCR, Laser Disc player, video camera or TV to the Video audio-in socket (c) of the projector. -
Page 13: Connecting To Component- And Hdtv-Video Equipment
Optional 1. Connect the 15 pin connector of an optional component/HD input cable to the Data in terminal (h) of the projector. 2. Connect the other end of the cable to the appropriate outputs of your Component- or HDTV-video equipment (e.g. -
Page 14: Connecting To An External Monitor
Connect the Audio in sockets of the monitor to the Audio out socket (a) of the projector, using the audio/video connection cable (2) supplied. – One external monitor or projector can be connected at a time. – For further details on the operation with On Screen Displays see chapter ‘8. Operation’. -
Page 15: Operation
8. Operation General 1. Press the Stand by button to switch on the projector. – The Standby indicator lights up green and the start up screen appears for several seconds. – When the average lamplife time has almost expired and less than 100 hours remain, the message ‘Warning:... - Page 16 – Phase minimises picture imperfections. When connecting the projector to your PC for the first time, be sure to adjust the phase control for optimal readability of the projected text. Tip for Windows users: To adjust size and phase correctly: 1.
-
Page 17: Display And Picture Control
8. Operation Note: A(audio)/V(video)-mute can only be selected with the AV mute button on the projector or on the remote control. A/V mute then appears on the screen. For example: The following adjustments procedures follow a slightly different sequence of actions, or may need some further explanation. -
Page 18: Audio Control
8. Operation Mirror The projector can be used in various positions with respect to the viewers and the projection screen. With the Mirror function the picture can be displayed in a way that is suitable for your specific application. Front projection... -
Page 19: Other Settings
The projector is equipped with the following functions to optimize its use and handling: Start-up screen This function allows you to display or suppress the default Philips start-up screen upon the projector’s start up and to select and store a start up screen of your own choice. -
Page 20: Maintenance
Cleaning the dust filter Important! Make sure to clean the dust filter regularly. 1. Press the Stand by On button to switch off the projector. – The standby indicator lights up red. 2. Wait until the cooling fan has stopped (about 3 minutes and disconnect the mains lead and all other cables. -
Page 21: Lamp
2. Wait 5 minutes for the lamp to cool down and the cooling fan to stop and disconnect the mains lead and all other cables. 3. Turn the projector over. Never place the projector on the side where the connections are located! 4. -
Page 22: Resetting The Lamplife Time
10. Tighten the screws. 11. Replace the cover and tighten the screws. 12. Plug the projector back in by inserting the mains lead in the Mains socket. 13. Press the Stand by On button to switch on the projector. -
Page 23: Troubleshooting
10. Troubleshooting If a fault occurs, first check the points listed below before taking the projector for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service organisation. Warning: Under no circumstances should you try to repair the projector yourself as this could invalidate the guarantee.
