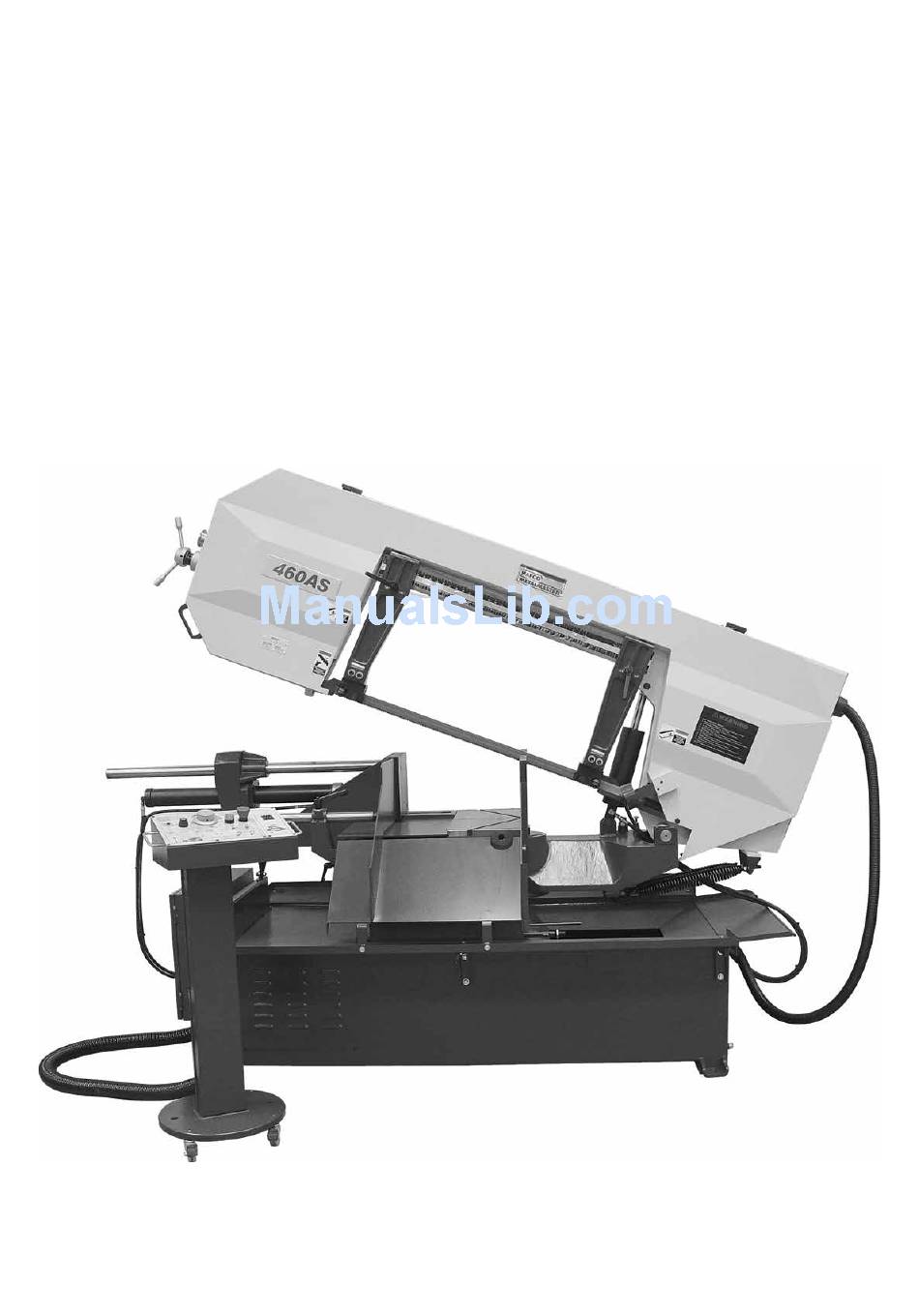

Instruction Manual for BS-460AS (B035) 31/03/2016 INSTRUCTION MANUAL BS-460AS Dual Mitre, Swivel Head Metal Cutting Band Saw (415V) 600 x 440mm (W x H) Rectangle B035... -
Page 2: Table Of Contents
Instruction Manual for BS-460AS (B035) 31/03/2016 TABLE OF CONTENTS ACCIDENT PREVENTION AND SAFETY REGULATION ..............1 1.1 Advice for the operator......................... 1 1.2 The electrical equipment according to European Standard" CENELEC EN 60204-1"......1 1.3 Warning labels ............................. 1 1.4 Emergencies according to European Standard “CENELEC EN 60204-1” .......... 1 MACHINE TRANSPORTATION AND INSTALLATION............... -
Page 3: Accident Prevention And Safety Regulation
Instruction Manual for BS-460AS (B035) 31/03/2016 - In the event of a power cut, the specific start-up ACCIDENT PREVENTION AND button must be reset. SAFETY REGULATION - The machine has been tested in conformity with This machine has been designed to comply with... -
Page 4: Machine Transportation And Installation
Instruction Manual for BS-460AS (B035) 31/03/2016 Minimum requirements for housing the MACHINE TRANSPORTATION AND machine INSTALLATION - Main voltage and frequency must comply with the machine’s motor requirements. Machine dimensions - Environment temperature should fall within (-10ºC to + 50 ºC). -
Page 5: Install The Outlet Tray, Length Stop Device And Mobile Coolant Trays
Instruction Manual for BS-460AS (B035) 31/03/2016 Install the outlet tray, length stop device Remove mobile cover by lift handle up and pull it and mobile coolant trays. out from the base as showing direction. Install the outlet tray and stop bar on to the... -
Page 6: Deactivation Of Machine
Instruction Manual for BS-460AS (B035) 31/03/2016 Deactivation of machine D. Operation mode switch – selects either If the machine is to be out of use for a long period, automatic or manual operation mode. it is advisable to proceed as follows: D1. -
Page 7: The Saw Bow
Instruction Manual for BS-460AS (B035) 31/03/2016 The saw bow Blade broken micro switch Machine parts consisting of drive members (gear motor, variable speed motor, and flywheels), tightening and guide (blade tightening slide, blade This machine is equipped with automatic power guide blocks) of tool. -
Page 8: 3.10 Open Blade Cover Safety Device
Instruction Manual for BS-460AS (B035) 31/03/2016 3.10 Open Blade Cover Safety Device 3.13 Attached coolant device An attached coolant device that is screwed on the front vise jaw for supply enough coolant to the When blade cover is open, close the blade cover cutting material. -
Page 9: Thrust Roller Adjustment
Instruction Manual for BS-460AS (B035) 31/03/2016 Thrust Roller Adjustment Adjusting the cutting precision 1. Disconnect machine from the power source. 2. Loosen two hex socket cap screws (X) The cutting precision has been set at the factory. 3. Move guide seat (Y) up or down until a This adjustment should only be accomplished by clearance of .003"... -
Page 10: Blade Tracking Adjustment (Hydraulic Blade Tension Type)
Instruction Manual for BS-460AS (B035) 31/03/2016 Blade tracking adjustment (Hydraulic materials may require different clamping force. blade tension type) The clamping pressure may be adjusted by a This adjustment must be accomplished by knob at the base of the pressure gauge assembly. -
Page 11: Positioning The Vise
Instruction Manual for BS-460AS (B035) 31/03/2016 This machine is equipped with a numeral switch Q - Check that the saw bow is raised to clear the to set the saw bow an efficient return height. If vise fixed vise jaw. -
Page 12: Selecting Automatic And Manual Operation
Instruction Manual for BS-460AS (B035) 31/03/2016 - Disconnect the machine from power supply. - Open the belt cover. Remove 4 screws from the top. Remove 1 screw from the front. Remove 8 screws from the cover. - Turn the dial counter-clockwise to open the pulley discs and loosen the belt. -
Page 13: Laser Guide Device (Optional)
Instruction Manual for BS-460AS (B035) 31/03/2016 Blade tension handle Loosen Laser guide device Tighten - Remove the old blade from both wheels and out of each blade guide. Caution: Even dull blades are sharp to the skin! Use extra caution handling band saw... -
Page 14: Operation Cycle
Instruction Manual for BS-460AS (B035) 31/03/2016 Stopping or emergency stopping There are two ways to stop the machine in an event of an emergency or improper operation. - For most situations, use the stop switch 6.1 J. Using the stop switch 6.1 J will not reset the controls and your operation setting. -
Page 15: Routine And Special Maintenance
Instruction Manual for BS-460AS (B035) 31/03/2016 Special maintenance ROUTINE AND SPECIAL Special maintenance must be conducted by MAINTENANCE skilled personnel. We advise contacting your The maintenance jobs are listed below, divided nearest dealer and/or importer. Other protective into daily, weekly, monthly and six-month intervals. -
Page 16: Technical Characteristics
Instruction Manual for BS-460AS (B035) 31/03/2016 TECHNICAL CHARACTERISTICS Table of cutting capacity and technical details NOISE TESTS The test was held under environmental noise levels of 65db. Noise measurements with the machine operating unload was 71db. Noise level during the cutting of mild carbon steel was 73db. - Page 17 Instruction Manual for BS-460AS (B035) 31/03/2016...
- Page 18 Instruction Manual for BS-460AS (B035) 31/03/2016...
- Page 19 Instruction Manual for BS-460AS (B035) 31/03/2016...
-
Page 20: Part List
Instruction Manual for BS-460AS (B035) 31/03/2016 PART LIST Part Part Description Size No. Q’ty Description Size No. Q’ty Base Fuse Seat 10x38-1P Hex. Cap Bolt M8x20 Fuse Seat ASK2S/(5X20-1P) Spring Washer Fuse Seat 6X30-1P (Not shown, Non CE) Washer Transformer... - Page 21 Instruction Manual for BS-460AS (B035) 31/03/2016 PART LIST Part Part Description Size No. Q’ty Description Size No. Q’ty Handle M8x30 Hex. Socket Cap Screw M8x20 Swiveling Base Hex. Cap Bolt M5X15 Set Screw M8x20 Wire Connecter Swiveling Connect Base Shaft...
- Page 22 Instruction Manual for BS-460AS (B035) 31/03/2016 PART LIST Part Part Description Size No. Q’ty Description Size No. Q’ty Adjusting Part Spring Washer Set Screw M8x8 Washer C Ring Set Screw M8x16 Shaft Adjustable Bracket-Left 5x5x20 Lock Handle M12x50 Lock Block Hex.
- Page 23 Instruction Manual for BS-460AS (B035) 31/03/2016 PART LIST Part Part Description Size No. Q’ty Description Size No. Q’ty Drive Wheel Bearing 51203 Washer Bolt Sleeve Flat Head Hex. Soc. Screw M12x25 5x5x30 Hex. Socket Cap Screw M12x70 Set Screw M8x10...
- Page 24 Instruction Manual for BS-460AS (B035) 31/03/2016 PART LIST Part Part Description Size No. Q’ty Description Size No. Q’ty Hex. Socket Cap Screw M6x20L Set Screw 5/16”x5/16”L Adjusting Knob Washer Spring Spring Washer 3/8” Shaft Hex. Socket Cap Screw 3/8”x1”L Hex. Socket Cap Screw...
- Page 25 Instruction Manual for BS-460AS (B035) 31/03/2016...
- Page 26 Instruction Manual for BS-460AS (B035) 31/03/2016...
- Page 27 Instruction Manual for BS-460AS (B035) 31/03/2016...
- Page 28 Instruction Manual for BS-460AS (B035) 31/03/2016...
- Page 29 Instruction Manual for BS-460AS (B035) 31/03/2016...
- Page 30 Instruction Manual for BS-460AS (B035) 31/03/2016...
