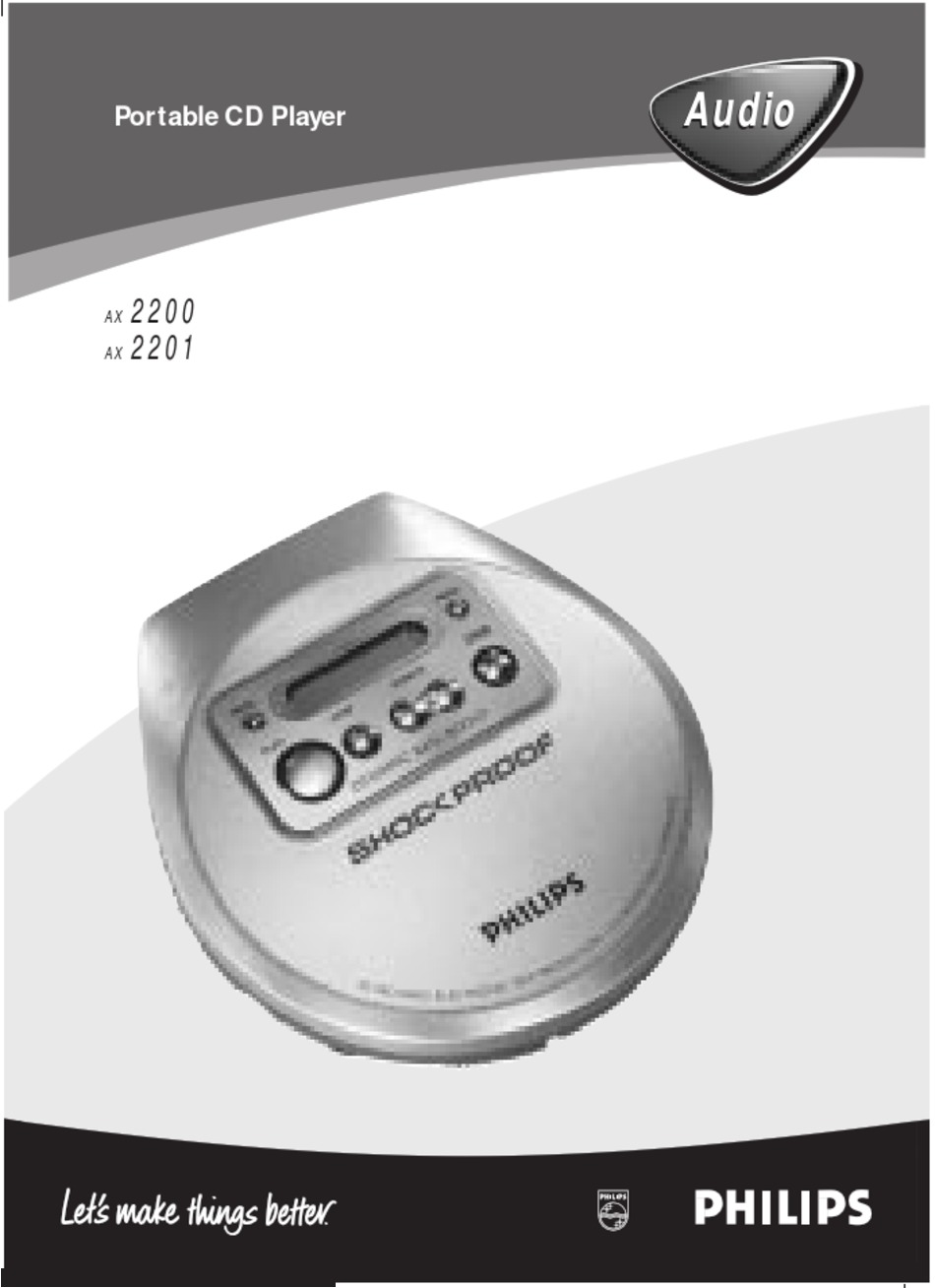

English Français Español Nederlands LASER PRODUCT Portable CD Player Meet Philips at the Internet http://www.philips.com CLASS 1 AX2200 AX2201 Printed in China...
Page 5
English CONTROLS / POWER SUPPLY CONTROLS ( see figure 1 ) 1 OPEN 2 ...opens the CD lid 2 ∞ ...skips and searches CD tracks backwards 3 § ...skips and searches CD tracks forwards 4 DBB...switches the bass enhancement on and off. This button also switches acoustic feedback (the beep) on/off when it is pressed for more than 2 seconds 5 PROG...programs tracks and reviews the program...
Page 6
Batteries (supplied or optionally available) You can use the following batteries with this CD-player: • normal batteries type LR6, UM3 or AA (preferably Philips), or • alkaline batteries type LR6, UM3 or AA (preferably Philips). Notes:– Old and new or different types of batteries should not be combined.
Page 7
GENERAL INFORMATION / CD PLAY In-car use (connections supplied or optionally available) Only use the AY 3545 (4822 219 10033) or AY 3548 (3140 118 71890) car voltage converter (4.5 V DC, positive pole to the centre pin) and the AY 3501 cassette.
Page 8
Playing a CD This CD-player can play all kinds of Audio Discs such as CD-Recordables and CD-Rewritables. Do not try to play a CD-ROM, CDi, VCD, DVD or computer CD. 1 Push the OPEN 2 slider to open the player. 2 Insert an audio CD, printed side up, by pressing the CD onto the hub.
Page 9
FEATURES Programming track numbers You can store up to 30 tracks to play in a program. A single track may be stored more than once in the program. While playback is stopped, select a track with ∞ or §. 2 Press PROG to store the track. yPROG lights up;...
Page 10
Selecting different playing possibilities-MODE It is possible to play tracks in random order, to repeat a single track or the entire CD, and to play the first few seconds of each track. 1 Press MODE during playback as often as required in order to activate one of the following ‘modes’.
