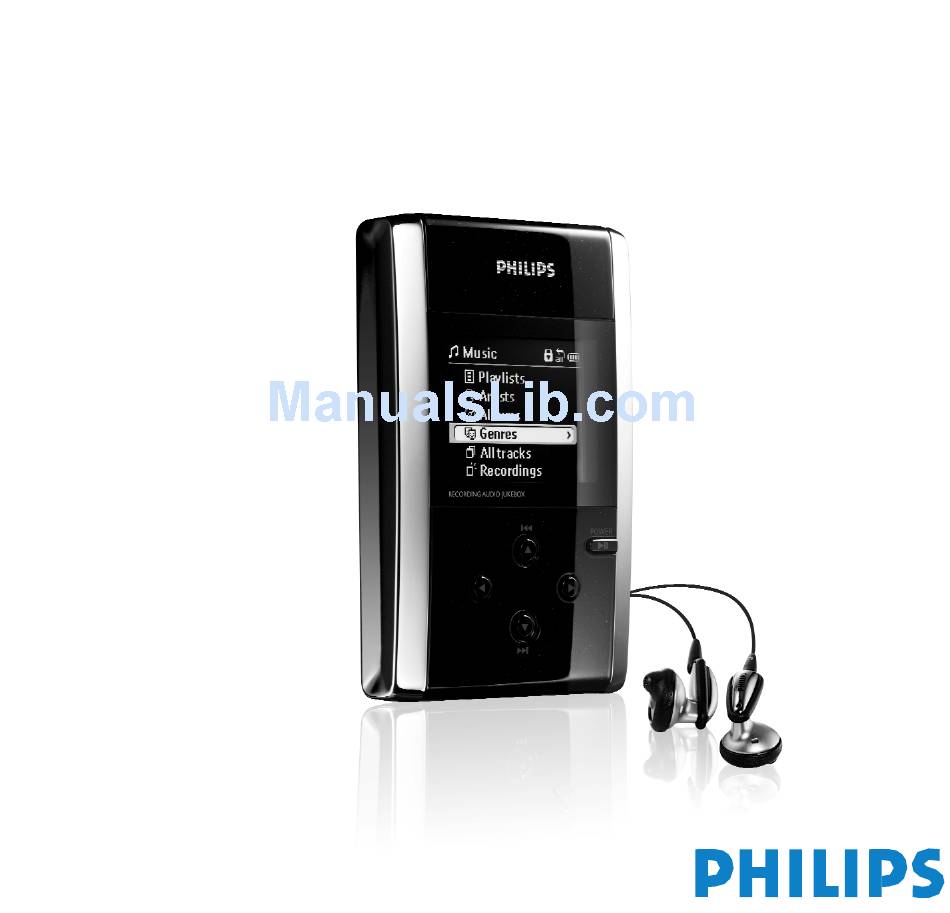

- Page 1 user manual manuel d’utilisation | manual del usuario gebruikershandleiding | benutzerhandbuch manual do usuário recording audio jukebox...
- Page 2 We hope you enjoy your hdd. Please visit: www.philips.com/support and enter your product name • FAQ Frequently Asked Questions • Latest user manuals and PC software manuals • Firmware upgrade files for hdd • Latest PC software downloads to view:...
-
Page 3: Quick Start
Quick Start Charge the battery Connect the supplied multi-voltage adapter /charger to the 5V DC jack on hdd and the main power supply. Charge 2 hours for 80% or 4 hours for 100% battery power. ( Battery life may vary according to use. Install DIGITAL MEDIA MANAGER (DMM) a. - Page 4 Organize and transfer music via DMM a. Launch DMM on PC from Windows desktop or Start menu. b. Use DMM to organize your music. c.Transfer music files from your PC to your hdd. Note: DMM cannot rip MP3 / WMA files from CDs.You will need additional software to do this.
-
Page 6: Overview Of Connections And Controls
Overview of connections and controls 5V DC OPTICAL/ LINE IN VOLUME MENU/ HOLD LIBRARY 3 / ¡1 4 / 2™ USB cable connector AC converter jack Optical or line-in jack Headphones and remote control jack Microphone for voice recordings Volume control For menu options / key locking For music library options On / Off and Play / Pause... - Page 7 Playback Press LIBRARY for music library options. Press to scroll up or Press for next or for previous levels of library. Press to play or pause your selection. The 2;, 3 and 4, keys are multi-functional.They work according to how you press them: press halfway down, press down fully, or press and hold.
- Page 8 Using hdd controls Troubleshooting Reset hdd Restore hdd factory settings Basic Operation Switch hdd on / off Call up library options Lock keys / release locks on hdd Press and hold Go to different levels of menu Scrolling and browsing Play music Pause music Fast forward in a track...
-
Page 9: Customizing Settings
Customizing settings Press MENU/HOLD for settings options. Press for your option. Press for next or Press to confirm your selection by checking Press MENU /HOLD shown on hdd's display. Advanced settings and actions Repeat / Shuffle Play music tracks randomly ( DBB Bass Boost Enable or disable Dynamic Bass Boost Add to Playlist... - Page 10 Personalizing Playback Order by Playlists Press LIBRARY for music library options; your option; for next or Press MENU/HOLD for playlist menu options for your desired option. Scroll to confirm Add to Playlist, New Playlist or Erase. Press MENU/HOLD with DMM. Making Recordings on hdd Press MENU/HOLD...
-
Page 11: Remote Controls
Remote Controls Connect the remote control to the headphone jack and your earphones to the other end of the remote control. Use the remote keys as you would use hdd controls during playback, except for menu displays or during recording. Using hdd as an External Hard Disk hdd can be used as an external hard disk for storage and transfer of any data files. -
Page 12: About Digital Rights Management
About PHILIPS Digital Media Manager PHILIPS Digital Media Manager (DMM) contains all the necessary software components you need to work properly with hdd.These include: MP3 and WMA transfer for playback on hdd. Paths and supporting links for DMM software and hdd firmware upgrades... -
Page 13: Basic Operation
Basic Operation Launching DMM Launch DMM on PC from Windows desktop or Start menu. Managing tracks Use drag and drop actions to move selected items between Library, HDD and Player. Highlight any item and press <delete> on your keyboard to erase. Managing playlists 1. - Page 14 The Main Screen: Library and HDD The DMM main screen comes with Library (which displays the contents of your Media Folders) and HDD (which displays the contents on your hdd), along with these buttons: Sorting tracks in Library and / or HDD Tracks Displaying contents according to name of track Albums...
- Page 15 DMM Actions and Settings These DMM buttons have a number of configurable options: ID Tag Track, Album, For editing the properties (e.g. track names, artist, album, etc.) of a track Artist, Genre, Year, Info Preferences Language For changing DMM's display language Upgrade For upgrading hdd firmware Library folder...
- Page 16 IMPORTANT: RETAIN YOUR ORIGINAL FILES! Please ensure that you retain the original files transferred to hdd. Philips is not responsible for any loss of content in the case if the product becomes damaged or the hard disk not readable. ENGLISH...
-
Page 17: Firmware Upgrades
Firmware upgrades For the best interaction between your hdd and your PC, check www.philips.com/support for the latest upgrades available. Make sure you connect hdd to your PC and to the main power supply. To upgrade firmware, click Preferences ➔ Download.This will bring you to the support site www.philips.com/support.You may need to enter the model number,... - Page 18 DMM upgrades For the best interaction between your hdd and your PC, check www.philips.com/support for the latest upgrades available. Close all applications, including DMM. Visit the support site www.philips.com/support. You may need to enter the model number, e.g. hdd to access the upgrade file. Make sure you save the file(s) in a folder on your PC.
-
Page 19: Troubleshooting
If a fault occurs, first check the points listed in the following pages. For further help and other troubleshooting tips, please also check out hdd FAQ at www.philips.com/support. If you are unable to find a solution by following these hints, consult your dealer or service center. - Page 20 Alternatively, exit DMM using Windows' task manager and restart DMM. Q. My hdd has short playback time. Over time, the internal rechargeable battery will become weaker. It is replaceable. Please contact your nearest Philips Service Center for a battery replacement. ENGLISH...
- Page 21 DMM.The database will be recreated automatically. If you continue to encounter problems, please consult your dealer or service center. For more information, visit www.philips.com/support. Q. How do I know how much free space I have? On your hdd, you can check your hdd free space from the menu options.
-
Page 22: Safety And Maintenance
Safety & Maintenance To get the most from your product, please also refer to the Safety & Warranty booklet supplied with this device for important safety instructions. About Operating and Storage Temperatures Operate hdd in a place where the temperature is always between 0 and 35º... -
Page 23: Using Your Headphones
Backup your files. Please ensure that you retain the original files that you have downloaded to hdd. Philips is not responsible for any loss of content in the case if the product becomes damaged or the hard disk not readable / legible. - Page 24 Using the Power Adapter /Charger Use only the AY3192 power adapter that came with hdd. Adapters for other electronic devices may look similar, but they may damage hdd. The only way to shut off power completely to your power adapter/charger is to disconnect it from the power source.
-
Page 25: Copyright Information
Copyright Information Unauthorized duplication and distribution of Internet/CD recordings violate copyright law and international treaties.You should use hdd and PHILIPS Digital Media Manager (DMM) software for personal use only. In the U.K and certain countries, the copying of material protected by copyright may require the permission of the copyright holders. -
Page 26: Technical Specifications
Technical Specifications (1) System Output power Frequency response lens casing material Connections Headphone & remote control USB 2.0 (USB 1.1 compatible) DC power supply Combined analogue / digital input: SPDIF Display 4-level grey scale 160 x128 pixels white backlight LED Storage Hard disk Low profile 1.8"... - Page 27 * It is not advised to run the device on battery power during USB activity. General Dimensions Weight PHILIPS reserves the right to make design and specification changes for prod- uct improvement without prior notice. All rights reserved. All trademarks and registered trademarks are the property of their respective owners.
- Page 28 RENEWED 90 DAY LIMITED WARRANTY...
- Page 29 © Koninklijke Philips Electronics N.V. 2003 All rights reserved. www.philips.com 3140 115 31532...
