Physical Check
Confirm that there are no broken parts and that the
unit is free of dents or scratches. If you find broken
parts, dents or scratches, notify your Panasonic sales
representative as soon as possible.
Hardware Start-up
Make the following connections to the rear panel of
the P2 Streaming server.
a) Connect a monitor to the VGA (VGA cable not
included.)
b) Connect Keyboard and mouse to USB 2.0 ports.
(Mouse & Keyboard not included)
c) Connect the Ethernet cable from a router to
Ethernet port.
d) Connect power cord.
SDI Video output connections
These connections vary, depending on model. AJ-
SRK001-4CH has 4 HD-SDI outputs.

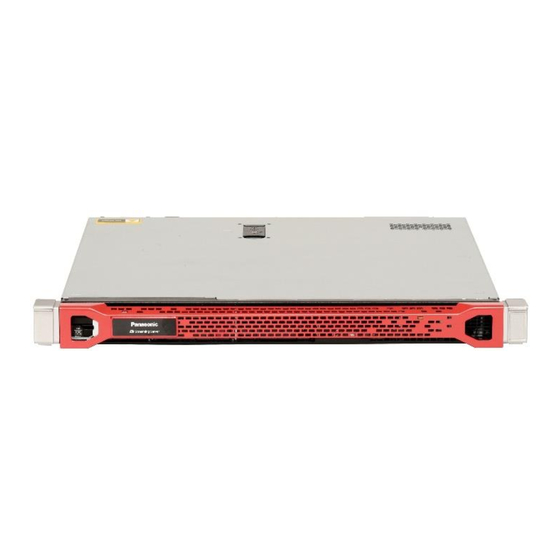

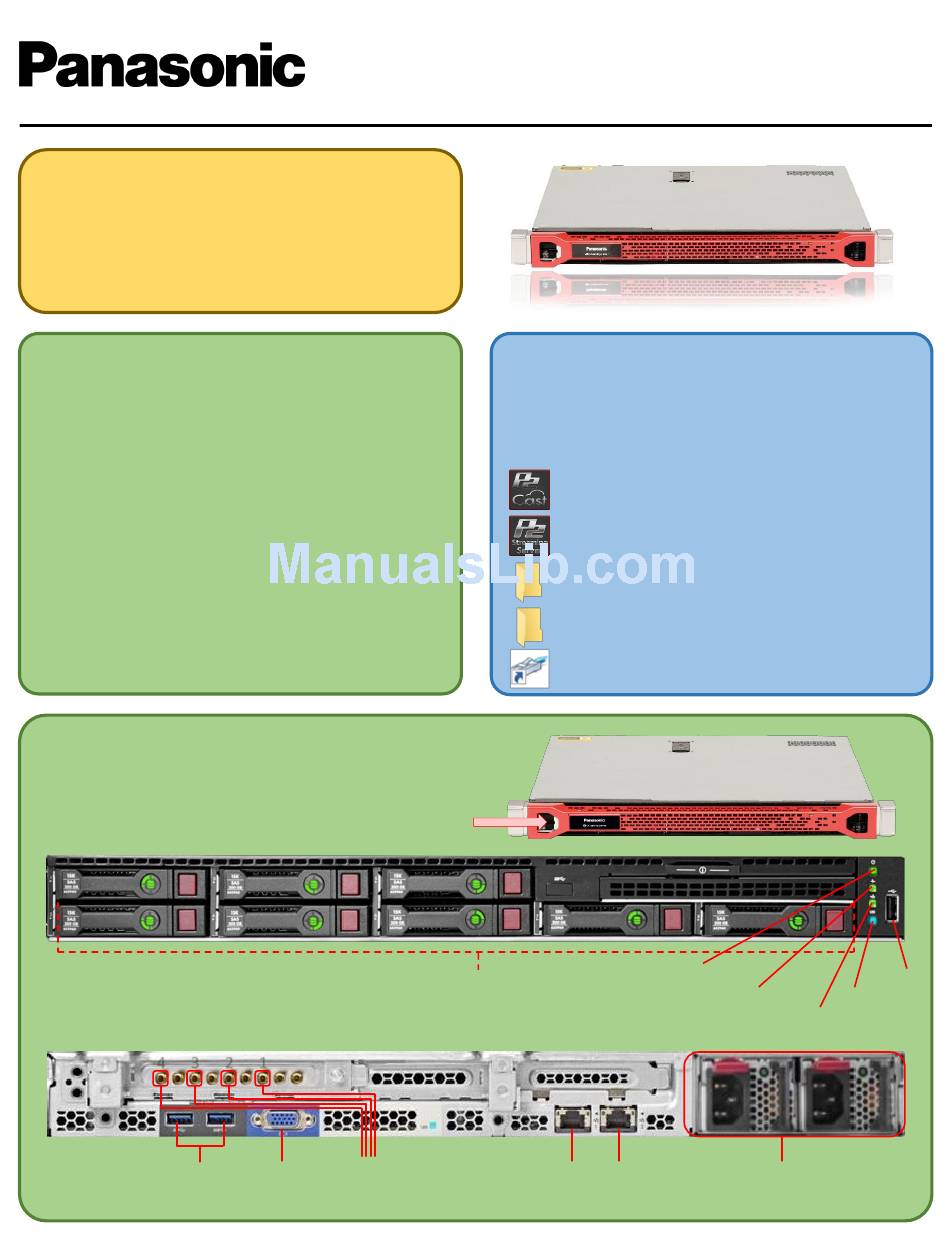

Front View
Front decorative Panel can be removed by
pushing on white latch left to Panasonic Logo.
Rear View
4
3
USB 3.0
2
1
VGA
SDI Outputs
Output
P2 Streaming Server AJ-SRK001-4CH
Quick-Start Guide
Part Number:
Software Start-up
P2 Streaming Server comes pre-installed with
Microsoft® Windows® Server 2012 R2 x64 and P2
Streaming Software. When the server is powered on,
windows opens desktop with needed files and shortcuts
P2Cast website shortcut
P2 Streaming Server Web Application shortcut
Activation Folder
NAT Checker Application
Simple Port Tester
Solid State Drive Bays
Ethernet 1
Version:01.00
(Required for P2SS Activation/De-Activation)
Power
Button
Health LED
Ethernet 2
Redundant Power Supply
UID LED
USB 2.0
Network
Activity
LED
