In order to make sure users can quickly use LVP515 serial LED video processor, we prepared
the<LVP515 serial quick user guide>. About LVP515 deeply setup, adjustment and operation,
please refer to <LVP515 serial user manual>.

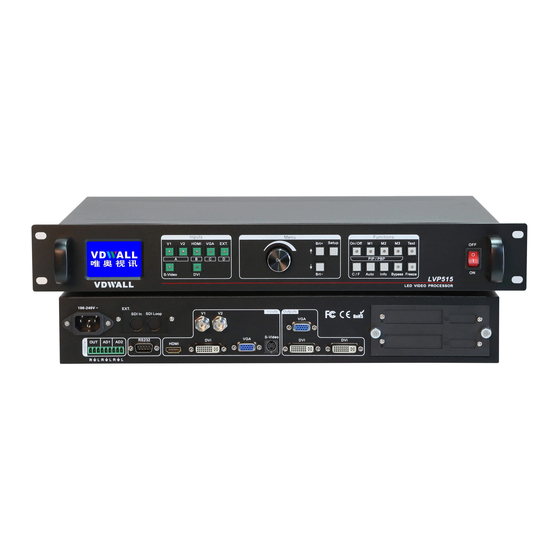

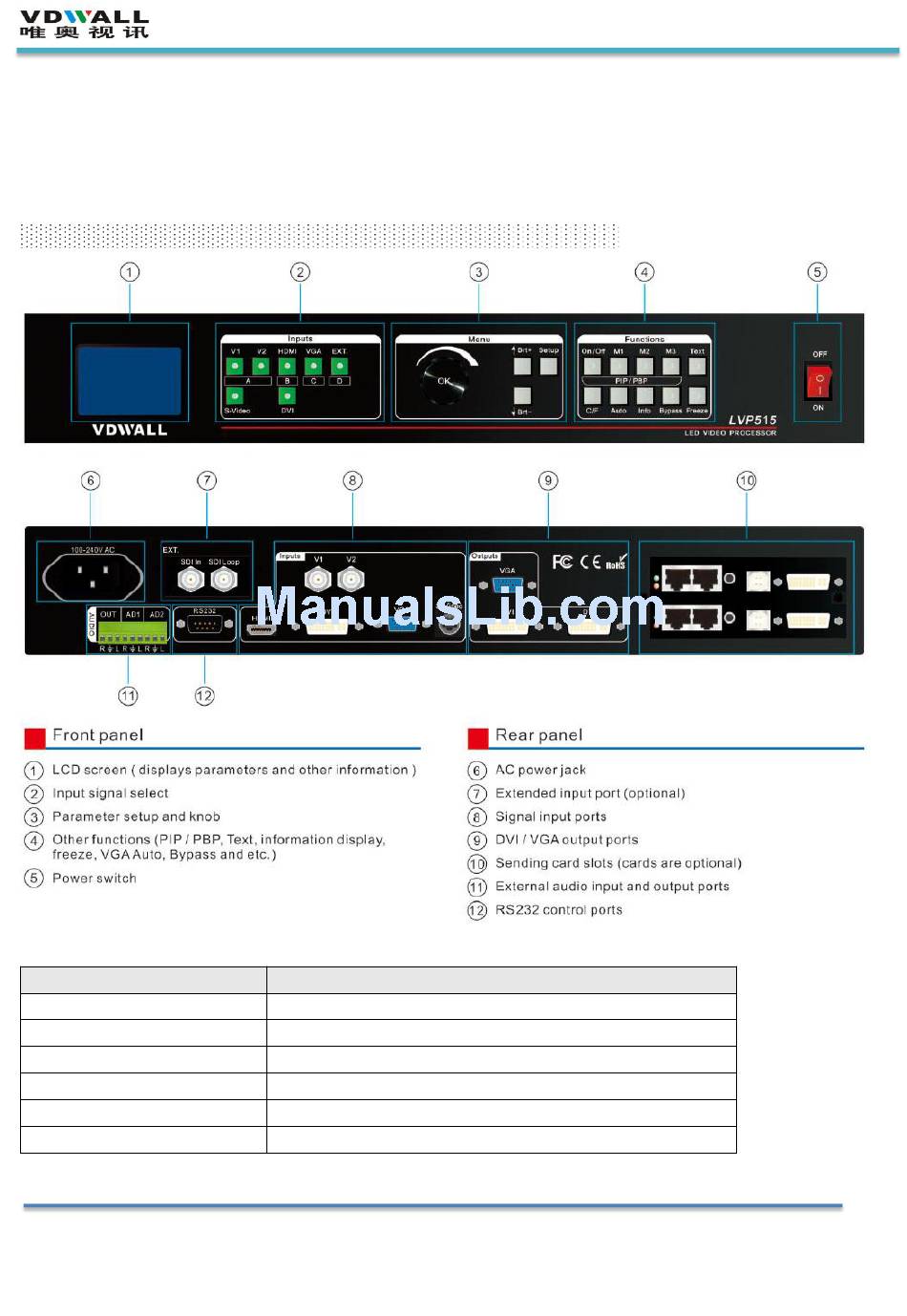

Front and rear panel button introduction
LVP515 supports 4 video signal inputs as below：
port
V1、V2
S-Video
VGA
DVI
HDMI
EXT.
Note: EXT. interface: LVP515 1 * VIDEO, LVP515S 1* SDI/HD-SDI.
Address:5B, building C,building C,Nanshan Hi-tech park,Nanshan District,Shenzhen City,
Website:www.videowall.cn TEL：+86-755-2675 0210 FAX：+86-755-2675 0185
LVP515 serial quick user guideV1.0
Description
2 *PAL/ NTSC composite video input
1 * PAL/ NTSC light color separation video input
1 * analog signal input of computer
1 * computer digital signal input
1 * Digital HD signal input
1 * extension signal input
LVP515 series of Quick Guide
Advertisement
Summary of Contents for Vdwall LVP515 series
- Page 1 LVP515 series of Quick Guide LVP515 serial quick user guideV1.0 In order to make sure users can quickly use LVP515 serial LED video processor, we prepared the<LVP515 serial quick user guide>. About LVP515 deeply setup, adjustment and operation, please refer to <LVP515 serial user manual>.
- Page 2 LVP515 series of Quick Guide Step 1: sending card installation 1)Unscrew sending card baffle screw loose, pull out the sending card tray 2) Install the sending card in the corresponding position of the sending card tray and tighten the screws...
- Page 3 LVP515 series of Quick Guide Step 3:Connect power and power on 1) Make sure all input and output connection correct. 2) Connect power to LVP515 and turn on it. 3) Power on the video source devices. Step 4: input signal selection...
- Page 4 LVP515 series of Quick Guide mode", "extend mode" or "dual display mode" 2) In the change resolution option, select the display LVP515 resolution is not less than the output resolution of LVP515, then LVP515 panel LCD screen will display the current computer graphics card resolution.
- Page 5 LVP515 series of Quick Guide picture settings Appendix: Revised record sheet Version time Description draft V1.0 2017.5.9 The first release Address:5B, building C,building C,Nanshan Hi-tech park,Nanshan District,Shenzhen City, Website:www.videowall.cn TEL：+86-755-2675 0210 FAX：+86-755-2675 0185...
