SERVICE MANUAL
SA13-QT

Advertisement

Table of Contents
loading

Summary of Contents for e-Accura SA13-QT

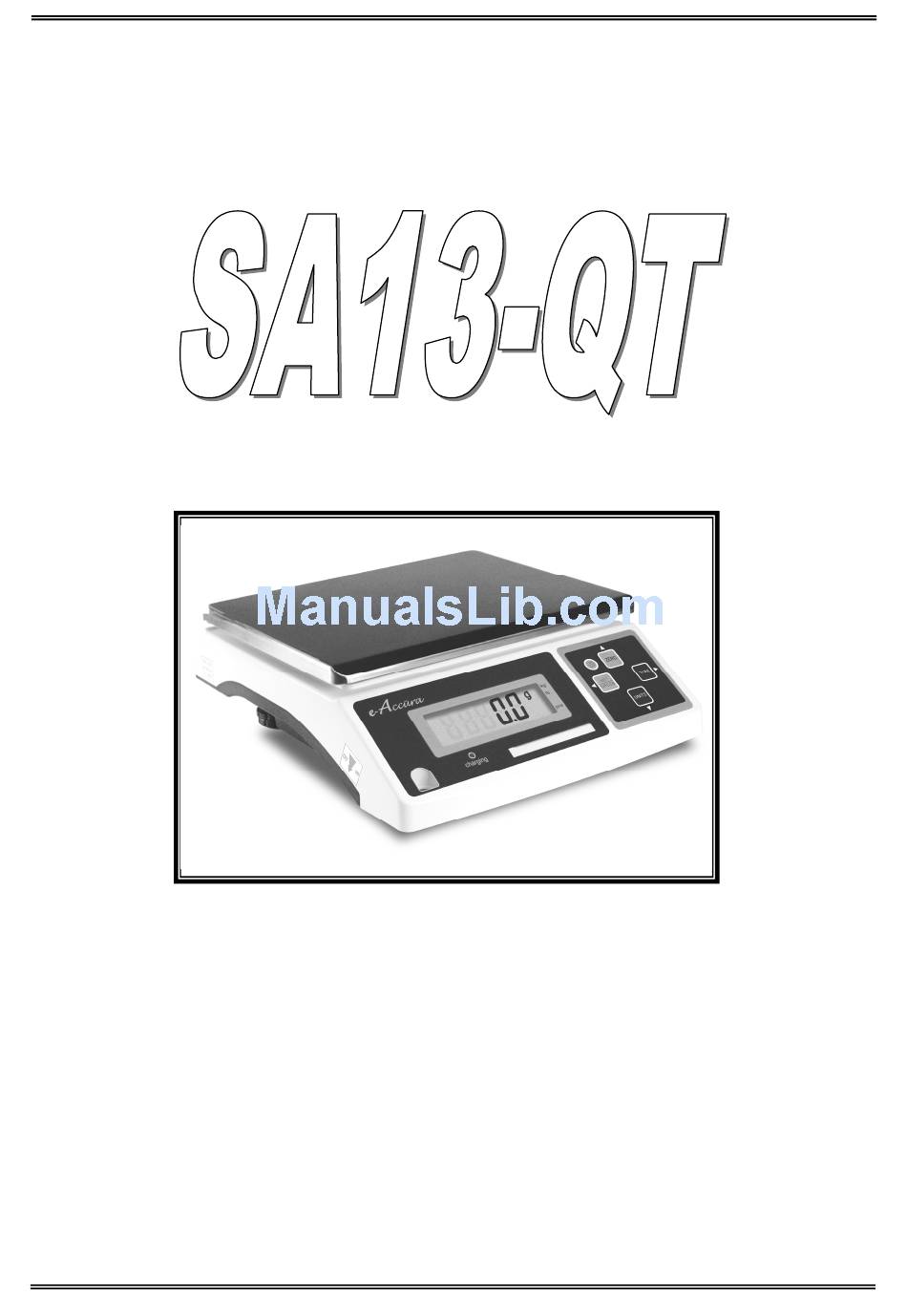

  • Page 1 SERVICE MANUAL SA13-QT...

  • Page 3: Table Of Contents

    Ⅵ SERVICE MODE ACCESS...................... 7 ................8 APACITY ONFIGURATION ...................11 EIGHT ALIBRATION ..................12 UNCTION ETTINGS Environment Settings ................13 Buzzer type ....................15 ......................16 PAN CALIBRATION .........................17 RAVITY OMPENSATION Ⅶ ADVANCED FUNCTIONS..................... 18 ..................18 OWER OFF AND ACKLIGHT ETTINGS ........................19 UNCTION ETTING Ⅷ APPENDIX..........................20 SA13-QT...

  • Page 4: Ⅰ Precautions

    It is recommended that the scale is warmed up for 15-20 minutes before use. Recharge the internal battery, as appropriate, when low battery symbol is displayed. The overall dimensions of the goods being weighed should not exceed the dimension of the weigh pan. SA13-QT...

  • Page 5: Ⅲ Features And Specifications

    Power source: The power source can either be from AC / DC, internal rechargeable battery. Options: Stainless steel weigh pan LED display backlight Specifications: Model Capacity Division Resolution Min. Cap. SA13-QT-1.5 1.5 kg 0.5 g 1/3000 10 g SA13-QT-3 3 kg 1/3000 20 g 1/3000...
  • Page 6 The gravity value is outside the range 9.772 ~ 9.829. ⇒ Error setting. ⇒ The weight value is higher than the zero range, when re-zeroing the scale. ⇒ The weight value is below the zero range, when re-zeroing the scale. SA13-QT...

  • Page 7: Ⅳ Display Explanation

    : “Zero” indication ► 3 : The 1 weighing unit indication. ► 4 : The 2 weighing unit indication ► 5 : The 3 weighing unit indication ► 6 : The 4 weighing unit indication. : “Low Battery” indication. SA13-QT...

  • Page 8: Ⅴ Keyboard Function

    UNITS : Units key. Press the key to select the desired weight units or count units (pcs). : Gross /Net weight key GROSS Gross weight = Tare weight + Net weight (The key works only in the Tare mode) SA13-QT...

  • Page 9: Ⅵ Service Mode Access

    If the SWA1 jumper is set to its LOCK position during calibration, the scale exits the service mode automatically. Press the UNITS Press the UNITS Press the ON/ZERO Press the Press the UNITS ON/ZERO Press the ON/ZERO ⇒ Capacity Configuration ⇒ Weight Calibration ⇒ Function Settings SA13-QT...

  • Page 10: Capacity Configuration

    Refer to “Note 1” Two weight units “kg” & “lb”, with “kg” as the units used for weight calibration. Press TARE Enter the maximum capacity Refer to “Note 2” Example: 025000 ⇒ 2500.0 g Press the TARE NEXT PAGE SA13-QT...
  • Page 11 (divided at 1/2 of the full scale) Press the TARE The display shows the max. capacity of the ► scale + 1d and the unit weight for 2 seconds. Input the parameter “00” Press the key to TARE complete the capacity configuration SA13-QT...
  • Page 12 For example: 15.000 kg ⇒ enter 3 1500.0 g ⇒ enter 1 (m) ⇒ range setting (select one of parameters 0, 1, or 2) For example: 0 &1 ⇒ full range, 2 ⇒ dual range(divided at 1/2 of the full scale) SA13-QT...

  • Page 13: Weight Calibration

    The buzzer beeps for 3 times when the weight TARE reading is stable. ► Remove the weight from the weigh pan and press any key to exit the setting. Input the parameter “00” Press the TARE to complete the calibration SA13-QT...

  • Page 14: Function Settings

    ⇒ Increment digit (from 0 to 9) ON/ZERO Press the TARE ⇒ Confirm / enter key TARE to return to the upper level NET/GROSS ⇒ Move the cursor to the right ⇒ Return to the upper menu level ⇒ Environment settings ⇒ Buzzer type SA13-QT...

  • Page 15: Environment Settings

    The greater the figure, the faster the filter will react. Consequently, the weight may be less stable. NEXT PAGE ⇒ Increment digit (from 0 to 9) ON/ZERO ⇒ Confirm / enter key TARE NET/GROSS ⇒ Move the cursor to the right SA13-QT...
  • Page 16 01 ⇒ ±1% 02 ⇒ ±2% 50 ⇒ ±50% Key in the parameter “00” Press the TARE ⇒ Increment digit (from 0 to 9) ON/ZERO ⇒ Confirm / enter key TARE NET/GROSS ⇒ Move the cursor to the right SA13-QT...

  • Page 17: Buzzer Type

    1 ⇒ Continuous signal Press the TARE (DC buzzer, UIC-4201) Key in the parameter “00” ⇒ Increment digit (from 0 to 9) ON/ZERO Press the TARE ⇒ Confirm / enter key TARE NET/GROSS ⇒ Move the cursor to the right SA13-QT...

  • Page 18: Span Calibration

    ⇒ Increment digit (from 0 to 9) ON/ZERO pan. ► ⇒ Confirm / enter key TARE NET/GROSS ⇒ Move the cursor to the right Set the jumper SWA1 to the LOCK position. The scale returns to the weighing mode. SA13-QT...

  • Page 19: Gravity Compensation

    Gravity value at the equator G = 9.7803184558 m/sec Gravity value at the polar region G = 9.8321772792 m/sec Taipei: 9.78914 m/sec Shanghai: 9.79585 m/sec v The display shows error message , when the gravity value is NOT within the range 9.772~9.829. SA13-QT...

  • Page 20: Ⅶ Advanced Functions

    ONLY active, when using dry batteries as the power source. Auto Backlight Function When the weight is over 10d, the backlight is on. After the weight is stable for 10 seconds or when the scale returns to zero, the backlight switches off. SA13-QT...

  • Page 21: Hold Function Setting

    After the scale is stable, the display shows the current weight value. Press any key to exit the hold function. = “Stable hold 2” mode After the scale is stable, the display shows the current weight value. Re-zero the scale to exit the hold function. SA13-QT...

  • Page 22: Ⅷ Appendix

    Ⅷ APPENDIX Displayed digits: Digit Display Character Display Character Display SA13-QT...
