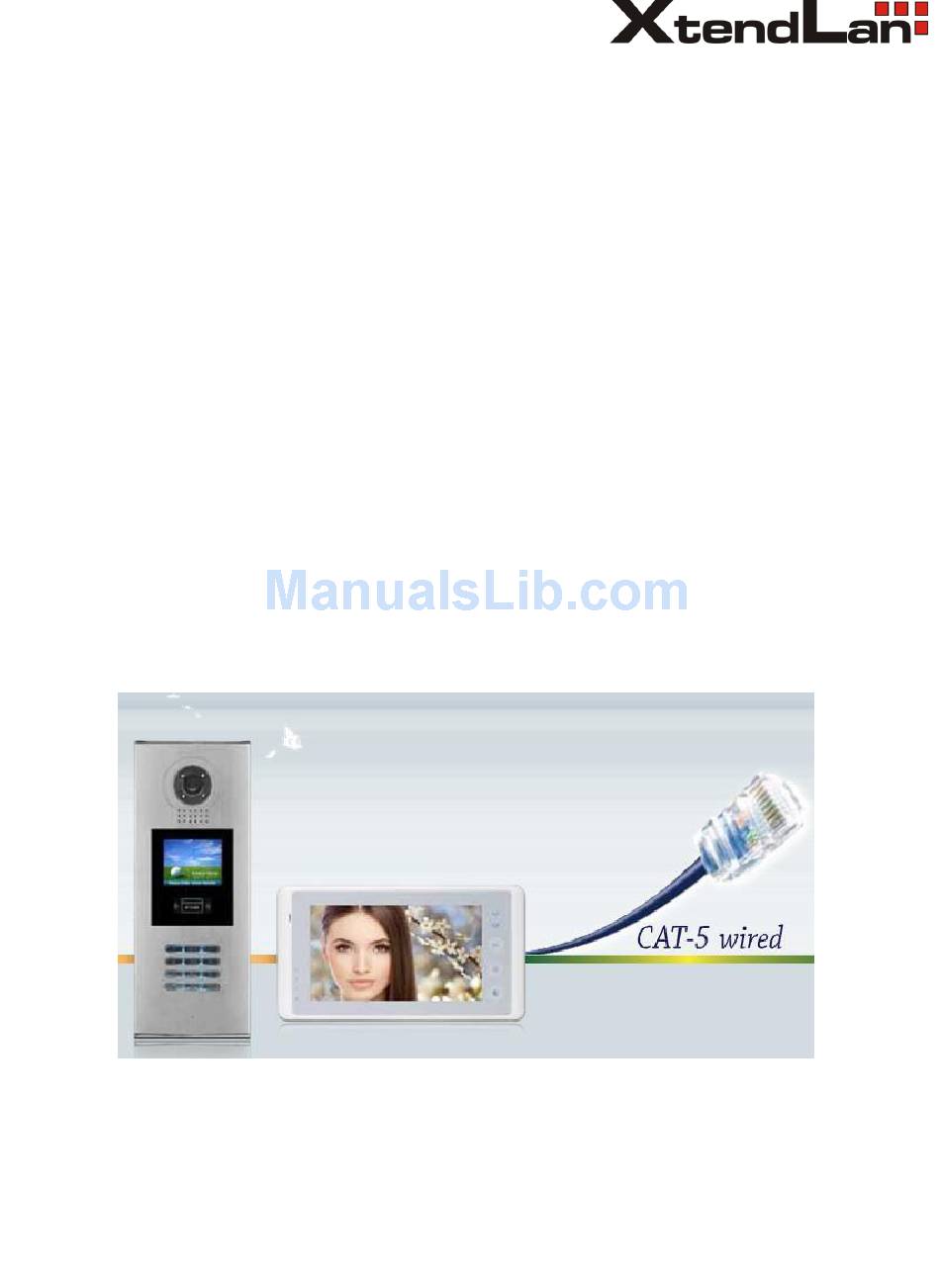

  • Page 1 CAT-5 video intercom system Technical guide...
  • Page 2 SYSTEM FEAGUTES Large capacity Simple installation Signal isolution Debug online PRODUCT FEAGUTES Menu Guide Intercom Picture Memory Multi Channels Page 2...

  • Page 3: Table Of Contents

    Chapter 1: CAT5 System Overview ....... 10 1.1 System Description ........... 11 1.2 System Features............12 1.3 System Applications ..........13 Chapter 2: CAT5 System Parts ........14 2.1 Wiring Diagram ............15 2.2 Product List .............. 16 2.3 System Parts ............17 2.3.1 Outdoor Station: DPC-518ID......
  • Page 4 2.3.3.3 Specification .......... 25 2.3.4 Accessories ............25 2.3.4.1 C5-F4 ............ 25 2.3.4.2 C5-F414 ..........26 2.3.4.3 C5-F422 ..........27 2.3.4.4 IP Converter: C5-IPC ......28 2.3.4.5 Multi-Door station Switcher: C5-MDS ..29 2.3.4.6 Picture Memory Controller: C5-IMC ..30 2.3.4.7 Independent Access Controller: GP-ACS ...31 2.3.4.8 Network Camera IP Converter: CM-IPC ..
  • Page 5 3.4.1 Layout.............. 39 3.4.2 List of Accessories ..........39 Chapter 4: CAT5 SYSTEM SETTINGS ......40 4.1 Door station Setting ..........41 4.1.1 Door station working mode ........ 41 4.1.2 DPC-539ID Configuration ........41 4.1.2.1 How to enter debug mode ...... 41 4.1.2.2 Program Menu overview ......
  • Page 6 4.3.3 Address Setting with door station ....... 68 4.4 C5-IPC Setting ............70 4.4.1 Port Description ..........70 4.4.2 Settings............70 4.4.2.1 Level Switch setting ........ 70 4.4.2.2 DIP switch setting ........71 4.4.2.3 IP Address Setting ........72 4.4.2.4 Parameters Settings ........ 75 4.4.2.5 Controller Concept ........
  • Page 7 4.6.2.1 Connection Schematic......87 4.6.3 Access control-GP-ACS ........88 4.6.4 Camera control-CM-IPC ........89 Chapter 5: CAT5 SYSTEM SOFTWARES ......90 5.1 PC Station Installation..........92 5.2 IP Address Setup ............96 5.2.1 General Rules for IP Address Setup ....96 5.2.2 IP Address Setup by IP8210-Config ....
  • Page 8 5.3.6.2 Event up Setting ........115 5.3.6.3 Input table........... 115 5.3.6.4 IP Table ..........116 5.3.7 Management of Block C5-IPC ......117 5.3.7.1 Call Table ..........117 5.3.7.2 Parameters Management ....... 119 5.3.8 Management of Common C5-IPC ...... 123 5.3.8.1 Call Table ..........124 5.3.8.2 Parameters setting ......
  • Page 9 5.4.5.3 Record List ...........136 5.4.6 Capture Viewer ..........138 5.4.7 Setting ............139 5.4.7.1 General ..........139 5.4.7.2 Alarm Setting ........140 5.4.7.3 View & Layout........142 5.4.7.4 Handset ..........143 5.4.7.5 Security & Startup ........143 5.5 IP Access 2012 ............144 5.5.1 Introduction ............144 5.5.2 Login ..............144 5.5.3 Access Device Console ........146 5.5.3.1 Cards information (Device) ....146 5.5.3.2 Card Information (Database) ....146...

  • Page 11: Chapter 1: Cat5 System Overview

    Chapter 1 CAT5 System Overview 1.1 System Description ..............11 1.2 System Features................ 12 1.3 System Applications ..............13 Page 7...

  • Page 12: System Description

    Chapter 1 CAT5 System Overview § 1.1 System Description The CAT5 system is the ideal system for simplifying installation in residential compounds with a high number of users, developed with innovative technology, allows the installation of video intercom systems up to 239 blocks and 512 users per block, applying CAT5 cable only except the power supply to the system.

  • Page 13: System Features

    § 1.2 System Features • Max. 512 apartments per block Network Door/camera Monitor • Max.8 door stations per block • Max 3 monitors in one flat • Max. 239 blocks in network Per Block • Max. 14 Switchboards per system(6 PC+8 DPG- IP-G21) •...
  • Page 14 Chapter 2 CAT5 System Parts Large residential compound One of the advanced features of CAT5 intercom system is that it supports 239 blocks in one system; it can satisfy almost any size of residential compounds. Using a standard CAT5 network, each block is able to accommodate hundreds of monitors and multiple outdoor stations.

  • Page 15: System Applications

    § 1.3 System Applications Chapter 2 CAT5 System Parts 2.1 Wiring Diagram ................. 15 2.2 Product List ................16 2.3 System Parts ................17 2.3.1 Outdoor Station: DPC-518ID..........17 2.3.2 Indoor Monitor: DPM-573TMD ..........20 2.3.3 Switchboard: DPG-IP-G21..........23 2.3.4 Accessories ............... 25 Page 11...

  • Page 16: Wiring Diagram

    Chapter 2 CAT5 System Parts The below diagram demonstrates what the CAT5 system can do, by all the connecting different de- vices up. Switc hboard C5 -F4 1 4 4 Alarm Zones Floor N Secondary Door Station IP-Agent C5 -F4 1 4 4 Alarm Zones Indoor Monitor Distributor...

  • Page 17: Product List

    § 2.2 Product List § 2.1 Wiring Diagram Consumption Item Model Mounting Dimensions(mm) Standby Working DPC-518ID Flush Mount 350*128*46 24V/95mA 24V/205mA DOOR STA- TION DPC-539ID Flush Mount 366*138*48 24V/85mA 24V/190mA DPM-535-C5 Surface Mount 220*105*20 24V/87mA 24V/280mA INDOOR MONITOR DPM- Surface Mount 125*225*23 24V/40mA 24V/260mA...

  • Page 18: System Parts

    Chapter 2 CAT5 System Parts 2.3.1 Outdoor Station: DPC-518ID Full aluminum panel with luxurious and elegant appearance, design with 3.5” TFT color display for versatile, innovative and high-performing communication. 2.3.1.1 Features Functions such as monitoring, call, conversation and door lock release, etc •...

  • Page 19: Terminal Description

    § 2.3 System Parts 1. Camera Lens: Capture images 2. Night View LED: Compensate light 3. Speaker: Conversation between visitors and users 4. LCD Screen: Show operational tips and others 5. Card Window: Access control with ID/IC card 6. Digital Keypad: Making call and parameters setting 7.

  • Page 20: Door Station Functions

    Chapter 2 CAT5 System Parts 2.3.1.4 Door Station Functions Digital call by visitors A visitor can input the resident’s room number to be shown on the display, As the signal transfer to monitor, the resident can answer to communicate with visitor and release the lock. When nec- essary, the visitor or resident can dial 0000 to call Switchboard for help.

  • Page 21: Indoor Monitor: Dpm-573Tmd

    2.3.2 Indoor Monitor: DPM-573TMD With 7” digital TFT touch screen and touch sensor button, this monitor is the best choice for mod- ern intelligent life. Three different elegant appearances can satisfy different requirements. 2.3.2.1 Features • 7 inch wide screen digital TFT LCD; •...

  • Page 22: Terminal Description

    Chapter 2 CAT5 System Parts 1. LCD screen: Display the images from outdoor station. Touch operation 2. LED indicator: Normally light on when in use 3. Unlock key: Press to release the door for visitors during talking or monitoring 4. Mon/Talk key: Press to view the outside condition or to talk with the visitors while receiving a call 5.

  • Page 23: Indoor Monitor Functions

    2.3.2.4 Indoor Monitor Functions Receiving calls Call from door station: When the monitor rings, it means a call is coming. The display will show the video from the door station camera, press the answer button to accept the call and press the an- swer button again to end the call after finish the conversation Call from Switchboard: When hand- set rings, the display can show the video from the Switchboard camera(if the Switchboard is fitted with one camera).

  • Page 24: Switchboard: Dpg-Ip-G21

    Chapter 2 CAT5 System Parts 2.3.3 Switchboard: DPG-IP-G21 DPG-IP-G21 is the advanced Switchboard for CAT5 system, designed as a dedicated switchboard to sup- port CAT5 network system. Switchboard is an essential part in CAT5 system, it makes possible to man- age calls from (to) Common Door Station or Door Station, and Indoor Monitor.

  • Page 25: Terminal Description

    1. LCD screen: Display the icon menu and images ,touch operation 2. Microphone: Receives sound from the user 3. Alarm Button: Blink when the guard unit receives alarm record 4. LED Indicator: (1) Red indicator flash first, green indicator flash later when power on; (2) Blue indicator normally on when work in normal;...

  • Page 26: Accessories

    Chapter 2 CAT5 System Parts 2.3.3.3 Specification Power input: DC 24V Standby Current: 390mA Working Current: 850mA Screen: 10 inch digital TFT Resolution: 800x480pixels Video Signal: CCIR, 1Vp-p, 75Ω Transmission Mode: TCP/IP Connection Port: RJ45 Network Interface: Standard Ethernet interface Working temperature: C ~ +40 Dimension:...

  • Page 27: C5-F414

    • LINK: Signal indicator. Flicker means signal is transmitted in bus • Power: Power indicator. Always ON • IN-USE: Status Indicator. ON while working Specification s Power supply: DC24V Standby current: Working current: 80mA Working temperature: C~40 Connection port: RJ45 Dimensions: 88*140*32mm 2.3.4.2...

  • Page 28: C5-F422

    Chapter 2 CAT5 System Parts connected to next distributor • PORT-A, PORT-B, PORT-C, PORT-D: 4 output, it can be connected to indoor monitors • VD-SET: Setting for video matching Specificatio ns Power supply: DC24V Standby current: 60mA Working current: 120mA Working temperature: C~40 Connection port:...

  • Page 29: Ip Converter: C5-Ipc

    Specification s Power supply: DC24V Standby current: 60mA Working current: 120mA Working temperature: C~40 Connection port: RJ45 Dimensions: 140*150*60mm 2.3.4.4 IP Converter: C5-IPC C5-IPC is a network controller. It serves as system controller, manages all the data in the system communication.

  • Page 30: Multi-Door Station Switcher: C5-Mds

    Chapter 2 CAT5 System Parts station only • JWB (OUT): Bus Signal Output. RJ45 port includes audio, data & video. It can be connected to distributor. • CN-MDS: Bus Signal Input. RJ45 port, connected to MDS only • CN-NET: RJ45 Network Port, connected to LAN •...

  • Page 31: Picture Memory Controller: C5-Imc

    • JWP: Power input. P+, positive 24V; P-, JW P E RRO R L INK RS- 4 8 5 negative. P- P+ P- P+ • JWB (IN1, IN2, IN3, IN4): Connected to door stations (Max.4). I N-USE P O WER •...

  • Page 32: 2.3.4.7 Independent Access Controller: Gp-Acs

    Chapter 2 CAT5 System Parts • PA204: Reserved in normal status, for door S2 0 1 PA202 PA204 L E D 202 L E D203 P A 201 PA203 LED201 L E D 204 station communication in test status • LED201: Power indicator D I P PA2 0 1 PA2 0 2 PA2 0 3 PA2 0 4 S2 0 1...

  • Page 33: Network Camera Ip Converter: Cm-Ipc

    • LED1: Indicators for first group of card J P - L K1 C N-D S1-1 C N - LK1 C N- RD1 L ED 1 reader C N - D S1-2 C N- LK2 C N-RD 2 L E D 2 J P - L K2 •...

  • Page 34: System Power Supply: Ps5

    Chapter 2 CAT5 System Parts • Maximum 4 cameras can be connected to the CM-IPC Parts and functions • JWP: Power input • JWV: Video signal input • JW/VP: Video signal input, connected to CM-IPC VT-QSW • RS485: PC port. To update the firmware •...

  • Page 35: Cat5 System Cables

    • : Earth Ground • V-: DC power output, Negative (20~27 adjustable) • V+: DC power output, Positive (20~27 adjustable) • VADJ: Output voltage adjustable • LED: Working state indicator Specification • Input Voltage: AC 100~120V (2.5A), 200-240V (1.5A) • Input Frequency: 50~60Hz •...

  • Page 36: Chapter 3: Cat5 System Configuration

    Chapter 2 CAT5 System Parts Chapter 3 CAT5 SYSTEM CONFIGURATION 3.1 One Entrance without Network............ 36 3.1.1 Layout................36 3.1.2 List of Accessories ............. 36 3.2 Multi Entrances without Network ..........37 3.2.1 Layout................37 3.2.2 List of Accessories ............. 37 3.3 One Entrance with Network ............

  • Page 37: One Entrance Without Network

    The CAT5 system is flexible to meet all kinds of need in different structure; installer can install system they want according to the requirements. Below are the examples with different combina- tion of the system. § 3.1 One Entrance without Network This is the most basic installation, it applies to buildings where there is only one entrance, without network, so it can be connected without C5-IPC.

  • Page 38: Multi Entrances Without Network

    Chapter 3 CAT5 System Configuration § 3.2 Multi Entrances without Network It applies to the installation where there is more than one entrance in the building, without net- work. All door stations can call any of the monitors in the building; monitors in the building can view the door stations in turn or a specified door station.

  • Page 39: One Entrance With Network

    § 3.3 One Entrance with Network Network connection is required when communication between different buildings or between buildings and Switchboard. C5-IPC is needed to effect the network connection. 3.3.1 Layout C 5-F414 C5-F414 Floor N C 5-F414 C5-F414 Floor 1 C 5-IPC T o L A N/WAN C5-I P C...

  • Page 40: Multi Entrances With Network

    Chapter 4 CAT5 System Settings It applies to the installation where there is more than one entrance in the building, with network. All door stations can call any of the monitors in the building; monitors in the building can choose to monitor all the door stations in turn or to select a specified door station.
  • Page 41 § 3.4 Multi Entrances with Network Chapter 4 CAT5 SYSTEM SETTINGS 4.1 Door station Setting..............41 4.1.1 Door station working mode ..........41 4.1.2 DPC-539ID Configuration..........41 4.1.3 Configuration DPC-518ID..........49 4.2 Lock Connection ................ 59 4.2.1 Lock Type ................. 59 4.2.2 Connection Diagram ............

  • Page 42: Cat5 System Settings

    Chapter 4 CAT5 System Settings 4.1.1 Door station working mode Door station is to be installed in the entrance, to communicate with monitors or with Switchboard. Door station can be set to work under two modes: 1. Unit door station To be installed on the entrance of each separate building, being able to call all the monitors inside the building 2.

  • Page 43: Door Station Setting

    § 4.1 Door station Setting 4.1.2.2 Program Menu overview • Enter debug mode to over view all the menus and Tools Debug State Menu Item Submenu [1][1]. DS Serial NO. [1][2]. Unlock Timing [1][3]. Unlock Output [1][4]. Card Memory [1] Installer Setup [1][5].

  • Page 44: Basic Program Settings

    Chapter 4 CAT5 System Settings 4.1.2.3 Basic program settings • Installer Setup (Debug State->1.Installer Setup) Item Descriptions Factory Set 0 ---- Set as Unit door station. No C5-IPC connected. Set to 0, then input 1/2/3 to select the related distributor type. 1.
  • Page 45 • Parameters(Debug State->1. Installer Setup->7. Parameters) Three pages are available inside the parameters, press # to switch between different pages Table 1 Item Descriptions Factory Set To set number of monitors that can monitor the door station at 1. Monitor Numbs the same time 2.
  • Page 46 Chapter 4 CAT5 System Settings Table 3 Item Descriptions Factory Set 1. Display Mode Reserved Power To choose to power the camera always or to power only when 2. Camera Power-on door station is activated when activated 3. Enable name list Enable/Disable namelist function 4.
  • Page 47 • Monitor Program (Debug State->3. Monitor Program). Access Monitor Program in Debug Mode (Also See 1.1, Access Monitor program in normal mode > > D E B U G S T A T E < < [ 3 ] M o n i t o r P r o g r a m [ 3 ] M o n i t o r P r o g r a m - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...

  • Page 48: Debug Tools

    Chapter 4 CAT5 System Settings [2] Delete Card Enter Delete by Card; > > [ 7 ] [ 2 ] > > [ 7 ] [ 2 ] D e l e t e b y C a r d D e l e t e b y C a r d Swipe the card to be deleted, and card number and Room...
  • Page 49 1. Volume Adjust Door station can adjust its talking volume by keypad. Note  that the volume adjusting function is automatically activated 2 0 - 0 8 0 6 : 1 8 in the Debug Mode. After Volume-Adjust is activated, if Door Station calls a Moni- tor and enters talking state, current volume values are shown on bottom line.

  • Page 50: Configuration Dpc-518Id

    Chapter 4 CAT5 System Settings 4.1.3 Configuration DPC-518ID Door stations also can work in Normal mode and Debug mode. 4.1.3.1 How to enter debug mode > > D e b u g S t a t e < < 0 - # R e d i a l R F C A R D [ **** ]...

  • Page 51: Basic Program Settings

    4.1.3.3 Basic program settings • Installer Setup (Debug State->1#->1.Installer Setup) Item Descriptions Factory Set 1. When there is only one door station and no C5-IPC, set to [0-11] 0. And set the type of distributor used with it. When C5-IPC is connected, must not be set to 0.
  • Page 52 Chapter 4 CAT5 System Settings • Installer Setup (Debug State->1#->1. Installer Setup->7. Parameters) Three pages are available inside the parameters, press # to switch between different pages Table 1 Item Descriptions Factory Set To set number of monitors that can monitor the door station 1.
  • Page 53 Table 3 Item Descriptions Factory Set 1. Unlock Code 2 Reserved None 2. Unlock Code Mode Reserved To choose to power the camera always or to power only when Power 3. Camera Power-on door station is activated when activated 4. Reserved Reserved 5.
  • Page 54 Chapter 4 CAT5 System Settings • Unlock by code(Debug State->1#->1. Installer Setup->7. Parameters) R F C A RD R F C A RD Door Open [ **** ] Please Input Password Input 4 digits Unlock Code When Door Station is If verified correctly, standby, press “#”...

  • Page 55: About Cards

    1 . I D C o d e [ 0 - 1 1 ] 2 . U n l o c k T i m i n g [ 0 1 ] 3 . U n l o c k O u t p u t [ 0 ] Installer 4 .
  • Page 56 Chapter 4 CAT5 System Settings [1] Add User Card 1 . A d d C a r d . . . 1 . A d d C a r d . . . 1 . A d d C a r d . . . [----] [0101] [0101]...

  • Page 57: Debug Tools

    [4] Format Enter Format, input the in- 5 . F o r m a t 5 . F o r m a t staller setup password and [ - - - - - - - - ] [ - - - - - - - - ] # key, then all the informa- Updated tion will be deleted about...
  • Page 58 Chapter 4 CAT5 System Settings 1. Volume Adjust Door Station has the advanced feature that conversation vol- ume of both directions can be adjusted in digital method. S W I T C H : 1 5 S W I T C H: 1 5 After Volume-Adjust is activated, if Door Station calls a Moni- tor and enters talking state, current volume values are shown on bottom line.
  • Page 59 Online Monitors search Function: Search the certain range of Monitor which is for checking the information of the online monitor. After startup this operation, the Door Station search and display the present online mon- itor according to the setup range automatically. Operation steps are show as below: >...

  • Page 60: Lock Connection

    Chapter 4 CAT5 System Settings § 4.2 Lock Connection 4.2.1 Lock Type The door station can connect two kinds of lock: The power-on to unlock type: The lock stays locked when there is no power, and unlocks once it gets the power from the power supply. The power-off to unlock type: The lock stays locked when there is power feeding it , and unlocks once the power is cut off.

  • Page 61: Monitor Setting

    4.2.2.2 Door Lock Controlled with External Power To C5-IPC or Distributor CN-LK T/R- T/R+ RF CARD 3 2 1 J/KMB JP-LK Remove the POWER jumper SUPPLY Exit Button DPC- LOCK 518ID Note: 1. Please use DC lock and the related DC power supply 2.

  • Page 62: Address Setting On Monitor

    Chapter 4 CAT5 System Settings Inside call A call made from the unit door station is the inside call, the inside call can only call the monitor inside the building. Visitors input the address of monitor (4 digits: ABCD), the door station will call the monitor right away Outside Call Calls from the Switchboard or common door station are outside call.
  • Page 63 2) Touch the User Setup icon to enter setup interface, password will be required, Input 2412 + to get access to the setup. 3) Now touch the User Code and input the new user code to be the address of the monitor. Page 59...
  • Page 64 Chapter 4 CAT5 System Settings • DPM-535-C5 1) In Standby Mode, Press the menu button on the surface of the front panel. 2) When it shows the calendar, press the menu button again Page 60...
  • Page 65 3) Now navigate to the Setup and press menu button to enter setup page Door Station Tone -- 01 Door Bell Tone -- 05 GuardUnit Tone No Disturb Mode -- off Installation... Exit 4) Go to Installation and input password(2412), then press menu to confirm Password: * * * Page 61...
  • Page 66 Chapter 4 CAT5 System Settings 5) Go to Room Address… Alarm In/Out Delay -- Date And Time Set ... Room Address... Other Settings... Information... Exit 6) Enter the new Room address via navigation button and press Menu to save Room 6 6 6 6 Page 62...
  • Page 67 • Another monitor 1) In standby mode, press the Menu button 03/29/2012 Thu. 11 : 44 2) In the Calendar page, press the menu again to enter main menu Main Menu Monitor ... Intercom Alarm Function ... User Setup Close Exit Select Item Page 63...
  • Page 68 Chapter 4 CAT5 System Settings 3) Press the button to entry About page H/W : T3-753 a1.2 S/W: V11.02.27 Voltage: 22.7V Local Address: 1002 Remote Number: AL. Delay Time: 40/90 Video Standard: Exit 4) Press the unlock button and hold for 3s when entry about page, then entry Installer Setup page, just like the following picture shows.

  • Page 69: Address Setting With Door Station

    5) Now Set the new room address for the monitor navigation button, and press menu button to save the setting Code Number: [ 002] 0010: delete remotes 0093: direct call gl vd on 0011: add remote 0094: direct call gl vd oV 0020: set as door bell 8008: MM/DD/YY YY 0021: not door bell...
  • Page 70 Chapter 4 CAT5 System Settings Step2: Activate call function on monitor • DPM-573TMD Monitor Manual Direct Call Alarm Multimedia Intercom Guard Unit Security User Setup Estate Intelligent Close Management Home 09/08/2011 Tue. 09:58 Press Menu button twice to Press Direct Call Guard entry main page Unit icon •...

  • Page 71: C5-Ipc Setting

    Step3: Upload Monitor Address(Monitor Code) === Monitor Program === === Monitor Program === === Monitor Program === === Monitor Program === Old M. code [ - - - - ] Old M. code [ 0099 ] Old M. code [ 0099 ] Old M.

  • Page 72: Dip Switch Setting

    Chapter 4 CAT5 System Settings Distributor type SW1 setting C5-F4 F4/F4DV/F4Q C5-F422 F4/F4DV/F4Q C5-F414 F4/F4DV/F4Q 4.4.2.2 DIP switch setting S1 is a 6-bit DIP switch; each of them is designed to have a specified function. • DIP status Each bit can be set to be ON or OFF, shows below: ON(1) OFF(0) 1 2 3 4 5 6...

  • Page 73: Ip Address Setting

    4.4.2.3 IP Address Setting C5-IPC must be specified an IP address in the network system. And every specified IP address must be unique. You can use IP8210Config software to set IP. NOTE: The default IP address of C5-IPC is 192.168.0.2 Setting steps as follows: 1.
  • Page 74 Chapter 4 CAT5 System Settings 3. Search the connected C5-IPC Click Search... to start searching the connected C5-IPC 4. Config IP address Select the Device in the Device List Frame 5. Click on Config to config IP Assume it’s set to 192.168.0.5, don’t change Mask &...
  • Page 75 NOTE: 192.168.0.1 & 192.168.0.255 cannot be used by any device in the network. 192.168.0.1 192.168.0.255 • IP address range of C5-IPC POWER VR6 0 0 L INK IN-USE 192.168.0.2 ---- 192.168.0.239 1 2 3 P+ P- P+ P - RS 4 8 5 JWB (IN ) JWB (OUT ) CN (MDS) E TH ERNE T C5-IPC •...

  • Page 76: Parameters Settings

    Chapter 4 CAT5 System Settings 4.4.2.4 Parameters Settings All the parameters of C5-IPC can be set through IP-Device. See IP-Device manual for detail. 4.4.2.5 Controller Concept Controller in the system serves as the controlling center, it controls data communicating, audio and video distribution.

  • Page 77: Examples

    Chapter 4 4.4.2.6§Examples: Work with C5-F4 Note that VD-SET must be set to 120 if the C5-F4 is the last one of the bus To Next C5-F4 To other monitors 1R 2W 3Y 4B FV+FV-P- D1&D2 AU P- P+ P+ C5-F4 GD VD T/R+ T/R- Z1 Z2 Z3 Z4 COMCOM PR...
  • Page 78 Work with C5-F422 Note that VD-SET must be set to VD if the C5-F422 is the last one of the bus HI / VD To Next PS5 To Next C5-F422 To other monitors P- P+ P- P+ P- P+ C5-F422 VD-SET D1&D2 T/R+...
  • Page 79 Chapter 4 Work with C5-F414 Note that VD-SET must be set to VD if the C5-F414 is the last one of the bus HI / VD To Next PS5 To Next C5-F414 To other monitors P- P+ P- P+ P- P+ C5-F414 VD-SET D1&D2...
  • Page 80 Work with C5-MDS This example contains the full function available in the system: Multi entrances with C5-MDS; Monitor display network video; and one of the monitor serves as Guard Monitor. Note that VD-SET must be set to VD if the C5-F414 is the last one of the bus HI / VD To Next PS5 To Next C5-F414...
  • Page 81 Chapter 4 Work with Common Door Station Door station can be set to function as common door station, being able to call all the monitors in the network system, while unit door station can only call the monitors of its own building. POWER VR600 F4/F4DV/F4Q...

  • Page 82: C5-Mds Setting

    Chapter 4 CAT5 System Settings § 4.5 C5-MDS Setting C5-MDS is used where there are more than JW P E RRO R L INK RS- 4 8 5 one door stations in one block, to serve as door station switch, to separate Audio, video P- P+ P- P+ signal form or to different door station.

  • Page 83: The Input Number Of C5-Mds

    ON(1) OFF(0) Note: Bit1 and Bit2 are for address purpose, the rest are reserved for late use. 1 2 3 4 5 6 DIP1 DIP2 C5-MDS Address The first C5-MDS The second C5-MDS The third C5-MDS The fourth C5-MDS 4.5.2.3 The input number of C5-MDS Each C5-MDS has 4 inputs from the door station, for C5-MDS with different address, Input number is unique and different, see below table:...

  • Page 84: Connection Schematic

    4.5.3§Connection§Schematic With two C5-MDS in the system Note that VD-SET must be set to VD if the C5-F414 is the last one of the bus HI / VD To Next PS5 To Next C5-F414 To other monitors P- P+ P- P+ P- P+ C5-F414 VD-SET D1&D2...

  • Page 85: Accessory Parts

    Chapter 4 § § 4.6§Accessory§Parts 4.6.1§Distributor Distributors serves as a branch, they are connected in hand-in –hand-out style in the BUS(BUS comes out from the door station or from C5-IPC), and function to separate the audio and video signal from the bus to the monitors, and also power the monitors. Each Distributor has 4 outputs for the monitors.
  • Page 86 • Distributor to C5-IPC Note that VD-SET must be set to VD if the C5-F422 is the last one of the bus HI / VD To Next PS5 To Next C5-F422 To other monitors P- P+ P- P+ P- P+ C5-F422 VD-SET D1&D2...

  • Page 87: Picture-Memory-C5-Imc

    Chapter 4 4.6.1.2§Distributor§Types There are 3 types of distributors in the system: C5-F411, C5-F422 and C5-F414. C5-F411 Power the monitor 4 outputs for monitor One audio and one video channel available at a time C5-F422 Power the monitor 4outputs for monitor Two audio and two video channels are available at a time Two door stations can have their separate conversations at the same time C5-F414...

  • Page 88: Connection Schematic

    • Large Capacity: The C5-IMC can save up to 800 pieces of pictures • Flexible time setting: When browsing the pictures on the monitor, the switching time between different pictures can be changed on the C5-IMC • Automatic room releasing: When the memory is full, the earliest pictures will be deleted to make room for the new pictures .Also users can delete the pictures by themselves on the moni- tor.

  • Page 89: Access Control-Gp-Acs

    Chapter 4 4.6.3§Access§control-GP-ACS GP-ACS is access controller. It can work as a standalone access controller or work with C5-IPC to be connected to the network. Note that VD-SET must be set to VD if the C5-F414 is the last one of the bus HI / VD To Next PS5 To Next C5-F414...

  • Page 90: Camera Control-Cm-Ipc

    4.6.4§Camera§control-CM-IPC CM-IPC is a device designed for Network camera. Through the CM-IPC, the computer can display the video of the camera connected to the CM-IPC using the software IP-Agent. • Auto Switching: The IP-Agent can display the different cameras by itself; the video also can be set to show different cameras by turn.

  • Page 91: Chapter 5: Cat5 System Softwares

    Chapter 5 CAT5 SYSTEM SOFTWARES 5.1 PC Station Installation ............... 92 5.2 IP Address Setup ............... 96 5.2.1 General Rules for IP Address Setup ........96 5.2.2 IP Address Setup by IP8210-Config ........96 5.2.3 IP Address Setup by IP Device Software ......101 5.3 IP Device 2012 ................
  • Page 92 Chapter 5 CAT5 System Softwares 5.4.7 Setting ................139 5.5 IP Access 2012 ................ 144 5.5.1 Introduction ..............144 5.5.2 Login ................144 5.5.3 Access Device Console ............ 146 5.5.4 Card Console ..............150 5.5.5 Pass Rule................ 153 5.5.6 Report ................154 5.5.7 Report Card ..............

  • Page 93: Pc Station Installation

    § 5.1 PC Station Installation 1. Double Click Setup.exe. Start to install PC Station. 2. Select language, and then click next. Page 89...
  • Page 94 Chapter 5 CAT5 System Softwares 3. Click Next 4. Select folder for installation, then click next Page 90...
  • Page 95 5. Click Install button to begin the installation, then waiting till installation finishes. 6. Then click Finish button to confirm it Page 91...
  • Page 96 Chapter 5 CAT5 System Softwares 7. Please note the default login info: ID: Device Password: 123456 Server Name: Machine Name + ‘＼K2012’ Database Name: K2012 Customers need to enter the Server name and Database name. Page 92...

  • Page 97: Ip Address Setup

    § 5.2 IP Address Setup For constructing a DEDICATED LAN for IP system, all network devices must be set to different IP Address. • Network device model includes C5-IPC, DPG-IP-G21 and CM-IPC and PC Station. • All network devices can be detected by IP8210 Config and IP-Device, but only C5-IPC and IP- G21 and CM-IPC can be set by these two software.
  • Page 98 Chapter 5 CAT5 System Softwares 2. Press icon in the notification area. It will pop up a window for setting network. 3. Press Properties button in the Local Network Status window 4. Select Internet Protocol(TCP/IP) item in the Networking tab of Local Network Properties win- 5.

  • Page 99: Connect Device To Pc Directly Or Network

    5.2.2.2 Connect device to PC directly or network The following is a diagram of direct connection: PS5-24V 2 Wire C5-IPC CAT5 IP8210 Config.exe Ethernet 5.2.2.3 IP8210 Config Software Run the IP8210-config Page 95...
  • Page 100 Chapter 5 CAT5 System Softwares 1. Press Search… button to search the device. You can press Stop button to end the search after the device has been detected. Just like the following picture shows. 2. Select the device in the Device List frame, then press Config button. Page 96...
  • Page 101 3. A window will pop up for IP address setting. Modify IP address, but remember to leave the Mask and Gate as it is, and then press OK button to confirm. Its Mac address will be automati- cally modified simultaneously. 4.

  • Page 102: Ip Address Setup By Ip Device Software

    Chapter 5 CAT5 System Softwares 5.2.3 IP Address Setup by IP Device Software An IP setup tool has been inserted in IP Device software. The function is the same as IP8210-config software. Install PC Station package software. And IP Device software shortcut will be created au- tomatically in the desktop.
  • Page 103 5.2.3.3 Set IP Address 1. Start IP Device software 2. Right click CAT5 System, then select Node Config in the pop- up menu 3. In IP Node Config page, press Scan & Check button Page 99...
  • Page 104 Chapter 5 CAT5 System Softwares 4. Then it will pop up a window to show devices that are detected. Assume that 192.168.0.80 is the device that is supposed to be set to 192.168.0.82 5. Double click 192.168.0.80, then a window pops up for modifying IP, input 82 then Mac address will be automatically modified.

  • Page 105: Ip Device 2012

    6. A window will be pop up to inform you if config succeed, just like the following picture shows. Press ‘OK’ to confirm § 5.3 IP Device 2012 5.3.1 Introduction IP Device is used to construct a new project and save project information to a database for IP- Agent whose information is based on the database.
  • Page 106 Chapter 5 CAT5 System Softwares • Check the information, then Click Login to access IP Device. File: Include Change and Password and Exit. Language: Include English and Chinese (Simplified). Help: Include Content and About Page 102...

  • Page 107: Project Property

    5.3.3 Project Property • Right click on Default Project, then it will pop up a menu. Select Project Property • It will pop up a window for setting project property. Page 103...

  • Page 108: Ip Node Config

    Chapter 5 CAT5 System Softwares IP Seg: Select a IP Segment for the new project. Note that all the IP address must be in the same segment.We will take 192.168.0.X as an example in this manual System Type: IP-device can be used in DT or C5 system, here we choose C5. Project Name: Name of the new project;...
  • Page 109 Model Description Model Name Model Description C5-IPC_CDS C5-IPC for Common Door Station C5-IPC_DS C5-IPC for Door Station CM-IPC IPC for CCTV Camera DPG-IP-G21 Guard Unit PC Station( IP-Agent ) For example, in CAT5 System, see the table, IP Nodes can be configured like the following picture Device 192.168.0.(81/82/84/86) Door Station: A Block/B Block /C Block /D Block...
  • Page 110 Chapter 5 CAT5 System Softwares After adding the devices to the project, Click on Save to exit. Also, if all the decivices are installed in the system, we can click on Scan&Check to search the devices on-line, and then added them to the project.See below: Now go back to the mian interface, and here we can see the project and all the devices added To it .

  • Page 111: Block Config

    If you want to check if the devices are online, you can press Refresh Online button or click right mouse button on CAT5 System then select Check Network Device Online. See the following picture, means device offline, and means PC is online, but IP-Agent isn’t opened, indicates the model of IP Node is wrong selected, or wrong DIP switch setting of C5- IPC.Note that, the Refresh Online checks only the IP-Node, such as C5-IPC, PC station and DPG-IP-G21.
  • Page 112 Chapter 5 CAT5 System Softwares Assuming that we have that 4 door stations and 8 monitors in each block. And door staions coded from 1~4; monitors coded from 0021~0024 and 0031~0034. • Door station Configuration DS Config: Right click on A Block ->...
  • Page 113 We can use Add or Batch Add to add monitors. Add is to add monitors one by one, while Batch Add enables you to add monitors in batches. When all the monitors are added. Click close to save and exit. Now go back to the block interface, and right click on A Block ->...

  • Page 114: Default Project Parameters

    Chapter 5 CAT5 System Softwares • Extended Monitor Configuration Maximum 3 monitors can be set in one apartment. One of them is Master and the other 2 slave monitors. Now assume that we want to add slave monitors to the A block 0021 monitor, right click on A Block-0021 ->Select Extend Monitor Config on the pop-up window ->Config just like the following picture->...

  • Page 115: Guard Center Priority

    Guard Center Priority: When block givs out call, to set how the calll is transferred to dif- ferent switch boards Even UP Setting: When block gives out alarm signal, to set how many guard centers it will go to Input Table: To make a name list for all door stations and montiors and switch boards IP Table: To make a name...

  • Page 116: Event Up Setting

    Chapter 5 CAT5 System Softwares 5.3.6.2 Event up Setting Event here has to do with the monitors. Events such as defense-enabling/disabling, emergency call, and alarm signal will be sent to all the switch boards in the list. After the setting , click Save button to finish setup and Write to all device to set all the C5-IPC con- nected.

  • Page 117: Ip Table

    Here please note that: 1. Switch can call any of the devices directly by their name. 2. Common door stations can all any one of monitor by their name. 3. Door stations and moni- tors can not choose to call different monitors, should see Guard center priority.

  • Page 118: Management Of Block C5-Ipc

    Chapter 5 CAT5 System Softwares 5.3.7 Management of Block C5-IPC The management of C5-IPC provides access to all the parameters of a C5-IPC, the different param- eters can be set, changed and saved according to different requirements on each of the C5-IPC. Right click on the C5-IPC, and select the Management, see the below window: Read From Device: To upload all the parameters saved in...
  • Page 119 1. Local Call Table: To make namelist for the monitors in- side the block. The door sta- tion can input the specified number to call the monitor. - V iew& E dit: To make and edit the call table - View on device: to view the call table of the device 2.

  • Page 120: Parameters Management

    Chapter 5 CAT5 System Softwares Here we can choose to Use Project Default, refer to previous chapter Default project parameters. Or we can untick the item, and set the Call priority manually. Maximum 8 Guard centers can be set for each C5-IPC. 5.3.7.2 Parameters Management Click on Parameters management to get to the window below: Button Descriptio n:...
  • Page 121 1) General Number of Monitor: How many monitors can monitor the door station at he same time, ranging from 1~5 Talk On Mon: Enable/Disable the talk function when monitor is doing monitoring Unlock On Mon: Enable/Disable the unlock function when monitor is doing monitoring IM Monitor Time: To set Monitor Time from IM monitor to Door Station, ranging from6~600s Call Wait Time: To set calling waiting time from door station to monitor.
  • Page 122 Chapter 5 CAT5 System Softwares Event up Event up setting decides which switchboard should the alarm and events be sent to. We can adopt the default setting, or untick to set the switchboard we want. Maximum 4 switchboards can be set to one C5-IPC, and the events will be sent to all the switchboards at one time. MDS serves as multi- door station switcher.
  • Page 123 does the monitoring. It always surveys camera port , skips the door station port when off line and skips None port always. 5) Monitor Monitor Switch Timer: Set the time duration of each port when do monitoring monitor Monitor 1~8: Set the channels available when do automatic...

  • Page 124: Management Of Common C5-Ipc

    Chapter 5 CAT5 System Softwares Dip Statues This information is uploaded from C5-IPC device DIP switch setting; it just can be changed on C5- IPC. For more details, refer to C5-IPC settings in part 4. 5.3.8 Management of Common C5-IPC The Common C5-IPC is set to work with Common door station, and common door station is able to call all the monitors in the system.

  • Page 125: Call Table

    5.3.8.1 Call Table C ommon Call Table: S e e I n p u t Ta b l e i n 5.3.6. IP Call Table: See IP Call Table in 5.3.6. Call priority: See Call Priority 5.3.6. 5.3.8.2 Parameters setting Call Wait Time: To set calling waiting...

  • Page 126: Tip Device

    Chapter 5 CAT5 System Softwares • IP8210 control This item is reserved, don’t change the set- ting easily • Call Table Quan Rows of Common Call Table: To set the limita- tion of rows when mak- ing the Common call table Rows of IP Table: To set the limitation of rows...

  • Page 127: Ip Agent 2012

    2) Press the PA key of the related C5-IPC, A window will pop up showing the IP address of the C5-IPC. § 5.4 IP Agent 2012 5.4.1 Introduction IP-Agent is the main software of PC Station. It’s a Switchboard that enables you communicate with user, entrance of blocks, common entrances and other Switchboards in one residential area via IP network.

  • Page 128: Operate Interface

    Chapter 5 CAT5 System Softwares 3. Enter the Server name and Database Name Server name: machine name + ‘＼K2012’ Database Name: K2012 It is strongly recommened that the password should be changed via IP-Admin. Otherwise it may cause information leak and the responsibility is on the user. 5.4.3 Operate Interface Input the correct User ID, Password, Server Name and Database Name, It will pop up the window...

  • Page 129: Monitor Viewer

    Item Description 1. S/W Title Bar Display the name of the software 2. ID Shows the user ID 3. Monitor Launches the Monitor Viewer. 4. Record Launches the Record Viewer 5. Capture Launches the Capture Viewer 6. Setup Open the setup page 7.

  • Page 130: Name & Function In Monitor Window

    Chapter 5 CAT5 System Softwares Item Description 1. Device List Consists of 4 parts: GL & PC, DS & CDS, Monitor & Camera 2. Call List Call info record 3. Alarm Alarm and events record 4. Unlock 1 Unlock the latch of the entrance 5.
  • Page 131 Item Description 1. Monitor Time Displays the monitor time elapsed 2. Device Name Displays the name of the monitored device 5.4.4.3 Name & Function in Pop-up Call Window It will pop up a calling window for video and operation when there is a calling to DS/CDS or an in- coming calling from DS/CDS.
  • Page 132 Chapter 5 CAT5 System Softwares 5.4.4.4 Device List Device List consists of 4 parts, including GL & PC, DS & CDS, Monitor and Camera. After device configuration operation in IP Device software, all the devices that have been configurated in IP Device will show in the Device List.
  • Page 133 2) Incoming Call 1) Press Accept to enter talking status, else 2) Talking established after accepting the press Refuse to deny the calling calling, you can press Hand up button to end the conversation • DS & CDS All the door stations & common door stations 1) CALL are listed in this frame.
  • Page 134 Chapter 5 CAT5 System Softwares 2) Incoming Call 1) Press Accept to enter talking status, or else 2) Talking established after accept the call- press Refuse to deny the calling. ing, you can press Hand up button to end the conversation. 3) Monitor Press button to monitor the related DS or CDS.
  • Page 135 1) Call and wait for picking up 2) Talking established if the called Switch- board picks up 2) Incoming Call 1) Press Accept to enter talking status, else 2) Talking established after accept the press Refuse to deny the calling calling, you can press Hand up button to end the conversation •...

  • Page 136: Record Viewer

    Chapter 5 CAT5 System Softwares • Call List Click the Call List tab to unfold the lists. Call List is a record that includes call destination/call source, date, time and length of time Icons & Description of Sub Lists (All Call): All call info including outgoing calls, incoming call, missed calls (Calls): Outgoing call info (Incomings): Incoming call info (Missed calls): Missed call info...

  • Page 137: Record List

    Item Description 1. Record List Includes audio record, video record and talking record 2. Video Screen Displays video/audio record 3. Record Controller Controls record playing 4. Progress Bar Shows the playing progress when playing record 5.4.5.2 Name & Function in The Record Window Item Description 1.
  • Page 138 Chapter 5 CAT5 System Softwares Icons & Description (All Record): All record including audio record, video record and talk record (Audio Record): Audio record for conversation between IP-Agent and monitor (based on setting), no video. (Video Record): Video record for DS/CDS when monitoring (based on setting), no audio.

  • Page 139: Capture Viewer

    5.4.6 Capture Viewer Item Description Captured Picture List Click to select the specific picture Record Filter Filter record based on specific time and address Video Screen Displays captured pictures Slide to adjust the number of pictures that can be viewed Slide bar simultaneously in the video screen Scroll bar...

  • Page 140: Setting

    Chapter 5 CAT5 System Softwares BROWSE MODE BIG PICTURE MODE If you want to back to BROWSE MODE, just double click on one picture in the video screen. 5.4.7 Setting From the right upper corner of the IP-Agent main screen, click the button to enter setting page.

  • Page 141: Alarm Setting

    Title OSD Time: Show time in video window when monitoring or calling Name: Show device name in video window when monitoring or calling IP: Select the local machine address Camera IP: Input IP Address of IP-Agent camera（CM-IPC) Use IP Camera in IM call: Transmit video of IP-Agent camera to the called monitor Use IP Camera in GL call: Transmit video of IP-Agent camera to the called Switchboard Capture Capture Path: Select a path to save all captured pictures...
  • Page 142 Chapter 5 CAT5 System Softwares Region Name Each of the 8 alarm regions can be set to its name. And when alarm trigger, the IP-Agent will show the name of the region. Tip Event Call guard unit: Door Station or Monitor or other switchboards call the switchboard Emergency Call: Monitor calls guard unit in emergency Defense out of home: Signal will be sent to Switchboard when customers activate defense func- tion...

  • Page 143: View & Layout

    Play time: how many times the alarm sound is played Ignore Time: A certain period of time after which the alarm tip/window will be disabled when there In no answer on the PC. 5.4.7.3 View & Layout Channel On Start : Layout: To set initial aspect ratio for video screen when IP-Agent gets start Channel Number: To set initial channel number for video screen when IP-Agent gets start Enable Max Channel: Deselect the option to disable 9 and 12 channel selection in the main frame.

  • Page 144: Handset

    Chapter 5 CAT5 System Softwares 5.4.7.4 Handset Handset: Add one handset to IP-Agent Use handset: Enable a handset Com Port: Select related com port for the connected handset Ring Sound: Select a Ring Tone for handset Ring Volume: Adjust Ring Volume for handset 5.4.7.5 Security &...

  • Page 145: Ip Access 2012

    § 5.5 IP Access 2012 5.5.1 Introduction IP Access 2012 is responsible for the maintenance and management of access control system to the whole management software, which can add access controller (C5-IPC), add/delete cards, back up and restore cards information, also check the pass record. Operating tools: Access controller gets card information Via Door Station and RFID link USB.
  • Page 146 Chapter 5 CAT5 System Softwares - The default password can be exposed to a hacking thread so it is recommended to change the password by IP-Admin software after installing the product. Otherwise the users are responsible for any information leak. - The following are two examples of login failure;...

  • Page 147: Access Device Console

    5.5.3 Access Device Console Click on Access Device Console into setting interface, just like the following picture shows 5.5.3.1 Cards information (Device) Valid Cards: Cards those have been added to theC5-IPC and are able to open the door Unregister Cards: Cards added via door station directly, but PC doesn't have these cards info. Click Process button to add these cards info to database in PC.

  • Page 148: Utilities

    Chapter 5 CAT5 System Softwares Not Downloaded Cards: Cards that have been inputted into database in PC but haven't been downloaded to the related device. Event Record: Card access record that has been saved in PC. Click on View Events to view card access records that include card number, access time, related room number and whether pass granted or not.

  • Page 149: Configure

    Property: The device information, include device address, hardware versions, software version and timer. Just like the following picture shows Refresh: Refresh all the info in this page. Download All: Download all the cards in the database to their related device respectively Refresh all: Refresh all devices to check if it’s online Close: Exits current window...
  • Page 150 Chapter 5 CAT5 System Softwares 5. Set clock: Synchronize the device time by PC time 6. Set pass rule: Set pass rule for device.( Retails refer to setting rule section) 7. View Pass Rule: View the pass rule in the device 8.

  • Page 151: Card Console

    5.5.4 Card Console Click Card Console into setting interface, just like the following picture shows. 5.5.4.1 Browse Display all card information in detail, including the card No, Remark, Card Person, Card type, room No, whether downloaded or not, and added time and operator.
  • Page 152 Chapter 5 CAT5 System Softwares Fill the text boxes with card info in the Card Information frame. Card NO: Two methods: 1) Inputted Card NO by keyboard manually 2) Filled automatically by swiping the card over card reader(USB card reader) Room No: Input the related room Remark: Remark info for card Card type: Choose the type of card (User/control)
  • Page 153 Click Filter item, It will pop up a window, just like the right picture shows. Record Count: Choose the max number of the card. S aved Filters: Save the filters for quick start next time. Create a new filter Edit the selected filter Delete the selected filter Save filter info Field Name: include all the info of cards.

  • Page 154: Pass Rule

    Chapter 5 CAT5 System Softwares Auth +: Add the selected card to other authorized C5-IPC Re Auth: The selected card will be diverted to other authorized entrances. And the card info will be deleted in the original entrances automatically Event: Access records of cards 5.5.5 Pass Rule Pass Rule can be useful for real estate management.

  • Page 155: Report

    Click Save, set Rule 1 success. Rule 2 ~ Rule 6 settings refers to above-mentioned operation. If you want to download the rules to all devices, click Download to all devices button If you want to download the rules to one specified device, setting method refers to Access device configuration->device management->(Set Clock/Set Pass Rule) Click Close exits current setting window 5.5.6...
  • Page 156 Chapter 5 CAT5 System Softwares Click Print to print report card, click Export to export a report document. Page 152...

Table of Contents
