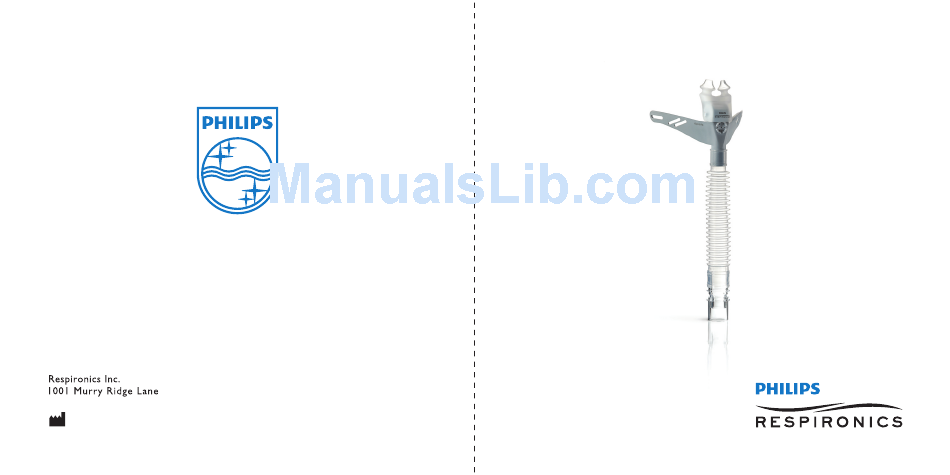

- Page 1 OptiLife Murrysville, PA 15668 USA 1067740 Instructions for Use JDH 03/30/2010 © 2010 Koninklijke Philips Electronics N.V. All rights reserved.
-
Page 2: Table Of Contents
OptiLife Nasal Mask Table of Contents Intended use Warnings symbols Before use cleaning Instructions system one resistance control Attaching the cushion sizing the Pillows cushion sizing the cradle cushion fitting the Mask and Headgear removing the Headgear and Interface tube Management... - Page 3 A = Top Strap B = Side Strap C = Cushion D = Headgear Slots E = Exhalation Port (Do not block) F = Mask OptiLife G = Support Band H = 6” Tube I = Tube Management Clip optiLife nasal Mask...
-
Page 4: Intended Use
US federal law restricts this device to sale by or on the order of a physician. Intended Use the optiLife nasal Mask is intended to provide an interface for ap- plication of cPAP or bi-level therapy to patients. the mask is for single patient use in the home and multi-patient use in the hospital/institu- tional environment. -
Page 5: Warnings
However, when the cPAP machine is not operating, enough fresh air will not be provided through the mask, and exhaled air may be rebreathed. this warning applies to most models of cPAP systems. • If oxygen is used with the device, the optiLife nasal Mask... - Page 6 oxygen flow must be turned off when the device is not operating. explanation of the Warning: When the device is not in operation, and the oxygen flow is left on, oxygen delivered into the ventilator tubing may accumulate within the device enclosure. oxygen accumulated in the device enclosure will create a risk of fire.
-
Page 7: Symbols
Symbols Symbol Description General caution or Warning consult instructions for use note system one resistance control setting Does not contain natural rubber latex optiLife nasal Mask... -
Page 8: Before Use
Before Use • Hand wash mask. • read and understand the instructions completely. • remove the Quick fit tips from the headgear. • clean your face before wearing the mask. Cleaning Instructions Hand wash the mask before first use and daily. the headgear should be hand washed weekly, or as needed. - Page 9 Air dry. Make sure the mask is dry before use. Inspect all parts for damage or wear; replace any parts that have visibly deteriorated (cracking, crazing, tears, etc). replace the mask if the cushion becomes hardened. optiLife nasal Mask...
-
Page 10: System One Resistance Control
System One Resistance Control this mask uses the system one resistance control setting (e.g., ). the following symbol may appear on your therapy device (e.g., ). this represents the level of mask resistance compensation. Match the setting to the mask if appropriate. Pillows Cradle Cushion Important Notes:... -
Page 11: Attaching The Cushion
Figure 2 the cushion onto the attachment hub (figure 2). the optiLife name should be on the front (away from your face) and the arrows on the cushion and mask should be on the inside (closer to your face). -
Page 12: Sizing The Pillows Cushion
Sizing the Pillows Cushion the optiLife Pillows cushions are available in multiple sizes to provide the most comfortable fit and to deliver the best Front Back Slot Slot therapy. to determine which size to use, select a cushion that fills your nostrils... - Page 13 Place the cushion so that it rests underneath your nose. no part of your nose should be inserted into the cushion. Your chin should rest comfortably in the support band. Front Back Slot Slot Figure 7 Figure 6 optiLife nasal Mask...
-
Page 14: Fitting The Mask And Headgear
Comfort Tip Position headgear in either slot to optimize fit and comfort. for the Pillows cushion, start in the back slot and move to the front slot if necessary. for the cradle cushion, start in the front slot and move to the back slot if necessary. - Page 15 If you have long and silky hair, place your hair over the back headgear strap to help secure the headgear. optiLife nasal Mask...
-
Page 16: Removing The Headgear And Interface
Cushion Seal Fitting Tips If you experience leaks, try a different size cushion. Verify that the support band is not overtightened on your chin. Move the headgear to a different slot on the interface. rotate the cushion forward or backward on the attachment hub. -
Page 17: Tube Management
(figure 9). the fabric ring can be placed anywhere along the tube and the clip can be attached to your clothing or pillow case for easier tube management. Figure 9 Disposal Dispose of in accordance with local regulations. optiLife nasal Mask... -
Page 18: Specifications
Specifications Warning: the technical specifications of the mask are provided for your healthcare professional to determine if it is compatible with your cPAP or bi-level therapy device. If used outside these specifications, or if used with incompatible devices, the mask may be uncomfortable, the seal of the mask may not be effective, optimum therapy may not be achieved, and leak, or variation in the rate of leak, may affect device function. - Page 19 50 slpm 100 slpm All sizes < 2.9 < 9.5 Deadspace Pillows Cushion ≤ 16.1 mL Cradle Cushion ≤ 42.0 mL Storage Conditions temperature -4° f to 140° f (-20° c to 60° c) 15% to 95% relative humidity, non-condensing optiLife nasal Mask...
-
Page 20: Limited Warranty
LIMITED WARRANTY Respironics, Inc. warrants that its mask systems (including mask frame and cushion) (the “Product”) shall be free from defects of workmanship and materials for a period of ninety (90) days from the date of purchase (the “Warranty Period”). If the Product fails under normal conditions of use during the Warranty Period and the Product is returned to Respironics within the Warranty Period, Respironics will replace the Product. - Page 21 Mask...
