Philips 7FF1CME User Manual

7ff1 series photoframe
Hide thumbs Also See for 7FF1CME:
Table of Contents

Advertisement

Quick Links

User manual
Manuel d'utilisation
Gebruikershandleiding
Användar-handbok
PhotoFrame™
Classic
7FF1CME
Modern
| Benutzerhandbuch
| Manuale per l'utent
7FF1CWO
7FF1M4
| Manual del usuario
| Manual do usuário
7FF1
7FF1CMI

Advertisement

Table of Contents
loading

Related Manuals for Philips 7FF1CME

Summary of Contents for Philips 7FF1CME

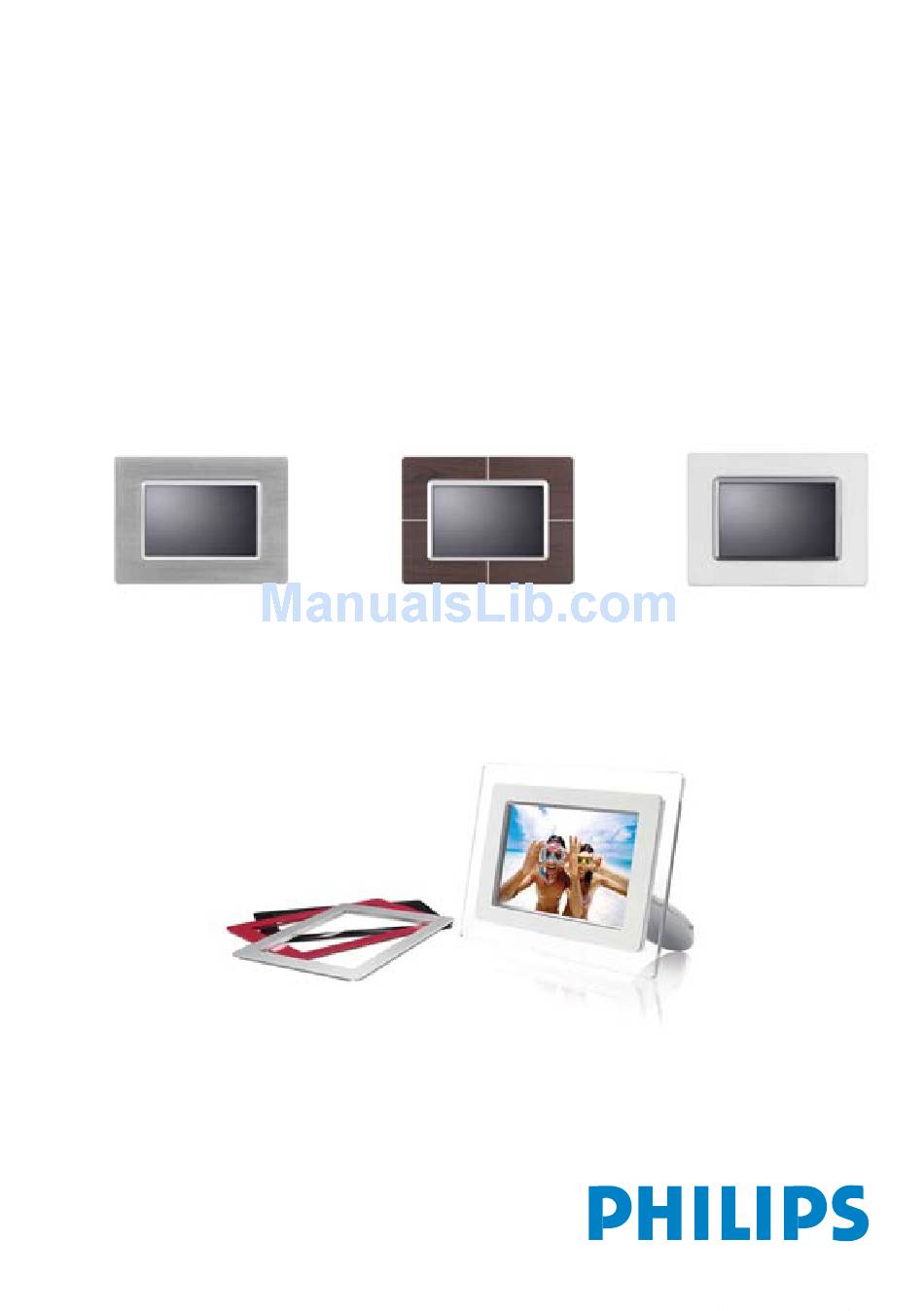

  • Page 1 User manual Manuel d’utilisation Gebruikershandleiding Användar-handbok PhotoFrame™ Classic 7FF1CME Modern | Benutzerhandbuch | Manuale per l'utent 7FF1CWO 7FF1M4 | Manual del usuario | Manual do usuário 7FF1 7FF1CMI...

  • Page 2: Getting Started

    Power outlet ©2005 Koninklijke Philips Electronics NV All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV PhotoFrame™ Stand User manual CD...

  • Page 3: Initial Setup

    Initial setup Specification • Philips digital PhotoFrame™ can be placed either vertically or horizontally to fit the photos on display. Its internal rechargeable battery provides you the freedom to pass it around and show photos without the power cord. Or, you can place it somewhere in the room for constant PhotoFrame™...
  • Page 4 LCD display also shows the function icon for each key at the same position. • Previous/Left Next/ Right Down C. Turning on PhotoFrame™ Slide the power switch up to the ON position. • The power LED will be green and the Startup screen will appear. D.
  • Page 5 Getting started Packing list • Initial setup • Specification • Specification Picture/Display Effective display area: 137 x 91 mm (5.4" x 3.6"), 6.5" diagonal Vertical dot pitch: 0.1905 mm Horizontal dot pitch: 0.1905 mm Resolution: 720 x 480 pixels Brightness: 200 nits Viewing angle (CR>5): Horizontal (-85°~85°), Vertical (-85°~85°) Backlight Half-Life time: 20,000 hours Connectivity...
  • Page 6 Photo menu:...
  • Page 7 OSD languages: English, French, German, Italian, Spanish, Simplified Chinese, Russian, Japanese Plug & Play compatibility: Windows 2000/XP or later, Mac OS X or later, Linux Accessories Included accessories: AC power adaptor (AC 100~240V 50/60 Hz 0.36A-->DC 5V 2.5A), USB cables, Quick start guide User manual: Yes (in CD-ROM) Power Power LED indicator Green (power on), Off (power off)

  • Page 8: Enjoying Photos

    Enjoying photos Viewing • photos Copying • photos Viewing Photos Viewing • photo slideshows When there is no memory card in PhotoFrame™, it displays photos stored in local memory. Deleting • When a memory card is inserted to PhotoFrame™, it will display photos from most recently connected media in a "Last-in, First-display"...
  • Page 9 G Total photo count H Resolution of current photo (in pixels). Date current photo was taken Source of displayed photos. SLIDESHOW- Automatic, Rotating display of photos. BROWSE—Manual viewing of photos one-by-one. (Displays size and date) Each icon represents the function of the corresponding key in the rear of PhotoFrame™.
  • Page 10 Each icon represents the function of the corresponding key in the rear of PhotoFrame™. B Source of photos on screen Memory stick SD, MMC C Current Photo number D Total photo count E Resolution of current photo (in pixels) F Date current photo was taken Viewing photos on PhotoFrame™...

  • Page 11: Copying Photos

    Enjoying photos Viewing • photos Copying • photos Copying Photos Viewing • photo slideshows You can copy photos stored on a memory card, or PC to PhotoFrame™. PhotoFrame™ will Deleting • then internally store a resized copy of the original photo. This resized copy will remain inside PhotoFrame™...
  • Page 12 For copying photos from a PC to the PhotoFrame™ , install the • Auto Run software PhotoFrame™ manager Philips Auto Run Program for PhotoFrame™ is a windows based application for user to manage photos between Philips PhotoFrame™ and PC. It provides easy-to-use user interface for user to browse and preview the photos in both PC directories and PhotoFrame™...
  • Page 13 Enjoying photos Viewing • photos Copying • photos Viewing Photo Slideshows Viewing • photo slideshows When you set the PhotoFrame™ view mode to Slideshow, it will automatically rotate the Deleting • PhotoFrame™ed on screen. You may handpick the photos for slideshow and choose slideshow frequency –...
  • Page 14 • Press the key to select Slideshow settings and use the the Frequency item. Next press the • Use the key to highlight the interval a photo remains on screen and press to confirm. • Now your selected setting is confirmed. •...
  • Page 15 • Use the key to highlight the way one photo replaces the next on screen. Press to confirm your selection. Now your selected setting is confirmed. Press to leave this menu. Choosing photo order Note: This function applies • Press the key (the 3 key from the left on the rear of PhotoFrame™).
  • Page 16 • Press key to select Slideshow settings; press • Use the key to highlight how you want to place PhotoFrame™. Press confirm your selection. Now your selected setting is confirmed. • Press to leave this menu. Selecting correct photo orientation for Slideshow Note: This function only applies to photos stored on PhotoFrame™...
  • Page 17 • Use the key to move the highlight among different rotation angles until the thumbnail image on the left shows the desired orientation for the selected photo. • Press to confirm. Now your selected settings are confirmed. • Press to leave this menu. RETURN TO TOP OF THE PAGE...
  • Page 18 Enjoying photos Viewing • photos Copying • photos Deleting and Rotating photos Viewing • photo slideshows Sometimes you may want to delete some photos stored on PhotoFrame™ or change the Deleting • orientation of photos. Here is how: Rotating a photo Rotating photos Note: This function only applies to photos stored on PhotoFrame™...
  • Page 19 • Use the key to highlight Delete Photo; Press When you delete a photo, PhotoFrame™ will show status and return to Brose mode after • completion. Delete several photos at once in Thumbnail mode Change view mode to Thumbnail. • •...
  • Page 20 Optimizing PhotoFrame™ Selecting • brightness, language and set time functions Selecting brightness, language and set time functions Checking • PhotoFrame™ status Use this section to select PhotoFrame™ brightness levels and on-screen information displa Taking care • language. You may also enter your local time and then set a different brightness level fo of your the evening hours from 6:00PM~6:00AM.
  • Page 21 Press the key (the 3 key from the left on the rear of PhotoFrame™). A menu with general settings for PhotoFrame™ will appear. • Use the key to highlight Time functions. Next press the • Press the key again to select Current Time. A clock will appear for you to set Hours, Minute, and AM/PM.
  • Page 22 • Press the key (the 3 key from the left on the rear of PhotoFrame™). A menu with general settings for PhotoFrame™ will appear. • Use the key to highlight Time functions. Next, press the • Use the key to highlight 6PM-6AM Brightness and press the •...
  • Page 23 • Use the key to highlight Time functions. Next, press the • Use the key to highlight Auto on/off timer. Next, press the • Select Enabled and press • Move to Auto on at and press • Set the time to turn on PhotoFrame™ everyday and press •...
  • Page 24 • Use the key to choose your preferred language and press The new selected setting is effective immediately. • Press again to leave this menu. RETURN TO TOP OF THE PAGE to confirm.
  • Page 25 Optimizing PhotoFrame™ Selecting • brightness, language and set time functions Checking PhotoFrame™ status Checking • PhotoFrame™ status You may check the status of your PhotoFrame™— whether the system is ON, if the batte Taking care • is charging, how many more photos can be stored, how much battery power remains, whic of your media are currently connected, or the PhotoFrame™...
  • Page 26 Optimizing PhotoFrame™ Selecting • brightness, language and set time Taking care of your PhotoFrame™ functions Checking • PhotoFrame™ 1) Do not drop status PhotoFrame™ is a complicated electronic device and cannot withstand shock from drops Taking care • of your 2) Do not expose to moisture PhotoFrame™...

  • Page 27: Frequently Asked Questions

    Frequently asked questions Q: Is the LCD screen touch-enabled? A: The LCD screen is not touch-enabled. Please use the keys in the back to control PhotoFrame™. Q: Can I switch between different slideshows photos by using different memory cards? A: Yes. When you connect your memory card to PhotoFrame™, it will slideshow photos stored on that specific card.
  • Page 28 13) My PhotoFrame™ is ON but the system does not respond anymore! First please make sure the system is properly powered. Then please use a pin to trigger the Reset button located at the lower-left corner on the back to restore the system. 14) Q: Why doesn't my PhotoFrame™...

  • Page 29: Troubleshooting

    Part of photo is cropped on PhotoFrame™ Keeping your PhotoFrame™ up to date At times Philips will provide Software to keep your PhotoFrame™ up to date. Please regis yourself to www.philips.com/register or visit www.p4c.philips.com for latest support new Recommended actions Recharge PhotoFrame™...

  • Page 30: Service And Warranty

    12 months 24 months If the Philips Helpdesk concludes with you that the product is defective, contact the Philips dealer where you bought the product. In the event you require service whilst in another country, or your dealer no longer exists or no longer sells Philips products, contact our helpdesk for support to solve the problem.
  • Page 31 Therefore always check whether a product can be used in a specific country. Note that for products that are not originally designed, manufactured, approved and/or authorized for usage within the country of use the Philips global warranty terms apply. Contact...
  • Page 32 Ireland 01 601 1161 Italy 199 404 042 Luxembourg 26 84 30 00 The Netherlands 0900 0400 063 Norway 2270 8250 Portugal 2 1359 1440 Spain 902 888 785 Sweden 08 632 0016 Switzerland 02 2310 2116 United Kingdom 0906 1010 017 Local call tariff €...
  • Page 33 Consumer Information Centers Antilles •Argentina •Australia Colombia •Belarus •Bulgaria Hungary • India • Indonesia • New Zealand • Pakistan • Paraguay Serbia & Montenegro • Singapore Thailand • Turkey • Ukraine • Eastern Europe BELARUS Technical Center of JV IBA M.
  • Page 34 HU - 1031 Budapest Tel: +36 1 2426331 Email: inbox@serware.hu www.serware.hu LATVIA ServiceNet LV Jelgavas iela 36 LV - 1055 Riga, Tel: +371 7460399 Email: serviss@servicenet.lv LITHUANIA ServiceNet LT Gaiziunu G. 3 LT - 3009 KAUNAS Tel: +370 7400088 Email: servisas@servicenet.lt www.servicenet.lt ROMANIA Blue Ridge Int'l Computers SRL...
  • Page 35 Philips Antillana N.V. Vedia 3892 Capital Federal CP: 1430 Buenos Aires Phone/Fax: (011)-4544 2047 BRASIL Philips da Amazônia Ind. Elet. Ltda. Rua Verbo Divino, 1400-São Paulo-SP CEP-04719-002 Phones: 11 21210203 -São Paulo & 0800-701-0203-Other Regions without São Paulo City CHILE Philips Chilena S.A.
  • Page 36 Rambla O'Higgins 5303 Montevideo Uruguay Phone: (598) 619 66 66 Fax: (598) 619 77 77 Customer Desk: Phone: 0004054176 VENEZUELA Industrias Venezolanas Philips S.A. Apartado Postal 1167 Caracas 1010-A Phone: (02) 2377575 Fax : (02) 2376420 Pacific AUSTRALIA Philips Consumer Electronics...
  • Page 37 Rm 1007, Hongyun Building, No. 501 Wuning road, 200063 Shanghai P.R. China Phone: 4008 800 008 Fax: 21-52710058 HONG KONG Philips Electronics Hong Kong Limited Consumer Service Unit A, 10/F. Park Sun Building 103-107 Wo Yi Hop Road Kwai Chung, N.T.
  • Page 38 Website: www.philips.com.pk PHILIPPINES PHILIPS ELECTRONICS & LIGHTING, INC. Consumer Electronics 48F PBCOM tower 6795 Ayala Avenue cor VA Rufino St. Salcedo Village 1227 Makati City, PHILS Phone: (02)-888 0572, Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477 Fax: (02)-888 0571 SINGAPORE...
  • Page 39 Accord Customer Care Solutions Ltd Authorized Philips Service Center Consumer Service 620A Lorong 1 Toa Rayoh Singapore 319762 Tel: +65 6882 3999 Fax: +65 6250 8037 TAIWAN Philips Taiwan Ltd. Consumer Information Centre 13F, No. 3-1 Yuan Qu St., Nan Gang Dist.,...

  • Page 40: Philips Pixel Defect Policy

    Philips Pixel Defect Policy Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT LCD panels used in flat panel monitors are sometimes unavoidable.
  • Page 41 One dark sub pixel Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. BRIGHT DOT DEFECTS MODEL...

  • Page 42: Recycling Information For Customers

    Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.

  • Page 43: Banned Substance Declaration

    Banned Substance Declaration This product comply with RoHs and Philips BSD (AR17-G04-5010-010) requirements CE Declaration of Conformity Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards - EN60950:2000 (Safety requirement of Information Technology Equipment)

  • Page 44: Commission Federale De La Communication (Fcc Declaration)

    THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. FCC Declaration of Conformity Model Number: 7FF1 Trade Name: Philips Responsible Party: Philips Consumer Electronics North America P.O. Box 671539 Marietta, GA 30006-0026 1-888-PHILIPS (744-5477) Declaration of Conformity for Products Marked with FCC Logo, United States Only This device complies with Part 15 of the FCC Rules.

  • Page 45: Vcci Notice (Japan Only)

    Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement. Les raccordements à cet appareil doivent être réalisés avec des câbles blindés à protections métalliques pour les connecteurs RFI/EMI afin de maintenir la conformité avec les Règlements et la Législation du FCC.

  • Page 46: Polish Center For Testing And Certification Notice

    Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three- prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source. The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).

  • Page 47: Bsmi Notice (Taiwan Only)

    Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) Dispose of in accordance to local-state and federal regulations.

  • Page 48: Waste Electronics And Electrical Equipment (Weee)

    For additional information on recycling contact Waste Electronics and Electrical Equipment (WEEE) This product is labelled with this symbol in accordance with European Directive 2002/96/EG to indicate that it must not be disposed of with your other household waste. Please check your local city office or waste disposal service for the return and recycling of this product.
  • Page 49 Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners 2006 © Koninklijke Philips Electronics N.V. All rights reserved. www.philips.com...
