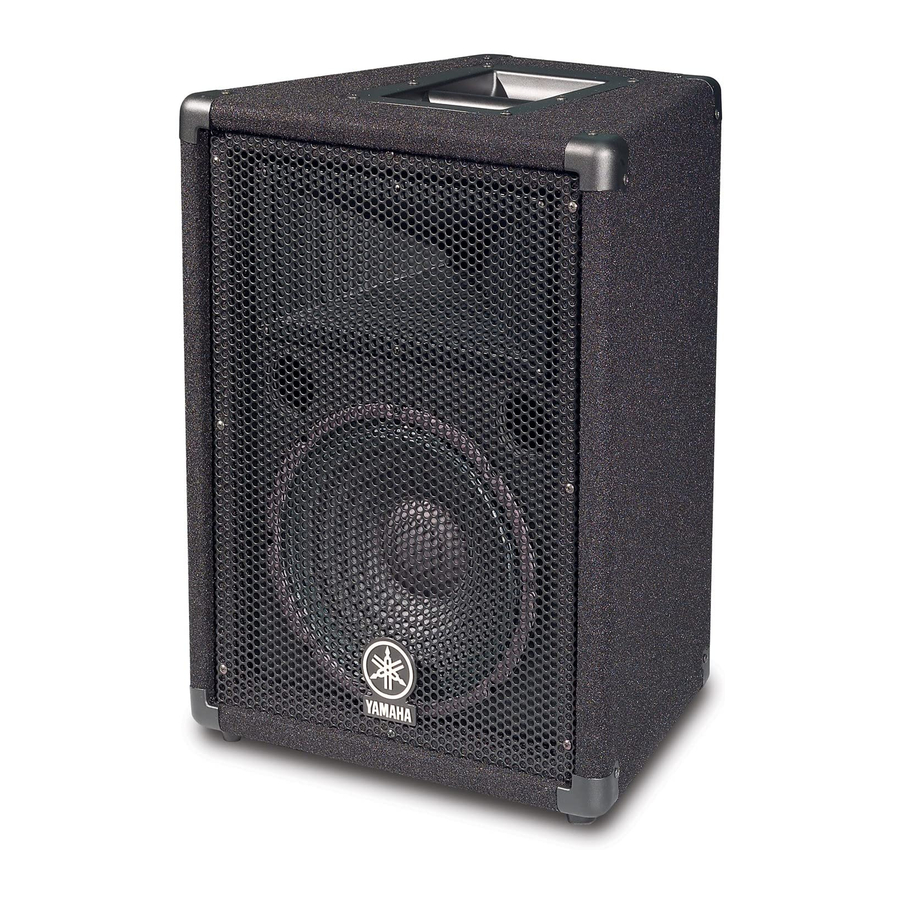

BR10/BR12/BR15/BR12M/BR15M
BR12:
PA
011734
BR15:
BR12M: 20040910-57750
BR10
BR12M
CONTENTS
SPECIFICATIONS & DIMENSIONS
CROSSOVER............................................................................ 4
DISASSEMBLY PROCEDURE
BR10/BR12/BR15.................................................................... 7
BR12M/BR15M ..................................................................... 10
PARTS LIST
20040910-52500
20040910-63000
SPEAKER SYSTEMS
SERVICE MANUAL
BR12
(目次)
(分解手順)
Copyright (c) Y amaha Corporation. All rights r
BR15
BR15M
(総合仕様&寸法図)
.......... 3
HAMAMATSU, JAPAN
eserved. PDF-K733
'04.05

Advertisement

loading

Summary of Contents for Yamaha BR10

  • Page 1 BR15 BR12M BR15M (目次) CONTENTS (総合仕様&寸法図) SPECIFICATIONS & DIMENSIONS ..3 CROSSOVER................4 (分解手順) DISASSEMBLY PROCEDURE BR10/BR12/BR15..............7 BR12M/BR15M ..............10 PARTS LIST BR12: 20040910-52500 011734 BR15: 20040910-63000 BR12M: 20040910-57750 HAMAMATSU, JAPAN Copyright (c) Y amaha Corporation. All rights r eserved.
  • Page 2 IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated.
  • Page 3 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M (総合仕様&寸法図) SPECIFICATIONS & DIMENSIONS Model BR10 BR12 BR12M BR15 BR15M Enclosure Bass reflex type 10" cone 12" cone 15" cone Speaker Unit 1" VC, Titanium Frequency Response 65Hz-20kHz 60Hz-20kHz NOISE* 125W 150W 200W Power Capacity 250W 300W...
  • Page 4 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M CROSSOVER BR10 Units:inch...
  • Page 5 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M BR12/BR12M Units:inch...
  • Page 6 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M BR15/BR15M Units:inch...
  • Page 7 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M (分解手順) DISASSEMBLY PROCEDURE BR10/BR12/BR15 メタルハンドル Metal Handle (所要時間:約 1 分) (Time required: About 1 minute) Remove the six (6) screws marked [27]. The metal [27]のネジ6本を外し、 メタルハンドルを外します。 handle then removed. (Photo. 1) (写真 1) For the installing position, see the parts list of each ※...
  • Page 8 (Photo.4) (写真 4) Remove the eight (8) screws marked [15] (The four [15]のネジ 8 本(BR10 のネジは 4 本)を外し、ウー ファーを外します。 (写真 5) (4) screws of BR10 model). The woofer can then be removed. (Photo.5) Tweeter [19] [19]...
  • Page 9 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M インプットパネル Ass’ y、Crossover Input Panel Assembly, Crossover (所要時間:約 2 分) (Time required: About 2 minutes) Remove the four (4) screws marked [31]. The [31]のネジ4本を外し、 crossoverと共にインプット crossover and input panel assembly can then be パネル Ass'y を外します。 (写真 8,9)...
  • Page 10 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M BR12M/BR15M メタルハンドル Metal Handle (所要時間:約 1 分) (Time required: About 1 minute) Remove the six (6) screws marked [27]. The metal [27]のネジ6本を外し、 メタルハンドルを外します。 handle then removed. (Photo. 1) (写真 1) Tripod Support スタンド受け台 (所要時間:約 1 分) (Time required: About 1 minutes) [37]のネジ3本を外し、...
  • Page 11 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M ウーファー Woofer (所要時間:約 3 分) (Time required: About 3 minutes) Remove the eight (8) screws marked [9]. The metal [9]のネジ 8 本を外し、メタルグリルを外します。 grille can then be removed. (Photo.4) (写真 4) Remove the eight (8) screws marked [15]. The [15]のネジ...
  • Page 12 SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M インプットパネル Ass’ y、Crossover Input Panel Assembly, Crossover (所要時間:約 2 分) (Time required: About 2 minutes) Remove the four (4) screws marked [31]. The [31]のネジ4本を外し、 crossoverと共にインプット crossover and input panel assembly can then be パネル Ass'y を外します。 (写真 8,9)...
  • Page 13: Table Of Contents

    SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M PARTS LIST (目次) CONTENTS (総組立) OVERALL ASSEMBLY BR10 ..................2 • BR12 ..................3 • BR15 ..................4 • BR12M ................... 5 • BR15M ................... 6 • Notes : DESTINATION ABBREVIATIONS A : Australian model M : South African model...
  • Page 14: Overall Assembly

    SPEAKER SYSTEMS BR10/BR12/BR15/BR12M/BR15M (総組立) OVERALL ASSEMBLY : BR10 43 49 45 49 47 49 47 49 43 49 11 13 45 49 47 49 47 49 Push Nut 部 品 名 PART NO. DESCRIPTION REMARKS REF NO. RANK OVERALL ASSEMBLY 総...
  • Page 15: Br12

    立 BR12 (Y,J) メ タ ル グ リ ル AAY02860 Metal Grille CBY05500 YAMAHA Logo-CLUB V ヤ マ ハ ロ ゴ ETAG1030 Truss Head SM Screw #6X5/8 BLK ト ラ ス S M ネ ジ CBY06260 Grille Sticker グ リ ル ス テ ッ カ ー...
  • Page 16: Br15

    立 BR15 (Y,J) メ タ ル グ リ ル AAY02870 Metal Grille CBY05500 YAMAHA Logo-CLUB V ヤ マ ハ ロ ゴ ETAG1030 Truss Head SM Screw #6X5/8 BLK ト ラ ス S M ネ ジ CBY06270 Grille Sticker グ リ ル ス テ ッ カ ー...
  • Page 17: Br12M

    立 BR12M (Y,J) メ タ ル グ リ ル AAY02880 Metal Grille CBY05500 YAMAHA Logo-CLUB V ヤ マ ハ ロ ゴ ETAG1030 Truss Head SM Screw #6X5/8 BLK ト ラ ス S M ネ ジ CBY06280 Grille Sticker グ リ ル ス テ ッ カ ー...
  • Page 18: Br15M

    組 立 BR15M メ タ ル グ リ ル AAY02890 Metal Grille CBY05500 YAMAHA Logo-CLUB V ヤ マ ハ ロ ゴ ETAG1030 Truss Head SM Screw #6X5/8 BLK ト ラ ス S M ネ ジ CBY06290 Grille Sticker グ リ ル ス テ ッ カ ー...
