HIKVISION DS-KM8301 Quick Start Manual

Video intercom master station
Hide thumbs Also See for DS-KM8301:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Video Intercom Master Station
Quick Start Guide
UD02930B

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-KM8301

Summary of Contents for HIKVISION DS-KM8301

  • Page 1 Video Intercom Master Station Quick Start Guide UD02930B...
  • Page 2 Quick Start Guide © 2016 Hangzhou Hikvision Digital Technology Co., Ltd. This quick start guide is intended for users of DS-KM8301 Video Intercom Master Station. It includes instructions on how to use the Product. The software embodied in the Product is governed by the user license agreement covering that Product.
  • Page 3 Video Intercom Master Station·Quick Start Guide Support Should you have any questions, please do not hesitate to contact your local dealer. 0104001060822...

  • Page 4: Regulatory Information

    Video Intercom Master Station·Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Video Intercom Master Station·Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 6 Video Intercom Master Station·Quick Start Guide Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger). Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.

  • Page 7: Table Of Contents

    Video Intercom Master Station·Quick Start Guide Contents 1 Overview ...................... 1 1.1 Appearance of DS-KM8301 Model ................1 1.2 Terminals and Interfaces ..................2 2 Local Operation .................... 4 2.1 Activating Device ..................... 4 2.2 User Interface Description ..................5 2.3 Status ........................

  • Page 8: Overview

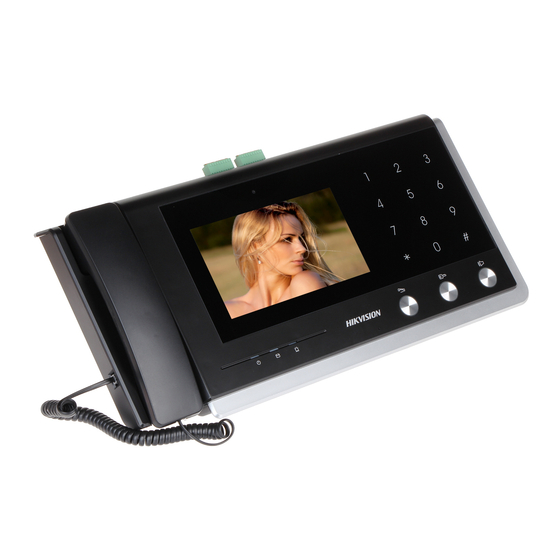

    Video Intercom Master Station·Quick Start Guide 1 Overview The DS-KM8301 master station is an intelligent terminal for video intercom system management. It responses and sends the residents call, receives alarm, and unlocks door remotely. It is normally installed on the management center, it can be operated with a capacitive touch screen, touch buttons and mechanical buttons.

  • Page 9: Terminals And Interfaces

    Call/End Call Button Unlock Button Speaker Button 1.2 Terminals and Interfaces Please refer to the following figure for terminals and interfaces of master station. Figure 1-2 Real Panel of DS-KM8301 Table 1-2 Description of Terminals and Interfaces Name Interface Description...
  • Page 10 Video Intercom Master Station·Quick Start Guide Name Interface Description JIN2 Alarm Input 2 (reserved) JIN1 Alarm Input 1 (reserved) Grounding Grounding RS485 RS485 Communication Interfaces Alarm Input 2 (NC/reserved) COM2 Alarm Input 2 (NO/reserved) Alarm Input 2 (NC/reserved) COM1 ALARM OUT Alarm Input 1 (NO/reserved) Grounding Optical Coupler Output 4...

  • Page 11: Local Operation

    Video Intercom Master Station·Quick Start Guide 2 Local Operation 2.1 Activating Device Connect the power cable to power on the master station. You must create a password to activate the master station for your first time usage and when it is not activated. Only after activating the device, you can operate the device both locally and remotely.

  • Page 12: User Interface Description

    Video Intercom Master Station·Quick Start Guide 2.2 User Interface Description Please refer to the following figure for the user interface of master station. Figure 2-2 User Interface 2.3 Status Icon Definition Description The connection between master station and indoor/door stations is normal, and the master Normal Status.

  • Page 13: Configuration Settings

    Video Intercom Master Station·Quick Start Guide Icon Definition Description Invalid master The master station IP address conflicts with station IP address other devices’ IP address. 2.4 Configuration Settings Purpose: You can set and view the local information, configure the network, manage devices, synchronize the device time, and restore the default settings.

  • Page 14: Setting Network

    Video Intercom Master Station·Quick Start Guide  The No. ranges from 51 to 99.  The maximum live view duration varies from 10 seconds to 60 seconds. Figure 2-3 Local Information Settings 2.4.3 Setting Network Make sure the network cable is well-connected. Purpose: The connection of the network is mandatory for the use of the master station.

  • Page 15: Sip (Session Initiation Protocol) Server Management

    Video Intercom Master Station·Quick Start Guide Figure 2-4 Network Settings Interface 3. Press the tab to pop up network settings dialogue box. Figure 2-5 Setting Network 4. Enter a local IP address, subnet mask, and gateway. 5. Press the Save tab. Enable DHCP function to obtain an IP address automatically.

  • Page 16: Adding Devices

    Video Intercom Master Station·Quick Start Guide alarm messages from indoor/door stations once there are alarms triggered in the indoor/door stations. Requiring Connecting to a SIP server The master station can also be connected to an independent SIP server. Steps: 1. Get to the configuration interface: Settings -> Configuration, and enter the admin password (configuration password).
  • Page 17 Video Intercom Master Station·Quick Start Guide Adding the Door Station Steps: 1. Get to the configuration interface: Settings -> Configuration, and enter the admin password (configuration password). 2. Press the Device tab. Figure 2-7 Device Management 3. Press the Add Device tab to pop up the Select Device Type dialogue box. Figure 2-8 Device Type Selecting 4.

  • Page 18: Calling Resident

    Video Intercom Master Station·Quick Start Guide Figure 2-9 Door Station Adding Interface 5. Press the tab on the upper left corner of the dialogue box. After adding door station successfully, you can get the live view of door station and outer door station in the Live View interface.

  • Page 19: Callling Master Station

    Video Intercom Master Station·Quick Start Guide Figure 2-10 Call Resident Interface 2.6 Callling Master Station Master Stations can call each other by entering the master station No.. Steps: 1. Press the tab to enter the resident calling interface. 2. Enter the corresponding master stations’ No.. 3.

  • Page 20: Viewing Alarm Message

    Video Intercom Master Station·Quick Start Guide Figure 2-11 Calling Master Station Interface 2.7 Viewing Alarm Message After connecting indoor station and door station to the master station, you can view the alarm messages of indoor station or door station in the master station. Press the New Message tab on the user interface to enter the alarm log interface.
  • Page 21 Video Intercom Master Station·Quick Start Guide  Press the Ignore tab to ignore the piece of alarm message.  Press the Live View tab to enter the live view interface.  Press the Delete tab to delete the piece of alarm message. ...

  • Page 22: Remote Operation Via Batch Configuration Tool

    Video Intercom Master Station·Quick Start Guide 3 Remote Operation via Batch Configuration Tool 3.1 Activating Device Remotely Purpose: You are required to activate the device first by setting a strong password for it before you can use the device. Activation via Batch Configuration Tool, and Activation via iVMS-4200 are supported. Here take activation via Batch Configuration Tool as example to introduce the device activation.

  • Page 23: Editing Network Parameters

    Video Intercom Master Station·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

  • Page 24: Adding Device

    Video Intercom Master Station·Quick Start Guide Figure 3-4 Edit Network Parameters  The default port No. is 8000.  After editing the network parameters of device, you should add the devices to the device list again. And the device cannot be added unless it has the same subnet the PC IP address.

  • Page 25: Adding By Ip Address

    Video Intercom Master Station·Quick Start Guide Figure 3-6 Login Dialog Box 3. Enter the user name and password. 4. Click the OK button to save the settings.  Only devices successfully logged in will be added to the device list for configuration. ...
  • Page 26 Video Intercom Master Station·Quick Start Guide Figure 3-8 Adding by IP Address 4. Click the OK button to add the device to the device list.  You cannot add the device(s) to the device list if the user name and password are not identical.

  • Page 27: Appendix

    Video Intercom Master Station·Quick Start Guide Appendix Wiring Cables Cables Specification Power Cable RVV 2*1.0 Network Cable Cat5e Warning To avoid echo and whistles, set the wire distance longer than 8 meters.
  • Page 28 Video Intercom Master Station·Quick Start Guide...
