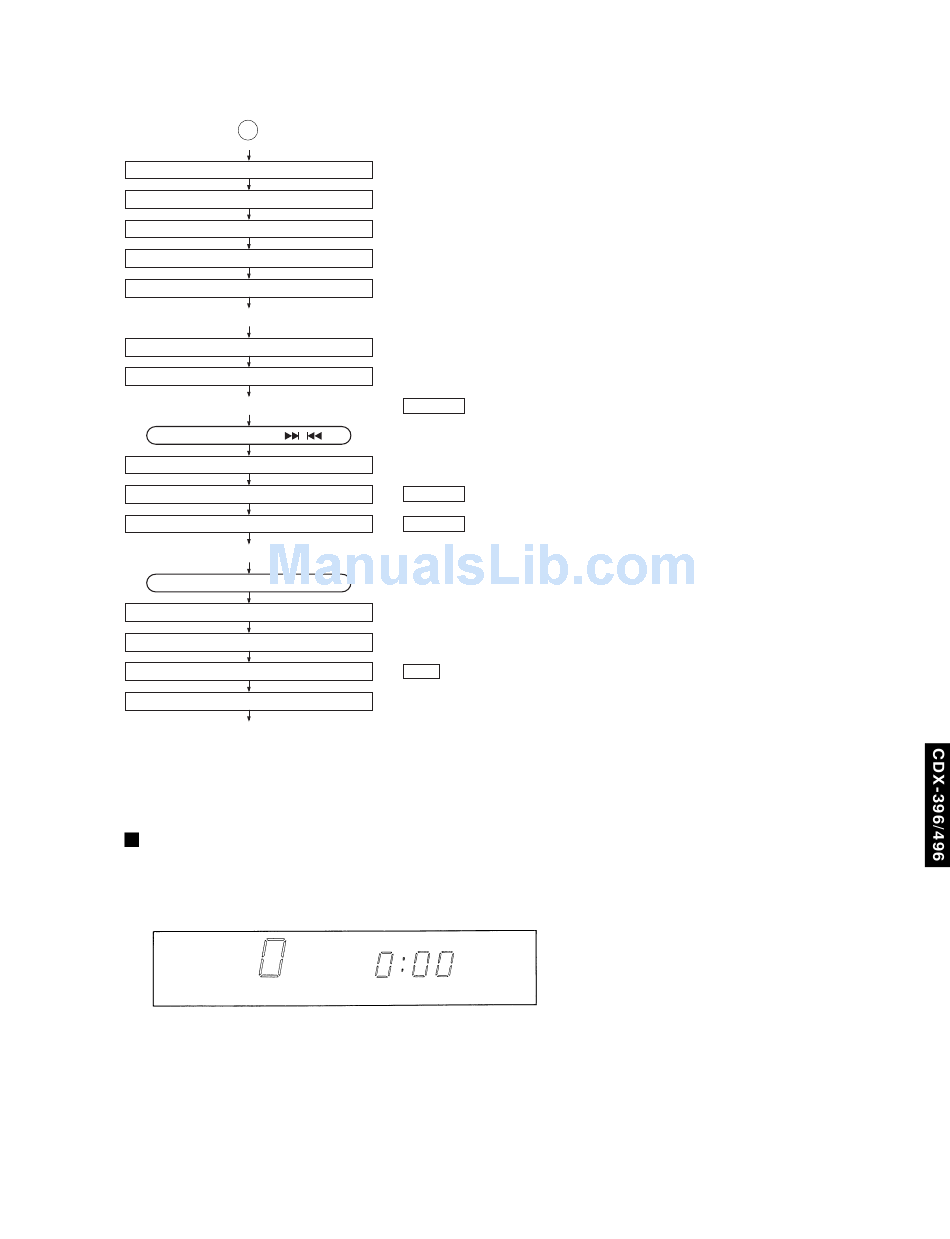

Tracking gain rough ADJ
Tracking balance ADJ (only tray OPEN/CLOSE)
Focus balance ADJ
Focus gain ADJ
Tracking gain ADJ
* TOC READ - * Data f etch cycle -
TRACK NO. 1 is searched.
After searching the beginning, PLAY starts.
- PLA Y -
Set to SEARCH by means of ,
TRACK search
MUTE ON
After searching the beginning, MUTE is cancelled.
- PLA Y -
Press the STOP key.
MUTE ON
Spindle motor stop
Laser OFF
Forced feed return
- STOP -

TEST MODE

(1) Turning ON the POWER while pressing the keys "PLAY/PAUSE" and "STOP" will set to the TEST mode.
(When the TEST mode is set, all indicators light for 1 second.)
: MUTE OFF = H → L (Q201 Collector)
0:00 appears in the time indicator.
key.
= L → H
: MUTE ON
: MUTE OFF = H → L
0:00 appears in the time indicator.
: LDON = H → L (IC1, 5 pin)
