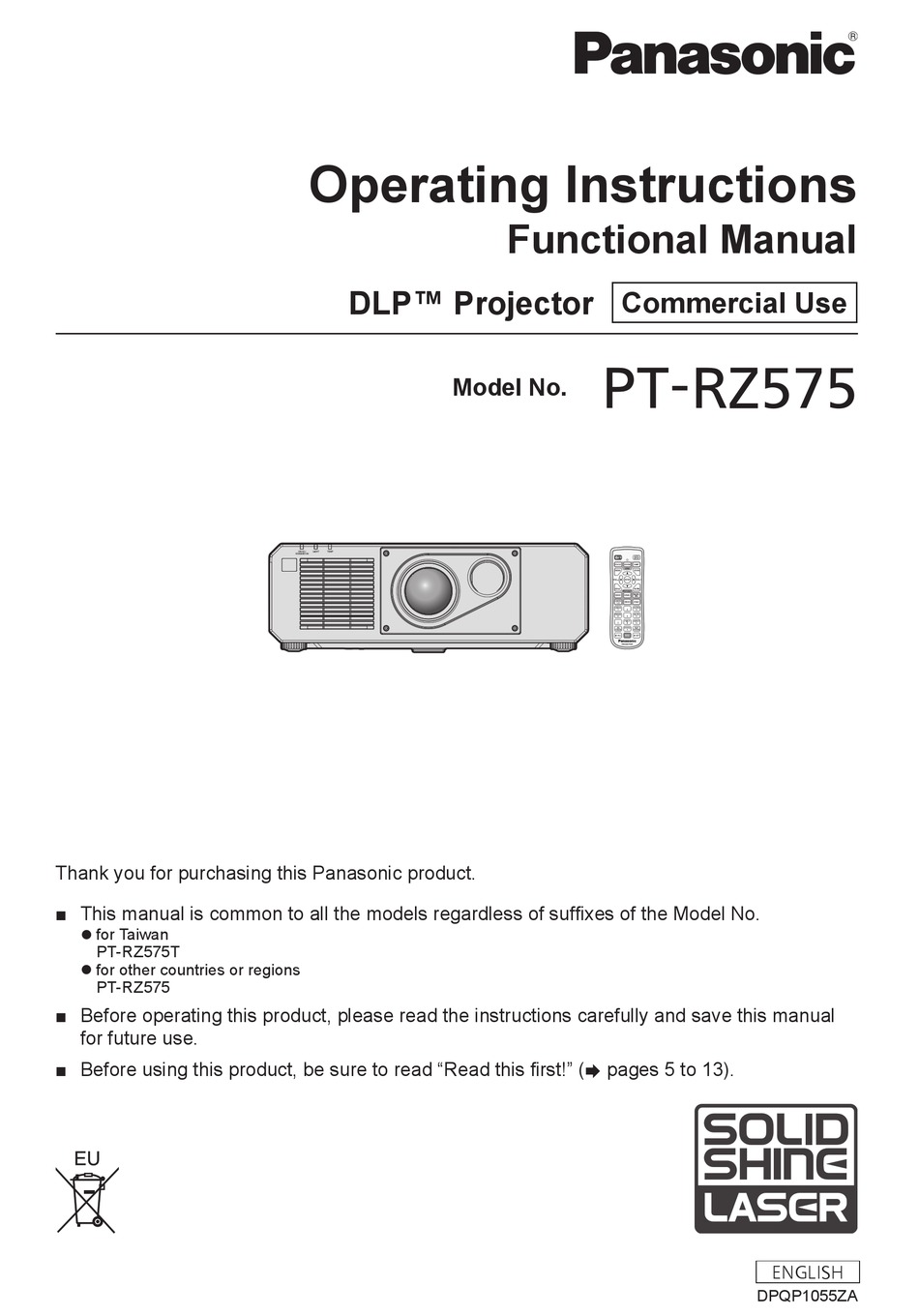

Thank you for purchasing this Panasonic product.
■ This manual is common to all the models regardless of suffixes of the Model No.
z for Taiwan
PT-RZ575T
z for other countries or regions
PT-RZ575
■ Before operating this product, please read the instructions carefully and save this manual
for future use.
■ Before using this product, be sure to read "Read this first!" ( x pages 5 to 13).
Operating Instructions
DLP™ Projector
Model No.
Functional Manual
Commercial Use
PT-RZ575
ENGLISH
DPQP1055ZA

Advertisement
Table of Contents
Related Manuals for Panasonic PT-RZ575
Summary of Contents for Panasonic PT-RZ575
-
Page 1: Operating Instructions
DLP™ Projector Commercial Use PT-RZ575 Model No. Thank you for purchasing this Panasonic product. ■ This manual is common to all the models regardless of suffixes of the Model No. z for Taiwan PT-RZ575T z for other countries or regions PT-RZ575 ■... -
Page 2: Table Of Contents
Contents Contents Read this first! Projecting Selecting the input signal Adjusting the image Chapter 1 Preparation Adjusting the focus and the shift Moving the lens position to the home position Precautions for use Adjustment range by the lens position shift Lens protection material (optical axis shift) Cautions when transporting... - Page 3 Contents [ADVANCED MENU] menu [P IN P] menu [DIGITAL CINEMA REALITY] Using P IN P function [BLANKING] [TEST PATTERN] menu [INPUT RESOLUTION] [TEST PATTERN] [CLAMP POSITION] [SIGNAL LIST] menu [EDGE BLENDING] Registering new signals [FRAME RESPONSE] Renaming the registered signal [RASTER POSITION] Deleting the registered signal [DISPLAY LANGUAGE] menu...
- Page 4 Contents Chapter 7 Appendix Technical information PJLink protocol Using Art-Net function Control commands via LAN <SERIAL IN> terminal Two-window display combination list Control device password List of compatible signals Specifications Dimensions Precautions for attaching the Ceiling Mount Bracket Index 4 - ENGLISH...
-
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view. - Page 6 Read this first! Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007. TQFX640 TQFX340 (Inside of product) (for other countries or regions) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. TQFX340 6 - ENGLISH...
- Page 7 FCC NOTICE (USA) Verification Model Number: PT-RZ575 Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: http://panasonic.net/avc/projector/ This device complies with Part 15 of the FCC Rules.
- Page 8 L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany...
- Page 9 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
- Page 10 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
- Page 11 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
- Page 12 Read this first! To remove the battery Remote Control Battery 1. Press the guide and lift the cover. 2. Remove the batteries. (ii) 12 - ENGLISH...
- Page 13 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
- Page 14 SOLID SHINE is a trademark of Panasonic Corporation. f Windows and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
-
Page 15: Features Of The Projector
Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High luminance and high contrast (x page 30) ▶ With a unique optical system which uses a new-generation laser light source, and the laser light source drive system, high 2. -
Page 16: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. 16 - ENGLISH... -
Page 17: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Lens protection material Lens protection material is attached to the product at the time of purchase to protect the projection lens from the vibration during transport. Remove the lens protection material before use. rRemoving the lens protection material Lens protection material Hold the tab of the lens protection material and remove the lens protection material by pulling in the... - Page 18 Chapter 1 Preparation — Precautions for use rBe sure to ask a specialized technician or your dealer when installing the projector on a ceiling. The optional Ceiling Mount Bracket is required. Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130B (Projector Mount Bracket) rAsk a qualified technician or your dealer to install the cable wiring for DIGITAL LINK connection.
-
Page 19: Security
Chapter 1 Preparation — Precautions for use f When installing the projector with a method other than the floor installation using the adjustable feet or the ceiling installation, use the five screw holes for ceiling mount (as shown in the figure) to fix the projector to the mount. -
Page 20: Digital Link
Change your password periodically. A password can be set in the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries. - Page 21 Chapter 1 Preparation — Precautions for use rDLP chips f The DLP chips are precision-made. Note that in rare cases, pixels of high precision could be missing or always lit. Such a phenomenon does not indicate malfunction. f Directing a high-power laser beam onto the projection lens surface can damage the DLP chips. rDo not move the projector or subject it to vibration or impact while it is operating.
-
Page 22: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless remote control unit <1> (TXFSX01RWDZ) (N2QAYA000136) (TXFSX02UTRZ) Power cord (TXFSX01RXQZ) CD-ROM <1> (DPQC1013ZA) (TXFSX01RXRZ) AAA/R03 or AAA/LR03 battery <2>... -
Page 23: Optional Accessories
Note f The “List of Compatible Device Models” for the flat panel display compatible with the “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (http://panasonic.net/prodisplays/). Optional accessories Optional accessories (product name) Model No. -
Page 24: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom Power <v/b> button 11 <ECO> button Sets the projector to the state where the projector is turned Displays the setting screen relating to ECO management. (x off (standby mode) when the <MAIN POWER> switch on the pages 58, 101) projector is set to <ON>... - Page 25 Chapter 1 Preparation — About your projector f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Observe the following instructions that are indicated on the caution label at the back of the remote control: g Do not use old battery with new one.
-
Page 26: Projector Body
Chapter 1 Preparation — About your projector Projector body Front Side 1 2 3 4 Rear Bottom Projection direction Remote control signal receiver (front) 10 Luminance sensor This is a sensor to detect the luminance of the installed Power indicator <ON (G)/STANDBY (R)> environment. -
Page 27: Control Panel
Chapter 1 Preparation — About your projector 15 <AC IN> terminal 16 Burglar hook port Connect the supplied power cord. Attaches a burglar prevention cable, etc. Attention f Do not block the ventilation ports (intake and exhaust) of the projector. r Control panel Power <v/b>... -
Page 28: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order. -
Page 29: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 29... -
Page 30: Setting Up
Chapter 2 Getting Started — Setting up Setting up Installation mode The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 100) depending on the installation mode. Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear (Using the translucent screen) Menu item... -
Page 31: Parts For Installation (Optional)
Chapter 2 Getting Started — Setting up r Angle sensor The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows. Floor standing installation 30° Ceiling mount installation 30° Floor standing installation Projection direction Parts for installation (optional) The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings)) and Ceiling Mount Bracket (Model No.:... - Page 32 Chapter 2 Getting Started — Setting up f Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the projection lens surface. [SCREEN ADJUSTMENT] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen...
-
Page 33: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Projection distance A ±5 % error in listed projection distances may occur. When [SCREEN ADJUSTMENT] is used, distance is corrected to become smaller than the specified image size. (Unit: m) Projected image Aspect ratio 16:10 Aspect ratio 16:9 Aspect ratio 4:3 size... -
Page 34: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work. -
Page 35: Connecting Example: Av Equipment
Chapter 2 Getting Started — Connecting <DVI-D IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2- (13) ― T.M.D.S data 2+ (14) +5 V T.M.D.S data 2/4 shield (15) ― (16) Hot plug detection (24) -
Page 36: Connecting Example: Computers
Chapter 2 Getting Started — Connecting Connecting example: Computers Computer Computer Computer Control computer Control computer Attention f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables. Note f Switching of the setting in the [DISPLAY OPTION] menu →... -
Page 37: Connecting Example Using Digital Link
150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance. - Page 38 (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
-
Page 39: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. ENGLISH - 39... -
Page 40: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord. Use the power cord matching with the power supply voltage and the shape of the outlet. -
Page 41: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Indicator status Projector status The power is switched off. (standby mode) Projection will start when the power <v/b> button is pressed. f The setting of the projector is as follows. g The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [OFF] g The [PROJECTOR SETUP] menu →... -
Page 42: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector Press the power <v/b> button. f The power indicator <ON (G)/STANDBY (R)> lights in green and the image is soon projected on the screen. Note f A warm-up period of up to approximately five minutes may be necessary until an image is displayed when the projector is switched on at around 0 °C (32 °F). - Page 43 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items regarding the operating method depending on the duration of use and the usage of the projector. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu.
- Page 44 Chapter 3 Basic Operations — Switching on/off the projector Press as to select [LIGHT OUTPUT]. Press qw to adjust. Adjustment Operation Range of adjustment Brightness Runtime (estimate) The screen becomes brighter. The runtime becomes shorter. Press w. 5.0 % - 100.0 % The screen becomes darker.
- Page 45 Chapter 3 Basic Operations — Switching on/off the projector Interrelation of luminance and runtime The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows.
- Page 46 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 30) for details. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
- Page 47 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
-
Page 48: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Note f In the factory default setting, the time zone of the projector is set to +09:00 (Japan and Korea Standard Time). Change the setting of the [PROJECTOR SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector. Initial setting (date and time) Set the local date and time. -
Page 49: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Press the <SHIFT> button to adjust the position of the projected image. (x page 51) If the input signal is the analog RGB signal or the DVI-D/HDMI signal, press the <AUTO SETUP> button. -
Page 50: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the external device connection (x page 34) and the power cord connection (x page 40), and turn on the power (x page 41) to start projection. Select the image to project, and adjust appearance of the projected image. -
Page 51: Adjusting The Image
Chapter 3 Basic Operations — Projecting Switching the input by displaying the input selection screen The input for projection can be selected by displaying the input selection screen using the <INPUT SELECT> button on the control panel. Press the <INPUT SELECT> button on the control panel. f The input selection screen is displayed. -
Page 52: Moving The Lens Position To The Home Position
Chapter 3 Basic Operations — Projecting Using the remote control Press the lens buttons (<FOCUS>, <SHIFT>) on the remote control. f <FOCUS> button: Adjusts focus. f <SHIFT> button: Adjusts shift. Select each adjustment item and press asqw to adjust. CAUTION Do not insert the hand into the opening around the lens while performing the lens shift operation. Your hand may be caught in between, resulting in injury. -
Page 53: Adjustment Range By The Lens Position Shift (Optical Axis Shift)
Chapter 3 Basic Operations — Projecting Adjustment range by the lens position shift (optical axis shift) Perform the lens position shift within the adjustment range. Part of the peripheral image may not be visible or the focus may change when the lens position is shifted outside the adjustment range, but this is not a malfunction. -
Page 54: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image and audio temporarily. button Press the <SHUTTER>... -
Page 55: Adjusting The Volume
Chapter 3 Basic Operations — Operating with the remote control Adjusting the volume Adjust the volume of audio output. button Press the <VOL-> button/<VOL+> button on the remote control. <VOL+> Increases the volume. <VOL-> Decreases the volume. Note f This operation can be also performed using qw on the control panel. Using the freeze function The projected image can be paused and audio can be turned off regardless of the playback of the external device. -
Page 56: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Using the automatic setup function The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots just like the computer signal.) It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when the automatic adjustment is being performed. -
Page 57: Switching The Image Aspect Ratio
Chapter 3 Basic Operations — Operating with the remote control Note f To adjust [KEYSTONE] or [CURVED CORRECTION], press as to select the item to adjust, and press qw to adjust the item. f To adjust [CORNER CORRECTION], press as to select the item to adjust. Individual adjustment screen is displayed by pressing the <ENTER>... -
Page 58: Using The Status Function
Chapter 3 Basic Operations — Operating with the remote control Using the status function Display the status of the projector. button Press the <STATUS> button. f The [STATUS] screen is displayed. STATUS PROJECTOR TYPE RZ575(123456789012) PROJECTOR RUNTIME 10000h LIGHT RUNTIME 10000h MAIN/SUB VERSION 1.00 / 1.00 INTAKE AIR TEMP. - Page 59 Chapter 3 Basic Operations — Operating with the remote control f The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead batteries. Set the same ID number again when the batteries are replaced. Note f When the ID number of the remote control is set to [0], you can control the projector regardless of the ID number setting of the projector body, as same as when [ALL] is set.
-
Page 60: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. 60 - ENGLISH... -
Page 61: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed. -
Page 62: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note... -
Page 63: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item Page [DISPLAY LANGUAGE] [DISPLAY OPTION] [PROJECTOR SETUP] [P IN P] [TEST PATTERN] [SIGNAL LIST] [SECURITY] [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default... -
Page 64: Display Language
Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [CLAMP POSITION] [24] [EDGE BLENDING] [OFF] [FRAME RESPONSE] [NORMAL] [RASTER POSITION] ― *1 Depends on the signal input. Note f The factory default setting varies depending on the selected input terminal. [DISPLAY LANGUAGE] Details (x page 82) [DISPLAY OPTION]... -
Page 65: Signal List
Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [LOAD ALL USER DATA] ― [INITIALIZE] ― [SERVICE PASSWORD] ― [P IN P] Details (x page 121) [TEST PATTERN] Details (x page 123) [SIGNAL LIST] Details (x page 124) [SECURITY] Sub-menu item Factory default Page... -
Page 66: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used. -
Page 67: [Color]
Chapter 4 Settings — [PICTURE] menu [COLOR] You can adjust the color saturation of the projected image. Press as to select [COLOR]. Press qw or the <ENTER> button. f The [COLOR] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Range of adjustment... -
Page 68: [White Gain]
Chapter 4 Settings — [PICTURE] menu Press as to select [WHITE BALANCE]. Press the <ENTER> button. f The [WHITE BALANCE] screen is displayed. Press as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW]. Press the <ENTER> button. f The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed. Press as to select [RED], [GREEN], or [BLUE]. -
Page 69: [Gamma]
Chapter 4 Settings — [PICTURE] menu Operation Adjustment Range of adjustment Press w. Brightness of the white part gets stronger. 0 - +10 Press q. The image becomes more natural. [GAMMA] You can switch gamma mode. Press as to select [GAMMA]. Press qw or the <ENTER>... -
Page 70: [Noise Reduction]
Chapter 4 Settings — [PICTURE] menu Operation Adjustment Range of adjustment Press w. Contours become sharper. 0 - +15 Press q. Contours become softer. Note f If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will become [+15]. -
Page 71: Srgb-Compliant Video
Chapter 4 Settings — [PICTURE] menu Terminal System format 480/60i, 576/50i, or 576/50p Select [RGB] or [YC signal <COMPUTER 1 IN> terminal <COMPUTER 2 IN/1 OUT> 640 x 480/60 or 480/60p Select [640x480/60], [480/60p YC ], or [480/60p RGB]. terminal signal Other moving image signals Select [RGB] or [YP 480/60i, 576/50i, 480/60p, or... -
Page 72: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN>... -
Page 73: [Zoom]
Chapter 4 Settings — [POSITION] menu Identifies the video ID (VID) embedded in the video signal, and automatically switches the image size [AUTO] between 4:3 and 16:9. This is enabled when 480/60i or 480/60p signal is input. [THROUGH] Displays images without changing the resolution of the input signals. Displays images with the aspect ratio converted to 16:9 when standard signals are input . -
Page 74: [Clock Phase]
Chapter 4 Settings — [POSITION] menu Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT]. Press as to select [INTERLOCKED]. - Page 75 Chapter 4 Settings — [POSITION] menu [PC-1] [PC-2] Performs screen adjustment using a computer. [PC-3] *1 Advanced skills are necessary to use a computer to control screen adjustment. Consult your dealer. Up to three screen adjustments performed using the computer can be saved. Setting [KEYSTONE] or [CURVED CORRECTION] Press as to select [SCREEN ADJUSTMENT].
- Page 76 Chapter 4 Settings — [POSITION] menu [CURVED CORRECTION] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio. Setting [CORNER CORRECTION] Press as to select [SCREEN ADJUSTMENT]. Press qw to select [CORNER CORRECTION]. Press the <ENTER> button. f The [CORNER CORRECTION] screen is displayed.
-
Page 77: [Advanced Menu] Menu
Chapter 4 Settings — [ADVANCED MENU] menu [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. [DIGITAL CINEMA REALITY] The picture quality is enhanced by raising the vertical resolution higher by performing the cinema processing when 576/50i signal for PAL (or SECAM), 480/60i signal for NTSC, or 1080/50i or 1080/60i signal is input. -
Page 78: [Input Resolution]
Chapter 4 Settings — [ADVANCED MENU] menu Blanking correction Item Operation Adjustment Range of adjustment The blanking zone Press w. moves to the right. Left side of the [LEFT] screen The blanking zone Press q. moves to the left. Left and right 0 - 959 The blanking zone Press q. - Page 79 Chapter 4 Settings — [ADVANCED MENU] menu [ON] Use the setting value preset in the projector for the inclination of the edge blending area. Use the user-setting value for the inclination of the edge blending area. (Configuration/registration [USER] requires separate software. Consult your dealer.) f Proceed to Step 3) when anything other than [OFF] is selected.
-
Page 80: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu 18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL]. 19) Press as to select [BLACK BORDER LEVEL]. 20) Press the <ENTER> button. f The [BLACK BORDER LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF]. -
Page 81: [Raster Position]
Chapter 4 Settings — [ADVANCED MENU] menu f [FRAME RESPONSE] cannot be set while in the P IN P mode. [RASTER POSITION] This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area. -
Page 82: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display. -
Page 83: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously. -
Page 84: [Color Correction]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [MEASURED MODE] screen is displayed. Press as to select [MEASURED DATA]. Press the <ENTER> button. f The [MEASURED DATA] screen is displayed. Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter. Press as to select a color, and press qw to adjust the setting. -
Page 85: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SCREEN POSITION]. f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10]. Press qw to adjust [SCREEN POSITION]. [AUTO SIGNAL] Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP>... -
Page 86: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. [ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment. Adjusting signal level automatically Press as to select [AUTO SETUP]. Press the <ENTER>... -
Page 87: [Computer In/Out]
Chapter 4 Settings — [DISPLAY OPTION] menu f To switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use the function. g Set [BACKUP INPUT MODE] to anything other than [OFF]. g Input the same signal to the primary and secondary inputs. - Page 88 Chapter 4 Settings — [DISPLAY OPTION] menu Note f [SYNC SLICE LEVEL] of [COMPUTER2] cannot be set when [COMPUTER2 SELECT] is set to [COMPUTER1 OUT]. Setting [EDID MODE] in [COMPUTER IN/OUT] (COMPUTER1 input/COMPUTER2 input) Press as to select [COMPUTER IN/OUT]. Press the <ENTER> button. f The [COMPUTER IN/OUT] screen is displayed.
-
Page 89: [Dvi-D In]
Chapter 4 Settings — [DISPLAY OPTION] menu [COMPUTER2 IN] Select this item when using the <COMPUTER 2 IN/1 OUT> terminal as the COMPUTER2 input. Select this item when the analog RGB signal or YC signal input to the <COMPUTER 1 IN> [COMPUTER1 OUT] terminal is output from the <COMPUTER 2 IN/1 OUT>... -
Page 90: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [DVI-D] screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID. -
Page 91: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device. f The HDMI signal level is displayed for 30 bits of input. Setting [EDID MODE] in [HDMI IN] Press as to select [HDMI IN]. - Page 92 Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [AUTO] Automatically sets the signal level. Select this item when the signal output from the HDMI terminal of an external device (Blu-ray disc [64-940] player, etc.) is input to the <DIGITAL LINK/LAN>...
-
Page 93: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu [ON-SCREEN DISPLAY] Set the on-screen display. Setting [OSD POSITION] Set the position of the menu screen (OSD). Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [OSD POSITION]. - Page 94 Chapter 4 Settings — [DISPLAY OPTION] menu Sets to brown. Setting [OSD MEMORY] Set hold for the position of the menu screen (OSD) cursor. Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [OSD MEMORY].
-
Page 95: [Closed Caption Setting]
The items will switch each time you press the button. [BLUE] Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. ENGLISH - 95... -
Page 96: [Startup Logo]
Press as to select [STARTUP LOGO]. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. [NONE] Disables the startup logo display. -
Page 97: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu [OFF] Does not perform correction using a computer. [ON] Performs correction for the brightness and color unevenness of the entire screen using a computer. *1 Advanced skills are necessary to use computer control correction. Consult your dealer. Note f The setting value for [UNIFORMITY] will not return to factory default even if the [PROJECTOR SETUP] menu →... -
Page 98: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f Press the <MENU> button to cancel the function. Note f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed). f To output audio while the shutter function is in use (shutter: closed), set the [PROJECTOR SETUP] menu →... -
Page 99: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu Adjusting the waveform Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and adjust. Image displayable area Image position Select “Select line (luminance)” on the waveform monitor. Adjust black level. -
Page 100: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control. -
Page 101: [Eco Management]
Chapter 4 Settings — [PROJECTOR SETUP] menu [ECO MANAGEMENT] Set the ECO management function to reduce the power consumption depending on the usage condition. Setting [AUTO POWER SAVE] Enable/disable the [AMBIENT LIGHT DETECTION] and [NO SIGNAL LIGHTS-OUT] functions. Press as to select [ECO MANAGEMENT]. Press the <ENTER>... - Page 102 Chapter 4 Settings — [PROJECTOR SETUP] menu [DISABLE] Disables the no signal shut-off function. [10MIN.] - [90MIN.] Sets the time in increments of 10 minutes. Setting [STANDBY MODE] Set the power consumption during standby and whether to enable the [QUICK STARTUP] function. Press as to select [ECO MANAGEMENT].
-
Page 103: [Operation Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu [OPERATION SETTING] Set the operation method of the projector. The settings are reflected when “Initial setting (operation setting)” (x page 43) in the [INITIAL SETTING] screen is already set. If you change the settings while using the projector, the duration until the luminance of light source decreases by half may shorten or the luminance may decrease. - Page 104 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. Note f [MAX LIGHT OUTPUT LEVEL] cannot be adjusted when [OPERATING MODE] is set to [NORMAL], [ECO], [SILENT], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3].
- Page 105 Chapter 4 Settings — [PROJECTOR SETUP] menu f To set the projector based on luminance When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT [MAX LIGHT Luminance (lm) [LIGHT OUTPUT] [LIGHT OUTPUT] OUTPUT LEVEL] Runtime (hour) OUTPUT LEVEL]...
- Page 106 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The projector will go into the adjustment mode (the time is blinking). Press qw to select “hour” or “minute”, and press as or the number (<0> - <9>) buttons to set a time.
-
Page 107: [Light Output]
Chapter 4 Settings — [PROJECTOR SETUP] menu [LIGHT OUTPUT] Adjust the brightness of light source. The setting is reflected when it is already set with “Initial setting (operation setting)” (x page 43) in the [INITIAL SETTING] screen or with the [PROJECTOR SETUP] menu → [OPERATION SETTING]. The [LIGHT OUTPUT] setting is synchronized with the [PROJECTOR SETUP] menu →... - Page 108 Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. Performs corrections by the brightness sensor on a single projector without synchronizing with the other projectors. [OFF] The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller.
- Page 109 Chapter 4 Settings — [PROJECTOR SETUP] menu f When the projector is used continuously for more than 24 hours, set [CALIBRATION TIME]. If it is not set, correction will not be performed automatically. f The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not operate while measuring the brightness and the color.
- Page 110 Chapter 4 Settings — [PROJECTOR SETUP] menu When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [GROUP A] through [GROUP D] The screen shows the status of the brightness control of synchronized projectors (up to eight units), including the projector being controlled through the on-screen menu.
-
Page 111: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f If the synchronized projectors are not displayed in the list, check the following: g Are there devices with the same IP address on the network? g Are LAN cables connected correctly? (x page 136) g Are the subnets of the projectors the same? g Are the same [LINK] settings applied to a group? f Refer to [NETWORK SETUP] (x page 132) or “[Network config] page”... - Page 112 Chapter 4 Settings — [PROJECTOR SETUP] menu Enables the schedule function. Refer to “How to assign a program” (x page 112) or “How to set a [ON] program” (x page 112) for how to set the schedule. Note f The [STANDBY MODE] setting will be forced to [NORMAL] when the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], and [SCHEDULE] is set to [ON].
-
Page 113: [Initial Startup]
Switches the input to DIGITAL LINK. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. [NORMAL] Prioritizes luminance. Controls the power to increase the life of the light source although [ECO] the luminance is lower than that of [NORMAL]. -
Page 114: [Startup Input Select]
Sets the input to HDMI2. [DIGITAL LINK] Sets the input to DIGITAL LINK. Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input. *1 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input name is automatically reflected from [INPUT1] to [INPUT10]. -
Page 115: [Function Button]
Chapter 4 Settings — [PROJECTOR SETUP] menu f When transferring logos via the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G), setting for “NO SIGNAL SLEEP” of the DIGITAL LINK output supported device should be set to “OFF” to avoid interruption of communication. f The input communication speed is fixed to 9 600 bps when [INPUT SELECT] is set to [DIGITAL LINK]. - Page 116 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [AUDIO SETTING] screen is displayed. Press as to select [BALANCE]. Press qw to adjust the level. Operation Adjustment Range of adjustment Increases the volume on the right. Press w. L16 - R16 Increases the volume on the left.
-
Page 117: [Status]
Chapter 4 Settings — [PROJECTOR SETUP] menu Setting audio input from a connected device Press as to select [AUDIO SETTING]. Press the <ENTER> button. f The [AUDIO SETTING] screen is displayed. Press as to select item to set in [AUDIO IN SELECT]. Press qw to switch the item. -
Page 118: [Date And Time]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INPUT] Displays the input terminal used for the projected image. [SIGNAL FORMAT] Displays the format of the input signal. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [SYNC.STATE] Displays the sync polarity of the input signal. [V.SYNC WIDTH] Displays the vertical sync signal pulse width of the input signal. -
Page 119: [Save All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [ADJUST CLOCK] screen is displayed. Press as to select [NTP SYNCHRONIZATION], and press qw to change the setting to [ON]. Press as to select [APPLY], and press the <ENTER> button. f The setting of the date and time will be completed. -
Page 120: [Service Password]
Chapter 4 Settings — [PROJECTOR SETUP] menu Returns all setting values including [REGISTERED SIGNAL], [NETWORK/E-MAIL], and [LOGO [ALL USER DATA] IMAGE] to the factory default settings. The projector enters the standby mode to reflect the setting values. Deletes all the setting values saved for each input signal. [REGISTERED SIGNAL] To delete only a part of a registered signal, perform the procedure described in “Deleting the registered signal”... -
Page 121: [P In P] Menu
Chapter 4 Settings — [P IN P] menu [P IN P] menu On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. Using P IN P function Locate a separate, small sub screen in the main screen to project two images simultaneously. - Page 122 Chapter 4 Settings — [P IN P] menu 15) Press as to select [TYPE]. 16) Press qw to switch the item. [MAIN WINDOW] The main window has display priority. [SUB WINDOW] The sub window has display priority. Note f The P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display combination list”...
-
Page 123: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns. -
Page 124: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. r Registered signal details Memory number: A1 (1-2) Sub memory number... -
Page 125: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed. -
Page 126: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE]. Sub memory The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source. -
Page 127: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>... -
Page 128: [Text Change]
Chapter 4 Settings — [SECURITY] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Hides the security message. [TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [USER LOGO] Displays the image registered by the user. -
Page 129: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. f The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected in [REMOTE CONTROL], press the <ENTER>... - Page 130 Chapter 4 Settings — [SECURITY] menu Press asqw to select [OK], and press the <ENTER> button. f To cancel, select [CANCEL]. Attention f The initial password is “AAAA” as the factory default or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
-
Page 131: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the <DIGITAL LINK/LAN>... -
Page 132: [Network Setup]
Chapter 4 Settings — [NETWORK] menu [NETWORK SETUP] Perform the initial setting of the network before using the network function. Press as to select [NETWORK SETUP]. Press the <ENTER> button. f The [NETWORK SETUP] screen is displayed. Press as to select an item, and change the settings according to the operation instructions of the menu. -
Page 133: [Network Status]
Chapter 4 Settings — [NETWORK] menu [NETWORK STATUS] Display the status of the projector network. Press as to select [NETWORK STATUS]. Press the <ENTER> button. f The [NETWORK STATUS] screen is displayed. [DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS]. -
Page 134: [Art-Net Channel Setting]
Chapter 4 Settings — [NETWORK] menu [Art-Net CHANNEL SETTING] Set the assignment of the channel. For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” (x page 165). Press as to select [Art-Net CHANNEL SETTING]. Press qw to switch the item. -
Page 135: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. ENGLISH - 135... -
Page 136: Network Connection
Visit the Panasonic website (http://panasonic.net/avc/projector/pass/) for details. f PJLink Operation or status query of the projector can be performed from a computer using the PJLink protocol. -
Page 137: Setting The Projector
(http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers. - Page 138 Chapter 5 Operations — Network connection r Factory default setting f Following setting has been made as a factory default. [DHCP] [IP ADDRESS] 192.168.0.8 [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None Operating the computer Turn on the power of the computer. Perform the network setting following the instruction of your network administrator.
-
Page 139: Web Control Function
Enter the IP address set on the projector into the URL entry field of the web browser. Enter the user name and the password. f The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case). ENGLISH - 139... - Page 140 Chapter 5 Operations — Web control function Click OK. f The [Projector status] page is displayed. Note f If you use a web browser to control the projector, set the [NETWORK] menu → [NETWORK CONTROL] → [WEB CONTROL] to [ON]. f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
- Page 141 Chapter 5 Operations — Web control function Descriptions of items Page tab [Detailed set up] Switches pages by clicking this item. The [Detailed set up] page is displayed by clicking this item. [Status] [Change password] The status of the projector is displayed by clicking this item. The [Change password] page is displayed by clicking this item.
-
Page 142: Error Information Page
Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Self-diagnosis result display Displays the item check results. - Page 143 Chapter 5 Operations — Web control function r [WARNING] items Item Description The temperature around the optics module inside the projector is low. Image cannot be [LOW-TEMPERATURE] projected until the optics module becomes warm. The intake temperature is high. The projector may be used in an environment where the [INTAKE AIR TEMPERATURE] temperature is high, such as near a heating appliance.
- Page 144 Chapter 5 Operations — Web control function [Access error log] page Click [Status] → [Access error log]. The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords. [Mail error log] page Click [Status] →...
- Page 145 Chapter 5 Operations — Web control function [Basic control] page Click [Projector control] → [Basic control]. [POWER] [SYSTEM] Turns on/off the power. Switches the system method. [SHUTTER] On-screen display of the projector Switches whether to use the shutter function (enabled (shutter: Displays the same items as shown on the on-screen display closed)/disabled (shutter: open)).
- Page 146 Chapter 5 Operations — Web control function [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f Click the [Next] button to display the current settings. f Click the [Change] button to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
- Page 147 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Enter the date to be changed. Select the time zone. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Submit] Set [ON] when adjusting the date and time automatically.
- Page 148 Chapter 5 Operations — Web control function [E-mail set up] page E-mail can be sent to preset E-mail addresses (up to two addresses) periodically or when an error or problem has occurred. Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [ENABLE] to use the E-mail function.
- Page 149 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
- Page 150 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : RZ575 Serial No...
- Page 151 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RZ575 Serial No : 123456789012 ----- check system -----...
- Page 152 Chapter 5 Operations — Web control function [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] Displays the account to change.
- Page 153 Chapter 5 Operations — Web control function [User] account [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
- Page 154 Chapter 5 Operations — Web control function Operation page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns on/off the power.
- Page 155 Chapter 5 Operations — Web control function [Info] page Click [Info] in the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Error Status] Displays the MAC address. Displays the error status. [Lamp Hours] [Exit] Displays the runtime of the light source.
-
Page 156: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes inspection methods when there are problems, and maintenance methods. 156 - ENGLISH... -
Page 157: Light Source/Temperature Indicators
Chapter 6 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicator <LIGHT> or the temperature indicator <TEMP> will inform you by lighting or blinking. Check the status of the indicators and take following measures. Attention f When switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector”... -
Page 158: Maintenance
Chapter 6 Maintenance — Maintenance Maintenance Before maintaining the projector f Make sure to turn off the power before performing the maintenance of the projector. (x pages 40, 49) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 49). -
Page 159: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―... - Page 160 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page Video from HDMI f Is the HDMI cable connected securely? compatible device does f Turn the power of the projector and the external device off and on. ― not appear or it appears f Is a signal which is not compatible with the projector being input? jumbled.
-
Page 161: [Self Test] Indications
Chapter 6 Maintenance — [SELF TEST] indications [SELF TEST] indications [SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST]. The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details. - Page 162 Chapter 6 Maintenance — [SELF TEST] indications f For errors and warnings that are not described in the table, consult your dealer. r Measure for error and warning Action Measure number The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature The operating environment temperature is too low.
-
Page 163: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. ENGLISH - 163... -
Page 164: Technical Information
Input selection list query 11 12 21 31 32 33 36 ― Returns the name set in the [NETWORK] menu → [NETWORK NAME? Projector name query xxxxx SETUP] → [PROJECTOR NAME]. Manufacturer name INF1? Panasonic Returns manufacturer name. query INF2? Model name query RZ575 Returns model name. Other information INF0? xxxxx Returns the main version of the firmware. -
Page 165: Using Art-Net Function
Chapter 7 Appendix — Technical information PJLink security authentication The password used for PJLink is the same as that of the password set for web control. When using the projector without security authentication, do not set a password for web control. f For specifications related to PJLink, visit the website of Japan Business Machine and Information System Industries Association. - Page 166 Chapter 7 Appendix — Technical information r INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to [2] or [USER]) Performance Parameter Default value No operation COMPUTER1 8-15 COMPUTER2 16-23 DVI-D 24-31 HDMI1 32-39 DIGITAL LINK 40-47 No operation 48-63 VIDEO 64-71 HDMI2 72-79 No operation...
- Page 167 Chapter 7 Appendix — Technical information r LENS CONTROL (when [Art-Net CHANNEL SETTING] is set to [1]) Operate together with LENS FUNCTION SELECT. Performance Parameter Default value (-) High speed 0-31 Lens adjustment (-) Low speed 32-63 (-) Fine adjustment 64-95 Operation stop 96-127 (+) Fine adjustment...
- Page 168 Chapter 7 Appendix — Technical information r FREEZE Performance Parameter Default value No operation 0-31 32-95 No operation 96-159 160-223 No operation 224-255 r COLOR, TINT Performance Parameter Default value No operation 0-31 Factory default setting 32-63 … … 128-129 … …...
-
Page 169: Control Commands Via Lan
“xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats. -
Page 170: Error Response
Chapter 7 Appendix — Technical information r Error response Termination String Details symbol “ERR1” Undefined control command “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period (CR) Message 0x0d “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes... -
Page 171: Serial In> Terminal
Chapter 7 Appendix — Technical information r Error response Termination String Details symbol “ERR1” Undefined control command “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period (CR) Message 0x0d “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes... -
Page 172: Basic Format
Chapter 7 Appendix — Technical information Communication conditions (Factory default) Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length 8 bits Stop bit 1 bit X parameter None S parameter None Basic format Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. -
Page 173: Control Command
Chapter 7 Appendix — Technical information Cable specification When connected to a computer NC NC Projector Computer NC NC (<SERIAL IN> terminal) (DTE specifications) NC NC NC NC Control command The following table lists the commands that can be used to control the projector using a computer. r Projector control command Parameter/response Command... -
Page 174: Two-Window Display Combination List
Chapter 7 Appendix — Technical information r Lens control command Command Sub command Details Remark LNSI2 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 LNSI3 Lens V shift = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse adjustment+, +00201 = Coarse adjustment- LNSI4 Lens focus... -
Page 175: List Of Compatible Signals
Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals compatible with the projector. f Symbols that indicate formats are as follows. g V: VIDEO, Y/C g R: RGB (analog) g Y: YC (analog) g D: DVI-D g H: HDMI f Input corresponding to each item in the plug and play column is as follows. - Page 176 Chapter 7 Appendix — Technical information Scanning freq. Plug and play Dot clock Signal name Resolution freq. Format DVI-D Horizontal Vertical HDMI/ (SIGNAL FORMAT) (Dots) COMPUTER (MHz) (kHz) (Hz) EDID1 EDID2 EDID3 1152 x 864/60 1 152 x 864 53.7 60.0 81.6 R/D/H ―...
- Page 177 Chapter 7 Appendix — Technical information f The “i” at the end of the resolution indicates an interlaced signal. f When interlaced signals are connected, flickering may occur on the projected image. f DIGITAL LINK input compatible signal is the same as HDMI input compatible signal. ENGLISH - 177...
-
Page 178: Specifications
Chapter 7 Appendix — Specifications Specifications The specifications of the projector are as follows. PT-RZ575 100 V - 240 V ~ (100 V - 240 V alternating current), 50 Hz/60 Hz Power supply PT-RZ575T 110 V ~ (110 V alternating current), 60 Hz PT-RZ575 500 W (5.9 A - 2.3 A) - Page 179 Chapter 7 Appendix — Specifications r Connecting terminal 1 set, high-density D-Sub 15 p (female) RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω) SYNC/HD TTL high impedance, automatic positive/negative polarity compatible <COMPUTER 1 IN> terminal TTL high impedance, automatic positive/negative polarity compatible signal...
-
Page 180: Compatible Signal
RGB input f Resolution: 640 x 400 to 1 920 x 1 200 f Dot clock frequency: 162 MHz or less f PIAS (Panasonic Intelligent Auto Scanning) system input f Resolution: 480i/576i to 1 920 x 1 080 f Dot clock frequency: 148.5 MHz or less f The HD/SYNC and VD terminals do not support 3 value SYNC. -
Page 181: Dimensions
Chapter 7 Appendix — Dimensions Dimensions Unit: mm 249 (9-13/16") 210 (8-9/32") 372.5 (14-21/32") 420 (16-17/32") 498 (19-5/8") * Actual dimensions may differ depending on the product. ENGLISH - 181... -
Page 182: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired. -
