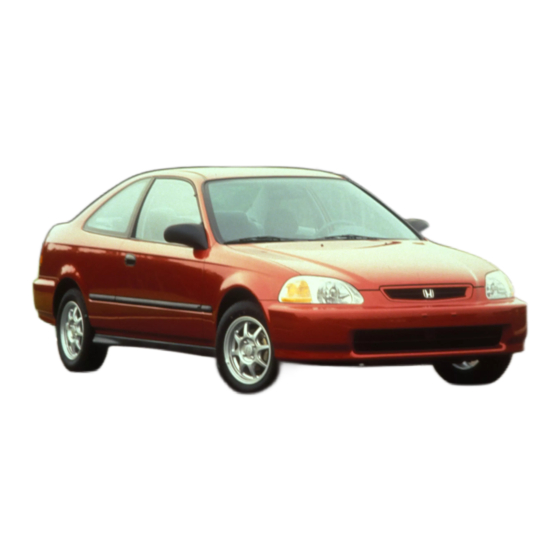

1996 Civic Coupe Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Owner's Identification
Introduction .........................................................................................................................................
A Few Words About Safety.................................................................................................................
Driver and Passenger Safety ..............................................................................................................
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.
Instruments and Controls.................................................................................................................
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features .............................................................................................. . .
How to operate the climate control system, the audio system, and other convenience features.
Before Driving....................................................................................................................................
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving ................................................................................................................................................
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance .....................................................................................................................................
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Appearance Care..............................................................................................................................
Tips on cleaning and protecting your vehicle. Things to look for if your vehicle ever needs body repairs.
Taking Care of the Unexpected ......................................................................................................
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information.....................................................................................................................
ID numbers, dimensions, capacities, and technical information.
A summary of the warranties covering your new Acura, and how to contact us.
Authorized Manuals (U.S. only)......................................................................................................
How to order manuals and other technical literature.
Index.....................................................................................................................................................
Information you need when you pull up to the fuel pump.
Contents
ii
3
31
6 7
89
99
119
173
179
201
213
219
