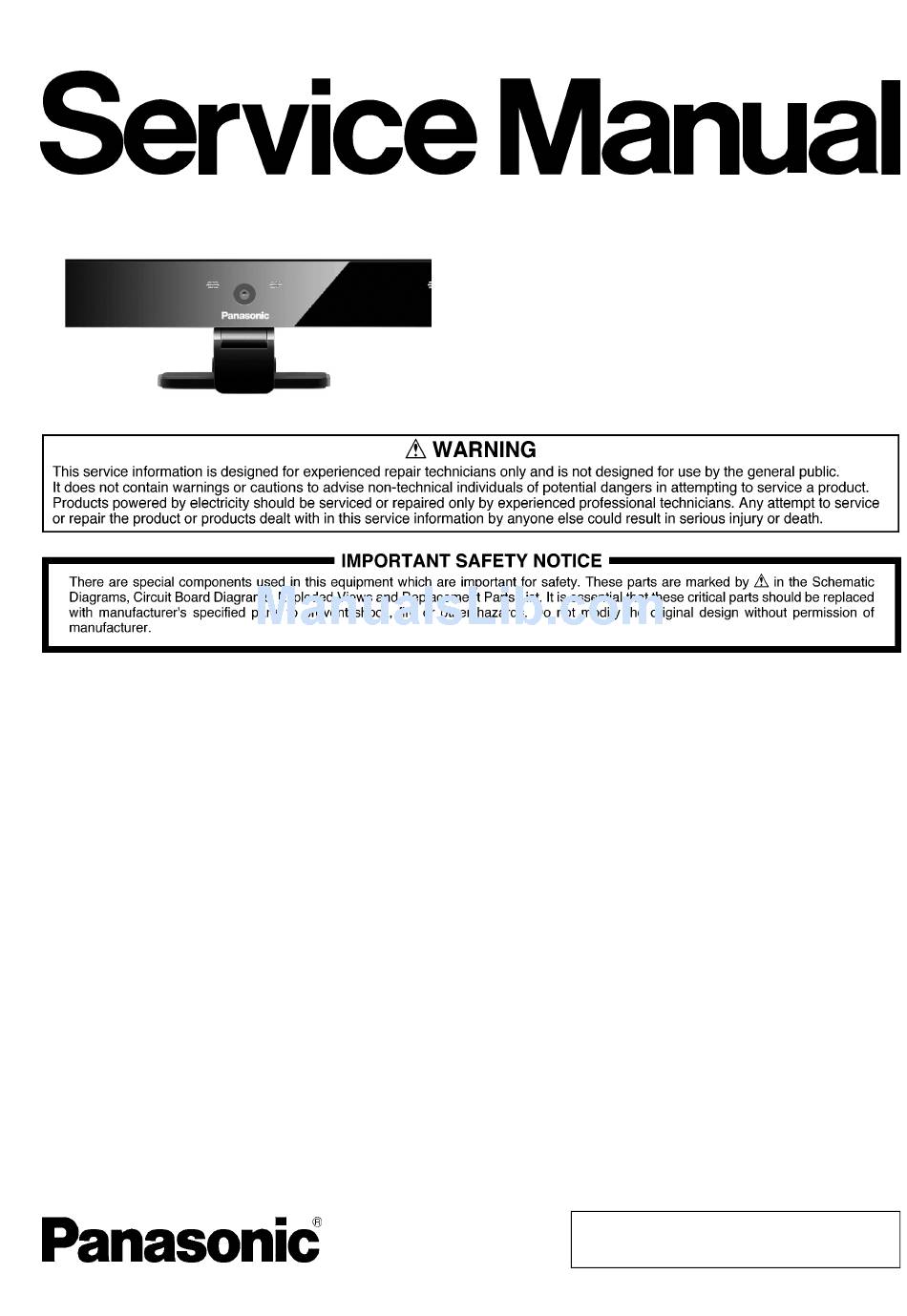

Panasonic ty-cc10w Service Manual

Communication camera
Hide thumbs Also See for ty-cc10w:

Advertisement

Quick Links

Download this manual
TABLE OF CONTENTS
1 Specifications ----------------------------------------------------- 2
2 Troubleshooting Guide ----------------------------------------- 2
2.1. How to diagnose the VIERA Communication
Camera------------------------------------------------------- 2
2.2. Preparation for diagnosis -------------------------------- 2
3 Exploded View and Replacement Parts List ------------ 3
Model No.
PAGE
© Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
of law.
Order Number. ITD1005031CE
Communication Camera
TY-CC10W
PAGE

Advertisement

loading

Related Manuals for Panasonic ty-cc10w

Summary of Contents for Panasonic ty-cc10w

  • Page 1 2 Troubleshooting Guide ----------------------------------------- 2 2.1. How to diagnose the VIERA Communication Camera------------------------------------------------------- 2 2.2. Preparation for diagnosis -------------------------------- 2 3 Exploded View and Replacement Parts List ------------ 3 © Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.

  • Page 2: Specifications

    2 Troubleshooting Guide 2.1. How to diagnose the VIERA Communication Camera You can carry out functional checks and diagnosis of the images (H.264) of the VIERA Communication camera (TY-CC10W) on a PC by using exclusive diagnosis software. 2.2. Preparation for diagnosis The following items are necessary for diagnosing the camera.

  • Page 3: Exploded View And Replacement Parts List

    3 Exploded View and Replacement Parts List Please click the radio button for “Diagrams ll / Parts List” on the menu bar.
  • Page 4 Model No. : TY-CC10W Exploded View...
  • Page 5 Model No. : TY-CC10W Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks N5ZZ00000193 COMMUNICATION CAMERA UNIT TQZJ267-2 OPERATION INSTRUCTION TPCC80101C CARTON BOX TPDF2514 PARTITION (WHITE)
  • Page 6 1 Troubleshooting Guide 1.1. How to diagnose the VIERA Communication Camera You can carry out functional checks and diagnosis of the images (H.264) of the VIERA Communication camera (TY-CC10W) on a PC by using exclusive diagnosis software. 1.2. Preparation for diagnosis The following items are necessary for diagnosing the camera.
  • Page 7 1.4. Diagnosis procedures When experiencing image or audio problems on the VIERA Communication Camera (TY-CC10W), inspect the camera by checking the camera’s image and audio output by using diagnosis software and follow the flowchart below for making a diagnosis.

  • Page 8: Operating Environment

    2.1.1. What is QTCam? QTCam is a testing program for VIERA Communication Cameras (TY-CC10W). Using it allows confirmation of video (H.264) and audio operation of the camera on PCs without the need to connect to a television. We will explain here the means of installing the program, its settings and testing methods.

  • Page 9: Installation Procedure

    2.2. VIERA Communication Camera Testing Software (QTCam) Installation Procedure 2.2.1. Installation Procedure (1) Copy downloaded installation software [QTCamFullSetup_20100615.exe] to the personal computer where you will do the testing and run it. (double-click on [QTCamFullSetup_20100615.exe]) (2) Activate QTCam Setup: Installation Options and select the software you wish to install.
  • Page 10 (6) Click [Next] in the [Setup-ffdshow] window that is displayed. (7) Click [Next] after the ffdshow [Information] window is dis- played. (8) Specify the folder to install the program in and click [Next]. (You do not have to change the folder)
  • Page 11 (9) There is no need to change any check marks in this window [Select Components]. Simply click [Next]. (10) Specify the start menu folder. (You do not have to change the folder) Click [Next]. (11) The [Additional Task] selection window is displayed. There is no need to change any check marks.
  • Page 12 (12) The [Speaker Setup] selection window is displayed. Select [2.0 (stereo)]. (13) Click [Next]. (14) Click [Install]. Installation will begin. • The installation window...
  • Page 13 (15) After the installation is completed, the [Completing ..] window is displayed. There is no need to place any check marks. Simply click [Finish]. (16) Once [Completed] is displayed the installation is ended. Click [Close] to close the window. • A QTCam icon will be created at the desktop of the personal computer.
  • Page 14 (1) Activate the QTCam program by double-clicking on the shortcut icon. “QTCam” window will open in your personal computer. (2) Connect the VIERA Communication Camera (TY-CC10W) you wish to test into your computer's USB slot. (3) Click [Devices]. If [TY-CC10] is displayed, the camera has been recognized.
  • Page 15 2.3.2. Generating VIERA Communication Camera Video and Making Settings (1) Displaying camera video Click [Device] and select [USB Video Device]. (2) Video is displayed in the default setting (YUY2, 640 x 480). VIERA Communication Camera is performed in H.264, so alter the video format setting as follows.
  • Page 16 (4) Alter the format from YUY2 to H.264. (5) For H.264, ensure the settings are: Resolution: 1280 x 720 Bit Rate: 4Mbps Frame Rate: 22 fps Then click [OK]. (6) Video is displayed in H.264 (1280 x 720, 22 fps). Check that the video is playing successfully.
  • Page 17 2.3.3. Generating Audio Output for the VIERA Communication Camera (1) Perform the audio setting. Select [TY-CC10] from [Device]. Check the computer audio device setting Prior to performing the audio setting, check that the specified device in [Control panel] - [Audio devices] - [Audio] - [Recording] is the [TY-CC10].

  • Page 18: Changing The Volume

    2.3.4. Changing the Volume (1) Select [Audio Capture Filter] from [Options]. (2) The properties of the audio input mixer are displayed. (3) Alter the pin line input mix (P) to adjust to the desired vol- ume. If no audio can be heard Check whether the computer's audio device settings (volume level, muting, etc.) are correct using the Control Panel.
  • Page 19 2.3.5. Method of Testing the Video (H.264) and Audio of the VIERA Communication Cam- 2.4. Closing the VIERA Communication Camera Testing Program (QTCam) 2.4.1. Method of Closing QTCam (1) Close the QTCam window. Select [Exit] from [File], or simply click the highlighted red cross on the window.
  • Page 20 TY-CC10W How to assemble carton box. 01∼13 Make crease before assembling. 14∼25 Assemble the box.
