Philips MDV530VR/17 Service Manual

Philips MDV530VR/17 Service Manual

Digital video disc player & video cassette recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Philips Consumer Electronics Company
A Division of Philips Electronics North America Corporation
Technical Service Data
Service Solutions Group
Technical Publications Dept.
P.O. Box 555, 401 E. Old Andrew Johnson Hwy.
Jefferson City,TN 37760

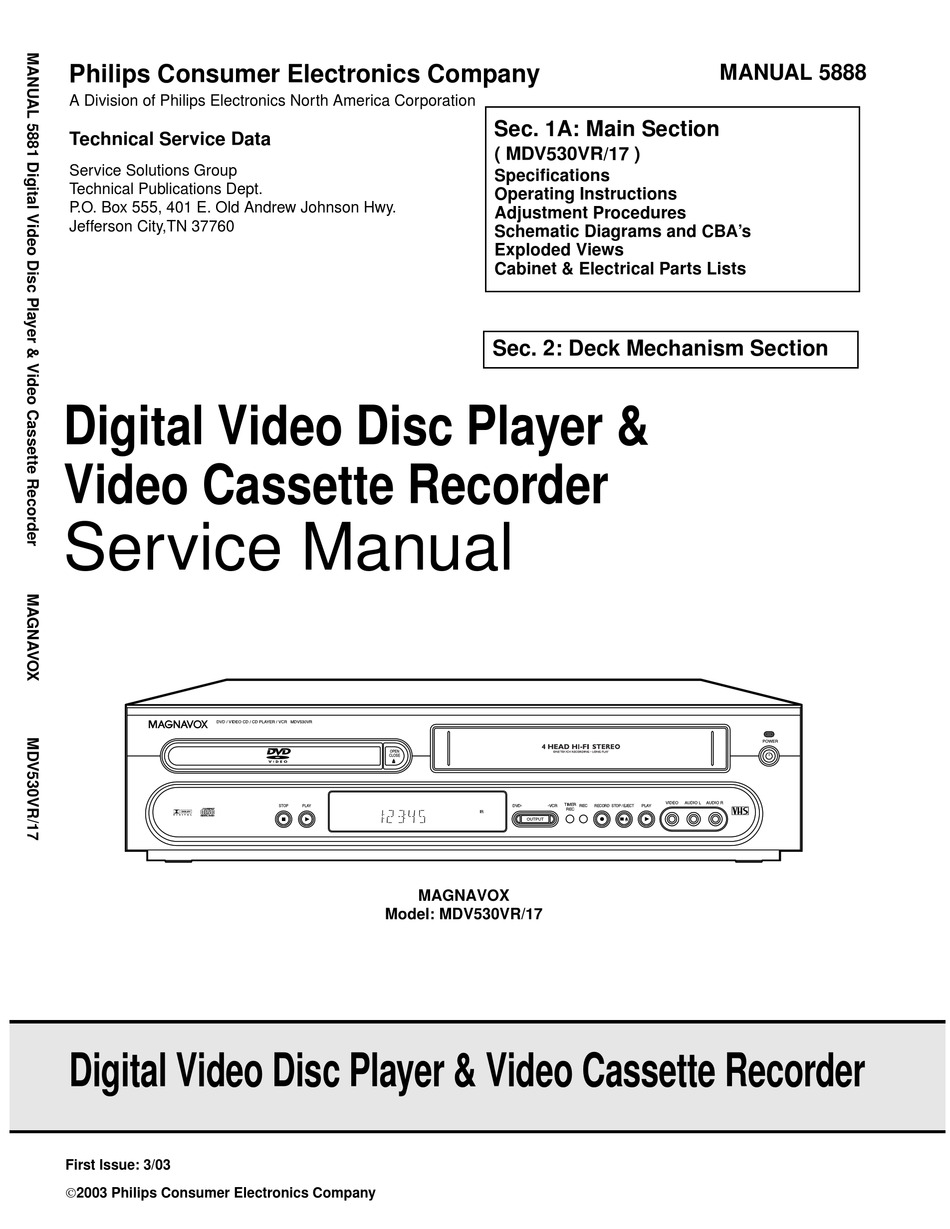

Digital Video Disc Player &
Video Cassette Recorder
Service Manual
Digital Video Disc Player & Video Cassette Recorder
First Issue: 3/03
2003 Philips Consumer Electronics Company
Sec. 1A: Main Section
( MDV530VR/17 )
Specifications
Operating Instructions
Adjustment Procedures
Schematic Diagrams and CBA's
Exploded Views
Cabinet & Electrical Parts Lists
Sec. 2: Deck Mechanism Section
MAGNAVOX
Model: MDV530VR/17
MANUAL 5888
