Two Intelligent PDUs Without UPS — (NA/JPN and INTL, Single-Phase and
Three-Phase)

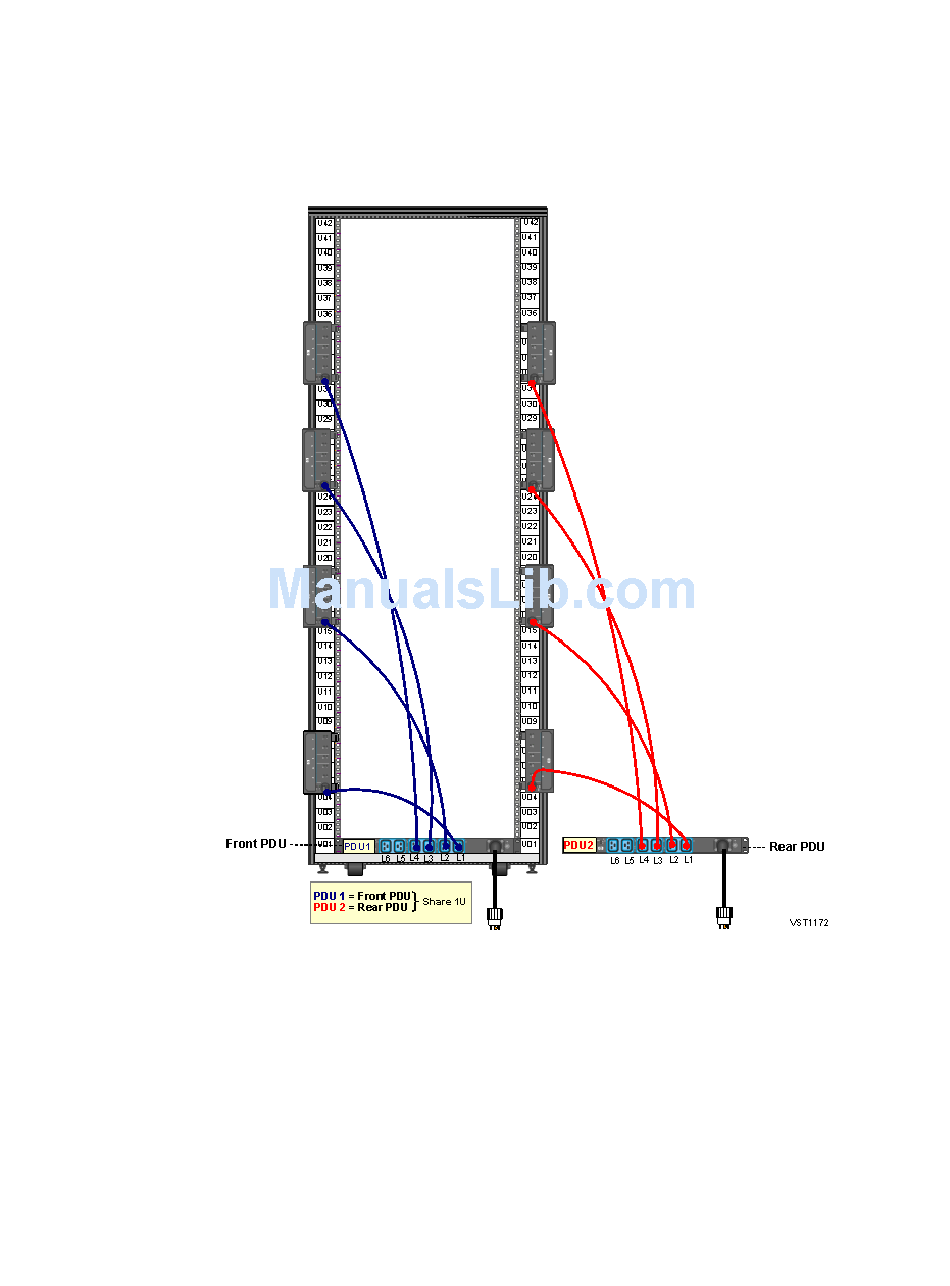

This illustration shows the connections for two iPDUs in a rack without a UPS. For detailed power
specifications and connector types, see
Figure 5 Two Intelligent PDUs Without UPS— (NA/JPN and INTL, Single-Phase and
Three-Phase)
"Power Specifications" (page
Power Distribution Unit (PDU) Types for a Rack
45).
29
