Summary of Contents for aACORN GUARD AG-690HD Series

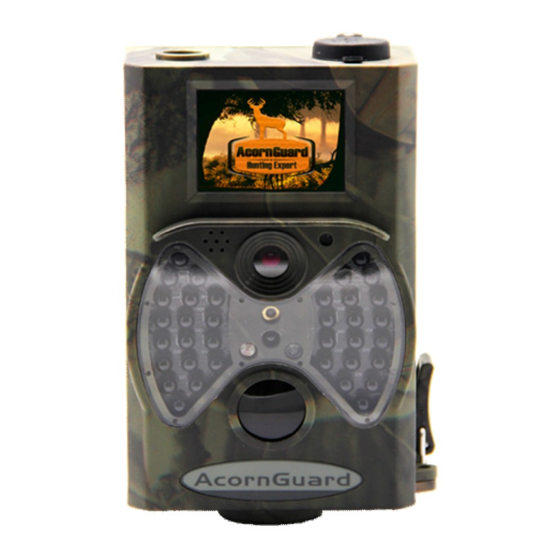

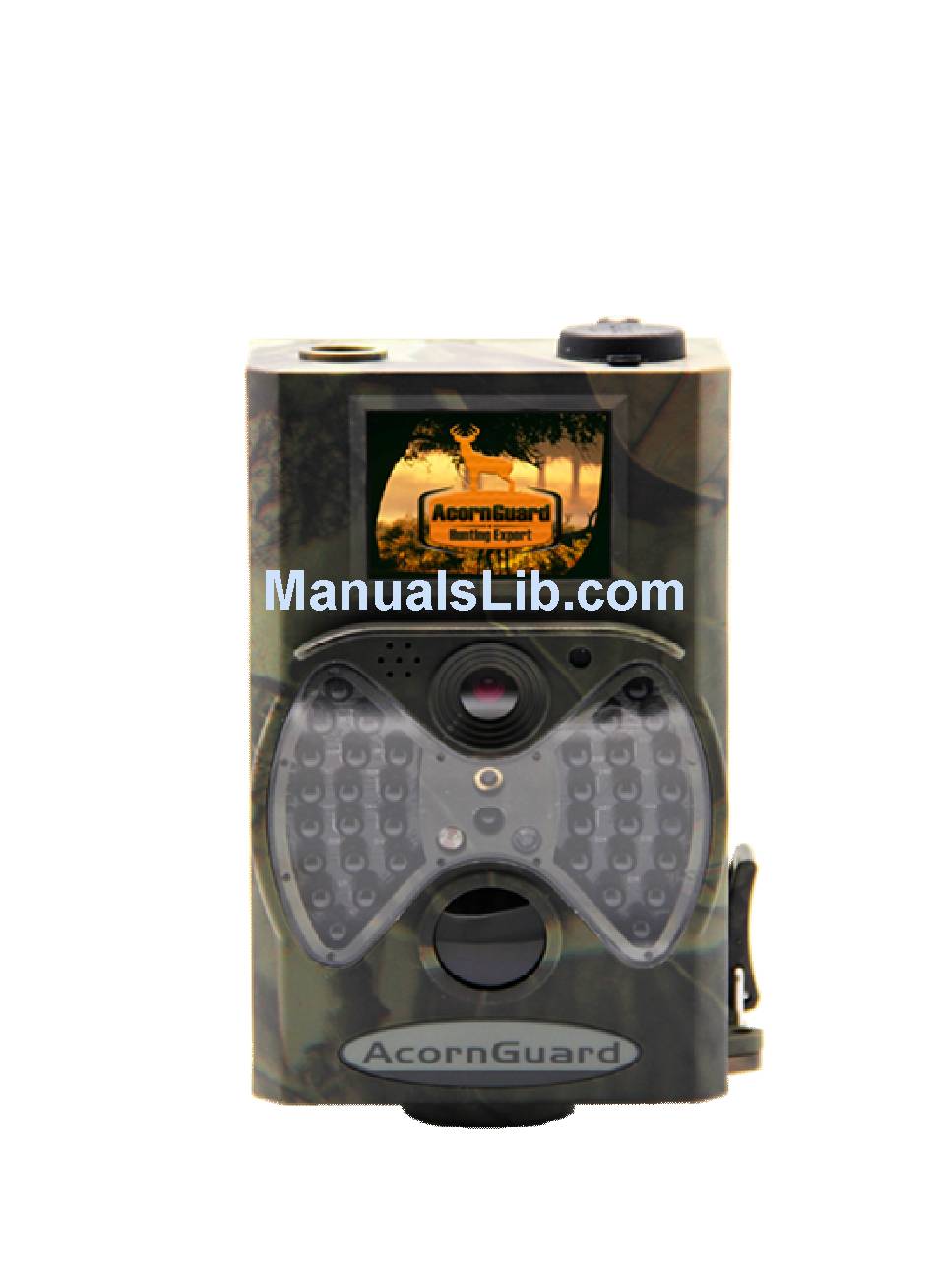

- Page 1 ® Acorn Guard HD 12MP Digital Scouting Camera AG-690HD Series USER’S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Information Description 1.2 Features Application Parts and Controls Quick Start 2.1 Load Batteries 2.2 Insert SD Card Enter Into ON Mode Enter Into Test Mode Enter Into OFF Mode Advanced Setting Parameter Settings Supported Format 3.3 Shooting Information Display Set up Camera ON PC Multi-Time lapse features Important Notes... -
Page 3: General Information
Two-Year Limited Warranty Appendix I Technical Specifications Appendix II Packing List Dear customers, thank you for choosing our AG-690 series infra-red MMS hunting camera. Please read this manual before using the camera. And please keep it well preserved. GENERAL INFORATION 1.1) Description The AcornGuard camera (AG-690HD) Series adapts IR thermo... -
Page 4: Application
Ø In “Cam + Video” mode, camera takes both pictures and video at every trigger event Ø 36pcs Infrared night vision LEDs for flash range as far as 65 feet ( when use 850NM LED) Ø Ultra low standby power consumption. Extremely long in-field life (in standby mode, up to 6 months with 8 x AA batteries when use regular function) Ø... -
Page 5: Parts And Controls
1.4) Parts and Controls Figure A shows the Front view of AG-690HD Figure B shows the Back view of AG-690HD Figure C shows the Bottom view of AG-690HD Figure A: Front View of AG-690HD The camera has the following I/O interfaces: USB connector, SD-card slot, SIM Card TV.output and The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST On the back of camera, there is a lock for theft-proof and an adjuster to... - Page 6 Figure B: Back View of AG-690HD Figure C Bottom view of AG-690HD...
-
Page 7: Quick Start
The remote control is an input device of the camera and is primarily used for customer settings and password input. This is an infrared type wireless remote controller.The maximum remote distance is 9 meters. There are fifteen buttons on the remote control. Select Item(UP)/Increase value Display Menus /Exit Make Selection/Enter... -
Page 8: Enter Into On Mode
batteries with 1.5V output can be used:（NOTE: rechargeable battery voltage should be also reach 1.5V each, 1.2V Rechargeable Battery will only working short time）. High-density and high-performance alkaline batteries (Recommended) 2. Rechargeable alkaline batteries 3. Rechargeable NiMH batteries 2.2) Enter ON Mode Before switching on, please pay attention to the follows: Ø... -
Page 9: Advanced Setting
mode, the camera still consumes certain power at µA level. Therefore, please remove the battery if the camera will not be used for a long time (Cautions: The Power Switch can’t be Slide From “OFF” Mode directly to “ON” Mode or From “ON “ Mode to “ TEST” Mode. Each time, user should Slide power switch into “OFF”... - Page 10 12M Pixel Selects resolution for still photos from Photo Size 5 to 12 megapixels, Higher resolution 8M Pixel produces better quality photos, but 5M Pixel creates larger files that take up more of the SD card capacity. 5M is a good compromise between quality and file size 1080P...
- Page 11 High/Normal/Hi Selects the sensitivity of the PIR Sense Level sensor. The “ High” setting will make Distance the camera more sensitive to infrared (heat) and more easily triggered by motion, and the “Low” setting makes it less sensitive to heat and motion. The High setting can be useful when the ambient temperature is warm( making it more difficult for the sensor to detect...
- Page 12 ON / OFF Set up a password to protect your Password camera from unauthorized users. Four Digit (From 0-9, A-Z) ON/OFF If set On, the camera will automatically Time Lapse take photos/videos at the set interval HH:MM (Note: in this mode, the PIR sensor is disabled).
-
Page 13: Supported Format
Different AcornGuard Firmware has Version Different Version Number. User need to check the Version Number when the firmware is upgrade each time. If the version number is different from before, then it means the upgrade is successful,otherwise user need to upgrade again. -
Page 14: Shooting Information Display
3.3) Shooting Information Display Slide the Power switch into “Test” Mode and the shooting information will be displayed on the Screen. 3.4) Set up Camera/ON PC Users can set up camera or MMS function. 1) Copy all folders from CD onto Local Disk. 2) Open PC setup Software and Double Click “MMSCONFIG”... -
Page 15: Multi-Time Lapse Features
Please setup your camera according to your desired settings, Click “SAVE” to choose directory to save your settings. We highly recommend save the settings in the root directory of the SD card (Be sure you insert the SD card in the SD card reader and plug it at your computer) and then, Click “SAVE”... -
Page 16: Important Notes
4.2) 850NM and 940nm IR LED There are two selects of IR LED on the AG-690HD series camera, 850nm and 940nm. The former provides more than 65-foot flash range whereas the latter more than 40 foot flash range. The benefit of 940nm IR LED, however, it’s emits very low-glow flash that is almost invisible from 5 feet... -
Page 17: Mounting And Positioning The Camera
Make sure batteries power is enough; or else, camera may power off suddenly when IR leds is on in TEST mode. AcornGuard AG-690HD series hunting camera stops taking images or won’t take images 1. Please make sure that the SD card is not full. If the card is full, the camera... -
Page 18: Firmware Upgrades
2. Check batteries to make sure that they are new alkaline or lithium AA batteries. 3. Make sure that the camera power switch is in the “On” position and not in the “Off” or “Test” modes. 4. Please format the SD card with AG-690HD hunting camera before using or when camera stops taking images. - Page 19 Attention: A firmware upgrade program for one model is not compatible on other models. In other word, an upgrade for Model AG-690HD only applies to that model. If a camera is falsely upgraded running non-compatible program, it will quit working and needs to be sent back for repair . This issue is not covered under warranty.
- Page 20 Appendix I TECHNICAL SPECIFICATIONS Item Parameters AG-690HD 8 Mega Pixels Image sensor 4000*3000 (12MP) Max. Pixel size F=3.1;FOV=60°;AutoIR-Cut Lens 65 Feet/20 Meters 850NM IR IR-Flash Flash; 30 Feet/10 Meters on 940NM Low-glow Flash 2inch Full definition color LCD Screen screen From 8MB to 32GB Memory Card 12MP=4000*3000;...
- Page 21 1-5 Photo Shooting numbers 0-90s; programmable Video length First take picture then Video Camera+Video ON/OFF, temperature, moon phase Time stamp 4-Digit Number; programmable Password ON/OFF;1Min-24hour Time lapse Programmable 8*AA Power Supply Stand-by Current <0.1mA 3-6Months Stand-by Time Auto power off in 2minute if no Auto power off input in test mode 150mA(+350mA when IR LED...
- Page 22 5% ~ 95% Operation Humidity CE & FCC & ROHS Certificate Appendix II: PACKAGE CONTENTS Part Name Quantity （AG-690HD） Digital Camera Wireless Control TV AV IN Cable USB Cable Strap External DC Cable(optional) Installation CD Warranty Card...
