Panasonic TC-P50X3 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Plasma TV
  5. Viera TC-P50X3
  6. Service manual

Panasonic TC-P50X3 Service Manual

50 inch class 720p
Hide thumbs Also See for TC-P50X3:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
50 inch Class 720p Plasma HDTV
TC-P50X3
Model No.
GPH14DU Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC110104CE
B34 Canada: B62
Ver.1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TC-P50X3

Summary of Contents for Panasonic TC-P50X3

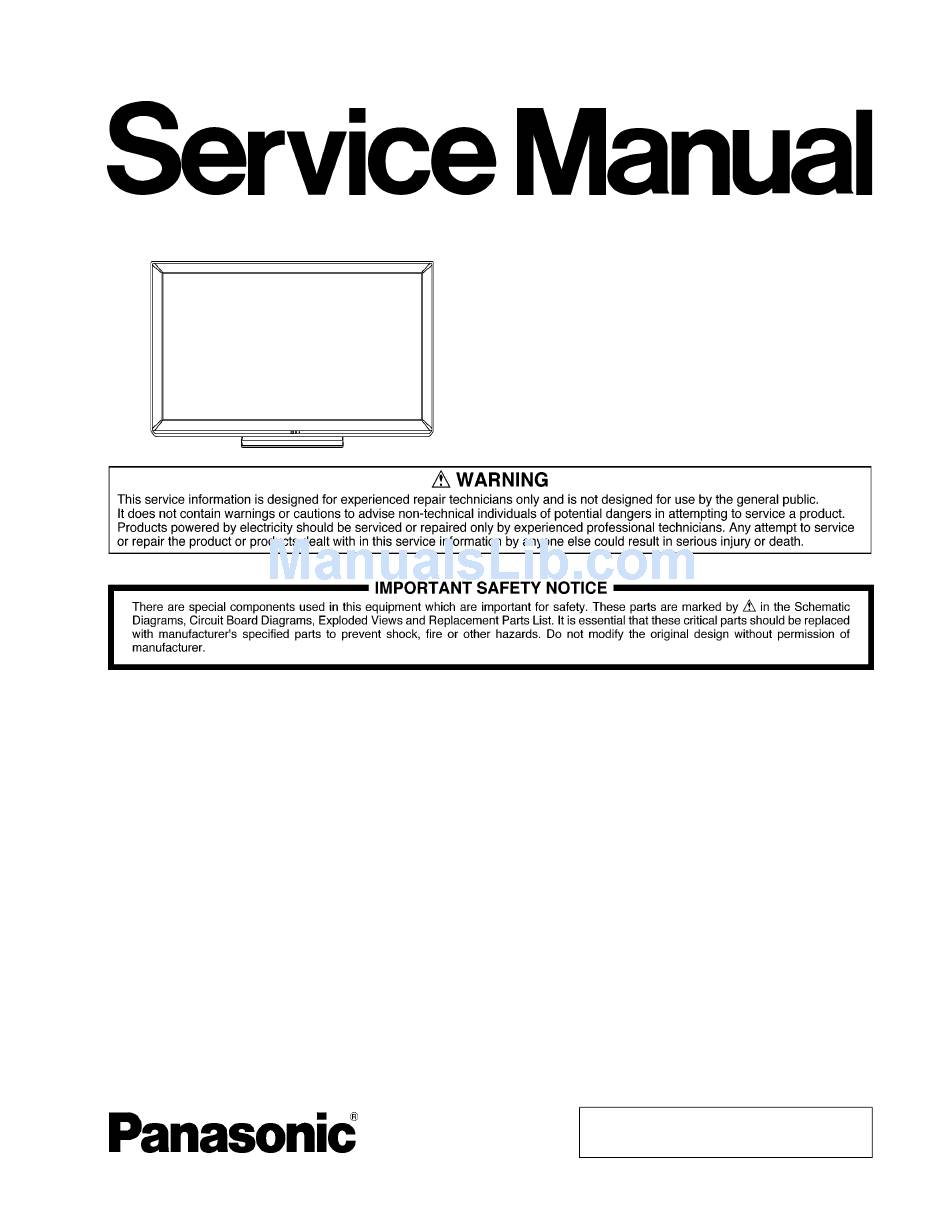

  • Page 1 ORDER NO.MTNC110104CE B34 Canada: B62 50 inch Class 720p Plasma HDTV TC-P50X3 Model No. GPH14DU Chassis © Panasonic Corporation 2011. Unauthorized copying and distribution is a violation of law. Ver.1...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.6. Wiring (5) -------------------------------------------------- 40 1.1. General Guidelines ----------------------------------------3 12 Schematic Diagram -------------------------------------------- 41 2 Warning --------------------------------------------------------------4 12.1. Schematic Diagram Note ------------------------------ 41 2.1. Prevention of Electrostatic Discharge (ESD) 12.2. Replacement Parts List Note ------------------------- 41 to Electrostatically Sensitive (ES) Devices ----------4 12.3.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Non serviceable. Data Driver (Lower Left) P-Board should be exchanged for service. Scan Drive Main AV input, processing Sustain Drive Remote receiver, Power LED, C.A.T.S sensor...

  • Page 7: Applicable Signals

    3.2. Applicable signals * Mark: Applicable input signal for Component (Y, P ), HDMI horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI 525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94 1,125 (1,080) /60p...

  • Page 8: Specifications

    4 Specifications Power Source AC 120 V, 60 Hz Power Consumption Rated Power Consumption 262 W Standby condition 0.2 W Plasma Display panel Drive method AC type Aspect Ratio 16:9 Visible screen size 50 inch class (49.9 inches measured diagonally) (W ×...

  • Page 9: Technical Descriptions

    5 Technical Descriptions 5.1. Specification of KEY for DTCP-IP, WMDRM and Widevine 5.1.1. General information: 1. EEPROM (IC8902) for spare parts has the seed of KEY for each DTCP-IP for DLNA, WMDRM for Netflix and Widevine for CinemaNow.. 2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902).

  • Page 10: Service Mode

    6 Service Mode 6.1. How to enter into Service Mode 6.1.1. Purpose After exchange parts, check and adjust the contents of adjustment mode. While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds 6.1.2.

  • Page 11: Contents Of Adjustment Mode

    Contents of adjustment mode 6.1.4. • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 12: Option - Mirror

    6.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 13: Hotel Mode

    6.4. Hotel mode 1. Purpose Restrict a function for hotels. Item Function 2. Access command to the Hotel mode setup menu Mode Select hotel mode On/Off In order to display the Hotel mode setup menu: Input Select input signal modes. While pressing [VOLUME (-)] button of the main unit, Set the input, when each time power is switched on.

  • Page 14: Data Copy By Sd Card

    6.5. Data Copy by SD Card 6.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 15 6.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 16 6.5.4. Data copy from SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 17: Troubleshooting Guide

    7 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 7.1. Check of the IIC bus lines 7.1.1. How to access 7.1.1.1. Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 18: Power Led Blinking Timing Chart

    7.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit. Blinking Times Contents Check point...

  • Page 19: No Picture

    7.4. No Picture...

  • Page 20: Local Screen Failure

    7.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 21: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Remove the Rear cover 8.4. Remove Side terminal cover 1. See PCB Layout (Section 3) 8.2. Remove the AC inlet 1. Remove the screws (×2 2. Remove the Side terminal cover. Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors.

  • Page 22: Remove The A-Board

    8.6. Remove the A-Board 8.8. Remove the SN-Board 1. Remove the Tuner unit. (See section 8.5.) 1. Remove the flexible cables (SN21, SN22, SN23, SN24, SN25 and SN26) connected to the SN-Board. 2. Remove the screws (×2 ) and remove the A-Board. 2.

  • Page 23: Remove The Hanger Metals And The Stand Brackets

    8.10. Remove the Hanger metals and 8.11. Remove the C1-Board the Stand brackets 1. Remove the Hanger metal R and the Stand bracket R. (See section 8.10.) 1. Remove the Plasma panel section from the servicing 2. Remove the Flexible cable holder fastening screws (×8 stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing 3.

  • Page 24: Remove The Plasma Panel Section From The Cabinet Assy

    8.13. Remove the Plasma panel sec- 8.14. Remove the Glass holders tion from the Cabinet assy 1. Remove the Cabinet assy. (See section 8.13.) 2. Remove the screws (×7 1. Remove the Plasma panel fastening screws (×4 ) and 3. Remove the Glass holder top. remove the Cabinet assy.

  • Page 25: Replace The Plasma Panel

    8.16. Replace the Plasma panel Caution: A new Plasma panel itself without Hanger metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Hanger metals after assembling the Hanger metals and the Stand brackets. 1.

  • Page 26: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment 9.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.
  • Page 27 9.1.2. RF video sub contrast adjustment Instrument Name Remarks 1. REMOTE TRANSMITTER 2. RF analog signal (Sprit color bar. The pattern for adjustment must contain 100% white part.) Adjustment or Inspection Procedure Remarks 1. Receive the sprit color bar with RF analog signal. (ASPECT FULL, Picture menu: Vivid) 2.

  • Page 28: White Balance Adjustment

    4. Push [5] key of remote controller to display window pattern. 5. Confirm the brightness. The following is the confirmation value. TC-P50X3 131cd/m2 or more 6. Set [R-CUT] [G-CUT] [B-CUT] the values written in table 1. 7. Attach the sensor of color analyzer to the center of window pattern.

  • Page 31: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram MAIN AV INPUT,PROCESSING HDMI1,2 (HDMI1) ETHERNET DATA TMDS DATA LAN CON I/F ETHERPHY HDMI I/F SIF_OUT SIF I/F SD CARD DATA SD CARD I/F SD CARD IFD_OUT TUNER TUNER I/F USB I/F USB_1,2 PEAKS-sLD2 CVBS/Y,PR/C,PB VIDEO INPUT...

  • Page 32: Block (1/4) Diagram

    10.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R D3050 JK8531 JK8702 DIGITAL JK8650 USB1 USB2 AUDIO JK4600 JK4601 TU4801 SD CARD HDMI1 HDMI2 MAIN AV INPUT,PROCESSING ANT IN TUNER DMD_ IIC0 Q4500 IC4900 AUDIO AMP IC8601 SOUND15V ETHERPHY X8600 USB5V 25MHz SUB3.3V VDDSD18V33V X8300 24.576MHz...

  • Page 33: Block (2/4) Diagram

    10.3. Block (2/4) Diagram MAIN AV INPUT,PROCESSING IC9300 PD5L VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA H/V Sync Control VIDEO DATA P+3.3V Sub Filed Processor IC9304 P+3.3V P+3.3V SI/SO SOS8_SS IIC0 FLASH I/F FLASH SOS8_SS P_S0 DATA DRIVER CONTROL P_S0 P_S1 P_S1...

  • Page 34: Block (3/4) Diagram

    10.4. Block (3/4) Diagram POWER SUPPLY COLD COLD AC CORD Fuse AC Vin PHOTO (Live) Detection COUPLER (Neutral) FILTER STANDBY SS11 VOLTAGE CONVERTER T101 FET SW Vsus P+15V FET SW Relay F15V for prevention of inrush current F15V STB5V Drop IC SOUND15V OCP/OVP P+15V...

  • Page 35: Block (4/4) Diagram

    10.5. Block (4/4) Diagram SCAN DRIVE SUSTAIN DRIVE TPVSUS TPVSUS Vsus L16011 Vsus P+15V D16618 MAIN H Q16607 IC16131 Q16001 CERS IC16784,85 IC16684 Q16003 PC16897 BUFFER CPH1 IPD CIRCUIT TPVAD BUFFER Q16601 T16471 VAD GEN. TPSS1 IC16501 SHUNT REG Q16401 BUFFER Q16402 PLASMA...

  • Page 37: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (1)

  • Page 38: Wiring (2)

    11.3. Wiring (2) 11.4. Wiring (3)

  • Page 39: Wiring (4)

    11.5. Wiring (4)

  • Page 40: Wiring (5)

    11.6. Wiring (5)

  • Page 41: Schematic Diagram

    Model No. : TC-P50X3 Schematic Diagram Note...

  • Page 42: A-Board (1/16) Schematic Diagram

    Model No. : TC-P50X3 Replacement Parts List Note...

  • Page 43: A-Board (2/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (1/16)

  • Page 44: A-Board (3/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (2/16)

  • Page 45: A-Board (4/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (3/16)

  • Page 46: A-Board (5/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (4/16)

  • Page 47: A-Board (6/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (5/16)

  • Page 48: A-Board (7/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (6/16)

  • Page 49: A-Board (8/16) And K-Board Schematic Diagram

    Model No. : TC-P50X3 A-Board (7/16)

  • Page 50: A-Board (9/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (8/16) and K-Board S-10...

  • Page 51: A-Board (10/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (9/16) S-11...

  • Page 52: A-Board (11/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (10/16) S-12...

  • Page 53: A-Board (12/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (11/16) S-13...

  • Page 54: A-Board (13/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (12/16) S-14...

  • Page 55: A-Board (14/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (13/16) S-15...

  • Page 56: A-Board (15/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (14/16) S-16...

  • Page 57: A-Board (16/16) Schematic Diagram

    Model No. : TC-P50X3 A-Board (15/16) S-17...

  • Page 58: C1-Board Schematic Diagram

    Model No. : TC-P50X3 A-Board (16/16) S-18...

  • Page 59: C2-Board Schematic Diagram

    Model No. : TC-P50X3 C1-Board S-19...

  • Page 60: Sn-Board (1/6) Schematic Diagram

    Model No. : TC-P50X3 C2-Board S-20...

  • Page 61: Sn-Board (2/6) Schematic Diagram

    Model No. : TC-P50X3 SN-Board (1/6) S-21...

  • Page 62: Sn-Board (3/6) Schematic Diagram

    Model No. : TC-P50X3 SN-Board (2/6) S-22...

  • Page 63: Sn-Board (4/6) Schematic Diagram

    Model No. : TC-P50X3 SN-Board (3/6) S-23...

  • Page 64: Sn-Board (5/6) Schematic Diagram

    Model No. : TC-P50X3 SN-Board (4/6) S-24...

  • Page 65: Sn-Board (6/6) Schematic Diagram

    Model No. : TC-P50X3 SN-Board (5/6) S-25...

  • Page 66: Ss-Board (1/2) Schematic Diagram

    Model No. : TC-P50X3 SN-Board (6/6) S-26...

  • Page 67: Ss-Board (2/2) Schematic Diagram

    Model No. : TC-P50X3 SS-Board (1/2) S-27...

  • Page 68: Printed Circuit Board

    Model No. : TC-P50X3 SS-Board (2/2) S-28...
  • Page 69 Model No. : TC-P50X3 A-Board (Foil side) S-29...

  • Page 70: K-Board

    Model No. : TC-P50X3 A-Board (Component side) S-30...

  • Page 71: C1-Board

    Model No. : TC-P50X3 K-Board S-31...

  • Page 72: C2-Board

    Model No. : TC-P50X3 C1-Board S-32...

  • Page 73: Sn-Board

    Model No. : TC-P50X3 C2-Board S-33...
  • Page 74 Model No. : TC-P50X3 SN-Board (Foil side) S-34...

  • Page 75: Ss-Board

    Model No. : TC-P50X3 SN-Board (Component side) S-35...
  • Page 76 Model No. : TC-P50X3 SS-Board S-36...

  • Page 77: Exploded View

    Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks TXN/A1PMUUS CIRCUIT BOARD A 1 (RTL)PAVCA N0AE5JK00007 CIRCUIT BOARD P 1 PAVCA TXNC11PMUU CIRCUIT BOARD C1 1 (RTL)PAVCA TXNC21PMUU CIRCUIT BOARD C2 1 (RTL)PAVCA...
  • Page 78 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C4802 F1J1A106A043 C 10UF, 10V C4805 F1G1H220A565 C 22PF, 50V C4806 F1G1C104A077 C 0.1UF 16V C4810 F1G1A105A047 C 1UF 10V C4811 F1G1A105A047 C 1UF 10V...
  • Page 79 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8006 F1G1C104A077 C 0.1UF 16V C8009 F1J1A106A087 C 10UF, 10V C8011 F1G1C104A077 C 0.1UF 16V C8014 F1G1A105A047 C 1UF 10V C8015 F1G1A105A047 C 1UF 10V...
  • Page 80 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C8305 F1G1A105A047 C 1UF 10V C8306 F1G1A105A047 C 1UF 10V C8307 F1G1A105A047 C 1UF 10V C8308 F1G1A105A047 C 1UF 10V C8309 F1G1A105A047 C 1UF 10V...

  • Page 81: Electrical Replacement Parts List

    Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C9301 F1G1H150A565 C 15PF, 50V C9302 F1G1H180A565 C 18PF, 50V C9308 F1G1C104A077 C 0.1UF 16V C9311 F1G1C104A077 C 0.1UF 16V C9312 F1J1A106A043 C 10UF, 10V...
  • Page 82 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C14987 F1H1C105A145 C 1 uF 16 V C14988 F1H1C105A145 C 1 uF 16 V C14991 F1G1H100A565 C 10PF 50V C14992 F1H1C105A145 C 1 uF 16 V...
  • Page 83 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C16567 F1H1C105A145 C 1 uF 16 V C16581 F1K1E105A029 C 1UF, 25V C16582 F1K1E475A134 C 4.7UF 25V C16593 ECJ1XC1H102J C 1000PF, J, 50V C16602 F1H1H2200008...
  • Page 84 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks C17206 ECJ1XB1C104K C 0.1UF, Z, 16V C17223 F1L2E154A028 C 0.15UF, 250V C17224 F1L2E154A028 C 0.15UF, 250V C17226 F1L2E154A028 C 0.15UF, 250V C17227 F1L2E154A028 C 0.15UF, 250V...
  • Page 85 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks D16421 B0ECLP000010 DIODE 1 PAVCA D16422 B0ECLP000010 DIODE 1 PAVCA D16431 B0ECKP000055 DIODE D16432 B0ECKP000055 DIODE D16433 B0ECKP000055 DIODE D16461 B0FBCN000005 DIODE D16473 B0ACCJ000048...
  • Page 86 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks IC5606 C0EBY0000580 IC8000 MN2WS0175D 1 PAVCA IC8100 C0DBAYY00715 IC8200 C3ABTY000026 IC8201 C3ABTY000026 IC8531 C0DBZYY00368 IC8532 C0DBZYY00368 IC8601 C1CB00003491 1 PAVCA IC8701 C0DBAYY00931 1 PAVCA...
  • Page 87 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks JK4600 K1FY119D0017 CONNECTOR 1 PAVCA JK4601 K1FY119D0017 CONNECTOR 1 PAVCA JK8531 K1FY208B0008 CONNECTOR JK8650 K1NA12E00016 12P CONNECTOR JK8702 K2LC108A0011 JACK 1 PAVCA JS002 D0GBR00J0004...
  • Page 88 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks PC16191 B3PBE0000060 1 PAVCA PC16192 B3PBA0000580 1 PAVCA PC16461 B3PBE0000058 1 PAVCA PC16462 B3PBE0000060 1 PAVCA PC16463 B3PBE0000060 1 PAVCA PC16480 B3PBA0000580 1 PAVCA...
  • Page 89 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R1010 D0GA101JA015 M 100 OHM, J,1/16W R1011 D0GA101JA015 M 100 OHM, J,1/16W R1013 D0GA101JA015 M 100 OHM, J,1/16W R1014 D0GA101JA015 M 100 OHM, J,1/16W...
  • Page 90 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R4517 D0GA102JA023 M1KOHM, J.1/16 W R4524 D0GA103JA015 M 10KOHM,J,1/16W R4555 D0GA473JA015 M 47KOHM, J,1/16W R4556 D0GA473JA015 M 47KOHM, J,1/16W R4560 D0GA273JA023 M 27K OHM J ,1/16W...
  • Page 91 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R5604 D0GA105JA023 M 1M OHM, J,1/16W R5605 D0GA101JA015 M 100 OHM, J,1/16W R5606 D0GA471JA023 M 470OHM, J,1/16W R5648 D0GA103JA015 M 10KOHM,J,1/16W R5650 D0GA473JA015 M 47KOHM, J,1/16W...
  • Page 92 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8583 D0GA473JA015 M 47KOHM, J,1/16W R8606 D0GA472JA023 M 4.7KOHM, J,1/16W R8607 D0GA472JA023 M 4.7KOHM, J,1/16W R8608 D0GA272JA023 M 2.7KOHM, J.1/16W R8609 D1BA6491A014 M6.49KOHM,J.1/16 W...
  • Page 93 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R8930 D0GA220JA023 M22 OHM, J.1/16 W R8931 D0GA220JA023 M22 OHM, J.1/16 W R8932 D0GA220JA023 M22 OHM, J.1/16 W R8933 D0GA220JA023 M22 OHM, J.1/16 W...
  • Page 94 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R14911 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCA R14943 D0GD470JA052 M 47 OHM,J,1/8W 1 PAVCA R14944 D0GD100JA052 M 10 OHM,J,1/4W R14949 D0GD203JA052 M 20KOHM,J,1/4W...
  • Page 95 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16412 D1BD2700A044 M 270 OHM,J.1/8 W R16413 D0GB331JA065 M330 OHM J 1/10W 1 PAVCA R16414 D0GB103JA065 M 10K OHM J 1/10W 1 PAVCA R16416 D0GB103JA065...
  • Page 96 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16590 D0GB221JA065 M 220 OHM J 1/10W R16591 EXB38V472JV M 4.7 kOHM 1/16 W R16593 D1BB1581A055 M 1.58KOHM 1/10W R16601 D0GF1R0JA047 M 1 OHM,J,1/3W...
  • Page 97 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R16873 ERA6YEB242 M 2.4KOHM, B 1/10W R16891 D1BF5762A058 M 57.6KOHM, 1/4W 1 PAVCA R16892 D1BF5902A058 M 59KOHM, 1/4W 1 PAVCA R16893 D1BF5902A058 M 59KOHM, 1/4W...
  • Page 98 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks R17299 D0GF151JA047 M 150 OHM,J, 1/3W RM2810 B3RAD0000168 REMOTE SENSOR K1KY02B00012 2P CONNECTOR K1KY03BA0236 3P CONNECTOR SN20 K1MY30BA0345 30P CONNECTOR SN21 K1MND6BA0264 6P CONNECTOR...
  • Page 99 Model No. : TC-P50X3 Exploded View 1 S-59...
  • Page 100 Model No. : TC-P50X3 Exploded View 2 S-60...
  • Page 101 Model No. : TC-P50X3 Accessories S-61...
  • Page 102 Model No. : TC-P50X3 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks 10030-0061100 BATTERY COVER 1 PAVCA K2AHYH000040 AC INLET WITH CABLE 1 PAVCA K2CG3YY00060 AC CORD(USA) 1 PAVCA MD50H14C1A PLASMA DISPLAY PANEL 1 PAVCA N2QAYB000570...
