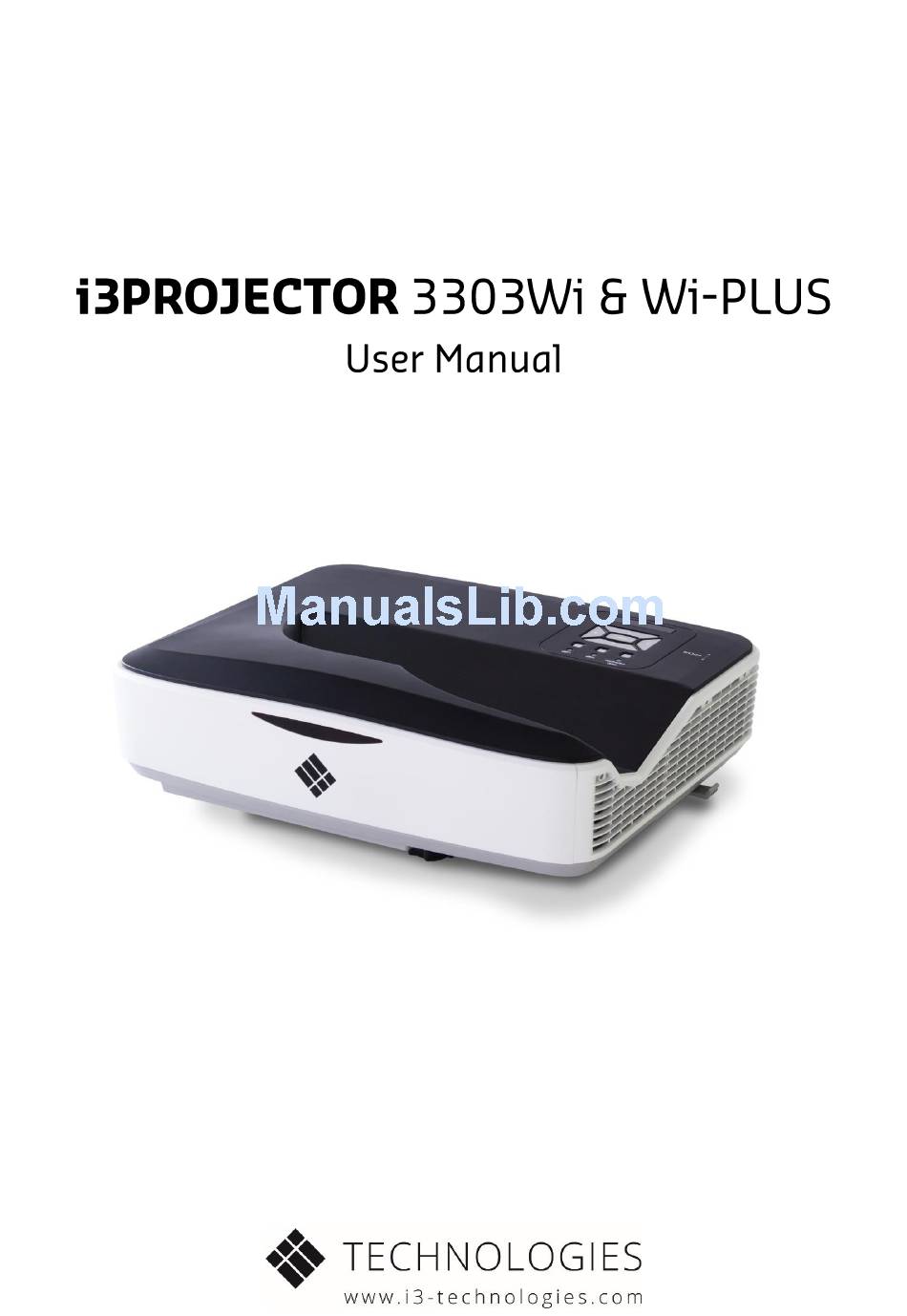

i3 3303WI User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for i3 3303WI

Summary of Contents for i3 3303WI

  • Page 2: Table Of Contents

    Step 6: Laser Beam Alignment .................... 12 Step 7: Touch Area Setting ....................15 Step 8: Calibration ........................ 17 Step 9: Touch Sensitivity ...................... 18 Step 10: Trouble-shooting Viewer ..................19 Trouble-shooting ........................20 2 | Learn more about i3 products at www.i3-learning.com...

  • Page 3: Usage Notice

    Usage Notice Please follow all warnings, precautions and maintenance as recommended in this user's manual.  Warning - Do not disassemble Light Curtain Touch module.  Warning - Do not use, store, or leave Light Curtain Touch module near fire, or in places with a high temperature, e.g., in direct sunlight, or in sun-heated cars.

  • Page 4: Step 1: Environment Check

    Touch module can then be installed in one of the following ways 1. Mount the projector to the wall and the Light Curtain Touch module to the whiteboard. 2. Mount the projector and Light Curtain Touch module to the wall. 4 | Learn more about i3 products at www.i3-learning.com...
  • Page 5 B. Whiteboard guideline When installing the Light Curtain Touch module on a whiteboard please follow the guidelines below: B-1. For standard aspect ratio (4:3, 16:10 and 16:9) gap: 2~10cm For standard aspect ratio (4:3, 16:10 and 16:9) From the top of image area, a gap must be kept 2~10cm ...
  • Page 6 Equipment: leveling instrument (1.2~1.5m) and thickness gauge.  Split projection area into 16 segments equally as below chart. Place leveling instrument on whiteboard. Point1 Point2 Point3 Point4 Point5 Point6 Point7 Point8 Point9 6 | Learn more about i3 products at www.i3-learning.com...

  • Page 7: Step 2: Installing The Light Curtain Touch Module

    Step 2: Installing the Light Curtain Touch module 1. Open top cover by screwdriver. 2. Mount base plate to whiteboard or wall Keep away distance to image area for ultra-wide aspect ratio (16:6):  7.5 ~ 13.5cm from bottom of base plate 4 ~ 10cm from bottom of Light Curtain Touch module Keep away distance to image area for standard aspect ratio (4:3, 16:10 and 16:9): ...
  • Page 8 <5.5mm, thickness <2.5mm 3. Fix curtain module with wall plate by screws 4. Plug power cord to Light Curtain Touch module Note: L side connector must plug into Light Curtain Touch module. 8 | Learn more about i3 products at www.i3-learning.com...

  • Page 9: Step 3: Install Utility Software

    Microsoft Windows XP (SP3)/Windows 7 (32bit/64bit)/Windows 8/ Windows 8.1 (. NET Framework 4.0 must be installed) Mac OS X(10.7~10.10) Intel® Core™ i3 or above Memory 2GB or more B. Install software utility from CDROM. Utility icon indicator as below: Finger/Stylus...

  • Page 10: Step 4: Initial Setup

    Step 4: Initial Setup For first time setup, follow Installation Guide to complete installation procedure ( 10 | Learn more about i3 products at www.i3-learning.com...

  • Page 11: Step 5: Operation Mode

    Step 5: Operation Mode Windows 7 and Windows 8 operating system support multi-point touch control. Users can select default Touch Mode( ) for multi-point touch. Switch to Pen Mode( while using light pen(IR pen). For Windows XP and Mac OS X, only single-point touch is available. Wi PLUS USER MANUAL | 11...

  • Page 12: Step 6: Laser Beam Alignment

    Visible light ON (IR Laser OFF, touch Solid Blinking mode disabled) Error Solid Error of LD module occurred. 2. Connect PC and Projector via USB cable 3. Rotate the black and grey knobs clockwisely until they stop 12 | Learn more about i3 products at www.i3-learning.com...
  • Page 13 4. Rotate the grey knob counter-clockwisely, until both beams are symmetrically at the same level. 5. Rotate black knob counter-clockwise, move beams downwards until they hit whiteboard frame. 6. Check the beam height with alignment sticker. The beams should be located within grey zone.
  • Page 14 IR Laser mode Solid IR laser ON Visible light Visible light ON (IR Laser OFF, touch Solid Blinking mode disabled) Error Always ON Error of LD module occurred. 8. Put top cover back 14 | Learn more about i3 products at www.i3-learning.com...

  • Page 15: Step 7: Touch Area Setting

    Step 7: Touch Area Setting A. Select Auto Touch Area Setting: Note: Quit all software application  Reduce ambient light  Do not obstruct or shake lens during Touch Area Setting  Check if projection image is clear. If not, adjust focus to sharpen the image ...
  • Page 16 Step 3: Finally, check again if the green frame completely overlaps the projected white frame. If not, fine-adjust again. B-3. When the Touch Area is correctly located click to exit. 16 | Learn more about i3 products at www.i3-learning.com...

  • Page 17: Step 8: Calibration

    Step 8: Calibration A. Select Auto Calibration If the fail message pops up, follow below steps to trouble-shoot and do Auto Calibration again.  Close all software application  Reduce ambient light  Do not obstruct or shake lens during calibration ...

  • Page 18: Step 9: Touch Sensitivity

    When touch function is unresponsive or writing is intermittent. You can adjust the sensitivity by adjusting Touch Sensitivity level: Default: 4 Max.: 10 (most sensitive) Min.: 0 (least sensitive) Note: Touch Sensitivity is not adjustable under Pen Mode. 18 | Learn more about i3 products at www.i3-learning.com...

  • Page 19: Step 10: Trouble-Shooting Viewer

    Step 10: Trouble-shooting Viewer Sometimes infrared red light (IR light) from ambient light sources may interfere with touch performance. The troubleshooting viewer shows real time images for debugging purposes. Any light interference is marked in green. If green obstacles appear within image area, remove to secure proper interactivity.

  • Page 20: Trouble-Shooting

    6. Use the USB cable included with your projector and check again. If an USB extension is needed, please contact your distributor. 7. The USB port of your computer maybe not working. Please contact your IT staff. 20 | Learn more about i3 products at www.i3-learning.com...
  • Page 21 Q3 Why utility icon ( ) is red, not green ( Red icon ( ) indicates a failed connection. This may be caused by following: 1. Check if interactive function is enabled via OSD selection Unplug/re-plug in the USB cable and check again. 3.
  • Page 22 If an overlarge offset is observed, please perform Manual Calibration and see Step 8 Calibration for troubleshooting. Q6 What to do when Auto Calibration and Auto Touch Area Setting both failed? 1. Check “Ceiling Mount” OSD setting first. The interactive function supports 22 | Learn more about i3 products at www.i3-learning.com...
  • Page 23 Ceiling Mode only When projector OSD message is shown, this may result failure to Auto Calibration and Auto Touch Area Setting. Please wait until OSD message is gone before performing Auto Calibration and Auto Touch Area Setting. Please follow below trouble-shooting steps to perform Auto Calibration and Auto Touch Area Setting again.
  • Page 24 Q10 What to do when Touch function is not accurate? Touch accuracy may be impacted when Windows default display setting under Windows has been changed. 1. Go to the setting page <Start menu/Control Panel/Appearance and Personalization> 24 | Learn more about i3 products at www.i3-learning.com...
  • Page 25 Select “Smaller - 100%(Default) ” and click “Apply”. Wi PLUS USER MANUAL | 25...
  • Page 26 OS Required: points supported and Mouse mode supported System Requirements (Windows: .NET Framework 4.0 installation is required) Processor Type Intel Core i3 or above Max OS X(10.7~10.10)  2GB or More 26 | Learn more about i3 products at www.i3-learning.com...
  • Page 27 Appendix B: Accessory Item Description Quantity Image Light Curtain Touch Module Screw M2.6x6 (to fix LCT module) Screw M3x6 (to fix base plate) Interactive cable Alignment sticker LCT module base plate Double-sided tape(for base plate) 5m USB A to mini USB B cable Passive Pen CD for User Manual and Utility Software Wi PLUS USER MANUAL | 27...
  • Page 28 28 | Learn more about i3 products at www.i3-learning.com...

This manual is also suitable for:

3303wi-plus
