NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

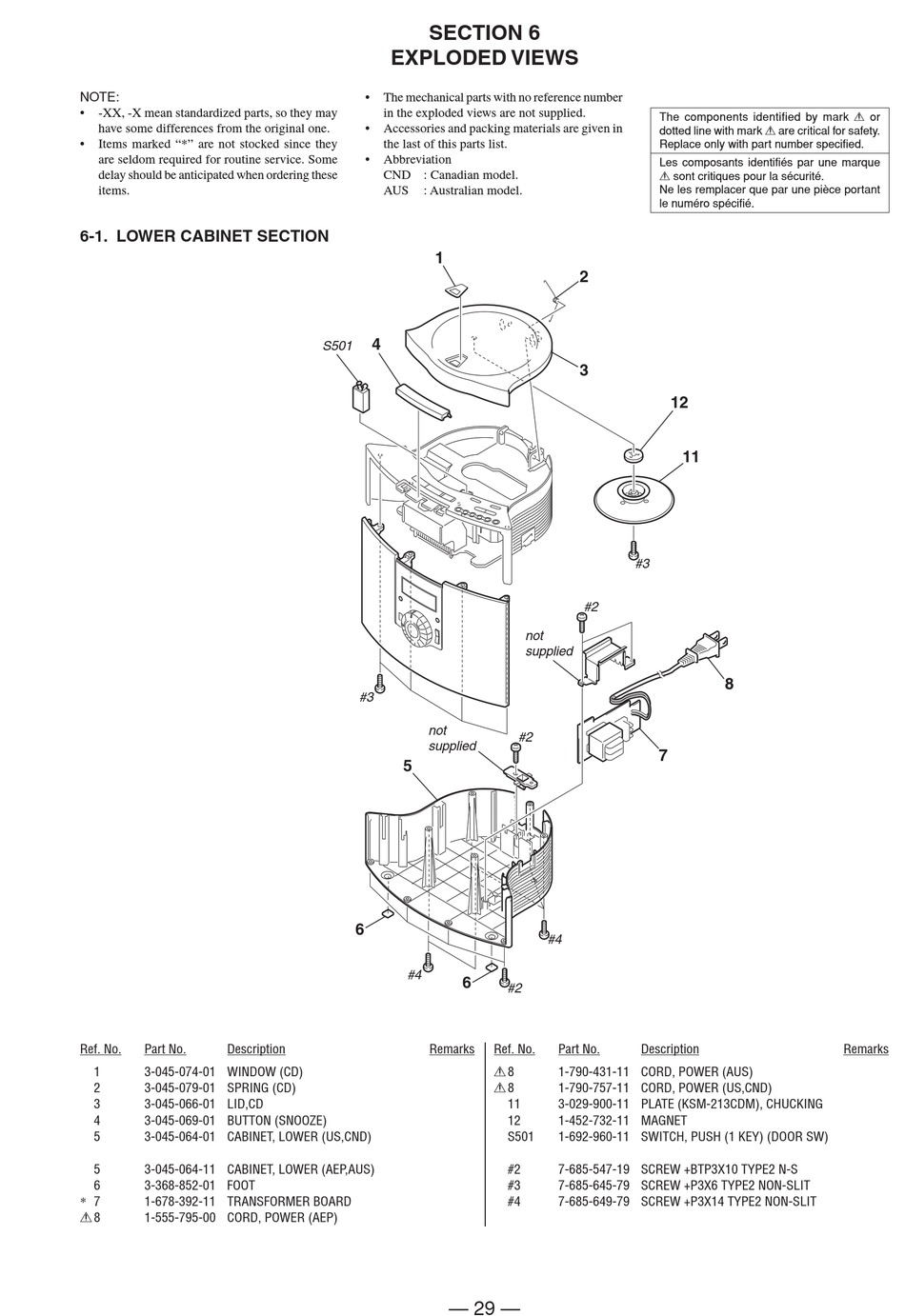

6-1. LOWER CABINET SECTION

Ref. No. Part No. Description
1 3-045-074-01 WINDOW (CD)
2 3-045-079-01 SPRING (CD)
3 3-045-066-01 LID,CD
4 3-045-069-01 BUTTON (SNOOZE)
5 3-045-064-01 CABINET, LOWER (US,CND)
5 3-045-064-11 CABINET, LOWER (AEP,AUS)
6 3-368-852-01 FOOT
* 7 1-678-392-11 TRANSFORMER BOARD
0 8
1-555-795-00 CORD, POWER (AEP)
SECTION 6

EXPLODED VIEWS

• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of this parts list.
• Abbreviation
CND : Canadian model.
AUS : Australian model.
1
4
S501
#3
not
supplied
5
6
#4
6
Remarks Ref. No.
0 8
0 8
— 29 —
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
2
3
12
#3
#2
not
supplied
#2
7
#4
#2
Part No. Description
1-790-431-11 CORD, POWER (AUS)
1-790-757-11 CORD, POWER (US,CND)
11 3-029-900-11 PLATE (KSM-213CDM), CHUCKING
12 1-452-732-11 MAGNET
S501 1-692-960-11 SWITCH, PUSH (1 KEY) (DOOR SW)
#2 7-685-547-19 SCREW +BTP3X10 TYPE2 N-S
#3 7-685-645-79 SCREW +P3X6 TYPE2 NON-SLIT
#4 7-685-649-79 SCREW +P3X14 TYPE2 NON-SLIT
11
8
Remarks
