Pioneer S-FCRW240B-S Service Manual page 11

5

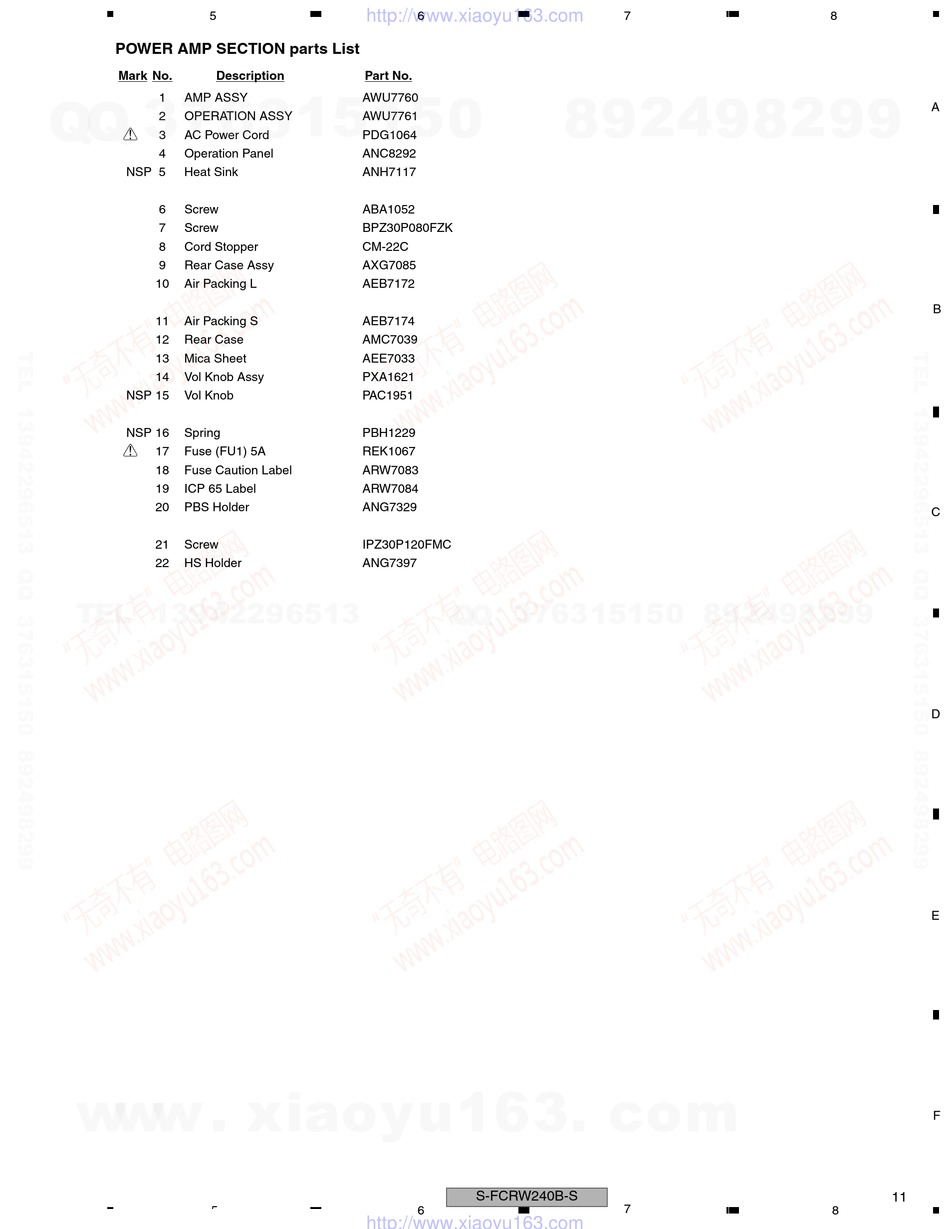

POWER AMP SECTION parts List
QQ
3 7 63 1515 0
Mark No. Description
1 AMP ASSY
2 OPERATION ASSY
>
3 AC Power Cord
4 Operation Panel
NSP 5 Heat Sink
6 Screw
7 Screw
8 Cord Stopper
9 Rear Case Assy
10 Air Packing L
11 Air Packing S
12 Rear Case
13 Mica Sheet
14 Vol Knob Assy
NSP 15 Vol Knob
NSP 16 Spring
>
17 Fuse (FU1) 5A
18 Fuse Caution Label
19 ICP 65 Label
20 PBS Holder
21 Screw
22 HS Holder
TE
L 13942296513
www
.
5
http://www.xiaoyu163.com
6
Part No.
AWU7760
AWU7761
PDG1064
ANC8292
ANH7117
ABA1052
BPZ30P080FZK
CM-22C
AXG7085
AEB7172
AEB7174
AMC7039
AEE7033
PXA1621
PAC1951
PBH1229
REK1067
ARW7083
ARW7084
ANG7329
IPZ30P120FMC
ANG7397
