Summary of Contents for XINDAK XA6950

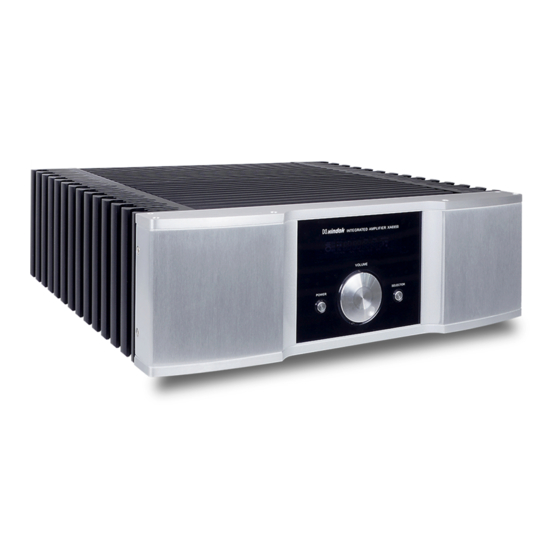

- Page 1 ® INSTRUCTIONS XA6950 09 Edition Hybrid Integrated Amplifier...
- Page 2 Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste There is a separate collection system for these products. A Information on Disposal for Users private household 1.
-
Page 3: Important Safety Instruction
Chapter 1 Important Safety Instruction CAUTION The exclamation point within an equilateral triangle is intended to alert the user to presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to presence of uninsulated “Dangerous voltage”... -
Page 4: Front Panel

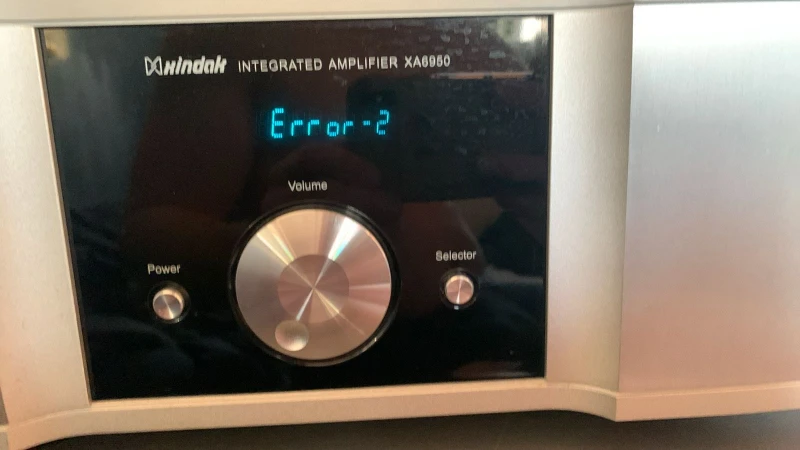

Chapter 2 Introduction 2.1 Sketch Map on Front & Rear Panel Front Panel Power Switch Volume Control Information & infrared Window Input Selection Button REAR PANEL Right Speaker Output USB Input Socket Balance Input Power Input Socket and Fuse box Coaxial Audio input Left Speaker Output irect... -
Page 5: Remote Controller
Chapter 2 Introduction 2.2 Remote Controller Mute Mute button irect input selection button S1 Input selection button No function S2 Input selection button Balance Input selection button USB Input selection button Adjust the output volume level Vol+/- Install Batteries 1. Use the tool remove the rear cover of the remote control unit. 2. - Page 6 Chapter 2 Introduction Functions And Operating Instructions Machine can be used after finishing connecting to the machine and installing the remote control. Please refer to the following if there is any question when using: Power Switch Press the power switch to put through the power supply. The display screen displays the rest time for the system warm- up.After warm-up, the system resume to previous work status.
-
Page 7: Troubleshootings
Speaker wire to channels has exchanged or positive negative reversed Notice: if you have confronted any problems when using this product or have any suggestion to tell us ,please visit the wesite of xindak: http://www.xindak.com , you may access our instant technique support here... -
Page 8: Specifications
Specifications Chapter 4 < Power output 130W/ch (8ohm Load) < Frequency response 10Hz - 100KHz < Signal-to-noise ratio 95dB Typical < Distortion (THD + noise) 0.06% < Dimensions (W*D*H) 430mm*460mm*168mm < Input sensitivity 270mV < Net weight 26.7Kg < Supply voltage Specified on rear panel decal (cannot be changed by user or dealer) * All specifications, dimensions and weights are subject to change without notice. - Page 9 No.126, Section 2, East 1 Round Chengdu, Sichuan, China P.C. 610051 You can find your nearest authorized distributor and more product information on our website: www.xindak.com Print in China...
