SPLIT TYPE
ROOM AIR CONDITIONER

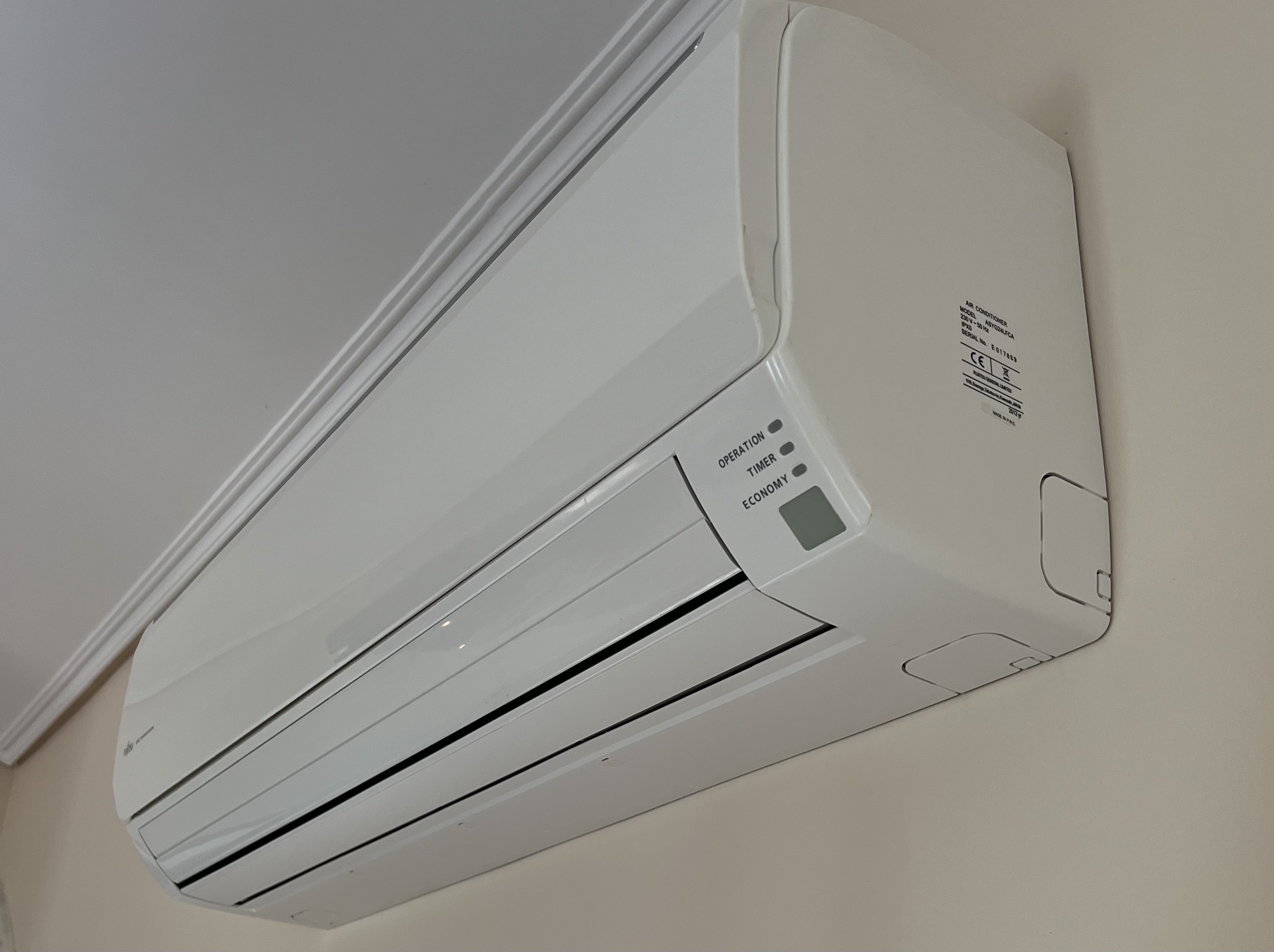

WALL MOUNTED TYPE

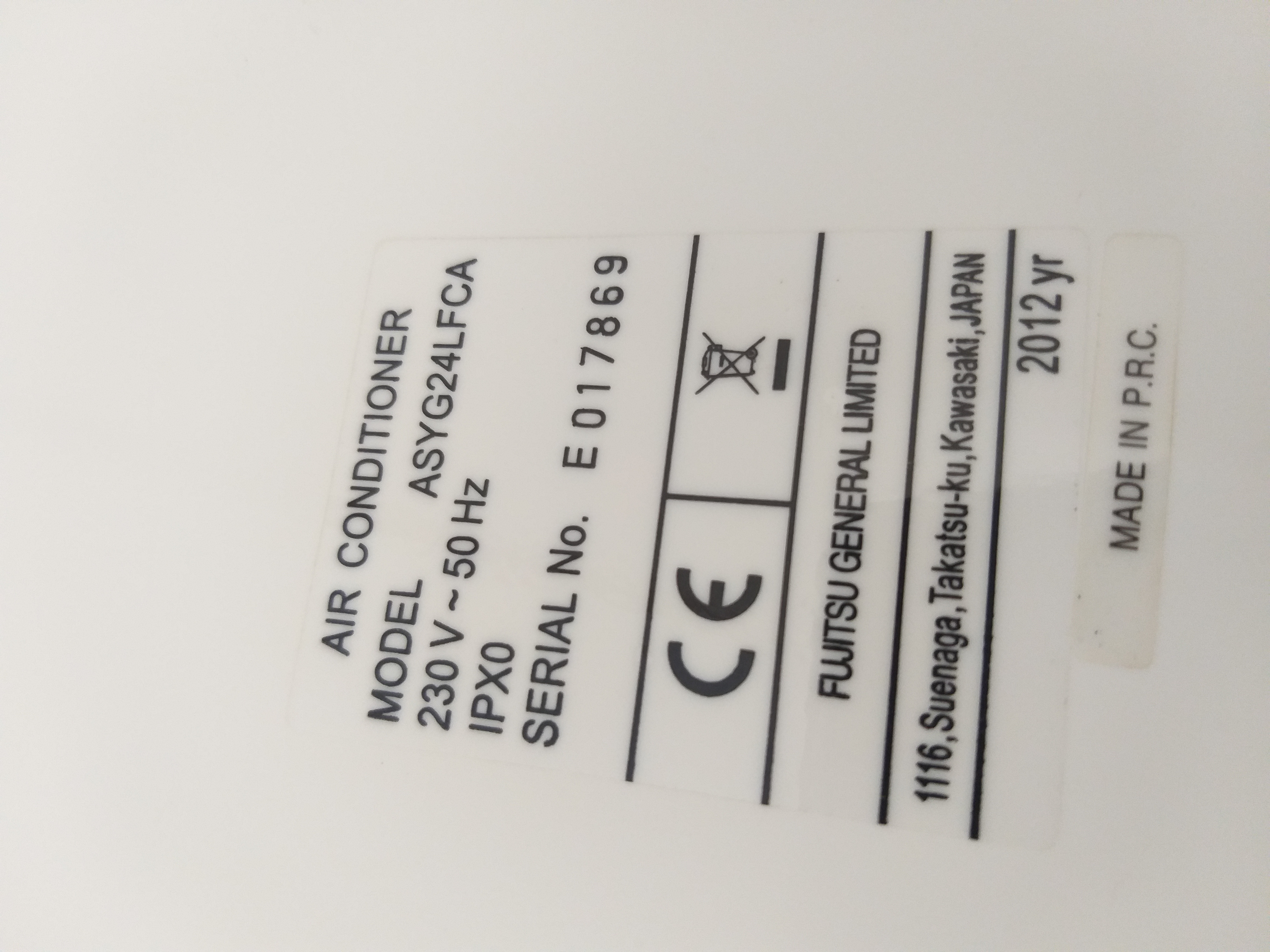

Indoor unit
ASYG24LFCA AOYG24LFL
CO NT E N T S
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
REFRIGERANT SYSTEM DIAGRAM. . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
INDOOR PCB CIRCUIT DIAGRAM . . . . .
ERROR DETECTION . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
1
2
3
4
5
8
13
14
18
21
Advertisement
Table of Contents
Related Manuals for Fujitsu ASYG24LFCA
Summary of Contents for Fujitsu ASYG24LFCA
-
Page 1: Table Of Contents
WALL MOUNTED TYPE Indoor unit Outdoor unit ASYG24LFCA AOYG24LFL CO NT E N T S SPECIFICATIONS....DIMENSIONS ..... . -
Page 2: Specifications
SP E C IF ICAT ION S NOISE LEVEL ELECTRICAL DATA Cool & heat inverter High 47 dB TYPE ASYG24LFCA Medium INDOOR UNIT 42 dB INDOOR UNIT (Cool) OUTDOOR UNIT AOYG24LFL 37 dB Quiet 32 dB COOLING CAPACITY 7.10 kW 8.00 kW... -
Page 3: Dimensions
DIMENS ION S Unit : mm INDOOR UNIT Drain hose length : 670 mm OUTDOOR UNIT 2011.01.20... -
Page 4: Refrigerant System Diagram
REFRIGERANT SYSTEM D IA GR AM Heat exchanger ( INDOOR ) 3-Way valve 2-Way valve Muffler Pressure switch 4-Way valve Strainer Expansion valve Heat exchanger Strainer ( OUTDOOR ) Cooling flow Heating flow Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 5/8"... - Page 8 INDOOR UNIT INDICATOR PCB ASSEMBLY K05CY-0902HSE-D0 CN201 07 JB20 / PAP D201 1061 L=230 SLR-325MC GREEN D202 SLR-325DC ORANGE C201 <F> D203 SLR-325MC GREEN I C201 R201 GP1UM261R <1/4W> + C202 2010.12.24...
- Page 13 OUTDOOR UNIT CAPACITOR PCB ASSY K05DG-0700HUD-P0 YELLOW WHITE C201 C202 660/ 660/ 450V 450V BLUE VIOLET POWER_G 2011.02.01...
-
Page 14: Error Detection
Wired remote control : 0.1s on / 0.1s off communication error Check run unfinished ( ) : Number of flashing Unit number or Refrigerant circuit address setting error [Simultaneous Multi] Indoor unit capacity error Combination error R R OR DET ECT I ON •... -
Page 15: Parts (Indoor Unit)
PARTS INDOOR UNIT Description Parts number Front Panel Total Assy 9318738001 Front Panel 9314991080 Intake Grille Assy 9385985049 Air Filter 9315014016 Receiver Window 9315010018 Clamper Grille 9306755010 Wire Clamper 9315015013 Cap (Screw) 9309002050 Bracket Panel 9315023018 Remote Control 9379219037 Remote Control Holder 9305642045 Air Clean Filter Assy 9315212016... - Page 16 INDOOR UNIT Description Parts number Evaporator Total Assy 9315338112 22 Connection Pipe Assy 9315355058 Water Seal 9315251015 Evaporator Holder R 9314994012 Evaporator Holder L 9314995019 Rear Bracket 9315022011 Filter Guide 9315013019 Filter Guard 9315411013 29 Bearing C Assy 9306628017 30 Crossflow Fan Assy 9315024015 31 Holder (Room Thermistor) 9315252012...
- Page 17 INDOOR UNIT Description Parts number Description Parts number 41 Casing Assy 9315331045 Louver U 9315000019 Casing 9314993015 Louver Z 9315001016 Diffuser U 9315002013 Casing Cover B 9315016010 Casing Cover L 9315017017 Diffuser Z 9315003010 Casing Cover R 9315018014 Spring C 9314142017 Casing Cover F 9315019011...
- Page 18 INDOOR UNIT Description Parts number Control Box Cover 9314997013 Control Box 9314996016 63 Controller PCB 9708540221 Terminal 9900447014 Terminal Earth 9315028020 Motor Case 9314998010 Fan Motor Assy 9602784004 Motor Step (Red) 9900384029 Motor Step (Green) 9900384036 Motor Step (Blue) 9900139063 Indicator PCB Assy 9707210057 2013.01.10...
-
Page 19: Parts (Outdoor Unit)
PARTS OUTDOOR UNIT Description Parts Number Protective Net 9315033017 Top Panel Assy 9309230064 Cabinet Assy 9312799398 Cabinet Sub Assy 9314809019 Blow Grill 9308884015 Fan Ring 9308885012 Grip 9308880017 Emblem Rear 9319151007 Switch Cover Assy 9309237032 Cabinet Right Assy 9309236028 Valve Bracket 9308870070 Base Assy 9315296054... - Page 20 OUTDOOR UNIT Description Parts number 3-way Valve Assy 9315414014 2-way Valve Assy 9313062019 Condenser Sub Assy 9312069163 Compressor Assy 9315297068 Pulse Motor Valve Assy 9314494048 Expansion Valve Coil 9970095030 4-way Valve Assy 9315311061 Solenoid 9970055065 Pressure Switch 9900186012 2011.02.18...
- Page 21 OUTDOOR UNIT Description Parts number Controller PCB Assy 9707667608 Power Supply PCB Assy 9707128222 Capacitor PCB Assy 9707129113 TR PCB Assy 9708647098 ACTPM 9707592016 Chock Coil 9900223014 Terminal 9703874031 Thermistor Assy 9900594008 Outdoor Thermistor 9900544027 Compressor Thermistor 9900516024 Wire (Pressure Switch) 9708584010 2011.02.18...
-
Page 22: Accessories
A C CESSO RI ES Name and Shape Part number Wall hook bracket 9315023018 Remote control 9379219037 Remote control holder 9305642045 Battery (penlight) 0600185541 Cloth tape 9310519004 Tapping screw (big) 0700076046 Tapping screw (small) 0700019036 Air cleaning filter UTR-FA13-1 UTR-FA13-2 Drain assy 9303029015 2011.02.18... - Page 23 1101G3869...
