Summary of Contents for Nel-Tech Labs messager usb

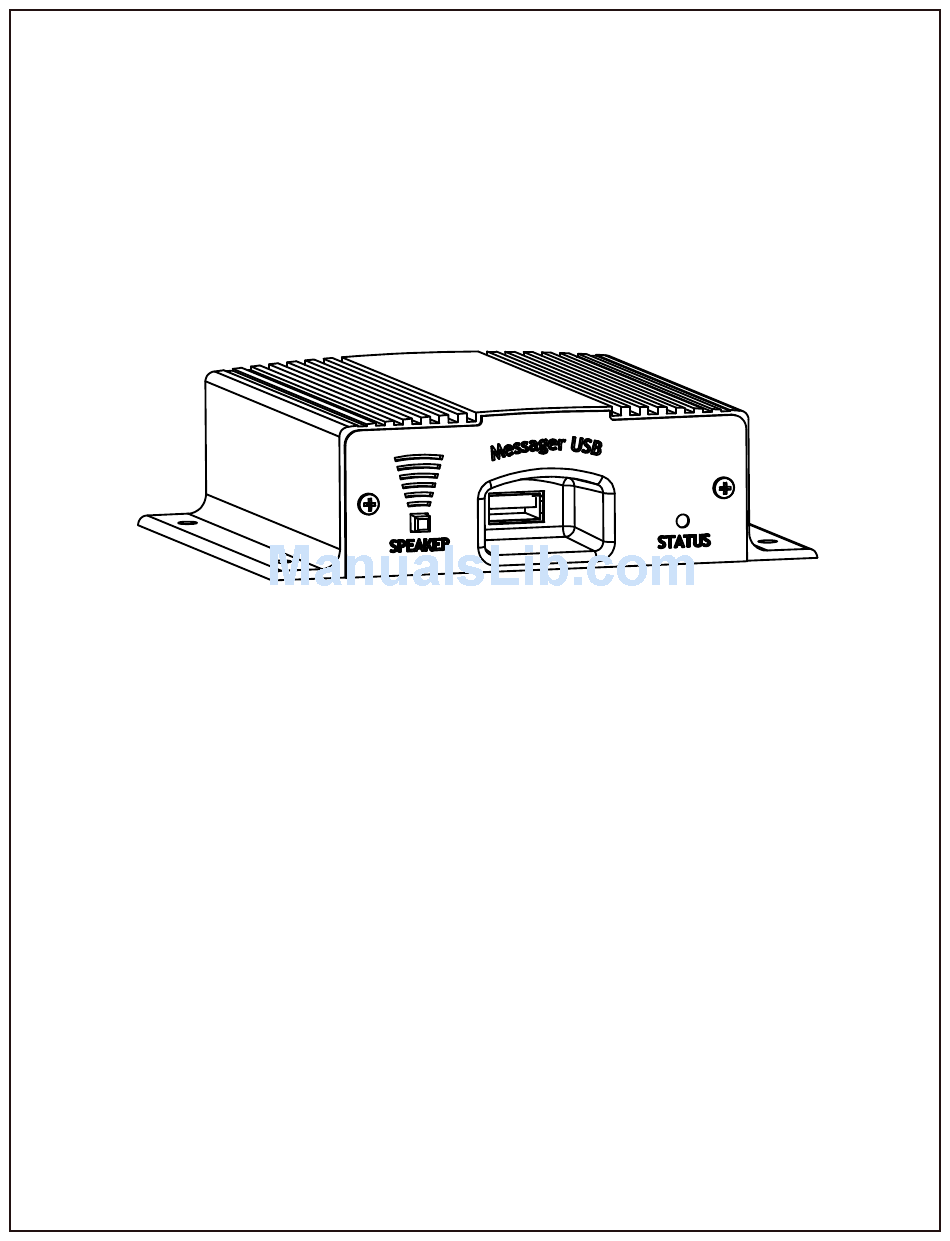

- Page 1 Messager USB Nel-Tech Labs, Inc. Installation & User Manual...
-
Page 3: Table Of Contents
Messages are stored on industry standard USB flash drives of 16MB and larger. Unpacking and Inspection Before you begin installation, unpack and verify you have all the correct parts. (1) Messager USB (or USB Plus) (1) USB flash drive (1) 12VDC @ 500mA power supply... -
Page 4: Messager Usb Layout Summary
Messager USB Layout Summary Front of Unit SPEAKER STATUS SPEAKER - The SPEAKER switch can be turned ON and OFF to monitor audio playback. The switch has no effect on the audio output connections on the rear of the unit. Switch should normally be kept OFF. -
Page 5: Installation
Installation: The Messager USB should be installed using the following steps outlined below: Step 1: Wall or shelf mount the unit. Screws and rubber feet are supplied in the accessory kit. Step 2: If connecting to an amplifier make sure it is turned OFF for this part of the installation. -
Page 6: Message Programming & Operation
Message Programming & Operation: All messages that are available for the Messager USB play are stored on an industry standard USB flash drive. Messages should be formatted as a mono MP3 file not to exceed 128Kbps @ 48KHz. Follow these steps to add or remove files from a USB flash drive. -
Page 7: Warranty & Fcc
In the event that the product serial number is missing or has been tampered with in any way, the foregoing warranty is void and without effect and Nel-Tech Labs shall have no liability whatsoever on account of defects to such product. - Page 8 Nel-Tech Labs, Inc. 4 Ash Street Extension Derry, NH 03038 1.800.344.4685 www.nel-techlabs.com Rev. 12/10 Copyright © 1984 - 2010 by Nel-Tech Labs, Inc.
