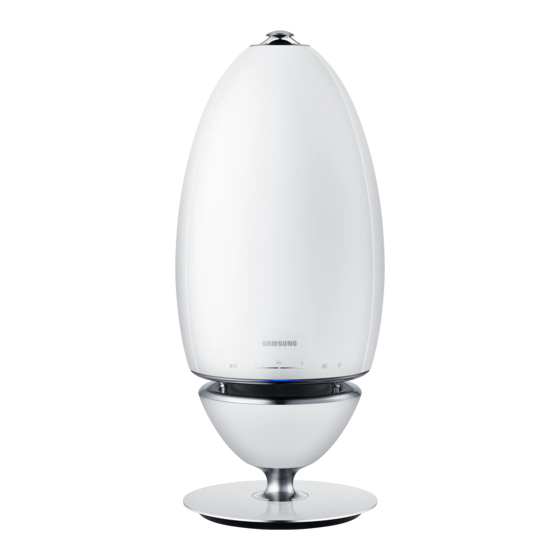

Samsung WAM7500 User Manual

Wireless audio - 360 r7/r6 portable
Hide thumbs Also See for WAM7500:
Table of Contents

Advertisement

Quick Links

Download this manual
WAM7500/WAM7501/WAM6500/WAM6501
Wireless Audio - 360
R7/R6 Portable
User Manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register

Advertisement

Table of Contents
loading

Related Manuals for Samsung WAM7500

Summary of Contents for Samsung WAM7500

  • Page 1 WAM7500/WAM7501/WAM6500/WAM6501 Wireless Audio - 360 R7/R6 Portable User Manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...

  • Page 2: Table Of Contents

    WI-FI NETWORK Playing Music ......24 Preparing connection..... 8 Playing a music file stored in the smart device ........24 Installing the Samsung Multiroom App ..8 Listen to the music through the Accessing the Samsung Multiroom phone speaker ........25 App .............8 Listening to streaming music .....26...
  • Page 3 Usage Precautions ......63 Cleaning Precautions ......64 Playing Media Content Saved in a PC ..........52 Additional Information ....64 Samsung Link ........52 About the Network Connection ..64 Wireless Audio - Multiroom for Compatible devices ......65 Desktop ..........53 Copyright ........65...

  • Page 4: Getting Started

    Getting Started Accessories Confirm you have the supplied accessories shown below. WAM7500/WAM7501 Quick Setup Guide WAM6500/WAM6501 Power Adapter Quick Setup Guide...

  • Page 5: Front Panel

    Front Panel Be careful not to insert your hand or finger into the tweeter opening on top of the product. < WAM7500/WAM7501 > < WAM6500/WAM6501 > Source button Touch this button to switch to TV SoundConnect or Bluetooth. Touch and hold this button for more than 5 seconds to re-search TV SoundConnect.
  • Page 6 You can check product's battery status through the LED indicator under the battery icon. Battery LED indicator when power Battery LED indicator when power adapter is connected. adapter is not connected. Red LED : Charging. Green LED : 100% to 10% of charge remaining.

  • Page 7: Rear Panel - Wam6500/Wam6501

    Rear Panel - WAM6500/WAM6501 POWER POWER DC24V DC24V SERVICE SERVICE POWER POWER DC24V DC24V SERVICE SERVICE < WAM6500/WAM6501 > POWER To turn the product on or off, press and hold this button for more than 2 seconds. The connection for the product's power adapter. DC 24V Charging stops if the volume level reaches 25 or more.

  • Page 8: Connecting To The Wi-Fi Network

    Market search : Samsung Multiroom ANDROID APP ON ❚ Accessing the Samsung Multiroom App Samsung Multiroom NOTE Please terminate the Samsung Multiroom App when speaker are not used because the battery of your smart device can be consumed quickly if the app is working.

  • Page 9: Connecting To Wi-Fi

    Connecting to Wi-Fi automatically (Android/iOS) Wireless Router Plug the product into an electrical outlet. On your Smart device, select the Samsung Multiroom app. Run the Tutorial if you want, and then press Done. Press Connect Now. It searches for the device available for pairing.
  • Page 10 Once an available device is found, it attempts to connect to the wireless network. In case of secure network, the password prompt appears on the smart device screen. Use the on-screen keyboard to enter the password. Depending on the network environments, the product(s) may not be automatically connected.

  • Page 11: Connecting To Wi-Fi Manually (Android)

    ❚ Connecting to Wi-Fi manually (Android) Depending on the network environments, the product(s) may not be automatically connected. In that case, you can set up the product manually to connect to the network. If the automatic setup fails, select the Manual. Press and hold both Play/Pause Standby...
  • Page 12 On your smart device, press Next. It searches for the device available for pairing. Once an available device is found, the product tries to connect to the newly found smart device first, then it attempts to connect to the wireless network. In case of secure network, the password prompt appears on the smart device screen.

  • Page 13: Connecting To Wi-Fi Manually (Ios)

    ❚ Connecting to Wi-Fi manually (iOS) If the automatic setup fails, select the Manual. Press and hold both Play/Pause Standby buttons simultaneously for more than 5 seconds to configure the Wi-Fi Setup. The R7/R6 can wait for 2 minutes in its standby mode until the Wi-Fi connection is established.
  • Page 14 On your smart device, press Next. It searches for the device available for pairing. Go to Settings Wi-Fi in iOS, and then select the Samsung Wireless Audio. To connect your smart device to the R7/R6, use the keyboard that appears to enter your password.
  • Page 15 Go back to the Samsung Multiroom app. Select Next. From the wireless network list, select the desired one for R7/R6 connection. In case of secure network, the password prompt appears on the smart device screen. Use the on-screen keyboard to enter the password.

  • Page 16: Connecting With A Hub (Not Included)

    Connecting with a HUB (Not Included) If the product fails to connect to your network or its network connection operates abnormally, place the product closer to the HUB or your router and try again. The product is a wireless network device. Its communications with your network may be disrupted because of the distance between it and other devices on the network, obstructions, or interference from other wireless devices.
  • Page 17 Wait until the LED indicator on the Product stops flashing. If the Product's LED indicator turns solid blue, pairing is complete. The Product may also beep. NOTES Place each Product at least 20 inches (50 cm) from the HUB when connecting them to the HUB. Your smart device cannot connect to the Product or the HUB if there is no wireless router.
  • Page 18 Download the Samsung Multiroom app from Google Play or the App Store. On your smart device, select the Samsung Multiroom app. Setup starts. If the automatic setup fails, run the App again.

  • Page 19: Adding A Hub

    If your smart device is not connected to the wireless router with a Wi-Fi connection, the product will not appear on the Samsung Multiroom app. Place the HUB that is in Repeater mode in an appropriate location between the product and the HUB that is connected to the wireless router.

  • Page 20: Adding Additional Speaker(S)

    If connecting the power cable of the speaker to a wall outlet, the Wi-Fi is automatically switched into standby mode. The speaker can wait for 2 minutes in its standby mode until the Wi-Fi connection is established. Run the Samsung Multiroom app on your smart device. Press to view the list of all speakers. Press Press Add Speaker.
  • Page 21 The additional new speaker is completely added.

  • Page 22: Connect With Bluetooth Function

    Source button on its top panel. Turn on the Bluetooth function of your smart device, and then select Search. Select the [Samsung] R7 or [Samsung] R6 Portable. The Bluetooth connection between the smart device and the product is made. NOTES...

  • Page 23: Using The Samsung Multiroom App

    Using the Samsung Multiroom App App at a glance Check the full list of connected products to either change or setup. Change sound source. Either check the queue or edit the playlist. Rotate while dragging the wheel to select a music from the queue. Release the wheel to play the music.

  • Page 24: Playing Music

    Playing Music ❚ Playing a music file stored in the smart device Press Source. Select the Songs on Phone (files stored in the smart device). Press , and then select your desired category. Songs : Lists all the music files by name. Albums : Lists all the music files by album.

  • Page 25: Listen To The Music Through The Phone Speaker

    ❚ Listen to the music through the phone speaker Press in the home screen, and the select Phone Speaker. Select Phone Speaker from the list of All Speakers. You can listen to the music stored in your mobile phone through the Phone Speaker. NOTES If Wi-Fi connection is not established, enjoy music through your Phone Speaker.

  • Page 26: Listening To Streaming Music

    ❚ Listening to streaming music You can select your desired contents service to listen to music. Press Source. Select More. The entire list of Music Services is displayed. From the Music Services, select your desired service. Drag to change the order of displayed music services. NOTES Depending on your region or manufacturer, supported content services may differ.

  • Page 27: Listening To The Internet Radio

    Listening to the internet radio Press Source. Select TuneIn. Select your desired category. Following : Shows the list of stations added to the preset list or marked as you are following. By default, 3 radio stations are displayed in the preset list. Browse : Lists all supported Internet radio stations.

  • Page 28: Following A Station

    ❚ Following a station You can add a channel to the Following list. Select the desired channel. Press to display a popup menu, and then select + Following. Press Save. The channel you are currently listening to is added to the Following list.

  • Page 29: Setting Presets

    ❚ Setting Presets You can add the internet radio channel you are following into the preset list, or rearrange the displaying order in the list. Press , and then press Following. Press Edit. Drag the desired channel from the Following to the Presets. To finish editing, press Done.

  • Page 30: Connecting Tv To The Speaker

    Connecting TV to the speaker ❚ Connecting to TV via Bluetooth (TV SoundConnect) TV SoundConnect function allows you to conveniently connect Samsung TV to external speaker(s) wirelessly and enjoy the TV sound. Turn on the speaker, and then press the Source button on its top panel.
  • Page 31 - The connection may be lost or sound may stutter if the distance between the TV and the product exceeds 32 feet(10 m). The SoundConnect feature is available on some Samsung TVs released since 2012. Check whether your TV supports the SoundShare or SoundConnect function.

  • Page 32: Connecting To Tv Via Wi-Fi

    ❚ Connecting to TV via Wi-Fi Set the TV and speaker to the same Wi-Fi network. Press Source at Home screen and select the TV to connect from Other Music Sources list. A message appears to ask if you want to perform network pairing process to TV. Select Yes to connect TV to the speaker.

  • Page 33: Using Playback Menu

    From the Nearby Devices, select the desired device. You can play music files stored in your selected device through the product. XX-XXX-XXX Music Services | Amazon Music Milk Music TuneIn More Nearby Devices Songs Phone XX-XXX-XXX Other Music Sources TV SoundConnect Using playback menu Press When a popup menu appears, select your desired function.

  • Page 34: Adjusting Equaliser And Drc

    ❚ Adjusting Equaliser and DRC You can select one of the presets provided by default in the Equaliser option or create your own settings by adjusting the frequencies manually. In addition, set DRC to On to change volume smoothly. If the volume is turned down, you can listen to the quiet and gentle voice clearly.

  • Page 35: Managing A Queue

    ❚ Managing a queue Adding music to the queue You can add new music to the current music list or edit the music list. Press , and then select Songs. Select of the music to add, and then select Add to Queue. (Select Select Multiple to save multiple music pieces in the Queue at the same time.) Select the music title at Home screen to check the saved Queue.
  • Page 36 Editing the queue Select the music title at Home screen, and then press Edit. Drag to change the order of music, select your desired music to delete, and then press Done. Press Yes.

  • Page 37: Managing A Playlist

    ❚ Managing a playlist Creating a Playlist You can create your own playlist to save or edit. Press , and then select Playlists. Select Create Playlist, and then enter a name for the playlist. Press Done. Select Playlists, and then press the created playlist.
  • Page 38 Press Add Songs, and then select Songs. Select your desired music to save in playlist, and then press Add. NOTE You can save up to 360 pieces of music in the playlist.
  • Page 39 Editing a Playlist Press , and then select Playlists. Select of Playlists or the of the music to use additional menu.

  • Page 40: Using The Settings Menu

    Using the Settings menu On your Smart device, select the Samsung Multiroom app. Press to view the list of all speakers. Press ❚ Add Speaker Add Speaker To add additional speaker(s) to an existing speaker connection, refer to "Adding additional speaker(s)"...

  • Page 41: Guide

    ❚ Guide Tutorial Select the Tutorial to learn how to use the app. ❚ Services Displays a list of available services. NOTES Depending on your region or manufacturer, supported content services may differ. Some music services may require you to sign up for a membership or log in. You may not subscribe to a service using your smart device.

  • Page 42: Speaker Mode

    ❚ Speaker Mode Bluetooth Off : Turns off the Bluetooth. On : Turns on the Bluetooth. ❚ Device Settings Front LED Off : Turns off the product's Front LED indicators. On : Turns on the product's Front LED indicators. NOTES Product LED indicator status - Blue (on) : Wi-Fi network connection established - Blue (flashing) : preparing Wi-Fi network connection...
  • Page 43 Sound Feedback Sound Feedback is a function to indicate current status of product through the sound. Off : Turns off the Sound Feedback. On : Turns on the Sound Feedback. Software Update Shows the product's current software version, and lets you turn auto update on or off. On : When on, automatically updates the software when new firmware is released.
  • Page 44 NOTES Auto update is available when your product is connected to a network and the Software Auto Update function is set to On. It is strongly recommended that Software Auto Update settings on all the products used are set to On.

  • Page 45: Clock

    ❚ Clock Alarm (WAM7500, WAM7501 only) Press Alarm, and then press Add Alarm. Select the alarm date, time, day of the week, alarm volume and duration. Press Music, select Sound or TuneIn to select your desired alarm sound.
  • Page 46 Sleep Timer You can turn off the product by setting sleep time. Press Sleep Timer, and then press Off. Drag to On, set your desired time, and then select Start.

  • Page 47: Support

    Provides a link to the Samsung website. Open Source Licenses Lets you view the Open Source Licenses. ❚ Information Samsung Multiroom Allows you to check the software version number of the product. App Version Allows you to check the Samsung Multiroom app version.

  • Page 48: Connecting Multiples Products

    Connecting multiples products Setting Groups You can group multiple speakers into one group that plays the same music. Grouping is available only when multiple speakers are connected to the same network. Press to go to the list of all speakers. Press Group.
  • Page 49 Ungrouping Press Ungroup.

  • Page 50: Setting The Surround Sound Mode

    Setting the Surround Sound Mode You can configure multiple products for surround sound effect. Press to go to the list of all products. Press Surround. Press and hold a product, and drag it to the desired place and then select Next. NOTE If just 2 speakers are connected, press Surround to configure surround sound system automatically.
  • Page 51 Test products and adjust product volume, and then press Done. NOTES The Surround Mode may be cancelled automatically if the network connection is unstable. When enabling the Surround Sound mode, it is recommended to set the same speakers you assign to Front L and Front R.

  • Page 52: Using Miscellaneous Functions

    Follow the instructions shown to install the program. Select the folder to be shared. 1) Move the mouse pointer over the Samsung Link icon from the icons tray, right click on it and select " ". 2) On the screen displayed, you can add or delete shared folders.

  • Page 53: Wireless Audio - Multiroom For Desktop

    Wireless Audio - Multiroom for Desktop To play iTunes system and shared PC music files through product, install the Wireless Audio - Multiroom for Desktop program. Visit www.samsung.com to download the Wireless Audio - Multiroom for Desktop program and install it. NOTES Note that the PC containing the shared folders and your product must be connected to the same wireless router.
  • Page 54 After sharing folders, make sure to press the Done button. On your Smart device, select the Samsung Multiroom app. Select desired PC on the Samsung Multiroom app, and shared folders and files stored in the PC will be displayed. (For further details, refer to pages 32~33) Click here.

  • Page 55: Appendix

    The TV SoundConnect (TV pairing) Does your TV support TV TV SoundConnect is supported by failed. SoundConnect? some Samsung TVs released after 2012. Check your TV to see if it Is your TV firmware the latest supports TV SoundConnect. version?
  • Page 56 Symptom Check Remedy HUB doesn't work properly Is the HUB plugged in? Plug in the HUB. Is the LAN cable connected to Connect the LAN cable to the the wireless router and the HUB ETHERNET SWITCH on the back properly? of the HUB and to your wireless router.

  • Page 57: Open Source License Notice

    If the problem persists, consult the service centre for troubleshooting. Open Source License Notice For further information on Open Sources used in this product, please visit the website: http:// opensource.samsung.com Licences The Spotify Software is subject to third party licenses found here : www.spotify.com/connect/third-party-licenses.

  • Page 58: Specifications

    Specifications WAM7500/WAM7501 Weight 3.4 Kg Dimensions 181 (W) X 181 (D) X 422 (H) mm General Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 % Wireless LAN Built-in WEP (OPEN/SHARED) Security WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)
  • Page 59 - App screen is based on Android operating system and it may change after you upgrade the software version. - For further details on using the product, visit www.samsung.com. An administration fee may be charged if either (a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual).

  • Page 60: Regulatory Compliance Statements

    Regulatory Compliance Statements CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lighting flash and arrowhead CAUTION: TO REDUCE THE RISK OF The explanation point within the within the triangle is a warning sign ELECTRIC SHOCK, DO NOT REMOVE triangle is a warning sign alerting alerting you to dangerous voltage THE COVER (OR BACK).

  • Page 61: Wiring The Main Power Supply Plug (Uk Only)

    ❚ Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.

  • Page 62: Safety Precautions

    Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.

  • Page 63: Installation Precautions

    Installing the product in environments with high heat or humidity, dust, or extreme cold, can lead to quality problems or cause the product to malfunction. Before you install the product in an environment that is outside the norm, please contact a Samsung service centre for additional information.

  • Page 64: Cleaning Precautions

    If the product emits an abnormal sound or a burnt smell or smokes, unplug the power-cord immediately and contact a Samsung service centre. If you smell gas, ventilate the room immediately. Do not touch the power plug of the product.

  • Page 65: Compatible Devices

    Directive 1999/5/EC. The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name. This equipment may be operated in all EU countries. This equipment may only be used indoors.
  • Page 66 UNITED KINGDOM EIRE This Samsung product is warranted for the period of 4. This product is not considered to be defective in twelve (12) months from the original date of materials nor workmanship by reason that it purchase, against defective materials and requires adaptation in order to conform to workmanship.
  • Page 67 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Contact Centre Web Site U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support North America www.samsung.com/ca/support (English) CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca_fr/support (French)
  • Page 68 9. do 18. ure. SERBIA 011 321 6899 www.samsung.com/rs/support BULGARIA 800 111 31, Безплатна телефонна линия www.samsung.com/bg/support 08008 726 78 64 (08008 SAMSUNG ) ROMANIA www.samsung.com/ro/support Apel GRATUIT CYPRUS 8009 4000 only from landline, toll free 80111-SAMSUNG (80111 726 7864) only from land www.samsung.com/gr/support...
  • Page 69 SAUDI ARABIA 8002474357 www.samsung.com/sa_en/support (English) PAKISTAN 0800-Samsung (72678) www.samsung.com/pk/support TUNISIA 80-1000-12 www.samsung.com/n_africa/support U.A.E 800-SAMSUNG (800 - 726 7864) MENA OMAN 800-SAMSUNG (800 - 726 7864) www.samsung.com/ae/support (English) KUWAIT 183-CALL (183-2255) www.samsung.com/ae_ar/support (Arabic) BAHRAIN 8000-GSAM (8000-4726) QATAR 800-CALL (800-2255)
  • Page 70 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
