Compact Sound Speaker System
LB6-100S-D, LB6-100S-L, LB6-S-D, LB6-S-L, LB6-SW100-D, LB6-SW100-L, LC6-100S-
L, LC6-S-L, and LC6-SW100-L
en
Installation Manual

Advertisement

Table of Contents
loading

Summary of Contents for Bosch LB6-100S-D

  • Page 1 Compact Sound Speaker System LB6-100S-D, LB6-100S-L, LB6-S-D, LB6-S-L, LB6-SW100-D, LB6-SW100-L, LC6-100S- L, LC6-S-L, and LC6-SW100-L Installation Manual...
  • Page 3: Table Of Contents

    5.2.1 Wattage tap 5.2.2 70v/100v/4 ohm Mono 5.2.3 8 ohm Stereo Surface Mount Subwoofers Only Troubleshooting Technical data Ceiling mount speakers 7.1.1 Frequency response Surface mount speakers 7.2.1 Frequency response Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 4: Safety

    The user is responsible for making sure the wall, ceiling, or structure is capable of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker not associated with Bosch is the responsibility of others.
  • Page 5 (in accordance with the European Waste Electrical and Electronic Equipment Directive). To dispose of old electrical or electronic devices, you should use the return and collection systems put in place in the country concerned. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 6: Introduction

    Attractive subwoofer design with full-face grille—install it anywhere, no need to hide! – Supports stereo operation with 8-ohm audio connections. – Quick-mount slide-on wall bracket included. – Available in black or white finishes. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 7: System Overview

    The major components included in one (1) box for the LC6-S-L ceiling mount satellite speaker. Item Quantity Description LC6-S-L ceiling mount satellite speakers Grilles C-ring supports Cutout template Engineering data sheet Paint shields Table 3.1: Ceiling Mount Satellite Speaker Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 8 The major components included in the box for the LC6-SW100-L ceiling mount subwoofer: Item Quantity Description LC6-SW100-L ceiling mount subwoofer Tile rails C-ring support Grille Installation manual screws Cutout template Paint shield Table 3.2: Ceiling Mount Subwoofer 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.

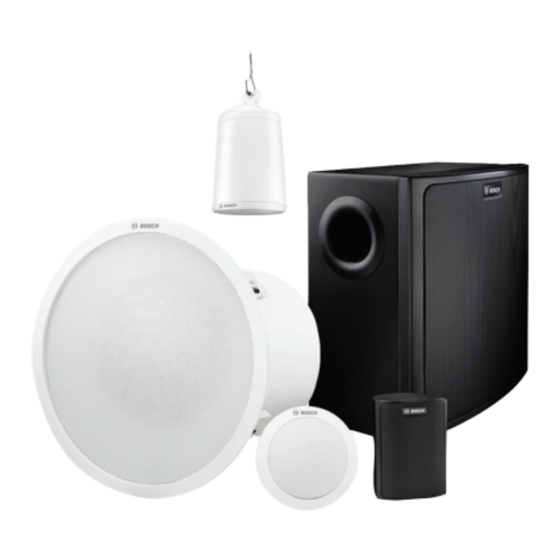

  • Page 9 System overview | en Surface mount speakers The LB6-100S-D speaker system package contains four (4) satellite speakers and one (1) subwoofer. When you open the box for the full system you will find three (3) main boxes inside; two (2) boxes for the satellite speakers and one (1) box for the subwoofer.
  • Page 10 The major components included in the box for the LB6-SW100-D surface mount subwoofer: Item Quantity Description LB6-SW100-D surface mount subwoofer Wall bracket, assembled in box Installation Manual M6 hex drive pan-head screw Rubber feet Hex wrench Table 3.4: Surface Mount Subwoofer 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 11: Product Information

    Compact Sound Speaker System System overview | en Product information Ceiling mount speakers Figure 3.1: LC6-S-L Product Information Figure 3.2: LC6-SW100-L Product Information Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 12 | System overview Compact Sound Speaker System Surface mount speakers Figure 3.3: LB6-S-D Product Information Figure 3.4: LB6-SW100-D Product Information 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 13: Dimensions

    Compact Sound Speaker System System overview | en Dimensions Ceiling speakers Figure 3.5: Dimensions LC6-S-L Figure 3.6: Dimensions LC6-SW100-L Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 14 Surface mount speakers Figure 3.7: Dimensions LB6-S-D and Mounting Bracket Figure 3.8: Dimensions LB6-SW100-Dand Mounting Bracket Notice! The mounting bracket dimension drawings are not to scale. Drawing sizes increased for readability. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 15: Installation

    Consult an expert if you are unsure. Installing a ceiling mount satellite speaker To install a ceiling mount satellite speaker, do the following: Trace the cutout template. Cut the hole. Install the C-Ring. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 16 Install wires into the Phoenix connector. Tighten the two (2) screws to secure the conduit clamp. Attach the safety cable. The safety cable should be installed with a minimum of a 3-inch (76.2 mm) slack. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 17 Compact Sound Speaker System Installation | en Push the speaker up into the ceiling. Tighten the mounting tabs. 10. Attach the grille. 11. Installation complete. For more information, see Safety, page 4. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 18: Ceiling Mount Subwoofer Installation

    Consult an expert if you are unsure. Installing a ceiling mount subwoofer To install a ceiling mount subwoofer, do the following: Trace the cutout template. Cut the hole. Secure rails to the C-Ring. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 19 Compact Sound Speaker System Installation | en Attach the safety cable to the auxiliary support tab. Route wires through the ceiling to the conduit clamp. Connect the wires to the Phoenix connectors. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 20 | Installation Compact Sound Speaker System Plug the phoenix connector into the socket. Tighten the two (2) screws to secure the conduit clamp. Push the speaker up into the ceiling. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 21 12. Attach the auxiliary support line to the structure. The safety cable should be installed with a minimum of a 3-inch (76.2 mm) slack. 13. Installation complete. For more information, see Safety, page 4. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 22: Surface Mount Speakers

    Place the speaker bracket onto the wall bracket. Using the hex wrench (supplied), tighten the M6 hex drive pan-head screw to secure the speaker bracket to the wall bracket. For more information, see Safety, page 4. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 23: Wall Bracket Range Of Motion

    Only mount the wall bracket in the vertical V-shape position. Do not mount the V-bracket or wall bracket side ways or upside down. Figure 4.2: Wall bracket correct and incorrect mounting positions Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 24 (not supplied) to attach the wall bracket to a secure mounting surface. Using the hex wrench (supplied), tighten the three (3) M6 hex drive pan head screws to attach the V-bracket. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 25: Removing A Subwoofer From The Wall

    Removing a subwoofer from the wall To remove a subwoofer from the wall, do the following: Pull the subwoofer slightly out from the wall. Lift the subwoofer up. The locking detents disengage. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 26: Wiring

    50 W, 25 W, and 12.5 W at 70V or 100 W, 50 W, and 25 W 100V. The power selector switch is located on the baffle behind the grille. Figure 5.1: LC6-SW100-L Wattage Tap 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 27: 70V/100V/4 Ohm Mono

    Any combination of four satellites (surface mount, ceiling or pendant speakers) is allowed. The system is designed for operation with only four (4) satellite speakers. Operation with less than four (4) satellite speakers is not recommended. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 28: Surface Mount Speakers

    100V, as well as a 4 ohm transformer bypass setting. A guide on the input panel shows which switch positions to use for the power settings at 70V and 100V. Figure 5.2: LB6-SW100-D Wattage Tap 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 29: 70V/100V/4 Ohm Mono

    Any combination of four satellites (surface mount, ceiling or pendant speakers) is allowed. The system is designed for operation with only four (4) satellite speakers. Operation with less than four (4) satellite speakers is not recommended. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 30: Ohm Stereo Surface Mount Subwoofers Only

    (4) satellite speakers is not recommended. Notice! A standard low impedance (4/8 ohm) amplifier source is required when operating the unit in STEREO mode. 100/70v operation is not supported in STEREO mode. 2015.12 | 07 | Installation Manual Bosch Security Systems B.V.
  • Page 31: Troubleshooting

    Poor System Check and correct the system grounding, as required. Grounding or Ground Loop If these suggestions do not solve your problem, contact your nearest dealer or distributor. Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 32: Technical Data

    Long Term Program Rating, 3 dB greater than continuous noise pink noise rating. Average 1 kHz – 4 kHz. Average 1 kHz – 8 kHz. 7.1.1 Frequency response Bosch LC6-S-L Half Space Bosch LC6-SW100-L Half Space 1000 10000 20000 Frequency (Hz) 2015.12 | 07 |...
  • Page 33: Surface Mount Speakers

    Half space (wall mounting). Long Term Program Rating, 3 dB greater than continuous noise pink noise rating. Average 1 kHz – 4 kHz. Average 1 kHz – 8 kHz. 7.2.1 Frequency response Bosch Security Systems B.V. Installation Manual 2015.12 | 07 |...
  • Page 36 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2015...
