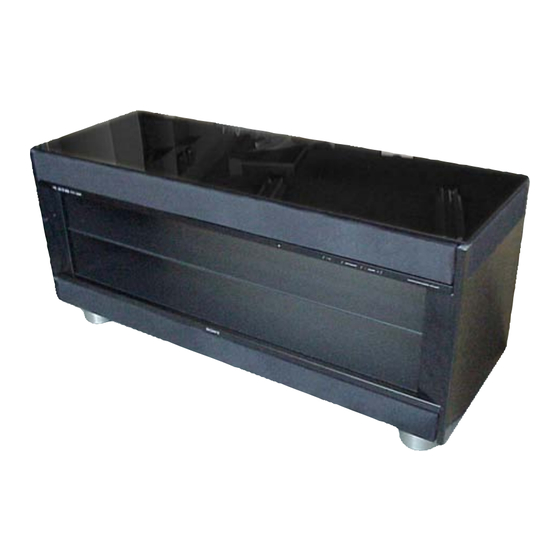

Sony RHT-G800 Service Manual

Hide thumbs Also See for RHT-G800:
Table of Contents

Advertisement

Quick Links

See also: Control Manual
SERVICE MANUAL
Ver. 1.0 2007.03
This stand incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System.
* Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.
** "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc.
Formats supported by this stand
Digital input formats supported by this stand are as follows.
Format
Supported/Not supported
Dolby Digital
a
DTS
a
Linear PCM-2ch
a
Linear PCM-7.1ch
a
48k* (Only on HDMI)
×
Linear PCM-7.1ch
96k
×
Dolby Digital Plus
×
Dolby True HD
×
DTS-HD
* The A/V SYNC function does not work with this format.
Amplifier section
Rated Output Power
Stereo mode
50 W + 50 W (US, Canadian model)
100 W + 100 W (AEP, UK model)
(6 ohms at 1 kHz, THD 1 %)
Reference Output Power
Surround mode
Front: 70 W + 70 W
(6 ohms at 1 kHz, THD 10 %)
Center*: 70 W
(3 ohms at 1 kHz, THD 10 %)
Surround: 70 W + 70 W
(6 ohms at 1 kHz, THD 10 %)
Subwoofer*: 120 W
(3 ohms at 100 Hz, THD 10 %)
* Depending on the sound field settings and the source, there may
be no sound output.
Sony Corporation
9-887-612-01
Home Audio Division
2007C02-1
Published by Sony Techno Create Corporation
© 2007.03
RHT-G800
SPECIFICATIONS
Inputs (Analog)
TV, AUDIO
Inputs (Digital)
TV, DVD/BD
SAT
HDMI section
Connector
Video inputs/outputs
Audio inputs
Speakers
Front
Speaker system
Speaker unit
Center
Speaker system
Speaker unit
Surround
Speaker system
Speaker unit
THEATRE STAND SYSTEM
US Model
Canadian Model
AEP Model
UK Model
Sensitivity: 600 mV
Impedance: 33 kilohms
Optical
Coaxial, optical
HDMI 19pin-standard connector
SAT, DVD/BD: 480i/480p/576i/576p/
720i/720p/1080i/1080p
SAT, DVD/BD INPUT:
Linear PCM 7.1ch/Dolby digital/ DTS
2-ways, Bass reflex, magnetically shielded type
Woofer: 4 × 7 cm cone type
Tweeter: 2.5 cm dia.
Balanced dome type
Bass-reflex, magnetically shielded type
4 × 7 cm cone type × 2
Bass-reflex, magnetically shielded type
4 × 7 cm cone type × 2
– Continued on next page –

Advertisement

Table of Contents
loading

Related Manuals for Sony RHT-G800

Summary of Contents for Sony RHT-G800

  • Page 1 (3 ohms at 100 Hz, THD 10 %) THEATRE STAND SYSTEM * Depending on the sound field settings and the source, there may be no sound output. Sony Corporation 9-887-612-01 Home Audio Division 2007C02-1 Published by Sony Techno Create Corporation © 2007.03...
  • Page 2 LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

  • Page 3: Table Of Contents

    RHT-G800 SAFETY CHECK-OUT TABLE OF CONTENTS (US model) SERVICING NOTES ..........4 After correcting the original service problem, perform the follow- GENERAL ..............5 ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, DIAGRAMS and all other exposed metal parts for AC leakage.

  • Page 4: Servicing Notes

    RHT-G800 SECTION 1 SERVICING NOTES NOTE OF REPLACING THE IC3511 AND IC3513 ON THE HDMI BOARD When IC3511 and IC3513 on the HDMI board are damaged, exchange the new HDMI board for the HDMI board which IC damaged. When throwing away the HDMI board, be sure to throw away after destroying IC3511 and IC3513 physically with the hammer etc.

  • Page 5: General

    RHT-G800 SECTION 2 This section is extracted from instruction manual. GENERAL LOCATING THE CONTROLS Front panel (remote sensor) Receives signals from remote commander. B ?/1 (on/standby) Press to turn the stand on or off. C INPUT SELECTOR Press to select the input source to play back.
  • Page 6 B Input buttons Press one of the buttons to select the component you want to use. The buttons are factory assigned to control Sony components. You can program the remote to control non-Sony components following the steps in “Programming the remote for other component”...

  • Page 7: Diagrams

    RHT-G800 SECTION 3 DIAGRAMS • Note for Printed Wiring Boards and Schematic Diagrams • Waveforms Note on Printed Wiring Boards. Note on Schematic Diagrams. • All capacitors are in µF unless otherwise noted. (p: pF) • X : parts extracted from the component side –...

  • Page 8: Block Diagram - Hdmi Section

    RHT-G800 3-1. BLOCK DIAGRAM – HDMI SECTION – SIGNAL PROCESSOR SECTION ( Page 9 ) DATA0+ DATA0– DATA1+ DATA1– TX0+ 30 DATA0+ TX0– 29 DATA0– DATA2+ DATA2– Y2 31 RX0+ TX1+ 33 DATA1+ CN3501 Z2 32 RX0– TX1– 32 DATA1–...

  • Page 9: Block Diagram - Signal Processor Section

    RHT-G800 3-2. BLOCK DIAGRAM – SIGNAL PROCESSOR SECTION – HDMI SECTION IC1011 ( Page 8 ) DIGITAL AUDIO INTERFACE RECEIVER J201 IC206 COAX IN D1FLFR DIN1 DATAO 16 DPSIA_DAI DSPOA 64 SCHMITT SECTION TRIGGER BCK 14 ( Page 10 )

  • Page 10: Block Diagram - Amp Section

    RHT-G800 3-3. BLOCK DIAGRAM – AMP SECTION – M3001 DC FAN FAN DRIVE +12V Q3000, 3001, 3002 D3505 D3504 D1FLFR, D2SLSR, D3CSW, IC3010 IC3150 DSP_LRCK, DSP_BCK STREAM PROCESSOR DIGITAL POWER AMP DATA OUTL1 11 PWM_B OUT_A 28-30 L.P.F. SIGNAL SP3001...

  • Page 11: Block Diagram - Power Section

    RHT-G800 3-4. BLOCK DIAGRAM – POWER SECTION – POWER Thermistor F901 T901 D901 TRANSFORMER(MAIN) AC IN LINE T801 IC901 FILTER DC/DC AC/DC D931 CONVERTER CONVERTER D905 +31.5V SWITCH Q901 TO FLUORESCENT IC931 OCP/SYNC INDICATOR TUBE SHUNT RECT FB/OLP ND801 D802,803...

  • Page 12: Printed Wiring Board - Hdmi Board (Side A)

    RHT-G800 3-5. PRINTED WIRING BOARD – HDMI BOARD (SIDE A) – • See page 7 for Circuit Boards Location. :Uses unleaded solder. MAIN BOARD (Page 17) HDMI BOARD ( SIDE A ) CN3509 JL3593 JL3594 IC3519 JL3595 JL3596 JL3610 MAIN...

  • Page 13: Printed Wiring Board - Hdmi Board (Side B)

    RHT-G800 • See page 7 for Circuit Boards Location. 3-6. PRINTED WIRING BOARD – HDMI BOARD (SIDE B) – :Uses unleaded solder. HDMI BOARD ( SIDE B ) R3796 R3645 R3797 C3618 C3620 C3619 C3617 R3601 R3700 R3676 R3609 R3610...

  • Page 14: Schematic Diagram - Hdmi Board (1/2)

    RHT-G800 3-7. SCHEMATIC DIAGRAM – HDMI BOARD (1/2) – • See page 29, 30 for IC Block Diagrams. • See page 35, 37 for IC Pin Function Description. • See page 7 for Waveforms. HDMI BOARD ( 1/2 ) +5VPOWER-1...

  • Page 15: Schematic Diagram - Hdmi Board (2/2)

    RHT-G800 3-8. SCHEMATIC DIAGRAM – HDMI BOARD (2/2) – • See page 29, 30 for IC Block Diagrams. • See page 39 for IC Pin Function Description. • See page 7 for Waveforms. HDMI BOARD ( 2/2 ) ET3503 +5VPOWER-1...

  • Page 16: Printed Wiring Board - Main Board (Side A)

    RHT-G800 3-9. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) – • See page 7 for Circuit Boards Location. :Uses unleaded solder. MAIN BOARD ( SIDE A ) WRITER BOARD Q3302 Q3301 Q3402 Q3401 A001 CN252 R1105 R1051 R1001 C3321...

  • Page 17: Printed Wiring Board - Main Board (Side B)

    RHT-G800 3-10. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) – :Uses unleaded solder. • See page 7 for Circuit Boards Location. POWER BOARD POWER BOARD (Page 27) (Page 27) MAIN BOARD ( SIDE B ) (FOR SERVICE) X1001 JL1056...

  • Page 18: Schematic Diagram - Main Board (1/5)

    RHT-G800 3-11. SCHEMATIC DIAGRAM – MAIN BOARD (1/5) – • See page 7 for Waveforms. MAIN BOARD ( 1/5 ) SW3.3V SI-3010KM-TL +1.2V REG JL10 1000 2.6V 6.3V JL11 DGND MAIN BOARD (2/5) (Page 19) DATA_DIR DATA_DIR SI_B SI_B SI_C...

  • Page 19: Schematic Diagram - Main Board (2/5)

    RHT-G800 3-12. SCHEMATIC DIAGRAM – MAIN BOARD (2/5) – • See page 30 for IC Block Diagrams. • See page 7 for Waveforms. MAIN BOARD ( 2/5 ) SW3.3V 2.6V DIR_XSTATE C1029 R1185 SI_E EMG_MUTE HDMI_SD3 R1124 DIR_MCK DIR_LRCK DIR_BCK...

  • Page 20: Schematic Diagram - Main Board (3/5)

    RHT-G800 3-13. SCHEMATIC DIAGRAM – MAIN BOARD (3/5) – • See page 33 for IC Pin Function Description. • See page 7 for Waveforms. MAIN BOARD MAIN BOARD MAIN BOARD (2/5) (2/5) (2/5) (Page 19) (Page 19) (Page 19) (3/5)

  • Page 21: Schematic Diagram - Main Board (4/5)

    RHT-G800 3-14. SCHEMATIC DIAGRAM – HDMI BOARD (4/5) – • See page 30, 31 for IC Block Diagrams. MAIN BOARD (5/5) MAIN BOARD (5/5) MAIN BOARD (5/5) (Page 22) (Page 22) (Page 22) MAIN BOARD ( 4/5 ) C3031 C3021...

  • Page 22: Schematic Diagram - Main Board (5/5)

    RHT-G800 3-15. SCHEMATIC DIAGRAM – HDMI BOARD (5/5) – • See page 32 for IC Block Diagrams. SPEAKERS M3001 SUB WOOFER CENTER SURR L FRONT L SURR R FRONT R POWER BOARD (Page 28) SP3010 SP3009 SP3008 SP3007 SP3005 SP3001...

  • Page 23: Printed Wiring Board - Io Board

    RHT-G800 3-16. PRINTED WIRING BOARD – IO BOARD – :Uses unleaded solder. • See page 7 for Circuit Boards Location. IO BOARD ( SIDE A ) Q201 C220 R221 C214 R230 R222 IC204 IC206 Q202 IC205 IC207 C222 CN202 R225...

  • Page 24: Schematic Diagram - Io Board

    RHT-G800 3-17. SCHEMATIC DIAGRAM – IO BOARD – • See page 30 for IC Block Diagrams. IO BOARD COAXIAL(SAT) C213 JL201 COAX R213 J201 C214 10 35V IC201 OPTICAL L201 220uH RECEIVER IC204 TC74VHC153FT(EL) JL202 C220 IC201 C202 TORX147L RDS_DATA...

  • Page 25: Printed Wiring Board - Display, Tsw Board

    RHT-G800 3-18. PRINTED WIRING BOARD – DISPLAY, TSW BOARD – • See page 7 for Circuit Boards Location. :Uses unleaded solder. DISPLAY BOARD ( SIDE A ) C808 1-872-133- (11) DISPLAY BOARD ( SIDE B ) D806 R812 C818 C810...

  • Page 26: Schematic Diagram - Display, Tsw Board

    RHT-G800 3-19. SCHEMATIC DIAGRAM – DISPLAY, TSW BOARD – DISPLAY BOARD ND801 48 47 44 43 39 38 26 25 19 18 17 TSW BOARD IC803 GP1UE26XKOVF Q802 IC803 DTC114EKA-T146 Q801 LED DRIVE INPUT SIRCS DTC114EKA-T146 VOLUME- VOLUME+ LED DRIVE...

  • Page 27: Printed Wiring Board - Power Board

    RHT-G800 3-20. PRINTED WIRING BOARD – POWER BOARD – • See page 7 for Circuit Boards Location. :Uses unleaded solder. POWER BOARD R969 R926 D907 D906 R906 EB902 (CHASSIS) R925 C907 D908 IC901 US, CND R907 D913 JW919 R919 JW907...

  • Page 28: Schematic Diagram - Power Board

    RHT-G800 3-21. SCHEMATIC DIAGRAM – POWER BOARD – (CHASSIS) D931 FCU20UC20 EB905 C938 AEP, UK CN902 TP903 WIRE 3P C930 100p CN901 C965 TH901 FH901 FH902 0.001 250V T901 C963 THERMISTOR HOLDER HOLDER LF901 D901 L931 TP901 MAIN POWER R931...
  • Page 29 RHT-G800 • IC Block Diagrams – HDMI BOARD – IC3513 (SII9030CTU-7) HSYNC 60 CGND VSYNC 59 CVCC18 VIDEO DATA CAPTURE / DE GEN / 656 LOGIC BLOCK CGND 58 D14 CVCC18 57 D15 56 D16 SPDIF 55 D17 4: 2: 2...
  • Page 30 RHT-G800 – HDMI BOARD – IC3516 (TK11150CSCL-G) IC3526, 3527 (SI-3033KM-TL) VOLTAGE COMP – CONTROL VOUT SENSE – HDMI BOARD – – IO BOARD – IC3507 (PCA9517DP.118) IC205 (MC14052 BDR2) VCCA 8 VCCB SCLA 7 SCLB BINARY TO 1-OF-4 LEVEL DECODER WITH...

  • Page 31: Main Board

    RHT-G800 – MAIN BOARD – IC3010, 3020, 3030 (CXD9876R) CLOCK CLOCK GENERATOR GENERATOR 36 XFSIIN (SECONDARY) (PRIMARY) XVSS 35 DVDD VSUBC 34 TEST 33 BFVSS VSSR OUTR2 32 BFVDD VDDR DATA FILTER & SAMPLING OUTR1 LINER GAIN ∆ Σ LOW CUT...
  • Page 32 RHT-G800 – MAIN BOARD – IC3100, 3150, 3200, 3250, 3400, 3500 (CXD9883M) BST_A PVDD_A Over Current Fault GVDD_A PVDD_A /OTW PVDD_A VREG Gate /HIZ_HS_A Drive PGND /HIZ_LS_A Stuck Detect /RESET PGND Protection Logic Timing PWM_A PGND Control /OCH_A Programmable OC_ADJ...
  • Page 33 RHT-G800 • IC Pin Function Description MAIN BOARD IC1002 M30626MHP-B29FPU0 (SYSTEM CONTROLLER) Pin No. Pin Name Description DAMP_SCD DAMP processor data output DAMP_SHIFT DAMP processor clock output CEC_DI HDMI-CEC (Consumer Electronics Control) data input SIRCS_IN Sircs input DSP_MOSI/DIR_DIN DSP and DIR data output...
  • Page 34 RHT-G800 Pin No. Pin Name Description ST CE Not used (Open) A_SEL 3 Audio selector 3 A_SEL 2 Audio selector 2 A_SEL 1 Audio selector 1 A_SEL 0 Audio selector 0 53-61 HP_MUTE – Not used (Open) — Power supply (BUP 3.3V)
  • Page 35 RHT-G800 HDMI BOARD IC3503 TMDS341APFCR (HDMI INPUT SELECT) Pin No. Pin Name Description Not used (OPEN) SDA1 Not used (OPEN) SCL1 Not used (OPEN) Ground terminal Not used (OPEN) Not used (OPEN) Power supply terminal (+3.3V) Not used (OPEN) Not used (OPEN)
  • Page 36 RHT-G800 Pin No. Pin Name Description Power supply terminal (+3.3V) TMDS data (negative) input from the HDMI IN1 jack TMDS data (positive) input from the HDMI IN1 jack Ground terminal TMDS data (negative) input from the HDMI IN1 jack TMDS data (positive) input from the HDMI IN1 jack Power supply terminal (+3.3V)
  • Page 37 RHT-G800 HDMI BOARD IC3511 SII9011CLU (HDMI RECEIVER) Pin No. Pin Name Description VSYNC Vertical synchronize signal output to the HDMI transmitter 2 to 5 QO23 to QO20 Not used IOGND Ground terminal IOVCC Power supply terminal (+3.3V) 8 to 11...
  • Page 38 RHT-G800 Pin No. Pin Name Description DGND Ground terminal DVCC18 Power supply terminal (+1.8V) MUTE Audio muting signal output terminal IOVCC Power supply terminal (+3.3V) IOGND Ground terminal SPDIF S/PDIF signal output to the digital audio interface and HDMI transmitter...
  • Page 39 RHT-G800 HDMI BOARD IC3513 SII9030CTU-7 (HDMI TRANSCEIVER) Pin No. Pin Name Description HSYNC Horizontal synchronize signal input from the HDMI receiver VSYNC Vertical synchronize signal input from the HDMI receiver CGND Ground terminal CVCC18 Power supply terminal (+1.8V) SPDIF S/PDIF signal input from the HDMI receiver...
  • Page 40 RHT-G800 Pin No. Pin Name Description CVCC18 Power supply terminal (+1.8V) CGND Ground terminal 61 to 65 D13 to D9 Serial data input from the HDMI receiver and video processor IDCK Output data clock signal input from the HDMI receiver...

  • Page 41: Exploded Views

    RHT-G800 SECTION 4 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they The components identified by The components identified by mark 9 contain may have some difference from the original mark 0 or dotted line with mark confidential information.

  • Page 42: Speaker Unit Section

    RHT-G800 4-2. SPEAKER UNIT SECTION not supplied Amp section not supplied 55 56 supplied not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1215-129-A SPEAKER ASSY, LCH A-1223-210-A DISPLAY BOARD, COMPLETE (including SP3001, 3002, 3005)

  • Page 43: Sash (Top) Section

    RHT-G800 4-3. SASH (TOP) SECTION not supplied not supplied not supplied not supplied not supplied not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-097-033-01 SASH (UPPER) 2-580-637-01 SCREW, +BVST 4X12 4-231-872-01 SCREW, ORNAMENTAL...

  • Page 44: Sash (Botom) Section

    RHT-G800 4-4. SASH (BOTTOM) SECTION not supplied not supplied not supplied SP3009 not supplied not supplied SP3010 not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-231-872-01 SCREW, ORNAMENTAL 2-694-362-01 SHEET, BOTTOM PAD 2-580-639-01 SCREW, +BVTP2 4X12...

  • Page 45: Amp Section

    RHT-G800 4-5. AMP SECTION not supplied F901 not supplied not supplied not supplied not supplied M3001 not supplied not supplied not supplied not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-500-459-11 FILTER, CLAMP (FERRITE CORE)

  • Page 46: Electrical Parts List

    RHT-G800 SECTION 5 HDMI DISPLAY ELECTRICAL PARTS LIST NOTE: The components identified by mark 0 or • Due to standardization, replacements in the • SEMICONDUCTORS dotted line with mark 0 are critical for safety. In each case, u: µ, for example: parts list may be different from the parts Replace only with part number specified.
  • Page 47 RHT-G800 HDMI Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CAPACITOR > C3566 1-107-826-11 CERAMIC CHIP 0.1uF C3567 1-107-826-11 CERAMIC CHIP 0.1uF C3501 1-107-826-11 CERAMIC CHIP 0.1uF C3568 1-107-826-11 CERAMIC CHIP 0.1uF C3502 1-107-826-11 CERAMIC CHIP 0.1uF...
  • Page 48 RHT-G800 HDMI Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < FERRITE BEAD > R3542 1-216-864-11 SHORT CHIP R3544 1-216-805-11 METAL CHIP 1/10W FB3501 1-414-234-22 INDUCTOR, FERRITE BEAD R3545 1-216-805-11 METAL CHIP 1/10W FB3502 1-414-234-22 INDUCTOR, FERRITE BEAD...
  • Page 49 1/10W R3775 1-216-797-11 METAL CHIP 1/10W < IC > R3776 1-216-797-11 METAL CHIP 1/10W IC201 6-600-466-01 IC TORX147L (SONY) (SAT) R3784 1-216-864-11 SHORT CHIP IC202 6-600-466-01 IC TORX147L (SONY) (DVD/BD) R3788 1-216-864-11 SHORT CHIP IC203 6-600-466-01 IC TORX147L (SONY) (TV)
  • Page 50 RHT-G800 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R210 1-216-845-11 METAL CHIP 100K 1/10W 1-117-370-11 CERAMIC CHIP 10uF R211 1-216-845-11 METAL CHIP 100K 1/10W R212 1-216-845-11 METAL CHIP 100K 1/10W 1-107-826-11 CERAMIC CHIP 0.1uF...
  • Page 51 RHT-G800 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C1031 1-126-947-11 ELECT 47uF C3030 1-164-156-11 CERAMIC CHIP 0.1uF C1032 1-115-467-11 CERAMIC CHIP 0.22uF C1033 1-126-964-11 ELECT 10uF C3031 1-126-947-11 ELECT 47uF C1034 1-107-826-11 CERAMIC CHIP 0.1uF...
  • Page 52 RHT-G800 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C3163 1-104-329-11 CERAMIC CHIP 0.1uF C3408 1-104-329-11 CERAMIC CHIP 0.1uF C3164 1-137-198-81 FILM C3165 1-137-198-81 FILM C3409 1-112-246-11 ELECT 100uF C3166 1-112-094-11 ELECT 2200uF C3412 1-112-246-11 ELECT...
  • Page 53 RHT-G800 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > IC1013 6-705-866-01 IC BR24L16FJ-WE2 IC1014 6-707-870-01 IC TC74VHC157FT (EKJ) D1002 6-501-193-01 DIODE 1SS355WTE-17 IC1015 6-707-870-01 IC TC74VHC157FT (EKJ) D1003 6-501-193-01 DIODE 1SS355WTE-17 IC3001...
  • Page 54 RHT-G800 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q3003 8-729-027-24 TRANSISTOR DTA114TKA-T146 1-216-864-11 SHORT CHIP 1-216-864-11 SHORT CHIP Q3101 8-729-600-22 TRANSISTOR 2SA1235-F Q3102 8-729-600-22 TRANSISTOR 2SA1235-F 1-216-809-11 METAL CHIP 1/10W Q3151 8-729-600-22 TRANSISTOR 2SA1235-F...
  • Page 55 RHT-G800 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1053 1-216-809-11 METAL CHIP 1/10W R1117 1-216-809-11 METAL CHIP 1/10W R1054 1-216-809-11 METAL CHIP 1/10W R1118 1-216-809-11 METAL CHIP 1/10W R1119 1-216-809-11 METAL CHIP 1/10W R1055 1-216-829-11 METAL CHIP 4.7K...
  • Page 56 RHT-G800 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R3022 1-216-817-11 METAL CHIP 1/10W R3175 1-216-845-11 METAL CHIP 100K 1/10W R3023 1-216-809-11 METAL CHIP 1/10W R3176 1-216-845-11 METAL CHIP 100K 1/10W R3177 1-216-845-11 METAL CHIP...
  • Page 57 RHT-G800 MAIN POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R4027 1-216-809-11 METAL CHIP 1/10W C936 1-165-319-11 CERAMIC CHIP 0.1uF R4028 1-216-849-11 METAL CHIP 220K 1/10W C937 1-100-756-91 CERAMIC CHIP 0.047uF 0 C938 R4029 1-216-809-11 METAL CHIP...
  • Page 58 RHT-G800 POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D931 6-501-413-01 DIODE FCU20UC20 0 R903 1-215-926-00 METAL OXIDE D932 6-501-167-01 DIODE UDZW-TE17-5.1B (US, CND) D941 6-500-288-11 DIODE EK19LF-F7 0 R903 1-215-929-11 METAL OXIDE 100K D942...
  • Page 59 RHT-G800 POWER WRITER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0 R969 1-216-821-11 METAL CHIP 1/10W 0 213 1-783-820-11 CORD, POWER (US, CND) R971 1-216-864-11 SHORT CHIP 0 F901 1-532-506-33 FUSE (T6.3AL/250V) (AEP, UK) 0 F901 <...

  • Page 60: Revision History

    RHT-G800 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision...
