SERVICE MANUAL

Ver 1.0 2003. 01
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
80 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more
than 0.08% total harmonic distortion per Car Audio Ad Hoc
Committee standards.
TE
L 13942296513
Other Specifications
Circuit system
OTL (output transformerless) circuit
Pulse power supply
Inputs
RCA pin jacks
High level input connector
Outputs
Speaker terminals
Through out pin jacks
Suitable speaker impedance
2 – 8 Ω (stereo)
4 – 8 Ω (when used as a bridging amplifier)
Maximum outputs
190 W × 2 (at 4 Ω)
240 W × 2 (at 2 Ω)
480 W (monaural) (at 4 Ω)
Rated outputs (supply voltage at 14.4 V)
80 W × 2 (20 Hz – 20 kHz, 0.08% THD, at 4 Ω)
100 W × 2 (20 Hz – 20 kHz, 0.1% THD, at 2 Ω)
200 W (monaural) (20 Hz – 20 kHz,
0.1% THD, at 4 Ω)
Frequency response
5 Hz – 50 kHz (
Harmonic distortion
0.008% or less (at 1 kHz, 4 Ω)
www
.
Sony Corporation
9-877-021-01
2003A0400-1
e Vehicle Company
© 2003. 01
Published by Sony Engineering Corporation
http://www.xiaoyu163.com
+0
dB)
–3
x
ao
u163
y
i
http://www.xiaoyu163.com
XM-280GTX
2 9
8
SPECIFICATIONS
Q Q
3
6 7
1 3
1 5
Input level adjustment range
Low-pass filter
Low boost
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
Design and specifications are subject to change without
notice.
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.

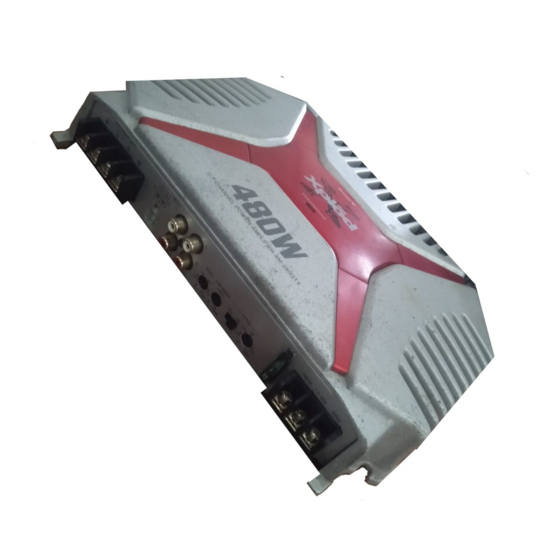

STEREO POWER AMPLIFIER
co
.
9 4
2 8
US Model
Canadian Model
AEP Model
UK Model
E Model
0 5
8
2 9
9 4
2 8
0.2 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
10.5 – 16 V
at rated output : 20 A (4 Ω)
Remote input : 1 mA
Approx. 286 × 55 × 196 mm
(11
× 2
× 7
in.) (w/h/d) not incl.
3/8
1/4
3/4
projecting parts and controls
Approx. 2.5 kg (5 lb. 8 oz.) not incl. accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
m
9 9
9 9
1
