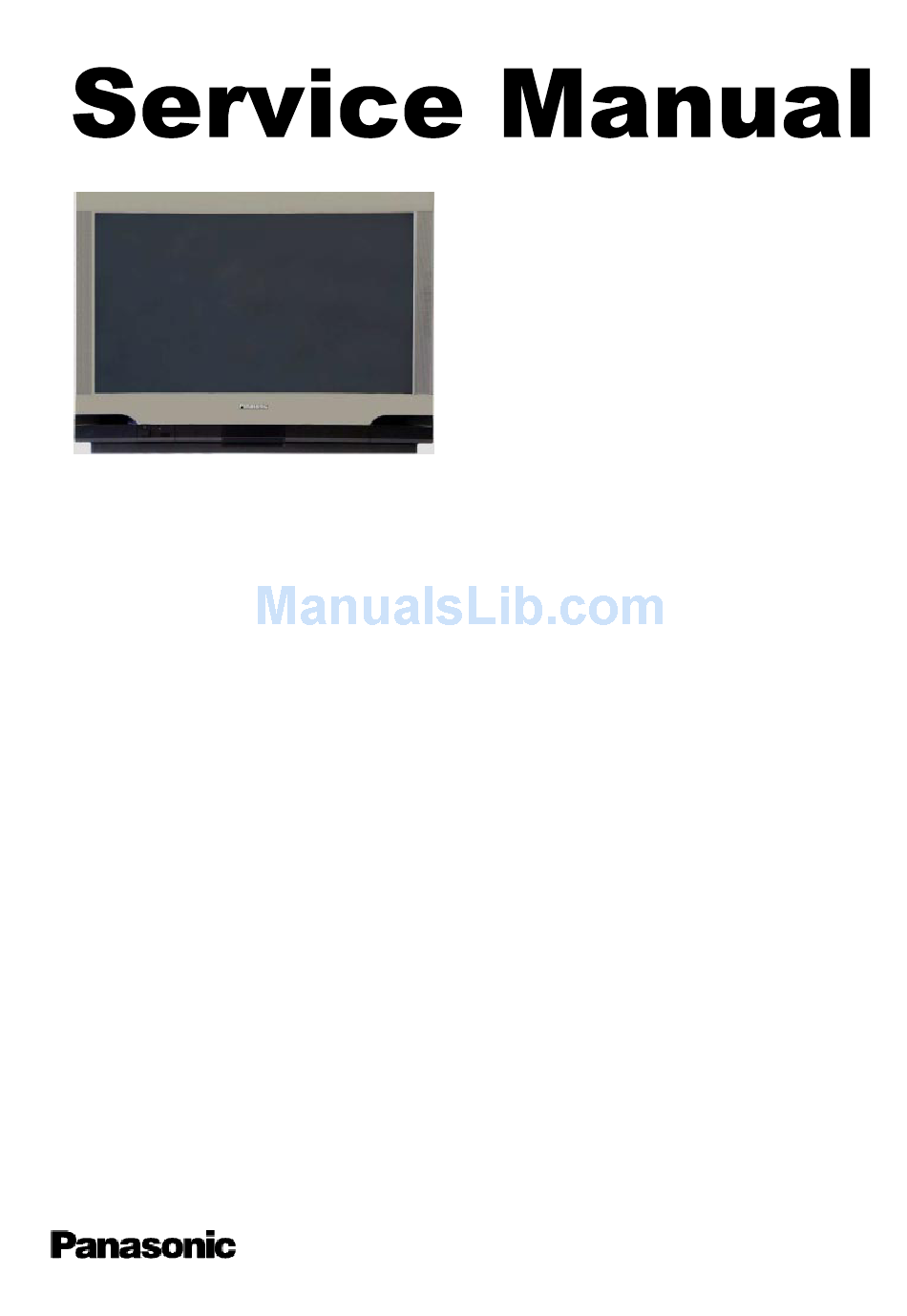

Panasonic TX-36PF10 Service Manual
Panasonic TX-36PF10 Service Manual

Panasonic TX-36PF10 Service Manual

Hide thumbs Also See for TX-36PF10:

Advertisement

SPECIFICATIONS

(Information in brackets { } refer to TX-32PF10)
Power Source:
Power Consumption:
Aerial Impedance:
Stand-by Power
Consumption:
Receiving System:
Receiving Channels:
Intermediate Frequency:
Video
Audio
Colour
Video/Audio
Terminals:
AUDIO MONITOR OUT
AV1 IN
AV1 OUT
AV2 IN
AV2 OUT
220-240V AC, 50Hz
162W {155W}
75Ω unbalanced, Coaxial Type
1,9W
PAL I, PAL 525/60
M.NTSC
NTSC (AV only)
UHF E21-E69
39,5MHz
33,5MHz, 32,95MHz
35,07MHz
Audio (RCAx2)
500mV rms 1kΩ
Video (21 pin)
1V p-p 75Ω
Audio (21 pin)
500mV rms 10kΩ
RGB (21 pin)
Video (21 pin)
1V p-p 75Ω
Audio (21 pin)
500mV rms 1kΩ
Video (21 pin)
1V p-p 75Ω
Audio (21 pin)
500mV rms 10kΩ
S-Video IN
Y: 1V p-p 75Ω
(21 pin)
C: 0.3V p-p 75Ω
Video (21 pin)
1V p-p 75Ω
Audio (21 pin)
500mV rms 1kΩ
Selectable Output (21 pin)

Colour Television

EURO-5 Chassis
AV3 IN
S-Video IN
(4-pin)
Audio(RCAx2)
Video (RCAx1)
AV4 IN
Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV4 OUT
Video (21 pin)
Audio (21 pin)
32kV ±1kV
High Voltage:
Picture Tube:
W86LPX555X05
Audio Output:
Front Left/Right
(Music Power)
Centre
8Ω Impedance
Headphones:
8Ω Impedance
3,5 mm
Accessories
Supplied:
Remote Control
2 x R6 (UM3) Batteries
VS-36PF10 Video cabinet
{VS-32PF10 Video cabinet}
Dimensions:
Height:
637mm
Width:
874mm
Depth:
588mm
Net weight:
78kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO-5 Technical Guide.
ORDER No. SM-98074
TX-36PF10
TX-32PF10
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
500mV rms10kΩ
1V p-p 75Ω
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0.3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
{W76LPX555X05}
2 x 20W
14W (Speech mode only)
{576mm}
{777mm}
{537mm}
{56kg}
Panasonic CS ( U.K. ) Ltd.
WILLOUGHBY ROAD,
BRACKNELL,
BERKS.,
RG12 8FT.

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic TX-36PF10

  • Page 1: Colour Television

    Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 1kΩ NOTE: This Service Manual should be used in conjunction with Selectable Output (21 pin) the EURO-5 Technical Guide. Panasonic CS ( U.K. ) Ltd. WILLOUGHBY ROAD, BRACKNELL, BERKS., RG12 8FT.
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS................................2 SERVICE HINTS ..................................3 SERVICE POSITION.................................4 ADJUSTMENT PROCEDURE AND SELF-CHECK ........................5 WAVEFORM PATTERN TABLE ...............................6 ALIGNMENT SETTINGS................................7 BLOCK DIAGRAMS ..................................8 PARTS LOCATION .................................12 REPLACEMENT PARTS LIST ..............................13 SCHEMATIC DIAGRAMS ...............................30 CONDUCTOR VIEWS................................39 SAFETY PRECAUTIONS GENERAL GUIDE LINES It is advisable to insert an isolation transformer in the The potential at any point should not exceed a.c.
  • Page 3: Service Hints

    SERVICE HINTS How to remove the rear cover 1. Remove the 10 screws as shown in Fig.2. SCREWS Fig.2. LOCATION OF CONTROLS Y-Board M-Board V-Board F-Board N-Board E-Board Focus H-Board G-Board D-Board Screen Fig.3.
  • Page 4: Service Position

    HOW TO MOVE THE CHASSIS INTO SERVICE POSITION 1. Remove the bead clamper from the mains lead and affix, using back cover screw, into top right-hand cabinet rib (A), shown in Fig.4. 2. Remove 2 screws (B), as shown in Fig.5, and remove speaker assembly. 3.
  • Page 5: Adjustment Procedure And Self-Check

    ADJUSTMENT PROCEDURE Item / Preparation Adjustments +B SET-UP 1. Confirm the following voltages. D-Board E-Board Receive a Greyscale signal. PIN5 147V ± 3V E19-PIN8 ± 0,5V Set the controls :- PIN5 5V ± 0,3V IC3801-PIN3 9V ± 0,5V Brightness Minimum PIN1 40V ±...
  • Page 6: Waveform Pattern Table

    WAVEFORM PATTERN TABLE NOTE: All waveforms have been taken using a standard colour bar pattern. Vert Drive VFLB Vert Out IC451 Pin 2 IC451 Pin 5 IC601 Pin 1 8.6mS 8.6mS H - Out HFLB Video In IC601 Pin 8 IC601 Pin 13 IC1101 Pin 68 64µS...
  • Page 7: Alignment Settings

    ALIGNMENT SETTINGS: (The figures below are nominal and used for representative purposes only.) 1. Set the Bass to maximum position, set the Treble to minimum position, press the down button (- / v) on the customer controls at the front of the TV and at the same time press the INDEX button on the remote control, this will place the TV into the Service Mode.
  • Page 8: Block Diagrams

    9,'(2 %/2&. ',$*5$0...
  • Page 9 $8',2 %/2&. ',$*5$0...
  • Page 10 &21752/ %/2&. ',$*5$0...
  • Page 11 32:(5 6833/< '()/(&7,21 %/2&. ',$*5$0...
  • Page 12: Parts Location

    PARTS LOCATION NOTE: The numbers on the exploded view below refer to the mechanical section of the Replacement Parts List.
  • Page 13: Replacement Parts List

    REPLACEMENT PARTS LIST Important Safety Notice Components Identified by mark have special characteristics important for safety. * When replacing any of these components, use only manufacturers specified parts. In case of ordering these spare parts, please always add the complete Model-Type number to your order.
  • Page 14 Cct Ref Parts Number Description Cct Ref Parts Number Description D351 ERA15-04V3 DIODE D855 D10SC6MRL DIODE D352 ERA15-04V3 DIODE D856 MA165TA5 DIODE D361 ERA15-04V3 DIODE D857 FML22SLF610 DIODE D362 ERA15-04V3 DIODE D860 1SS254T-77 DIODE D371 ERA15-04V3 DIODE D861 MTZJT-775.1C DIODE D372 ERA15-04V3 DIODE...
  • Page 15 Cct Ref Parts Number Description Cct Ref Parts Number Description Q604 BC857B TRANSISTOR Q2102 BC860B TRANSISTOR Q607 BC857B TRANSISTOR Q2103 BC860B TRANSISTOR Q608 BC857B TRANSISTOR Q2301 BC847B TRANSISTOR Q701 2SK2538000LB TRANSISTOR Q2302 BC847B TRANSISTOR Q801 2SK1365LB106 TRANSISTOR Q2305 BC857B TRANSISTOR Q803 2SD965-R TRANSISTOR...
  • Page 16 Cct Ref Parts Number Description Cct Ref Parts Number Description L371 TAXK0036 DELAY LINE L1539 TLT033K991R COIL L373 TLT120K991R COIL L1540 TLT018K991R COIL L381 TLT220K991R COIL L1541 TLT033K991R COIL L383 EXCELSA35T COIL L1542 TLT018K991R COIL L501 ELELN101KA COIL L1543 TLT033K991R COIL L554 EXCELSA35T...
  • Page 17 Cct Ref Parts Number Description Cct Ref Parts Number Description ERJ8GEY0R00 S.M.CARB .125W JSF025 ERJ6GEY0R00 S.M.CARB 0.1W ERJ8GEY0R00 S.M.CARB .125W JSF024 ERJ6GEY0R00 S.M.CARB 0.1W ERJ8GEY0R00 S.M.CARB .125W JSF023 ERJ6GEY0R00 S.M.CARB 0.1W ERJ8GEY0R00 S.M.CARB .125W JSF022 ERJ6GEY0R00 S.M.CARB 0.1W ERJ6GEY0R00 S.M.CARB 0.1W JSF021 ERJ6GEY0R00...
  • Page 18 Cct Ref Parts Number Description Cct Ref Parts Number Description R358 ERC12GK471C SOLID 0.5W R581 ERJ6GEYJ104 S.M.CARB 0.1W 100K R360 ERO50PKF8251 METAL 0.5W R582 ERJ6GEYJ225 S.M.CARB 0.1W R361 ERJ6GEYJ911 S.M.CARB 0.1W R583 ERJ6GEYJ225 S.M.CARB 0.1W R362 ERJ6GEYJ102 S.M.CARB 0.1W R588 ERJ6GEY0R00 S.M.CARB 0.1W...
  • Page 19 Cct Ref Parts Number Description Cct Ref Parts Number Description R806 ERJ6GEYJ101 S.M.CARB 0.1W R920 ERQ14AJW390 FUSIBLE 0.25W R807 ERD25TJ104 CARBON 0.25W 100K R922 ERD25TJ683 CARBON 0.25W R809 ERF10ZK4R7 WOUND R923 ERD25TJ683 CARBON 0.25W R810 ERJ6GEYJ223 S.M.CARB 0.1W R924 ERDS1FYJ330 CARBON 0.5W R811...
  • Page 20 Cct Ref Parts Number Description Cct Ref Parts Number Description R1145 ERJ6GEYJ472 S.M.CARB 0.1W R1519 ERJ6GEYJ561 S.M.CARB 0.1W R1146 ERJ6GEYJ101 S.M.CARB 0.1W R1520 ERJ6GEYJ471 S.M.CARB 0.1W R1147 ERJ6GEYJ223 S.M.CARB 0.1W R1521 ERJ6GEYJ820 S.M.CARB 0.1W R1148 ERJ6GEYJ104 S.M.CARB 0.1W 100K R1522 ERJ6GEYJ103 S.M.CARB 0.1W...
  • Page 21 Cct Ref Parts Number Description Cct Ref Parts Number Description R1590 ERJ6GEYJ101 S.M.CARB 0.1W R1676 ERJ6GEYJ560 S.M.CARB 0.1W R1591 ERJ6GEYJ103 S.M.CARB 0.1W R1677 ERJ6ENF6800 S.M. CAR 0.1W R1592 ERJ6GEYJ101 S.M.CARB 0.1W R1678 ERJ6ENF1500 S.M. CAR 0.1W R1593 ERJ6GEYJ101 S.M.CARB 0.1W R1679 ERJ6ENF1500 S.M.
  • Page 22 Cct Ref Parts Number Description Cct Ref Parts Number Description R1904 ERJ6GEYJ334 S.M.CARB 0.1W 330K R2377 ERJ6GEYJ103 S.M.CARB 0.1W R1905 ERJ6GEYJ683 S.M.CARB 0.1W R2459 ERJ6GEY0R00 S.M.CARB 0.1W R1906 ERJ6GEYJ563 S.M.CARB 0.1W R2460 ERJ6GEY0R00 S.M.CARB 0.1W R1907 ERJ6GEY0R00 S.M.CARB 0.1W R2474 ERJ6GEYJ101 S.M.CARB 0.1W...
  • Page 23 Cct Ref Parts Number Description Cct Ref Parts Number Description R3067 ERJ6GEYJ102 S.M.CARB 0.1W R3433 ERJ6GEYJ332 S.M.CARB 0.1W R3068 ERJ6GEYJ563 S.M.CARB 0.1W R3434 ERJ6GEYJ333 S.M.CARB 0.1W R3069 ERJ6GEYJ183 S.M.CARB 0.1W R3435 ERJ6GEYJ680 S.M.CARB 0.1W R3070 ERJ6GEYJ102 S.M.CARB 0.1W R3436 ERJ6GEYJ102 S.M.CARB 0.1W R3071...
  • Page 24 Cct Ref Parts Number Description Cct Ref Parts Number Description R3975 ERJ6GEYJ102 S.M.CARB 0.1W C284 ECUV1H102KBX S.M. CAP R3976 ERJ6GEYJ102 S.M.CARB 0.1W C285 ECA1HMR47GB ELECT 10µF R3978 ERJ6GEY0R00 S.M.CARB 0.1W C287 ECA1HM100GB ELECT 1µF R3981 ERQ14AJ220 FUSIBLE 0.25W C288 ECA1HM010GB ELECT 10nF R3982...
  • Page 25 Cct Ref Parts Number Description Cct Ref Parts Number Description 100nF 150nF C602 ECUV1H104ZFX S.M. CAP C843 ECQU2A154MN FILM 250V 100nF 100µF C603 ECUV1H104ZFX S.M. CAP C847 ECEA1EN101UB ELECT 47pF 330pF C604 ECUV1H470JCX S.M. CAP C848 ECKC2H331J CERAMIC 500V 220µF 390pF C605 ECA1CM221GB...
  • Page 26 Cct Ref Parts Number Description Cct Ref Parts Number Description 220nF 100nF C1148 ECUV1C224KBX S.M. CAP C1570 ECUV1H104ZFX S.M. CAP 10pF 470µF C1501 ECUV1H100DCX S.M. CAP C1571 ECA1CM471GB ELECT 470pF 100nF C1502 ECUV1H471JCX S.M. CAP C1572 ECUV1H104ZFX S.M. CAP 39pF 100nF C1503 ECUV1H390JCX...
  • Page 27 Cct Ref Parts Number Description Cct Ref Parts Number Description 100nF 22pF C1639 ECUV1H104ZFX S.M. CAP C1815 ECUV1H220JCX S.M. CAP 100nF 100nF C1642 ECUV1H104ZFX S.M. CAP C1816 ECUV1H104ZFX S.M. CAP 100nF 330pF C1643 ECUV1H104ZFX S.M. CAP C1817 ECUV1H331JCX S.M. CAP 100nF 100nF C1644...
  • Page 28 Cct Ref Parts Number Description Cct Ref Parts Number Description 10nF C2135 ECUV1H070DCX S.M. CAP C3120 ECUV1H103KBX S.M. CAP 100nF C2137 ECUV1H104ZFX S.M. CAP C3122 ECUV1H102KBX S.M. CAP 10nF C2138 ECUV1H010CCX S.M. CAP C3123 ECUV1H103KBX S.M. CAP C2139 ECUV1H010CCX S.M. CAP C3124 ECUV1H102KBX S.M.
  • Page 29 ELECT I.C.s 10µF C3924 ECKC3A122J CERAMIC IC1102 X24C0503TA EAROM * 150pF C3925 ECKC3A151J CERAMIC 680pF C3926 ECKC3A681J CERAMIC DIFFERENCES FOR MODEL TX-36PF10 1µF C3927 ECA1HM010GB ELECT 22nF C3928 ECQM4223JZW FILM 400V MECHANICAL PARTS 22nF C3929 ECQM4223JZW FILM 400V 100pF C3931...
  • Page 30: Schematic Diagrams

    SCHEMATIC DIAGRAMS FOR MODELS TX-36PF10 TX-32PF10 (EURO-5 CHASSIS) IMPORTANT SAFETY NOTICE Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer's specified parts. NOTE RESISTOR All resistors are carbon ¼W resistor, unless marked otherwise.
  • Page 41 D - BOARD TNPA0876 DIODE’S TRAN’S D391 Q502 D502 Q552 D503 Q553 D504 Q554 D505 Q701 D556 Q801 D559 Q803 D560 Q804 D561 Q845 D563 Q846 D565 Q847 D566 Q848 D571 Q849 D575 Q850 D591 Q852 D592 Q854 D701 Q3901 E2 D807 Q3902 D1 D808...
  • Page 42: Conductor Views

    CONDUCTOR VIEWS E - BOARD TNPH0176 TRAN’S DIODE’S Q101 D001 D2364 A6 Q103 D002 D3005 B1 Q104 D252 D3006 B2 Q251 D253 D3008 B4 Q252 D254 D3009 A3 Q253 D255 D3010 A3 Q254 D256 D3011 B1 Q281 D281 D3803 A5 Q282 D282 D3804 A5...
  • Page 43 Y - BOARD TNPA1353 TRAN’S Q901 Q902 Q903 Q904 Q906 Q908 Q909 Q3351 A2 Q3352 A2 DIODE’S D351 D352 D361 D362 D371 D372 D373 D374 D375 D387 D901 D902 D903 D910 D911 D3351 A2 D3352 A3 D3353 A1 D3354 C3 T.P.’S TPY1 TPY2...
  • Page 44 H - BOARD TNPA1047 TRAN’S Q2401 A2 Q2407 A3 Q2408 A3 Q2409 A3 Q2410 A3 Q2411 A3 Q2412 A3 Q3401 B1 Q3402 C1 Q3403 B1 Q3404 C1 Q3405 C3 Q3406 C3 DIODE’S D2401 A2 D2403 A3 D2404 A3 D2405 A3 D2406 A3 D2407 A3 D2408 A3...
  • Page 45 G - BOARD TNPA0877 TRAN’S Q1801 C2 Q1802 C2 Q1803 C3 Q1804 B2 Q1805 B3 Q1806 B3 Q2502 B2 Q2505 A2 Q2506 B2 Q2507 A1 I.C.’S IC1801 C2 IC1802 C1 IC2501 B2 DIODE’S D1801 B2 D1802 B2...
  • Page 46 M - BOARD TNP8EM018 DIODE’S D1012 A1 D1013 A1 D1014 B1 D1015 B1 D1016 B1 D1017 B1...
  • Page 47 F - BOARD TNPA1068 TRAN’S Q1663 B2 Q1664 B2 Q1665 B2 Q1666 C1 Q1667 C1 I.C.’S IC1502 B3 IC1503 C3 IC1504 D1 IC1505 D2 IC1506 C2 IC1509 C1 IC1510 C1...
  • Page 48 F - BOARD TNPA1068 TRAN’S Q1501 D3 Q1502 C3 Q1503 B2 Q1504 C1 Q1505 C1 Q1506 C1 Q1507 C1 Q1508 C1 Q1509 C1 Q1510 D1 Q1511 D1 Q1519 D1 Q1660 C2 Q1661 C2 Q1662 C2 I.C.’S IC1507 B2...
  • Page 49 N - BOARD TNP8EN017 TRAN’S Q1011 D4 Q1012 D6 I.C.’S IC1011 E6...
