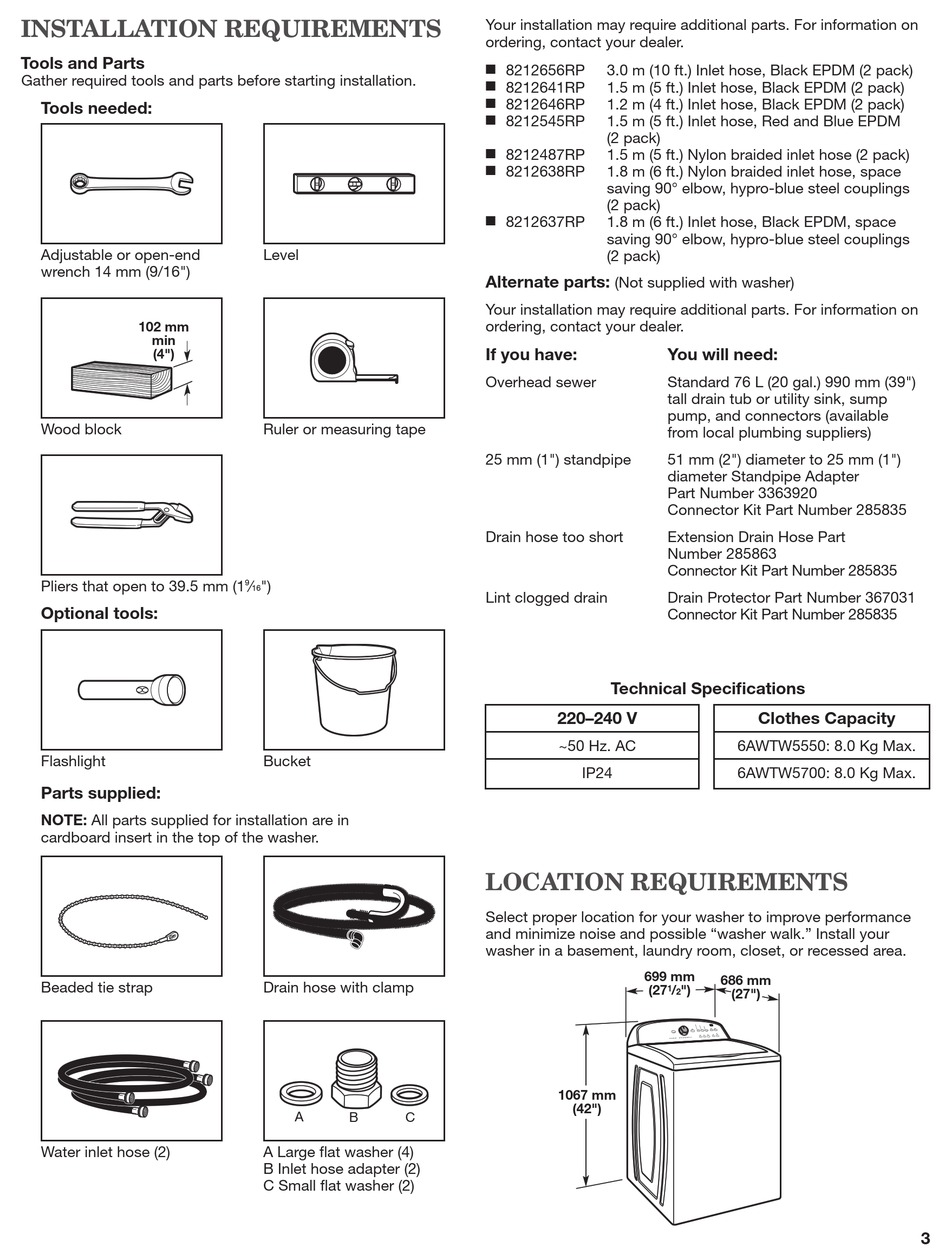

INSTALLATION REQUIREMENTS

Tools and Parts

Gather required tools and parts before starting installation.
Tools needed:
Adjustable or open-end
wrench 14 mm (9/16")
102 mm
min
(4")
Wood block
Pliers that open to 39.5 mm (1
Optional tools:
Flashlight
Parts supplied:
NOTE: All parts supplied for installation are in
cardboard insert in the top of the washer.
Beaded tie strap
Water inlet hose (2)
Level
Ruler or measuring tape
⁄ ")
9
16
Bucket
Drain hose with clamp
A
B C
A Large flat washer (4)
B Inlet hose adapter (2)
C Small flat washer (2)
Your installation may require additional parts. For information on
ordering, contact your dealer.
8212656RP 3.0 m (10 ft.) Inlet hose, Black EPDM (2 pack)
n
8212641RP 1.5 m (5 ft.) Inlet hose, Black EPDM (2 pack)
n
8212646RP 1.2 m (4 ft.) Inlet hose, Black EPDM (2 pack)
n
8212545RP 1.5 m (5 ft.) Inlet hose, Red and Blue EPDM
n
(2 pack)
8212487RP 1.5 m (5 ft.) Nylon braided inlet hose (2 pack)
n
8212638RP 1.8 m (6 ft.) Nylon braided inlet hose, space
n
saving 90° elbow, hypro-blue steel couplings
(2 pack)
8212637RP 1.8 m (6 ft.) Inlet hose, Black EPDM, space
n
saving 90° elbow, hypro-blue steel couplings
(2 pack)
Alternate parts:
(Not supplied with washer)
Your installation may require additional parts. For information on
ordering, contact your dealer.
If you have:
Overhead sewer
25 mm (1") standpipe
Drain hose too short
Lint clogged drain
Technical Specifications
220–24.0 V
~50 Hz. AC
IP24

LOCATION REQUIREMENTS

Select proper location for your washer to improve performance
and minimize noise and possible "washer walk." Install your
washer in a basement, laundry room, closet, or recessed area.
699 mm
(27
1067 mm
(42")
You will need:
Standard 76 L (20 gal.) 990 mm (39")
tall drain tub or utility sink, sump
pump, and connectors (available
from local plumbing suppliers)
51 mm (2") diameter to 25 mm (1")
diameter Standpipe Adapter
Part Number 3363920
Connector Kit Part Number 285835
Extension Drain Hose Part
Number 285863
Connector Kit Part Number 285835
Drain Protector Part Number 367031
Connector Kit Part Number 285835
Clothes Capacity
6AWTW5550: 8.0 Kg Max.
6AWTW5700: 8.0 Kg Max.
686 mm
/ ")
1
(27")
2
3
