M A N U A L
Hand held mic system | Wireless headset system | Bodypack system | Instrument/guitar bug system
For the latest instruction manual updates and information on the entire Kam range visit:
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change. © Copyright Lamba plc 2012. E&OE.

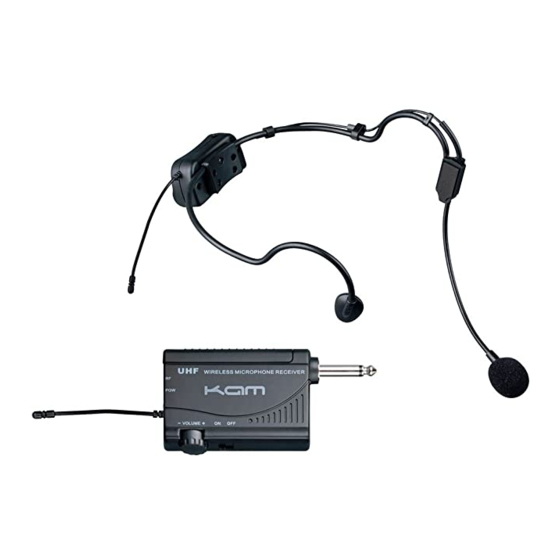

KWM1900
Wireless microphone system
V E R S I O N
2 0 - 0 2 - 1 3
UHF 863.00 - 865.00MHz frequency band
SMT technology
Preset 16 channel PLL system
Frequency stabilisation: < ±30ppm
Dynamic range: > 100dB
Total harmonic distortion: < 0.5%
Frequency response: 40Hz-15KHz ±3dB
Power consumption: 100mA
Signal to noise ratio: > 100dB
Image & spurious rejection: > 80dB
Border upon channel rejection: > 80dB
Receiving sensitivity: 5dBuV (SINAD=30dB)
De-emphasis: 50us
4 different Kam KWM1900 kits available:
www.kam.co.uk
4 . 0
Advertisement
Related Manuals for KAM KWM1900
Summary of Contents for KAM KWM1900
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this Kam product, we are sure that it will serve you for many years to come. To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the basic operations of this unit. Please retain them for future reference.This unit has been tested at the factory before being shipped to you.
- Page 3 Dance instructors Musicals & theatre Schools & colleges DJs & musicians Auctioneers Video & film makers Features of the KWM1900 receiver 1. Power switch 2. Volume control 3. Antenna 4. Power supply LED indicator 5. Signal and audio indicator 6. Battery cover 7.
- Page 4 Insert the jack plug into the output jack socket of your guitar/instrument and adjust the volume to suit. Pairing the KWM1900 bodypack with the receiver (if supplied with your system) Ensure that the dipswitches on both the receiver and the bodypack match each other. Once both are set to the same channel (see above table), the bodypack is ready to use.
- Page 5 2. Power supply LED indicator 3. Power switch 4. Battery compartment cover 5. ACTIR 6. Battery compartment Features of the KWM1900 headset microphone (if supplied with your system) 1. Power switch 2. Antenna 3. ACT IR (shown with battery cover removed) 4. Battery compartment 5.
- Page 6 Features of the KWM1900 guitar bug (if supplied with your system) 1. Battery compartment 2. Antenna 3. Power switch 4. 15dB pad switch 5. ¼ inch jack instrument insert 6. Power supply LED indicator 7. ACT IR (not shown) Features of the KWM1900 bodypack (if supplied with your system) 1.
- Page 7 Specifications Comprehensive performance Carrier frequency UHF 863.00 - 865.00MHz Frequency stabilisation Less than ±30ppm Dynamic range More than 100dB Total harmonic distortion Less than 0.5% Frequency response 40Hz-15KHz ±3dB Audio output level Mix type: 0-±400mV Fixed receiver Consume power 100mA Signal/noise ratio More than 100dB Image &spurious rejection...
