Page 1

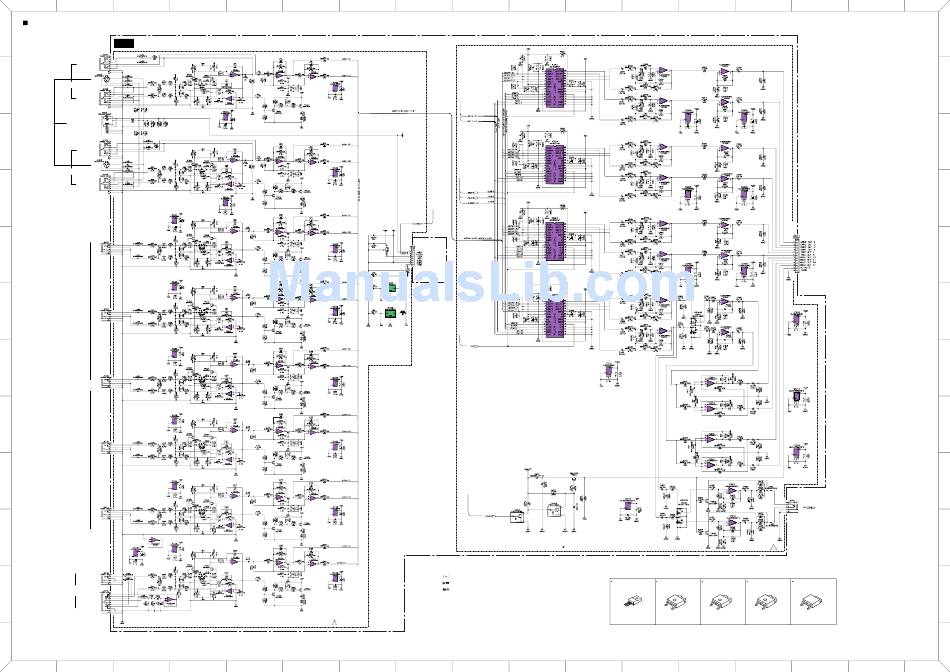

AW4416 AW4416 OVERALL CIRCUIT DIAGRAM 1/6 (MAIN1/4) MAIN MAIN (AD / DA) ADC/DAC MAIN (HA) OP AMP OP AMP OP AMP INSERT I/O OP AMP LINE/MIC to MAIN4/4 (D-2) PEAK PHANTOM +48V ADC/DAC OP AMP OP AMP OP AMP INSERT I/O...
Page 2
AW4416 AW4416 OVERALL CIRCUIT DIAGRAM 2/6 (MAIN2/4) MAIN MAIN (DSP6-1) DSP6 DSP6 DSP6 to MAIN3/4 (E-11) REGULATOR to MAIN4/4 (E-2) REGULATOR BUFFER +3.3V to MAIN3/4 (P-5) to Power Supply Unit BUFFER DRAM 16M DRAM 16M BUFFER to MAIN3/4 (P-5) KEC-92554...
Page 4
AW4416 AW4416 OVERALL CIRCUIT DIAGRAM 6/6 (SUB-FADER, SUB-CPU, PN-ENC) SUB-FADER MULTIPLEXER MULTIPLEXER to Power Supply Unit MOTOR MOTOR MOTOR MOTOR MOTOR MOTOR MOTOR MOTOR MOTOR DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER MOTOR MOTOR MOTOR MOTOR MOTOR MOTOR...
AW4416 CIRCUIT BOARDS MAIN Circuit Board to SUB-CPU to PN-MY-CN102 -CN303 to PN-MY-CN105 to PN-MY-CN106 Not installed to PN-MY-CN103 PHANTOM +48V INSERT INSERT ON/OFF Power suppy unit to SUB-CPU -CN201 Note: See parts list for details of circuit board component parts.
Page 6
AW4416 to PN-HENKAN-CN204 to CD-RW unit TO HOST SCSI HI-Z PHONES DIGITAL STEREO WORD CLOCK to PN-INV-CN303 to Power supply unit 3NA-V544810-2 Component side...
Page 7
AW4416 MAIN Circuit Board PEAK PEAK MONITOR OUT PHONES 3NA-V544810-3...
Page 9
AW4416 PN-SW Circuit Board WORK NAVIGATE QUICK MASTER PLAY UNIT MIXER AUX 7 AUX 8 EFF 1 EFF 2 SAMPLING PAD MIXING LAYER 17-24 IDE Circuit Board Component side Pattern side PN-SW: 3NA-V544820-2 IDE: 3NA-V631890...
Page 10
AW4416 SAFE RECORDER AUTOMATION JOG ON SCENE MEMORY 9/MARK 4/IN 5/OUT 6/SET ROLL BACK - /+ 0/RTZ Component side PN-SW: 3NA-V544820-2...
Page 11
AW4416 PN-SW Circuit Board Pattern side Pattern side 3NA-V544820-3...
Page 12
AW4416 PN-HDD Circuit Board Component side PN-ENC Circuit Board PN-HENKAN Circuit Board to SUB-CPU -CN309 Power supply unit to MAIN-CN806 HIGH -MID -MID Component side Component side PN-INV Circuit Board to PN-SW-CN601 to MAIN-CN601 to LCD Component side PN-MY Circuit Board...
Page 13
AW4416 SUB-CPU Circuit Board FOOT SW MIDI MOUSE MT COUT OUT/THRU to MAIN-CN701 to PN-SW-CN402 to PN-SW-CN401 to PN-ENC-CN305 SUB-FADER Circuit Board to SUB-CPU-CN307 to SUB-CPU-CN308 3NA-V544830-2...
Page 14
AW4416 OMNI OUT MONITOR OUT STEREO OUT OT SW to MAIN-CN201 to SUB-FADER -CN101 Component side N305 to SUB-FADER-CN102 to Power supply unit STEREO 3NA-V544830-2 Component side...
PROFESSIONAL AUDIO WORKSTATION PARTS LIST CONTENTS OVERALL ASSEMBLY ..........2 BOTTOM CHASSIS ASSEMBLY ..5 ELECTRICAL PARTS ..........6 Notes : DESTINATION ABBREVIATIONS A : Australian model M : South African model B : British model O : Chinese model C : Canadian model Q : South-east Asia model D : German model...
Page 18
AW4416 OVERALL ASSEMBLY Top cover assembly Bottom chassis assembly: See page 5 820 830...
Page 35
AW4416 PART NO. DESCRIPTION REMARKS REF NO. RANK R276 RD256100 Carbon Resistor (chip) 1.0K 0.1 J R277 V I 1 9 7 2 0 0 Metal Film Resistor (chip) 8.2K 1/10 D R278 V I 1 9 7 2 0 0 Metal Film Resistor (chip) 8.2K 1/10 D...
. 35 North European, CD-RW DRIVE INSTALLATION British, ..........37 Asian & Pacific I/O CARD INSTALLATION ....41 AW4416 + HDD + CD-RW North European, LSI PIN DESCRIPTION ........ 43 British IC BLOCK DIAGRAM ........54 CIRCUIT BOARDS ........58 TEST PROGRAM ......
Page 48
IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated.
Sampling time max. 90 sec. (16-bit/44.1 kHz) Recorder section Recording medium 2.5" IDE hard disk drive Sound file format AW4416 original format Recording resolution 16-bit, 24-bit 130 tracks (16 tracks × 8 virtual tracks plus ste- Tracks reo track) Maximum recording time Approx.
AW4416 Power requirements U.S.A. & Canada 120 V 80 W AC, 60 Hz Europe 230 V 80 W AC, 50 Hz Dimensions (W × H × D) 558.0 × 147.7 × 459.7 mm (22 x 5.8 x 18.1 inches) Weight 11.8 kg (26 lbs)
Page 52
5–8 130 tracks (16 tracks × 8 virtual tracks plus ste- Tracks reo track) Format File system AW4416 original format Internal hard disk drive 2.5" IDE Max. hard disk capacity 64 GB (8 GB partition) Max. songs per hard disk Approx.
Page 53
AW4416 Mixer section WORK NAVIGATE buttons SONG, QUICK REC, MASTERING, CD PLAY UNIT buttons SETUP, FILE, UTILITY, MIDI MIXER buttons VIEW, PAN, EQ, DYN FADER MODE buttons AUX1, AUX2, AUX3, AUX4, AUX5, AUX6, AUX7, AUX8, HOME MIXING LAYER buttons 1–16, 17–24 RTN, MONI ON buttons, SEL buttons, Faders 1–8...
AW4416 PANEL LAYOUT Top panel Analog input/output section PEAK PEAK PEAK PEAK PEAK PEAK PEAK PEAK PHONES MONITOR OUT LINE LINE LINE LINE LINE LINE LINE LINE PEAK PEAK PEAK PEAK PEAK PEAK PEAK PEAK PHONES MONITOR OUT LINE LINE...
Page 65
AW4416 RECORDER section RECORDER TRACK EDIT UNDO REDO PROFESSIONAL AUDIO WORKSTATION [TRACK] key RECORDER TRACK EDIT UNDO REDO [EDIT] key [UNDO] key [REDO] key AUTOMATION section PROFESSIONAL AUDIO WORKSTATION AUTOMATION AUTOMATION AUTO SCENE AUTO SCENE [AUTOMIX] key [SCENE] key SCENE MEMORY section...
Page 66
AW4416 CURSOR/JOG & SHUTTLE section PROFESSIONAL AUDIO WORKSTATION JOG ON JOG ON CURSOR ENTER YES/LOCATE DATA/ SHUTTLE CURSOR ENTER LOCATE DATA/ SHUTTLE [JOG ON] key [DATA/JOG] dial [SHUTTLE] dial CURSOR [ ]/[ ]/[ ]/[ ] keys [ENTER] key Locate section...
Page 67
AW4416 Transport section PROFESSIONAL AUDIO WORKSTATION STOP PLAY STOP PLAY [REW] (rewind) key [FF] (fast-forward) key [STOP] key [PLAY] key [REC] key SAMPLING PAD section SHIFT SHIFT SAMPLING PAD BANK EDIT PROFESSIONAL AUDIO WORKSTATION SAMPLING PAD BANK EDIT A/B bank indicators...
AW4416 Rear panel PHANTOM +48V HI-Z INSERT I/O INSERT I/O ON OFF OMNI OUT MONITOR OUT STEREO OUT 3:COLD 1:GND 2:HOT HOT COLD OUT IN UNBAL ( 0dB ) BAL (+4dB) UNBAL (–10dBV) BAL PHONE INSERT TO HOST SCSI WORD CLOCK...
AW4416 DISASSEMBLY PROCEDURE Bottom Cover Remove the four (4) screws marked [990]. The connector cover can then be removed. (Fig.1) Remove the two (2) screws marked [910A]. The CD-RW cover can then be removed. (Fig.1) Remove the twelve (12) screws marked [910A]. The bottom cover can then be removed.
Page 73
AW4416 PN-MY, PN-HENKAN, PN-HDD Circuit Boards and Power Supply Unit Remove the bottom cover. (See procedure 1.) Remove the five (5) screws marked [900C]. The bottom chassis assembly can then be removed. (Fig.3) PN-MY Circuit Board: Remove the four (4) screws marked [900D]. The PN- MY circuit board can then be removed.
Page 74
AW4416 MAIN and SUB-CPU Circuit Boards Remove the eight (8) knobs marked [630] and the two (2) knobs marked [640]. (Fig.2) Remove the bottom cover. (See procedure 1.) Remove the bottom chassis assembly. (See procedure 3-2.) Remove the two (2) screws marked [900G] and the ten (10) screws marked [900H].
Page 75
AW4416 Remove the four (4) screws marked [900K]. The CD-RW holder can then be removed. (Fig.3) Remove the fifteen (15) screws marked [900L]. The sub chassis can then be removed. (Fig.7) Remove the four (4) screws marked [900M]. The LCD support can then be removed. (Fig.8) PN-SW circuit board: Remove the six (6) screws marked [900N].
• Never attempt to disassemble a hard disk or apply excessive force to it. • The AW4416 is shipped with four screws for attaching a 2.5 inch hard disk, and four screws for attaching a CD-RW drive, making a total of eight included screws of the same type.
Page 77
AW4416 4. Place the hard disk on the ADP25H (PN-HDD circuit board) as shown in the diagram below, align the screw holes of the hard disk and the ADP25H (PN-HDD circuit board), and use your screwdriver to fasten the screws at the four locations shown.
CD-RW DRIVE INSTALLATION The SCSI ID of the CD-RW drive • The SCSI ID of the AW4416 itself is fixed at “6.” For this reason, you must set the SCSI ID of the CD-RW drive to “6” before installing it.
• Philips (+) screwdriver • Work surface • In order to install the CD-RW drive you will need to turn the AW4416 on itsback. Make sure that you have a sufficiently broad work surface. • The AW4416 is shipped with four screws for attaching the 2.5 inch hard disk, and four screws for attaching the CD-RW drive, making a total of eight screws of the same type.
Page 80
If the packing foam is not available, please spread out a soft cloth, and support each of the four corners of the AW4416 with a stack of magazines etc.
Page 81
7. Plug the connector of the flat cable (Connector assembly V564700) extending from inside the AW4416 into the connector of the CD-RW drive. 8. Align the screw holes in the bottom of the CD-RW drive with the screw holes of the AW4416, and use a screwdriver to fasten the drive with the four included screws.
CD-RW plate I/O CARD INSTALLATION 1. Make sure that the power of the AW4416 is turned off. For safety’s sake, disconnect the power cable from the AC outlet. 2. From the OPTION I/O slot located on the rear panel of the AW4416, remove the two screws (Bind head screw...
Page 83
AW4416 Please keep the cover and screws you removed in a safe place. 3. Slide the I/O card along the rails inside the slot until it clicks into place. 4. Tighten the two screws included with the I/O card to fasten the card securely.
AW4416 HD6437042AF28 (XY715A00) CPU HD6437042AF53 (XY721A00) CPU HD6437042AF28 (XW647A00) CPU MAIN: IC601,803 SUB-CPU: IC301 NAME FUNCTION NAME FUNCTION TIOC4/DACK0/PE14 MTU I/O / DMA acknowledge / Port E PE15 Port E Data bus Ground Ground Data bus Power supply Address bus...
AW4416 YSS904-F (XV989A00) DSP5 (Digital Signal Processor) MAIN: IC505,509 NAME FUNCTION NAME FUNCTION Not used Not used Ground SIO28 Power supply SIO29 Serial data bus System master clock input (60 MHz or 30 MHz) SIO30 System master clock output (High or 30 MHz)
AW4416 YSS910-S (XV988A00) DSP6 (Digital Signal Processor) MAIN: IC301,306,308,401-403,502 NAME FUNCTION NAME FUNCTION Power supply (3.3 V) Ground Ground DB13 System master clock input (60 MHz or 30 MHz) DB14 System master clock output (High or 30 MHz) DB15 Power supply (5 V)
AW4416 CI-DRC (XY629A00) Gate Array MAIN: IC830 NAME FUNCTION NAME FUNCTION Ground Ground Not used Serial data input ...
AW4416 LR38791 (XY631A00) Gate Array SUB-CPU: IC305 NAME FUNCTION NAME FUNCTION FB17 Fader control LED8 LED control Ground Ground Power supply Power supply ...
AW4416 LR38792 (XY630A00) Gate Array MAIN: IC710 NAME FUNCTION NAME FUNCTION System address bus signal FS128 Clock Ground Ground Power supply Power supply XFS64 ...
AW4416 SPC7214F0B (XY625A00) SCSI Control MAIN: IC820 NAME FUNCTION NAME FUNCTION Power supply +3.3V Power supply +3.3V EXCLK External clock input PD11 Ground OSCIN Oscillator input PD10 OSCOUT Oscillator output Port DMA data bus ...
AW4416 AK4528VF (XY624A00) ADC/DAC MAIN: IC201, 204, 207, 210 NAME FUNCTION NAME FUNCTION VCOM Common voltage output CKS0 Master clock select AINR+ Rch positive analog input CKS1 AINR- Rch negative analog input Digital audio interface select...
AW4416 SED1335F0B (XQ595A00) LCDC (LCD Controller) MAIN: IC602 NAME FUNCTION NAME FUNCTION Data bus output for 4 bit dot VRAM address bus XECL S driver enable, chain clock XSCL Data bus shift clock Ground /VWR VRAM read/write X driver latch pulse...
Page 94
AW4416 YM3437C-F (XM530A00) DIT2 (Digital Format Interface Transmitter) MAIN: IC508 NAME FUNCTION NAME FUNCTION Ground MUTE Mute MCLK Master clock input Validity flag DIN/BCLK/WCLK format select CCK/CCB C,U bit clock input/C bit data input DM1,DM0=0,0 DSP,LDSP (64 bit,LSB first) CIN/UDB...
Page 98
AW4416 MAX202CSE (XP113A00) BH9595FP-Y (XV617A00) RS-232C Transceiver SCSI Terminator SUB-CPU: IC201 MAIN: IC821 +5V INPUT 0.1uF 0.1uF 6.3V Not to be used (N.C.) 0.1uF +5V TO +10V 6.3V C1– VOLTAGE DOUBLER "H" : ENABLE MODE "L" : DISCONNECT CONTROL T3 OUT T4 OUT +10V TO –10V...
(9) Connect a footswitch to the FOOT SW jack. 1-2 Rear Panel (1) Insert the specified disc into a CD-RW drive, and install this drive in the AW4416. (Set the CD-RW drive’s SCSI ID to 3.) 2. Diagnostics Program 2-1 Program Modes The installed diagnostics program runs in four different diagnostic modes, as follows.
Page 100
2) When the following title screen appears on the display, release the keys. 3) The program starts up in AW4416 (full assembly) diagnostics mode, and the test menu appears on the LCD. (2) Test Menu Display Blinking Cursor Test not available.
Page 101
AW4416 (2) Test Menu Display Blinking Cursor Test not available. 3-3 PN-Sheet Diagnostics Mode (1) Startup 17-24 1) Hold down the key and the key, and turn the power on. UTILTY 2) When the following title screen appears on the display, release the keys.
Page 102
4-1 Tests Available in Each Mode Program Mode Program Mode Test Test Note 1:T = AW4416 (full assembly) diagnostics mode M = MAIN-sheet diagnostics mode P = PN-sheet diagnostics mode S = SUB-sheet diagnostics mode Note 2: O = Available, X = Not available Note 3: The SWITCH and LED tests are mode-dependent: the test content differs according to the mode.
Page 103
AW4416 4-2 Selecting and Executing a Test (1) Use the key to move the cursor to the test you wish to run. (2) Press ENTER to run the test. 4-3 Test Result (1) The test result is indicated to the left of the test item in the menu (see section 4-5, “Test Result Display”, below). If the test ended normally, the screen displays .
Page 104
AW4416 (3) Test Screen Type C Test name Indication Result Indication NG message area Indication Exit method Indication 1) If result is OK (4) Test Screen Type D Test name Indication Test results Indication Overall result Indication Exit method Indication...
Page 105
1) This test checks that control-panel switch LEDs light up correctly. 2) The test content varies according to the program mode, as follows. q If AW4416 mode or PN-sheet mode Tests all control panel LEDs. (See section 6, “Miscellaneous.”) w If SUB-sheet mode...
Page 106
AW4416 (2) Test Content 1) This test checks the LCD dots. 2) This is a visual test. Check that all dots blink continuously. (3) Judgment 1) Exit-method area → blank 2) If all dots blink correctly (based on visual check): Press ENTER to return to the test menu screen.
Page 107
AW4416 Checking MIX CPU <-> HDR CPU ... NG NG message NG message → No response from HDR CPU a) Problem with Mixer CPU or HDR CPU interrupts. NG message → MSB LSB 0XXX XXXX b) Problem in the CS, Address bus, or Data bus at the Mixer CPU or HDR CPU.
Page 108
AW4416 5-2-7 DSP6 Function Test (07 DSP6) (1) Display (Test Screen Type D) 1) Test name → DIAGNOSTIC for DSP6 (2) Test Content 1) Checks the MAIN CPU ⇔ DSP6 interface (DRAM). 2) Checks the DSP5 bus connection and serial I/O and parallel I/O connections.
Page 109
AW4416 9: SIO Connection ... NG NG message → IC301 SO[4] -> IC306 SIO[4] 10: PIO Connection ... NG NG message → NG: IC301 -> IC302 MSB 28 0000 X000 0000 0000 0000 0000 0000 a) Message shows “0” for PIO-bus bits that are OK.
Page 110
AW4416 (3) Judgment 1) Exit-method area → EXIT: [ENTER / CANCEL] 2) If the disk operates correctly (if the upper right of the screen → ... OK): Press ENTER to return to the test menu screen. An appears in the left column, and the cursor advances to the next test in the menu.
Page 111
AW4416 Press ENTER to return to the test menu screen. An appears in the left column, and the cursor advances to the next test in the menu. 3) If there is a problem, the screen displays the appropriate NG messages.
Page 112
AW4416 5-2-13 TO HOST Function Test (13 TO HOST) (1) Display (Test Screen Type B) 1) Test name → TO HOST (2) Test Content 1) Checks the host interface. (3) Judgment 1) Prompt area → MAKE TEST LOOP AND PRESS ENTER Exit-method area →...
Page 113
AW4416 a) MAIN CPU (IC601) Port E8 signal error. To exit, press . The program returns to the test menu screen, and an NG appears in the left column. CANCEL The cursor does not advance. 5-2-15 Mouse Interface Test (15 MOUSE) (1) Display (Test Screen Type A) 1) Test name →...
Page 114
AW4416 (3) Judgment → MAKE TEST LOOP AND PRESS ENTER 1) Prompt area → EXIT: [ENTER / CANCEL] Exit-method area Start the test by pressing ENTER . 2) If result area → OK Press ENTER to return to the test menu. An appears in the left column, and the cursor advances to the next test in the menu.
Page 115
AW4416 3) If result area → --- STATUS CHECK --- ...NG NG message --- AUDIO CHECK --- ...NG NG message → STATUS a) Bad status bit in digital audio signal. NG message → EMPHASIS a) Bad emphasis data in digital audio signal.
Page 116
AW4416 5-2-20 Mute Function Test (20 MUTE) (1) Display (Test Screen Type B) 1) Test name → MUTE (2) Test Content 1) Checks the operation of the analog-output mute. (3) Judgment 1) Prompt area → --- A/D -> D/A Mute off --- NEXT CHECK PRESS ENTER Exit-method area →...
Page 117
AW4416 5-2-22 Realtime Clock Test (22 REAL TIME CLOCK) (1) Display (Test Screen Type B) 1) Test name → REAL TIME CLOCK (2) Test Content 1) Set the internal clock (RTC) date and time. 2) Check that the clock starts correctly.
Page 118
(2) The FADER AGING test (test 30 in the menu) generates a series of fader operations. This is a special test that places the AW4416 into a special mode. Fader operation itself is tested by the FADER test (test 19 in the test menu). Note that at test program startup the test menu automatically shows an for the FADER AGING test.
CANNOT RECALL AUTOMIX Redo (re-execution of an operation) is not possible. CANNOT REDO Since the AW4416 is set to be the MTC slave, the external word CANNOT SELECT (MTC SLAVE) clock cannot be selected as the word clock source. CANNOT SELECT (WC EXTERNAL) Since the external word clock is selected as the word clock source, the AW4416 cannot be set as the MTC slave.
Page 138
MIDI: RX BUFFER FULL! The AW4416 is receiving more MIDI data than it can handle. MIDI: TX BUFFER FULL! The AW4416 is attempting to transmit more MIDI data than it can handle. NO CURRENT AUTOMIX. There is no valid automix data. Please create a new mix.
TRIGGER LIST RECORDING UNDO COMPLETE Undo (cancellation of the previous operation) has been executed. WRONG WORD CLOCK!! The word clock from a connected device selected by the AW4416 for synchronization is not appropriate. Popup messages A error occurred when accessing the CD.
Page 140
AW4416 A problem has occurred on the media. Media Error! The media has no free space. Media Full! The media is write-protected. Media Protected! Memory Full! There is no free space in the sampling pad memory. No Song to Backup! There is no song to backup.
MIDI OUT, the PORT setting must be set to MIDI IN/ ing playback and recording. OUT. When the AW4416 is in MIDI clock transmission mode, Start/Stop/Continue commands will be transmitted by the 2.2 MIDI program change assign table corresponding operations, and MIDI Clock and Song Posi-...
Page 147
< Reception > These messages are received if the AW4416 is operating as a MTC slave. Quarter Frame messages received in realtime are assembled internally to create time code values that...
Page 148
< Reception > If MIDI Clock is being transmitted, Song Position Pointer If the AW4416 is operating as the MMC SLAVE, it will begin messages will be transmitted when the recorder stops or playback when this message is received if the device num- locates, in order to indicate the song position at which play- ber matches or is 7F.
Page 149
< Reception > RECORD READY < Reception > If the AW4416 is operating as the MMC SLAVE and the device number of the message matches or is 7F, it will begin If the AW4416 is operating as the MMC SLAVE and the recording if stopped, or punch-in if playing.
Page 150
〈 ANALOG Section 〉 DSP Section INSERT I/O CH1,2 PEAK IC101,116 IC102,103 OMNI OUT IC 202 IC 203 CN201/12P CN201/12P 8CH AD/DA IC 202 IC 203 CH 1,2 AK4528 IC102,103 +48V IC 205 IC 206 PHANTOM IC201 IC 205 IC 206 CH INPUT 1,2 OMNI OUT 1,2 IC104,107,117,...
Page 151
〈 MAIN CPU Section 〉 REAL TIME CLOCK 45.1584MHz 49.152MHz IC 709 X 702 X 703 Section WCBNC FLASH MAIN WORD CLOCK GATE ARRAY MAIN CPU IC 604 IC 710 MTCOUT IC 601 JK702 16M DRAM RES/ RECORDER CPU IC 605 DPRAM IC 803 RXD1...
Page 152
〈 DSP Section 〉 DSP Section 55-60 DSP 6 #1 IC 301 65,66 115-118 69-72 119-122 DSP 5 #8 59-62 m-Y CARD ( INPUT ) 55,56 16M DRAM SLOT 1 IC 305 109-112 DSP 6 #2 IC 306 16M DRAM 87-93 IC 505 65,66...
Page 153
〈 RECORDER CPU Section 〉 Section CN805/50P Play Back Recording SCSI MAIN RECORDER RECORDER DPRAM SCSI GATE ARRAY CONTROL IC 813 IC 820 IC 803 IC 803 IC830 CD-RW CN804/50P 64M SDRAM IC 801 FLASH DRAM 64M SDRAM IC 806 IC 809 IC 802 MAIN...
Page 154
〈 SUB CPU Section 〉 MAIN CN401/10P, IC 601 SW / LED CN402/50P MAIN MATRIX CN701 CN303/14P CN301/10P, CN306/50P 32,48 MOUSE RXD1 GATE ARRAY CN306/50P CN402/50P IC 301 IC 305 CN309/15P FOOT SW JOG / SHUTTLE PN-SW MOTOR DRIVER I/F CN305/18P, IC 302,304,306,307,308 CN307/15P,...
