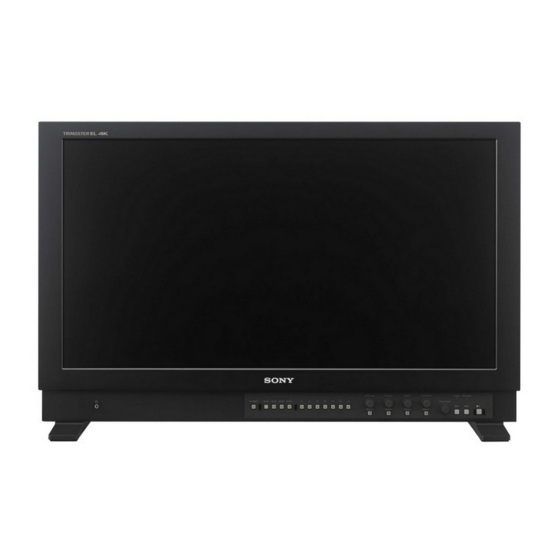

Sony BVM-X300 Operating Instructions Manual

Hide thumbs Also See for BVM-X300:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual

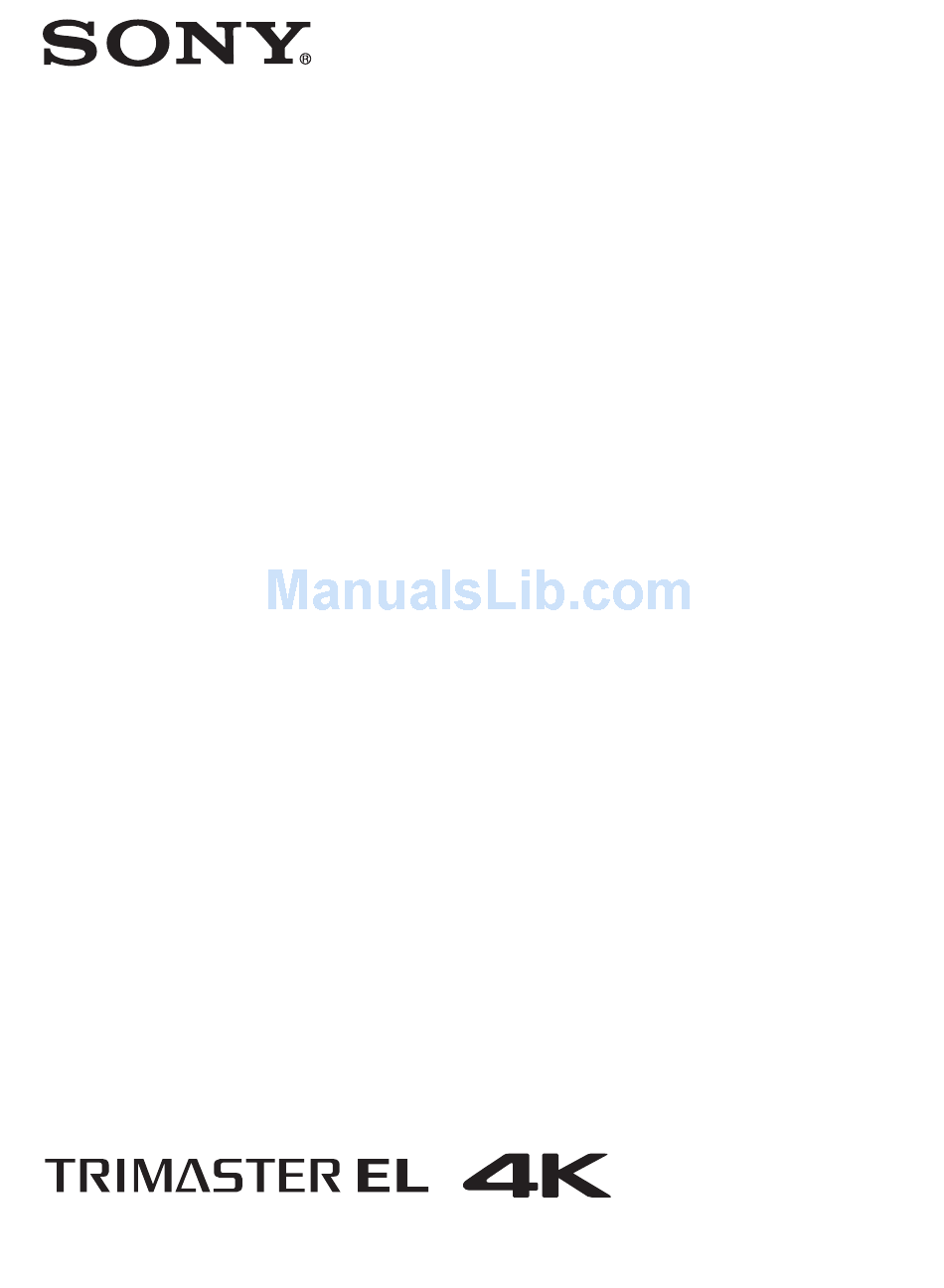

4-566-075-14(1)
Professional
Video Monitor

Operating Instructions

Before operating the unit, please read this manual thoroughly
and retain it for future reference.
BVM-X300
Software Version 1.1
© 2015 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony BVM-X300

Summary of Contents for Sony BVM-X300

  • Page 1: Operating Instructions

    4-566-075-14(1) Professional Video Monitor Operating Instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. BVM-X300 Software Version 1.1 © 2015 Sony Corporation...
  • Page 2 Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your WARNING Sony dealer regarding this product. When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the Model No.
  • Page 3 This product has been manufactured by or on behalf of 2. Use the Power Cord (3-core mains lead) / Appliance Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108- Connector / Plug conforming to the proper ratings 0075 Japan. Inquiries related to product compliance (Voltage, Ampere).
  • Page 4 Utilisez l’appareil uniquement avec le  For the customers in the U.S.A. chariot, le support, le trépied ou la table SONY LIMITED WARRANTY - Please visit http:// indiqué par le fabricant ou vendu avec www.sony.com/psa/warranty for important l’appareil. Lorsque vous utilisez un chariot, information and complete terms and conditions of faites attention lorsque vous déplacez le chariot et...
  • Page 5 Pour les clients en Europe Pour utiliser ce produit en toute sécurité, évitez l’ é coute Ce produit a été fabriqué par ou pour le compte de Sony prolongée à des pressions sonores excessives. Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japon.
  • Page 6 Wenn Sie Fragen zur Verwendung von Netzkabel/ obtenir les informations importantes et l’ e nsemble des Geräteanschluss/Stecker haben, wenden Sie sich bitte an termes et conditions de la garantie limitée de Sony qualifiziertes Kundendienstpersonal. applicable à ce produit. Für Kunden in Europa Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt die EMV-Richtlinie der EG-Kommission.
  • Page 7 For kundene i Norge Dette utstyret kan kobles til et IT- strømfordelingssystem. Apparatet må tilkoples jordet stikkontakt Suomessa asuville asiakkaille Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan För kunderna i Sverige Apparaten skall anslutas till jordat uttag Інформація для споживачів в Україні. Обладнання...

  • Page 8: Table Of Contents

    Table of Contents Precaution ............9 On Safety ..............9 On Installation ............9 Connecting to Other Devices ........ 9 Handling the Screen ..........9 On Burn-in .............. 9 On a Long Period of Use ........10 On High Brightness Display ........ 10 On the Surface of the Unit ........

  • Page 9: Precaution

    Handling the Screen Precaution  The OLED panel fitted to this unit is manufactured with high precision technology, giving a functioning pixel ratio of at least 99.99%. Thus a very small On Safety proportion of pixels may be “stuck”, either always off (black), always on (red, green, or blue), or flashing.

  • Page 10: On A Long Period Of Use

    for more than 10 minutes, the screen saver starts On Long Periods of Continuous Use automatically and the brightness of the screen decreases. Using this unit for extended periods may cause eyestrain or reduction of eyesight. On a Long Period of Use As soon as you feel physical discomfort or pain, stop using this unit immediately and take a break.

  • Page 11: Disposal Of The Unit

    On Fan Error The unit has a built in fan for cooling. When the fan stops and the  (Power) switch indicator blinks in red, turn off the power and contact an authorized Sony dealer. Precaution...

  • Page 12: Location And Function Of Parts And Controls

    Location and Function of Parts and Controls Front Panel  Function buttons   (headphones) jack The audio signal which is selected by the input select You can turn the assigned function on or off. button is output in stereo sound. The factory setting is as follows;...
  • Page 13 MANUAL button: Press to perform the adjustment manually with the knob. Each time the button is If an error display appears, refer to Sony qualified service pressed, the button indicator lights up or goes out. personnel.
  • Page 14 Menu operation buttons Value input button Button Operations Button Operations MENU button When the on-screen menu is not 1 button Press to monitor the signal input to displayed, press the button to display 2 button each connector. the menu. Press again to clear the menu. 1 button: To monitor the 4K signal ...

  • Page 15: Input Signals And Adjustable/Setting Items

    Input Signals and Adjustable/Setting Items Input signal Item SDI 4K SDI 2K Quad Link Dual Link Dual Link Single Link     APERTURE     CHROMA     BRIGHT     CONTRAST ...

  • Page 16: Rear Panel

    The output audio signal can be changed in [Audio Setting] (page 26) of the [User Configuration] menu.  LAN (10/100) connector Connect to the Sony BKM-16R Monitor Control Unit by using a 10BASE-T/100BASE-TX LAN cable (shielded type, optional). CAUTION ...

  • Page 17: Connecting The Ac Power Cord

    Connecting the AC Power Using the Menu Cord The unit is equipped with an on-screen menu for making various adjustments and settings such as picture Plug the AC power cord into the AC IN socket on control, input setting, set setting change, etc. the rear panel.

  • Page 18: Protection Of The Setting Values

    Turn the menu selection control to select the item, Protection of the Setting then press the menu selection control. The item to be changed is displayed in yellow. Values If the menu consists of multiple pages, turn the menu selection control to go to the desired menu page.

  • Page 19: Adjustment Using The Menus

    [Pattern] Adjustment Using the [Gamut Marker Setting] [Gamut Marker] Menus [Target] [Serial Remote] Items [Monitor] [Network Setting] The screen menu of this monitor consists of the [Connection] following items. [Controller] [Network Setting] [Function Button Setting] [Status] (the items indicate the current settings.) [Security] Displays the unit setting status, etc.

  • Page 20: [User Preset Setting] Menu

     [Color Temp.] [Contrast]  [Brightness]  [Chroma]   [Aperture]  [Color Space]  [EOTF] [Transfer Matrix]  Page 3 Submenu Setting [User Preset] Select the User Preset data to be applied. [User Preset1]  [User Preset2]  [User Preset3] ...

  • Page 21: [Color Temp.] Menu

    Submenu Setting Submenu Setting [Copy From] Copies the other User Preset data to the [Copy From] Select from the following items to copy selected User Preset. The appropriate the white balance data of the selected settings are saved in [Default(D65)] for color temperature.
  • Page 22 Submenu Setting Submenu Setting [Flicker Free] Set this to [On] to enable view images [Screen Saver] Sets the screen saver function [On] or without flicker. [Off]. An OLED panel can provide superior [On]: If a still image is displayed for ...
  • Page 23 [SDI 4K/UHD Input Setting] Submenu Setting [RGB Range] Select from the following when [Signal Format] is set to RGB. [Full]  [Limited]  [SDI Full Range]  [Color Space] Select the color space from the following: [ITU-R BT.709]  [EBU] ...
  • Page 24 Submenu Setting Follow RECOMMENDATION ITU-  R BT.1702 “Guidance for the reduction of photosensitive epileptic seizures caused by television” or other guidelines to use. In the HDR display, the display  surface may emit heat when high brightness images are output. Do not touch the surface.
  • Page 25 Submenu Setting Submenu Setting [1080I/PsF] Set how to display when 50I, 59.94I, The protective function for the  60I, 25PsF, 29.97PsF, or 30PsF signals OLED panel activates and inserts the are input in the SDI 2K input. black level in one field according to 23.98 Hz and 24 Hz signals are the input signal.
  • Page 26 [Function Button Setting] [G Off] Press the button to turn off the G (green) signal. [B Off] Press the button to turn off the B (blue) signal. [User Preset1] [User Preset2] [User Preset3] [User Preset4] [User Preset5] Press the button to change the User Preset number. You can check the setting status of the User Preset in the Submenu Setting...

  • Page 27: [Serial Remote] Menu

    Submenu Setting Submenu Setting [Target] Sets the targeted color space. [SDI Audio Setting] Sets the audio channel when SDI signal The zebra pattern can be displayed for is input. the signal outside of the selected color [Left Audio]: Select from channels ...

  • Page 28: [Security] Menu

    3G-SDI Link 2 SDI IN  3G-SDI Link 3 Note SDI IN  3G-SDI Link 4 If you forget the password, refer to Sony qualified service personnel. To input Square division signals Connector Input signal SDI IN  Mapping signal of Sub image 1 (upper- left screen) SDI IN ...

  • Page 29: Troubleshooting

    30 Check if the ventilation slots or vents are blocked with minutes. something such as dust. In this case, refer to Sony qualified service personnel. Input Color is not displayed correctly  Check the ...

  • Page 30: Available Signal Formats

    (Voltage  Always verify that the unit is operating properly changes caused at zero-crossing): before use. SONY WILL NOT BE LIABLE FOR 17 A peak, 3 A r.m.s. (240V AC) DAMAGES OF ANY KIND INCLUDING, BUT Operating conditions...
  • Page 31 Signal System Signal Structure 1280 × 720/50P 4 : 2 : 2 (YCbCr) 10bit 1280 × 720/30 4 : 2 : 2 (YCbCr) 10bit 1280 × 720/25P 4 : 2 : 2 (YCbCr) 10bit 1280 × 720/24 4 : 2 : 2 (YCbCr) 10bit 2048 ×...
  • Page 32 Signal System Signal Structure 4 : 4 : 4 (RGB) 10bit 4 : 4 : 4 (YCbCr) 10bit 1920 × 1080/24 Level A/Level B-DL 4 : 4 : 4 (RGB) 12bit 4 : 4 : 4 (YCbCr) 12bit 4 : 4 : 4 (RGB) 10bit 1280 ×...
  • Page 33 2K/HD (3G-SDI Dual Link) Signal System Signal Structure 4 : 4 : 4 (RGB) 10bit 4 : 4 : 4 (YCbCr) 10bit 1920 × 1080/60 Level A/Level B-DL 4 : 4 : 4 (RGB) 12bit 4 : 4 : 4 (YCbCr) 12bit 4 : 4 : 4 (RGB) 10bit...
  • Page 34 Signal System Signal Structure 3840 × 2160/24 4 : 2 : 2 (YCbCr) 10bit Level B-DS Square 4096 × 2160/30 4 : 2 : 2 (YCbCr) 10bit Level B-DS Square/2SI 4096 × 2160/30 4 : 2 : 2 (YCbCr) 10bit Level B-DS Square 4096 ×...
  • Page 35 Signal System Signal Structure 4 : 4 : 4 (RGB) 10bit 4 : 4 : 4 (YCbCr) 10bit 4096 × 2160/30 Level A/Level B-DL Square 4 : 4 : 4 (RGB) 12bit 4 : 4 : 4 (YCbCr) 12bit 4 : 4 : 4 (RGB) 10bit 4 : 4 : 4 (YCbCr) 10bit...

  • Page 36: Dimensions

    Side Dimensions Front Unit: mm (inches) Mass: Approx. 16.0 kg (35 lb 4.4 oz) * Length of M4 screws (rear) Rear Monitor cabinet Attached object 6-M4 hole 6-M4 hole (for the YOKE mount) M4 screw ) to 7 ( Unit: mm (inches) To install on a vehicle, fix the unit using screw holes for the YOKE mount.
  • Page 37 Sony Corporation...
