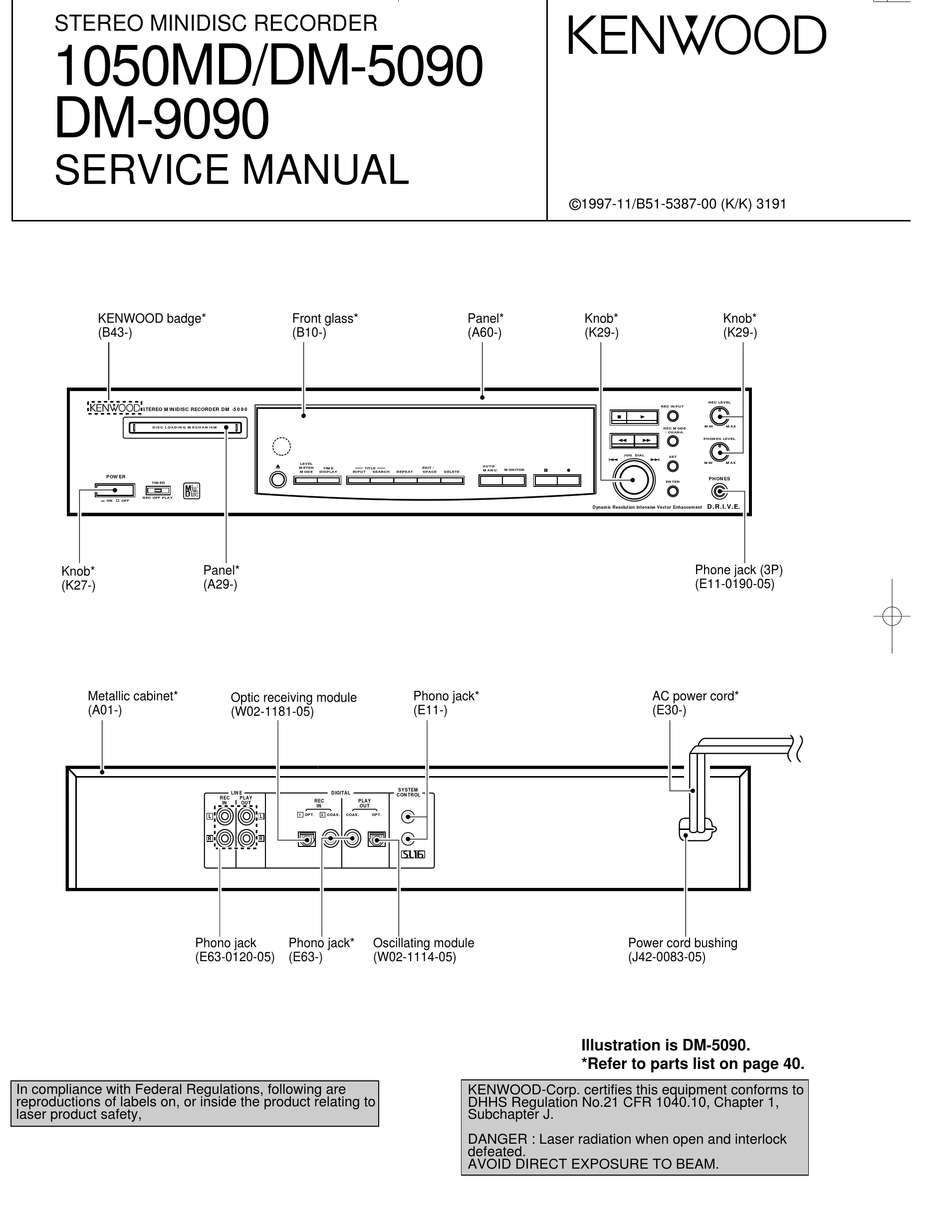

STEREO MINIDISC RECORDER
1050MD/DM-5090
DM-9090
SERVICE MANUAL
KENWOOD badge*
(B43-)
STEREO MINIDISC RECORDER DM -5090
DISC LOADING MECHANISM
POWER
TIMER
REC OFF PLAY
- ON – OFF
Knob*
(K27-)
Metallic cabinet*
(A01-)
Phono jack
(E63-0120-05)
In compliance with Federal Regulations, following are
reproductions of labels on, or inside the product relating to
laser product safety,
Front glass*
(B10-)
LEVEL
0
METER
TIME
TITLE
MODE
DISPLAY
INPUT
SEARCH
Panel*
(A29-)
Optic receiving module
(W02-1181-05)
LINE
DIGITAL
REC
PLAY
REC
PLAY
IN
OUT
IN
OUT
L
L
1 OPT.
2 COAX.
COAX.
OPT.
R
R
R
R
Phono jack*
Oscillating module
(E63-)
(W02-1114-05)
©
Panel*
(A60-)
AUTO/
EDIT /
8
MANU.
MONITOR
REPEAT
SPACE
DELETE
Phono jack*
(E11-)
SYSTEM
CONTROL
KENWOOD-Corp. certifies this equipment conforms to
DHHS Regulation No.21 CFR 1040.10, Chapter 1,
Subchapter J.
DANGER : Laser radiation when open and interlock
defeated.
AVOID DIRECT EXPOSURE TO BEAM.
1997-11/B51-5387-00 (K/K) 3191
Knob*
Knob*
(K29-)
(K29-)
REC LEVEL
REC INPUT
7
3
MIN
MAX
REC MODE
/CHARA.
1
¡
PHONES LEVEL
JOG DIAL
SET
4
¢
MIN
MAX
PHONES
ENTER
D.R.I.V.E.
Dynamic Resolution Intensive Vector Enhancement
Phone jack (3P)
(E11-0190-05)
AC power cord*
(E30-)
Power cord bushing
(J42-0083-05)
Illustration is DM-5090.
*Refer to parts list on page 40.
