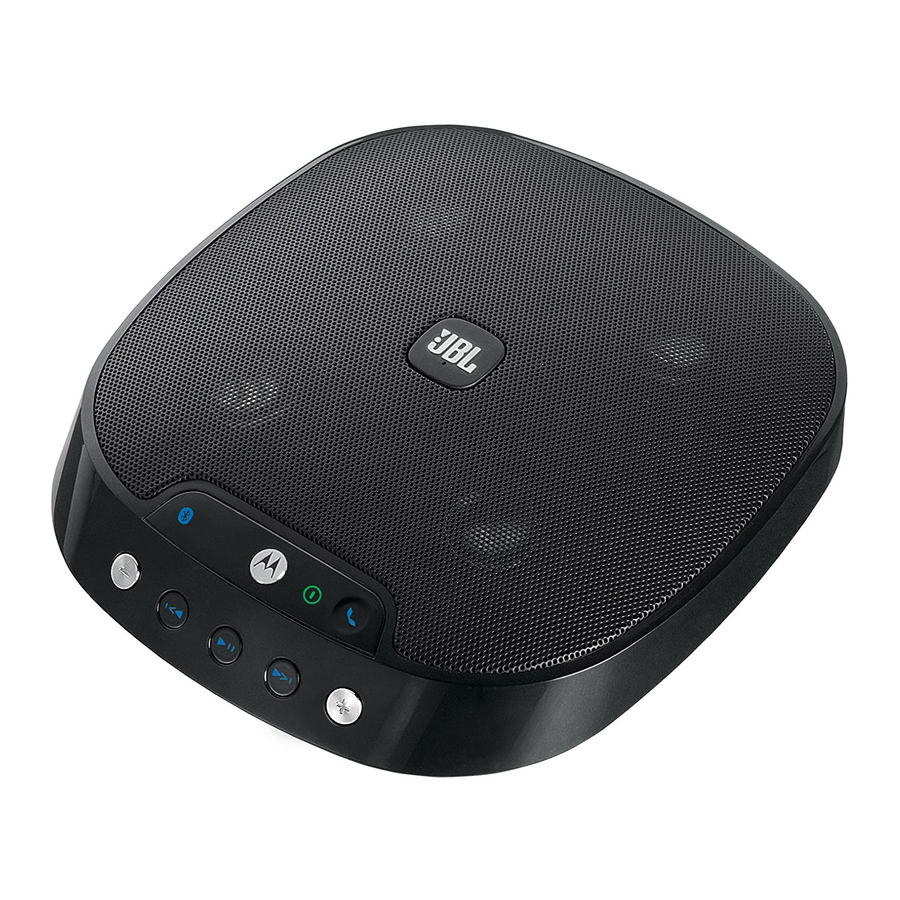

Motorola MOTOROKR EQ7 Quick Start Manual

High-performance bluetooth stereo speaker system
Hide thumbs Also See for MOTOROKR EQ7:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

See also: Manual , Quick Start Manual
TM
MOTOROKR
EQ7
Quick Start Guide

before you begin

before you begin
Take a moment before you get started to familiarize yourself with
the components of your speaker system.
Audio
Power
Port
Port
Power
Button
Bluetooth
Indicator
Light
Microphone Mute
Indicator Light
Battery Compartment
(on bottom)
Microphone
Power Indicator Light
Call Button
Volume Up
Button
Forward Button
Play/Pause Button
Reverse Button
Volume Down Button
3
welcome
The MOTOROKR™ EQ7 High-Performance Bluetooth® Stereo
Speaker System lets you enjoy your music with legendary JBL®
1
loudspeaker technology.
The EQ7 not only delivers wireless music
in rich, full sound and elegant style; it also serves as a
speakerphone for phone calls—all at an extended range.
• Wireless music in premium sound—Motorola wireless
technology coupled with high-bandwidth, low-distortion JBL
loudspeakers and acoustic design.
• Easy to use—music controls that light up during wireless
audio connection, and status indicators for Bluetooth
connection, audio mute, and power.
• True wireless freedom—take your music with you with the
extended wireless range of up to 100m/330ft.*
Note:
Before using your speaker system for the first time, be sure
to review the important safety and legal pamphlet, and follow
instructions. Periodically review this information so you remember
how to safely use your speaker system.
* Wireless range can vary depending on Bluetooth class of source device, and be
subject to interference from obstructions such as walls or other electronic devices.
2
power your system
power your system
batteries
You can power your speaker system using four AA alkaline
batteries. Remove battery door (by turning to unlock symbol), insert
batteries, and reattach battery door (by aligning the triangle on the
door with unlock symbol and turning to lock symbol).
power adapter
You can power your speaker system using the included power
adapter. Plug connector into the Power port as shown, then plug
power supply into a wall outlet.
4

Advertisement

Table of Contents
loading

Related Manuals for Motorola MOTOROKR EQ7

Summary of Contents for Motorola MOTOROKR EQ7

  • Page 1: Before You Begin

    You can power your speaker system using the included power Button adapter. Plug connector into the Power port as shown, then plug Forward Button power supply into a wall outlet. Play/Pause Button Reverse Button The EQ7 not only delivers wireless music power your system...

  • Page 2: Connect Wirelessly

    * If your music player supports this feature When remote control capabilities are not supported by your music player, the EQ7 simply acts as a speaker system, and music should be controlled from your music player. Press—skip to next track...

  • Page 3: Handsfree Calls

    crank it up crank it up To adjust music volume, use the Volume buttons on your speaker system. Press—increase volume (step) Press and hold—increase volume (continuous) Press—decrease volume (step) Press and hold—decrease volume (continuous) You’ll hear a tone when maximum or minimum volume is reached on your speaker system.

  • Page 4: Make A Call

    while on a call When there’s a second incoming call, the Call button flashes on your speaker system, and you hear an alert. Press—1) answer second call (first call is placed on hold), 2) end second call (first call resumes), or 3) resume first call on hold (when second caller hangs up) Press and hold (either button)—...
  • Page 5 The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. JBL is a trademark of Harman International Industries, Incorporated, registered in the United States and/or countries.The Bluetooth trademarks are...

  • Page 6: Antes De Comenzar

    Botón Bajar volumen de silencio del micrófono bienvenido El sistema de altavoz estéreo MOTOROKR™ EQ7 con Bluetooth® dealto rendimiento le permite disfrutar de la música con la legendaria tecnología de altavoces JBL®. música inalámbrica en un sonido rico y completo con un estilo elegante;...
  • Page 7 * Si el reproductor de música admite esta función. Cuando el reproductor de música no cuente con capacidades de control remoto, el EQ7 actúa sólo como un sistema de altavoz, y la música se debe controlar desde el reproductor de música.

  • Page 8: Recibir Una Llamada

    arranque Para ajustar el volumen de la música, use los botones de arranque volumen en el sistema de altavoz. Oprima—aumentar el volumen (en pasos) Mantenga oprimido—aumentar el volumen (continuamente) Oprima—disminuir el volumen (en pasos) Mantenga oprimido—disminuir el volumen (continuamente) Escuchará un tono cuando se alcance el volumen máximo o mínimo en el sistema de altavoz.

  • Page 9: Realizar Una Llamada

    durante una llamada Cuando hay una segunda llamada entrante, el botón de llamada destella en el sistema de altavoz y se escucha una alerta. Oprima— 1) responder segunda llamada (la primera está se deja en espera), 2) finalizar la segunda llamada (la primera llamada se reanuda) o 3) reanudar la primera llamada en espera (cuando la segunda cuelga).
  • Page 10 áreas. Obedezca siempre las leyes y las regulaciones sobre el uso de estos productos. MOTOROLA y el Logotipo de la M Estilizada están registrados en la Oficina de Patentes y Marcas Registradas de los Estados Unidos. JBL es una marca comercial de Harman International Industries, Incorporated, registrada en Estados Unidos y/o en otros países.
