Instruction Manual
T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS
This is the first pistol type Rotary hammer from Makita.
Compared with conventional vibrating drills, this product is
light-weight and shows excellent drilling speed equal to 25 mm
Rotary hammer.
Drill bit is common to HR 2510 and HR 1820 models.
Also, SDS Plus bit and Hilty bit (for TE 12) can be used to this
product.
S
pecifications
Voltage(V)
100
115
200
220
230
240
R.P.M.
Blows per minute
Max. drilling capacity
Net weight(kg)
Power supply cord(m)
S
tandard equipment
Stopper pole
Steel case
Bit grease (for lubricating the chuck)
Pipet 54
O
ptional accessories
Carbide drill: 6.5-20 (long size: 16,18,19,20)
Taper shank adapter (No.1)
Chuck adapter
Drill chuck S13
Chuck key S13
Cotter
Makita grease R No.00 (for lubricating inside the machine)
Anchor No.2-No.4
Holder driver
Anchor rod for plug exterior (for hand) No.2-No.4,
Anchor rod for plug interior (for machine) No.2-No.4
The standard equipment for the tools shown may differ from country to country.
HR2000
MAKITA Rotary hammer
Current(A)
Frequency(Hz)
7
50/60
6.8
50/60
4
50/60
3.6
50/60
3.4
50/60
2.3
50/60
0-1200/min.
0-4200/min.
20mm
Concrete
13mm
Iron
Wood
18mm
2.7 kg
2.5 m
Width 77
Continuous rating
Input(W)
Output(W)
600
260
750
220
750
220
750
220
750
220
750
220
New Tool
330
Max.
output(W)
400
550
550
550
550
550
Advertisement
Related Manuals for Makita HR2000
Summary of Contents for Makita HR2000

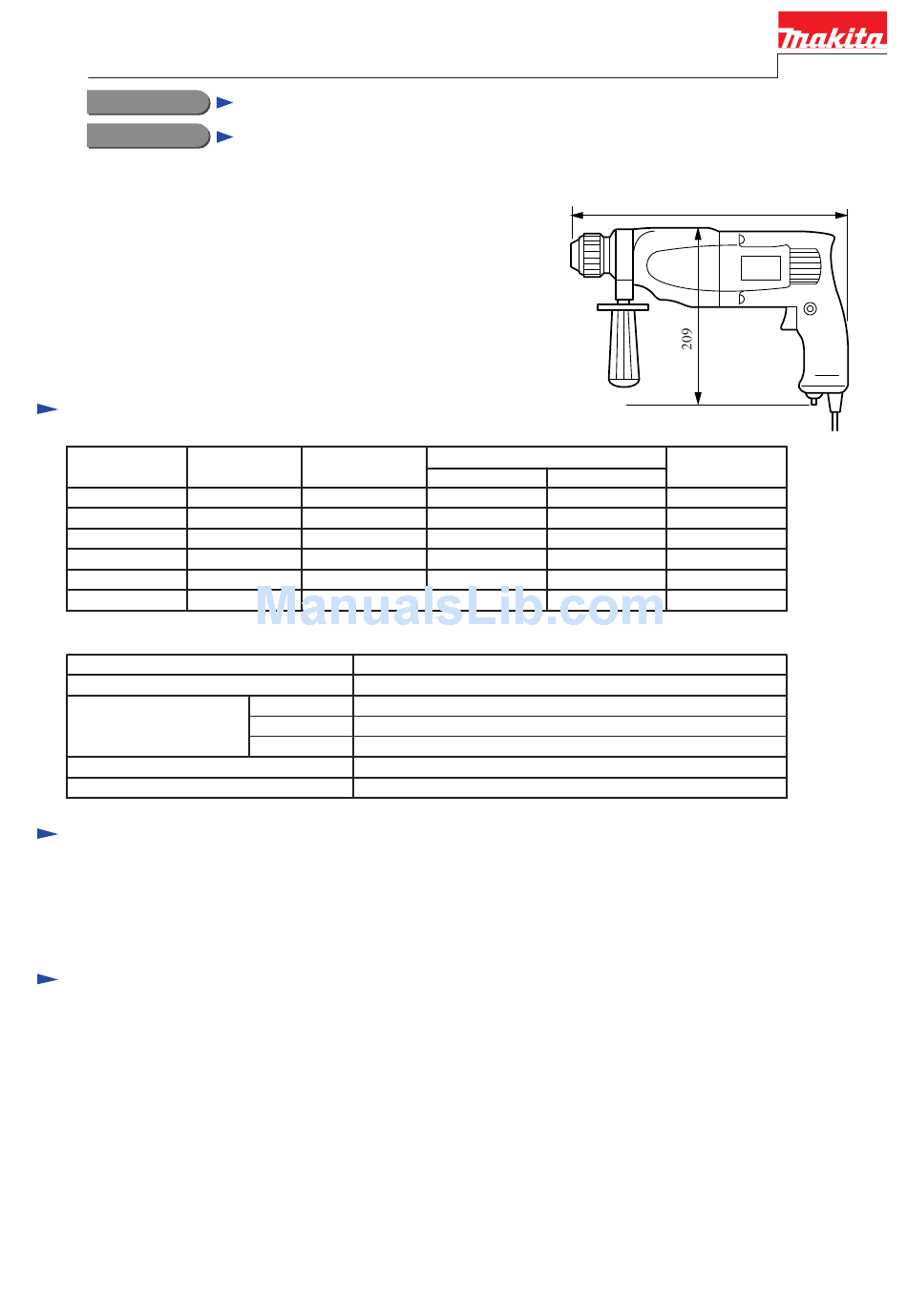

- Page 1 HR2000 Description MAKITA Rotary hammer ONCEPTION AND MAIN APPLICATIONS This is the first pistol type Rotary hammer from Makita. Compared with conventional vibrating drills, this product is light-weight and shows excellent drilling speed equal to 25 mm Rotary hammer. Drill bit is common to HR 2510 and HR 1820 models.
-
