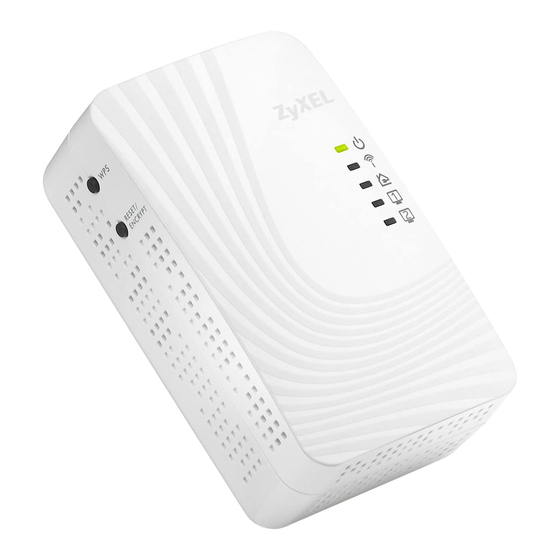

ZyXEL Communications PLA4231 User Manual

500 mbps powerline wireless n extender
Hide thumbs Also See for PLA4231:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
PLA4231
500 Mbps Powerline Wireless N Extender
Version 1.00
Edition 1, 12/2012
Quick Start Guide
User's Guide
Default Login Details
LAN IP Address
Password
www.zyxel.com
http://192.168.1.2
1234
Copyright © 2012 ZyXEL Communications Corporation

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications PLA4231

Summary of Contents for ZyXEL Communications PLA4231

  • Page 1 PLA4231 500 Mbps Powerline Wireless N Extender Version 1.00 Edition 1, 12/2012 Quick Start Guide User’s Guide Default Login Details LAN IP Address http://192.168.1.2 Password 1234 www.zyxel.com Copyright © 2012 ZyXEL Communications Corporation...
  • Page 2 Every effort has been made to ensure that the information in this manual is accurate. Related Documentation • Quick Start Guide The Quick Start Guide shows how to connect the PLA4231 and access the Web Configurator. PLA4231 User’s Guide...

  • Page 3: Table Of Contents

    Part I: Introduction .................... 7 Chapter 1 Introducing the PLA4231 ........................9 1.1 Overview .............................9 1.2 Expand Your Network with the PLA4231 ....................9 1.3 Ways to Manage the PLA4231 ......................10 1.4 Good Habits for Managing the PLA4231 ..................10 1.5 Powerline Security ..........................10 1.5.1 Powerline Passwords ......................
  • Page 4 7.2.1 Login Screen ...........................49 7.2.2 Password Screen ........................51 7.3 Navigating the Web Configurator ......................52 7.3.1 Title Bar ...........................53 7.3.2 Navigation Panel ........................53 7.3.3 Main Window ...........................54 Chapter 8 Dashboard ............................55 8.1 The Dashboard Screen ........................55 Chapter 9 Monitor..............................59 PLA4231 User’s Guide...
  • Page 5 11.3.2 IP Alias ...........................80 11.4 LAN IP Screen ..........................80 11.5 IP Alias Screen ..........................81 Chapter 12 HomePlug ............................83 12.1 Overview ............................83 12.2 What You Can Do ...........................83 12.3 HomePlug Screen ...........................83 Chapter 13 Maintenance ............................87 13.1 Overview ............................87 PLA4231 User’s Guide...
  • Page 6 14.3 Configuration Utility Problems ......................98 14.4 Powerline Problems ........................98 14.5 RESET/ENCRYPT Button Problems ....................99 14.6 Wireless Connection Problems .....................100 14.7 PLA4231 Access and Login Problems ..................101 Appendix A Pop-up Windows, JavaScript and Java Permissions ...........105 Appendix B Legal Information......................115 Index ..............................121...

  • Page 7: Part I Introduction

    Introduction...

  • Page 9: Introducing The Pla4231

    Figure 1 Expand Your Network with the PLA4231 Connect your PLA4231 to an Internet gateway such as a modem and plug it into an ordinary power outlet in your home. Plug a second PLA4231 into another power outlet and connect a computer to the PLA4231 for Internet access.

  • Page 10: Ways To Manage The Pla4231

    If you forget your password, you will have to reset the PLA4231 to its factory default settings. If you backed up an earlier configuration file, you would not have to totally re-configure the PLA4231.

  • Page 11: Powerline Passwords

    It’s easy and only requires you to change a network name. It’s a good idea to ensure privacy of your communication. When you use the PLA4231 and other powerline adapters, the electrical wiring in your home becomes an extension of your Ethernet network.

  • Page 12: Multiple Networks

    If you forget your password or IP address, or you cannot access the Web Configurator, you will need to use the RESET/ENCRYPT button at the side of the PLA4231 to reload the factory-default configuration file. This means that you will lose all configurations that you had previously saved, the password will be reset to “1234”...

  • Page 13: Chapter 2 The Wps Button

    The WPS Button 2.1 WPS Overview Your PLA4231 supports Wi-Fi Protected Setup (WPS), which is an easy way to set up a secure wireless network. WPS is an industry standard specification, defined by the Wi-Fi Alliance. WPS allows you to quickly set up a wireless network with strong security, without having to configure security settings manually.
  • Page 14 Chapter 2 The WPS Button PLA4231 User’s Guide...

  • Page 15: The Reset/Encrypt Button

    • set up a new powerline network. • separate an existing powerline network into multiple networks. • reset the PLA4231 to the factory defaults. 3.2 Set Up a HomePlug AV Network with ENCRYPT You can connect a number of devices on a powerline network, but you can use the RESET/ ENCRYPT button on only two devices at a time.
  • Page 16 Repeat step in this section for the other powerline device you wish to connect. This must be done within 120 seconds of pressing the RESET/ENCRYPT button on the PLA4231. Note: Check the lights on the two powerline devices. The power ( ) and HomePlug ( lights should be blinking while the devices are connecting.

  • Page 17: Setting Up Multiple Networks

    This sets up your powerline network between your powerline devices. 3.3 Setting Up Multiple Networks You can use the RESET/ENCRYPT button to set up multiple powerline networks using your existing powerline network. PLA4231 User’s Guide...
  • Page 18 Check the LEDs on both (A) and (C). When the power ( ) and HomePlug ( ) lights stop blinking and the power ( ) light shines steadily, the devices are connected. Figure 5 Two Separate Powerline Networks PLA4231 User’s Guide...

  • Page 19: Reset/Encrypt Button Behavior

    See Troubleshooting in Chapter 14 on page 99 for suggestions on problems with the RESET/ ENCRYPT button and the lights. PLA4231 User’s Guide...
  • Page 20 Chapter 3 The RESET/ENCRYPT Button PLA4231 User’s Guide...

  • Page 21: Part Ii: Configuration Utility

    Configuration Utility...

  • Page 23: Installing The Powerline Configuration Utility

    H A PT ER Installing the Powerline Configuration Utility This chapter guides you through the installation of the configuration utility for your PLA4231. 4.1 Overview of the Installation Process The installation of the configuration utility does the following: Checks for and installs Microsoft’s .NET Framework version 2.0 software on your computer. This software is necessary for the installation of the PLA42xx Series Configuration Utility.
  • Page 24 Figure 7 .NET Framework Installation Process The Setup utility runs automatically. Click Yes or Next to continue through the initial screen. Click Cancel only if you want to abort the installation. Figure 8 InstallShield Wizard Start Screen PLA4231 User’s Guide...
  • Page 25 Note: You may be asked to restart your computer when the installation is complete. Click “Yes” to restart your computer. If you select “No, I will restart my computer later”, you will not be able to launch the utility until after a restart of your computer. PLA4231 User’s Guide...
  • Page 26 Chapter 4 Installing the Powerline Configuration Utility PLA4231 User’s Guide...

  • Page 27: Using The Powerline Configuration Utility

    This chapter shows you how to use the Configuration Utility (or Utility) to secure, manage and set up Quality of Service (QoS) on your powerline network. The PLA4231 is designed as a plug-and-play network expanding solution. This means that once you complete your hardware connections, the PLA4231s in your network (without additional configuration) are able to communicate with each other by sending and receiving information over your home’s electrical wiring (A).

  • Page 28: Device Access Key (Dak)

    To launch the PLA42xx Series Configuration Utility simply double click on the configuration icon on your desktop. Figure 12 PLA42xx Series Configuration Utility Icon Alternatively, start the utility by browsing to it from the start menu. Click Start > Programs > ZyXEL PLA42xx Series Configuration > PLA42xx Series Configuration. PLA4231 User’s Guide...

  • Page 29: Configuration Screen

    MAC Address This is a read-only field which shows the MAC address of the powerline adapter you are configuring. You can find the MAC address of your PLA4231 displayed on a sticker on the bottom of your device. PLA4231 User’s Guide...

  • Page 30: Firmware Screen

    Parameter Information Block (PIB) is similar to firmware. It contains the most basic operating instructions for the PLA4231 such as how to power up and how to load the firmware. You can check the ZyXEL website for firmware upgrades for your PLA4231.

  • Page 31: Network Info Screen

    Firmware Screen Figure 14 5.5 Network Info Screen Use the Network Info screen to see the rates at which a specific PLA4231 is communicating with other powerline adapters on your powerline network. Network Info Screen Figure 15...

  • Page 32: Advanced Screen

    Local, if it is the PLA4231 directly connected to the computer running the configuration utility. • Remote, if it is a PLA4231 in your powerline network but not directly connected to the computer running the configuration utility. MAC Address This field displays the MAC address of your powerline adapter. The MAC address of your powerline adapter can be found by looking at the label on your device.
  • Page 33 • Although device E receives audio or movie files, it does not send a lot of traffic, so the powerline adaptor attached to it can be set to a low priority. Figure 16 Priority Settings PLA4231 User’s Guide...
  • Page 34 MAC Address This is a read-only field which shows the MAC address of the powerline adapter you are configuring. You can find the MAC address of your PLA4231 displayed on a sticker on the bottom of your device. Priority Select a priority setting from the drop-down box for traffic FROM your selected device.

  • Page 35: About Screen

    5.7 About Screen Use the About screen to view information regarding the configuration utility and firmware version of the PLA4231 you are connected to. Click the icon in the top right corner of the utility to view the About screen.
  • Page 36 Chapter 5 Using the Powerline Configuration Utility PLA4231 User’s Guide...

  • Page 37: Powerline Network Setup Tutorial

    See the product specifications in the User’s Guide for a list of hardware and software compatible with the utility. Note: The PLA4231 in this tutorial is an example only. Your powerline adapter may be different. 6.2 Important Terms...

  • Page 38: Accessing Your Powerline Adapter

    • See Section 6.5 on page 40 to set up a second network with your new adapters. • See Section 6.6 on page 42 to set up a second network with your existing adapters. PLA4231 User’s Guide...

  • Page 39: Adding A Powerline Adapter

    Local (A). Check the Local adapter’s MAC address (B). It should match the MAC address listed on the label on the back of your powerline adapter. Figure 23 Adding a New Adapter PLA4231 User’s Guide...

  • Page 40: Setting Up A New Network With A New Adapter

    The figure below shows two powerline networks in a house. The first network (1) shows the home computer connected to a printer and access to the Internet. The second network (2) has no PLA4231 User’s Guide...
  • Page 41 Type a Network Name that is different from the Network Name for your existing network. Make sure you use the same new Network Name for all new adapters you want to add to your new network. Figure 27 Making a New Network with the New Adapter PLA4231 User’s Guide...

  • Page 42: Splitting A Network Into Two Networks

    • Look for the DAK Password on a label on your powerline adapter. The DAK Password lets you access the adapter. • Select the Remote adapter you want to add (A) and type the DAK Password in the DAK Password field (B). PLA4231 User’s Guide...
  • Page 43 Click OK and type the DAK Password correctly in the DAK Password field. Figure 30 Incorrect DAK or No DAK • If you have correctly entered the DAK Password, click OK on the pop-up. Figure 31 Correct DAK PLA4231 User’s Guide...

  • Page 44: Troubleshooting

    ) LED (light) should light up on your adapter when it successfully connects to other adapters on your network. If it does not, try the following measures. • Make sure the adapter is plugged in to a power socket and the power socket is turned on. PLA4231 User’s Guide...
  • Page 45 Chapter 6 Powerline Network Setup Tutorial • Check you have entered the correct network name for your network. • Check your powerline adapter is connected to the same electrical circuit as other powerline adapters on your network. PLA4231 User’s Guide...
  • Page 46 Chapter 6 Powerline Network Setup Tutorial PLA4231 User’s Guide...

  • Page 47: Part Iii Web Configurator

    Web Configurator...

  • Page 49: Introducing The Web Configurator

    7.2 Accessing the Web Configurator Connect your computer to the LAN port of the PLA4231. The default IP address of the PLA4231 is “192.168.1.2”. In this case, your computer must have an IP address in the range between “192.168.1.3” and “192.168.1.254”.
  • Page 50 24-hour format, for example 15:00 is 3:00 PM. 7.2.1.1 Weather Edit You can change the temperature unit and select the location for which you want to know the weather. Click the icon to change the weather display. Figure 35 Change Weather PLA4231 User’s Guide...

  • Page 51: Password Screen

    7.2.1.2 Time/Date Edit One timezone can cover more than one country. You can choose a particular country in which the PLA4231 is located and have the PLA4231 display and use the current time and date for its logs. Click the icon to change the time and date display.

  • Page 52: Navigating The Web Configurator

    Chapter 13 on page 87 to change this). Simply log back into the PLA4231 if this happens. Right after you log in, the Dashboard screen is displayed. See Chapter 4 on page 81 for more information about the Dashboard screen.

  • Page 53: Title Bar

    Click About to open the about window, which provides information of the boot module and driver versions. 7.3.2 Navigation Panel Use the menu items on the navigation panel to open screens to configure PLA4231 features. The following tables describe each menu item. Table 12 Navigation Panel: Access Point Mode...

  • Page 54: Main Window

    Use this screen to backup and restore the configuration or reset your Restore PLA4231 to the factory defaults. Restart System This screen allows you to reboot the PLA4231 without turning the power Restart off. Language Language This screen allows you to select the language you prefer.

  • Page 55: Chapter 8 Dashboard

    H A PT ER Dashboard The Dashboard screens display when you log into the PLA4231, or click Dashboard in the navigation menu. Use the Dashboard screen to look at the current status of the device, system resources, and interfaces. The Dashboard screens also provide detailed information about system statistics, associated wireless clients, and logs.
  • Page 56 This shows the LAN port’s DHCP role - Client or None. WLAN Information WLAN OP Mode This is the device mode to which the PLA4231’s wireless LAN is set - Access Point Mode. MAC Address This shows the wireless adapter MAC Address of your device.
  • Page 57 For the LAN ports, this displays the port speed or N/A when the line is disconnected. For the WLAN, it displays the maximum transmission rate when the WLAN is enabled and N/ A when the WLAN is disabled. PLA4231 User’s Guide...
  • Page 58 Chapter 8 Dashboard PLA4231 User’s Guide...

  • Page 59: Chapter 9 Monitor

    Monitor 9.1 Overview This chapter discusses read-only information related to the device state of the PLA4231. Note: To access the Monitor screens, you can also click the links in the Summary table of the Status screen to view the packets sent/received as well as the status of clients connected to the PLA4231.

  • Page 60: Packet Statistics

    Click the Packet Statistics (Details...) hyperlink in the Dashboard screen or Monitor > Packet Statistics. Read-only information here includes port status, packet specific statistics and the "system up time". The Poll Interval(s) field is configurable and is used for refreshing the screen. Figure 42 Monitor > Packet Statistics PLA4231 User’s Guide...

  • Page 61: Wlan Station Status

    Click the WLAN Station Status (Details...) hyperlink in the Dashboard screen or Monitor > WLAN Station Status. View the wireless stations that are currently associated to the PLA4231 in the Association List. Association means that a wireless client (for example, your network or computer with a wireless network card) has connected successfully to the AP (or wireless router) using the same SSID, channel and security settings.
  • Page 62 Chapter 9 Monitor PLA4231 User’s Guide...

  • Page 63: Chapter 10 Wireless Lan

    HAPTER Wireless LAN 10.1 Overview This chapter discusses how to configure the wireless network settings in your PLA4231. See the appendices for more detailed information about wireless networks. The following figure provides an example of a wireless network. Figure 44 Example of a Wireless Network The wireless network is the part in the blue circle.

  • Page 64: What You Should Know

    • Use the QoS screen (Section 10.8 on page 73) to enable Wifi MultiMedia Quality of Service (WMMQoS). This allows the PLA4231 to automatically set priority levels to services, such as e- mail, VoIP, chat, and so on. • Use the WPS screen (Section 10.9 on page...
  • Page 65 When you select WPA2-PSK in your PLA4231, you can also select an option (WPA-PSK Compatible) to support WPA as well. In this case, if some wireless clients support WPA and some support WPA2, you should set up WPA2-PSK and select the WPA-PSK Compatible option in the PLA4231.

  • Page 66: General Wireless Lan Screen

    Use this screen to enable or disable the WLAN, enter the SSID, select the channel and configure wireless security settings. Note: If you are configuring the PLA4231 from a computer connected to the wireless LAN and you change the PLA4231’s SSID, channel or security settings, you will lose your wireless connection when you press Apply to confirm.

  • Page 67: Wireless Security

    You can select from the following: • 802.11b: allows either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to associate with the PLA4231. In this mode, all wireless devices can only transmit at the data rates supported by IEEE 802.11b. •...

  • Page 68: Wep Encryption

    Both the wireless stations and the access points must use the same WEP key. Your PLA4231 allows you to configure up to four 64-bit or 128-bit WEP keys but only one key can be enabled at any one time.
  • Page 69 A passphrase functions like a password. In WEP security mode, it is further converted by the PLA4231 into a complicated string that is referred to as the “key”. This key is requested from all devices wishing to connect to a wireless network.

  • Page 70: Wpa-Psk/Wpa2-Psk

    The preceding "0x", that identifies a hexadecimal key, is entered automatically. Key 1 to Key 4 The WEP keys are used to encrypt data. Both the PLA4231 and the wireless stations must use the same WEP key for data transmission.

  • Page 71: Mac Filter

    Click Cancel to reload the previous configuration for this screen. 10.6 MAC Filter The MAC filter screen allows you to configure the PLA4231 to give exclusive access to devices (Allow) or exclude devices from accessing the PLA4231 (Deny). Every Ethernet device has a unique MAC (Media Access Control) address.
  • Page 72 Select Allow to permit access to the PLA4231, MAC addresses not listed will be denied access to the PLA4231. Select Deny to block access to the PLA4231, MAC addresses not listed will be allowed to access the PLA4231. MAC Filter Summary This is the index number of the MAC address.

  • Page 73: Wireless Lan Advanced Screen

    Tx Power Set the output power of the PLA4231 in this field. If there is a high density of APs in an area, decrease the output power of the PLA4231 to reduce interference with other APs.

  • Page 74: Wps Screen

    DESCRIPTION WMM QoS Select Enable to have the PLA4231 automatically give a service a priority level according to the ToS value in the IP header of packets it sends. WMM QoS (Wifi MultiMedia Quality of Service) gives high priority to voice and video, which makes them run more smoothly.
  • Page 75 Disable, you cannot create a new PIN number. PIN Number This is the WPS PIN (Personal Identification Number) of the PLA4231. Enter this PIN in the configuration utility of the device you want to connect to the PLA4231 using WPS.

  • Page 76: Wps Station Screen

    Use this screen to set the times your wireless LAN is turned on and off. Wireless LAN scheduling is disabled by default. The wireless LAN can be scheduled to turn on or off on certain days and at certain times. To open this screen, click Network > Wireless LAN > Scheduling tab. PLA4231 User’s Guide...
  • Page 77 If you have chosen Off earlier for the WLAN Status the Wireless LAN will turn off between the two times you enter in these fields. Apply Click Apply to save your changes back to the PLA4231. Cancel Click Cancel to reload the previous configuration for this screen.
  • Page 78 Chapter 10 Wireless LAN PLA4231 User’s Guide...

  • Page 79: Chapter 11 Lan

    The LAN screens can help you manage IP addresses. 11.2 What You Can Do • Use the IP screen (Section 11.4 on page 80) to change the IP address for your PLA4231 and DNS server information. • Use the IP Alias screen (Section 11.5 on page 81) to have the PLA4231 apply IP alias to create LAN subnets.

  • Page 80: Lan Tcp/Ip

    Ethernet interface with the PLA4231 itself as the gateway for each LAN network. 11.4 LAN IP Screen Use this screen to change the IP address for your PLA4231. Click Network > LAN > IP. Figure 57 Network > LAN > IP (Access Point or Universal Repeater)

  • Page 81: Ip Alias Screen

    Click Cancel to reload the previous configuration for this screen. 11.5 IP Alias Screen Use this screen to have the PLA4231 apply IP alias to create LAN subnets. Click LAN > IP Alias. Figure 58 Network > LAN > IP Alias...
  • Page 82 DESCRIPTION IP Alias Check this to enable IP alias. IP Address Type the IP alias address of your PLA4231 in dotted decimal notation. IP Subnet Mask The subnet mask specifies the network number portion of an IP address. Apply Click Apply to save your changes back to the PLA4231.

  • Page 83: Chapter 12 Homeplug

    83) to secure, manage and set up Quality of Service (QoS) on your powerline network. 12.3 HomePlug Screen Use this screen to change the powerline settings for your PLA4231. Click Network > HomePlug. Figure 59 Network > HomePlug PLA4231 User’s Guide...
  • Page 84 MAC Address This is a read-only field which shows the MAC address of the powerline adapter you are configuring. You can find the MAC address of your PLA4231 displayed on a sticker on the bottom of your device. DAK Password DAK (Device Access Key) password is used to verify that you are authorized to perform changes on a remote device.
  • Page 85 Local, if it is the PLA4231 directly connected to the computer running the Web Configurator. • Remote, if it is a PLA4231 in your powerline network but not directly connected to the computer running the Web Configurator. MAC Address This field displays the MAC address of your powerline adapter. The MAC address of your powerline adapter can be found by looking at the label on your device.
  • Page 86 Chapter 12 HomePlug PLA4231 User’s Guide...

  • Page 87: Chapter 13 Maintenance

    88) to change your PLA4231’s system password. • Use the Time screen (Section 13.5 on page 88) to change your PLA4231’s time and date. • Use the Firmware Upgrade screen (Section 13.6 on page 90) to upload firmware to your PLA4231.

  • Page 88: Password Screen

    Click Cancel to reload the previous configuration for this screen. 13.4 Password Screen It is strongly recommended that you change your PLA4231's password. If you forget your PLA4231's password (or IP address), you will need to reset the device. See Section 13.8 on page 93 for details Click Maintenance >...
  • Page 89 (yyyy/mm/dd) When you select Manual, enter the new date in this field and then click Apply. Get from Time Select this radio button to have the PLA4231 get the time and date from the time Server server you specified below.

  • Page 90: Firmware Upgrade Screen

    (usually) uses the system model name with a “*.bin” extension, e.g., “PLA4231.bin”. The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot.
  • Page 91 Click this button to get the latest firmware information, such as the version number, release Firmware Now date, release note and file size from the ZyXEL website. Make sure your PLA4231 has Internet access. Click this button to download and install the latest firmware in your PLA4231.

  • Page 92: Configuration Backup/Restore Screen

    Chapter 13 Maintenance 13.7 Configuration Backup/Restore Screen Backup configuration allows you to back up (save) the PLA4231’s current configuration to a file on your computer. Once your PLA4231 is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings.

  • Page 93: Restart Screen

    Chapter 13 Maintenance Note: If you uploaded the default configuration file you may need to change the IP address of your computer to be in the same subnet as that of the default PLA4231 IP address (192.168.1.2). 13.8 Restart Screen System restart allows you to reboot the PLA4231 without turning the power off.
  • Page 94 Chapter 13 Maintenance PLA4231 User’s Guide...

  • Page 95: Leds And Troubleshooting

    The following sections describes the lights on the PLA4231. The following figure is the front panel of the PLA4231. Use the lights to determine if the PLA4231 is behaving normally or if there are some problems on your powerline network.

  • Page 96: Power And Light Problems

    Chapter 14 LEDs and Troubleshooting The following table describes the behavior of the lights on the PLA4231. Table 36 PLA4231 LIGHTS ICON COLOR STATUS DESCRIPTION POWER Green The PLA4231 is on and receiving power. It also indicates a successful connection using the RESET/ENCRYPT button.
  • Page 97 Check the Ethernet adapter on your computer and make sure it’s enabled and working properly. If the PLA4231 is connected to an Ethernet switch or router, make sure the device is working correctly, and that the LAN network is working and configured correctly as well.

  • Page 98: Configuration Utility Problems

    The PLA42xx Series Configuration Utility does not display all or any of my devices. • Inspect the LEDs on your PLA4231 and make sure that the ETHERNET and HomePlug LEDs are on or blinking. See Section 14.1 on page 95...

  • Page 99: Reset/Encrypt Button Problems

    • The POWER light on some powerline devices do not blink as part of the ENCRYPT process. Check your powerline device is a PLA4231. • For PLA4231, you cannot use the RESET/ENCRYPT button when it is in Low Power mode. Connect the PLA4231 to a computer/router then try again.

  • Page 100: Wireless Connection Problems

    Make sure your computer (with a wireless adapter installed) is within the transmission range of the PLA4231. Check that both the PLA4231 and your computer (with a wireless adapter installed) are using the same wireless and wireless security settings. PLA4231 User’s Guide...

  • Page 101: Pla4231 Access And Login Problems

    If you changed the IP address and have forgotten it, • and your PLA4231 is a DHCP client, you can find your IP address from the DHCP server. This information is only available from the DHCP server which allocates IP addresses on your network.
  • Page 102 Appendix A on page 105. Make sure your computer is in the same subnet as the PLA4231. (If you know that there are routers between your computer and the PLA4231, skip this step.) • If there is a DHCP server on your network, make sure your computer is using a dynamic IP address.
  • Page 103 This can happen when you fail to log out properly from your last session. Try logging in again after 5 minutes. Disconnect and re-connect the power adaptor or cord to the PLA4231. If this does not work, you have to reset the device to its factory defaults. See Section 1.7 on page...
