Related Manuals for C. Crane CC Observer
Summary of Contents for C. Crane CC Observer
- Page 1 INSTRUCTION MANUAL PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE USE AND SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Before Use
1001 Main St, Fortuna, CA 95540 Phone: 1-800-522-8863 Web: All rights reserved. No part of this booklet may be reproduced, in any form or ccrane.com means whatsoever, without permission in writing from C. Crane Company, Inc. Page 2 CC Observer... -
Page 3: Table Of Contents
Specifications ................9 Safety Instructions ..............10 Personal Station Log ..............11 Thank you for choosing the CC Observer radio. Read this manual carefully to get the best performance from this unit. Unpacking The box should contain the CC Observer Radio, earbuds, five cell phone connectors, and this manual. -
Page 4: Location Of Controls

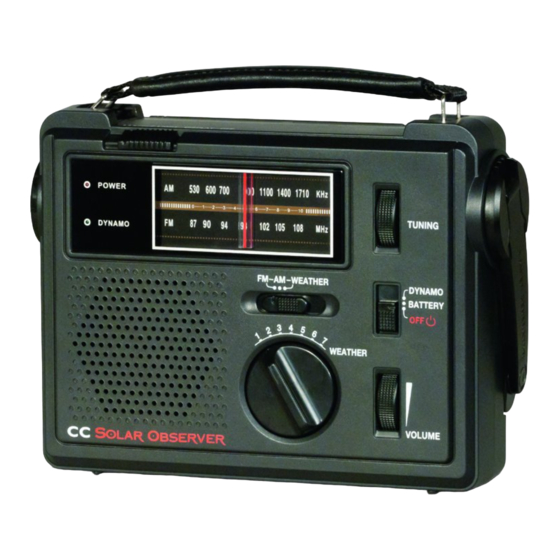

Location of Controls — Front of Radio Display Panel Power Selection Switch Tuning Dial Volume Control Dynamo Crank Weather Dial Band Switch Speaker Page 4 CC Observer... - Page 5 Location of Controls — Side and Top of Radio LED Light Phone Charging Jack Headphone Jack Battery Pack Charging Jack Telescopic Antenna Display Light and Flashlight Switch CC Observer Page 5...
-
Page 6: Getting Started - Powering Your Radio
10. Power by Winding — Unfold the handle from the side of the radio and The CC Observer can be powered in three different ways: rotate in either direction. The green “DYNAMO” light on the front of the radio will glow indicating proper winding speed. -
Page 7: Display Panel
Leaving the charging adapter plugged into the radio for long periods of time will shorten the life of the internal battery pack. Getting Started – Display Panel AM Frequencies Dynamo Indicator Light FM Frequencies Power Indicator Light CC Observer Page 7... -
Page 8: Radio Operation
FLASHLIGHT Located on the left side of the CC Observer is a flashlight consisting of three bright LEDs (see Side of Radio diagram on page 5). To turn the flashlight on move the light switch to the “LIGHT” position. The special LED bulbs last more than 10,000 hours and use very little electrical energy. -
Page 9: Specifications
Built-in Ferrite Bar Weight: 1 lb. WEIGHT AND DIMENSIONS Dimensions: 7.25" W x 5.5" H x 2" D 1/8" (3.5mm) – Will accept stereo or mono jacks. HEADPHONE JACK Note: Specifications are subject to change without notice. CC Observer Page 9... -
Page 10: Safety Instructions
2) DISCONNECT THE RADIO IN CASE OF MALFUNCTION If you smell or notice smoke, disconnect the optional AC Adapter immediately, taking care to avoid burns. Contact C. Crane Company or their representative for inspection and service before any future operation. Only use the AC-DC Adapter recommended with the unit and replace it if wires become frayed or exposed. -
Page 11: Personal Station Log
P ERSONAL S TATION L OG Station Date & City Frequency Call Letters Time Please feel free to copy this page. CC Observer Page 11... - Page 12 Model: CC Observer ANSI C63.4: 2003 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERA- TION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
