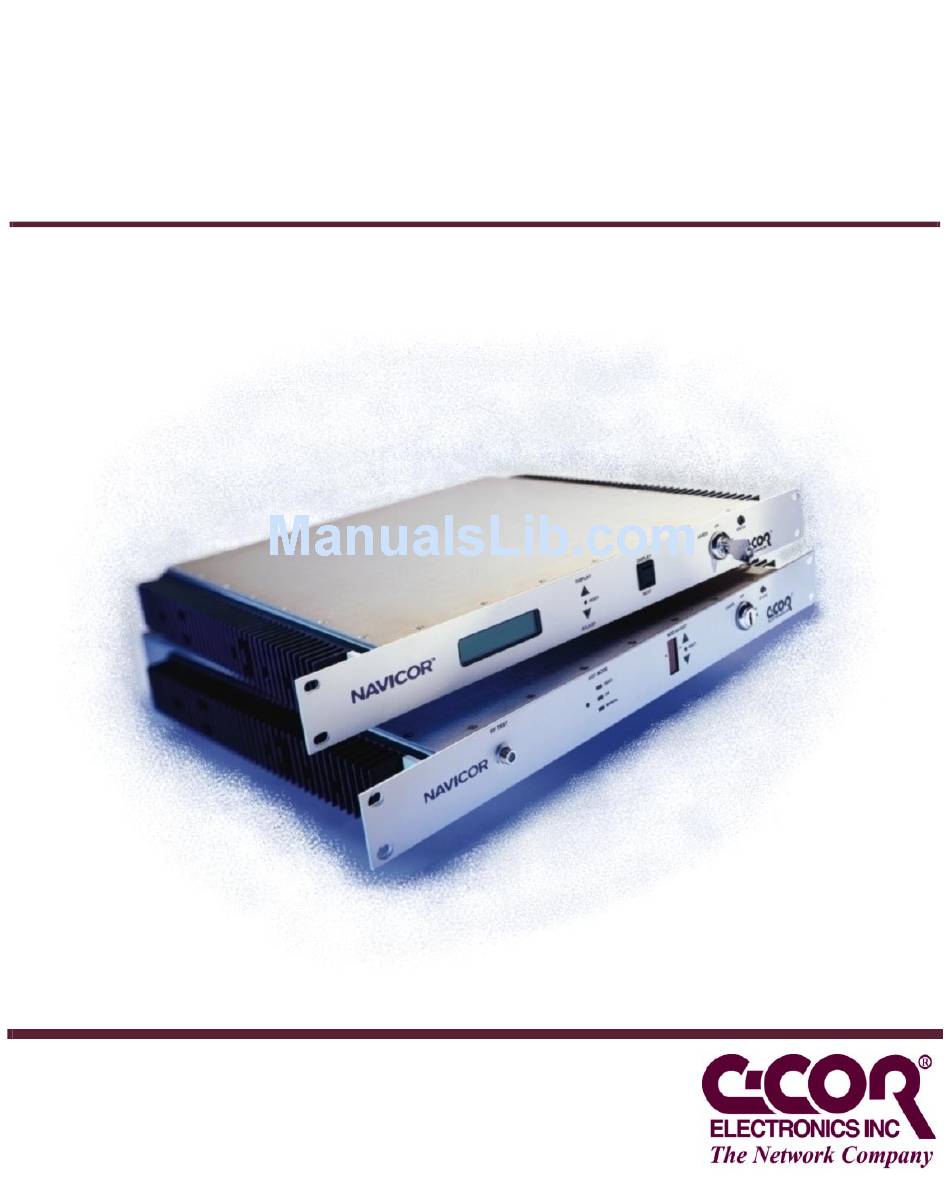

- Page 1 1550 Transmitter - NA15T Series and 1550 EDFA - NA25E Series Procedures Manual 1550 EDFA 1550 EDFA 1550 Transmitter 1550 Transmitter...
- Page 2 C-COR 1550 Transmitter - NA15T Series and 1550 EDFA - NA25E Series...
- Page 3 60 Decibel Road State College, PA 16801 Visit us on the World Wide Web at: http://www.c-cor.com To give us feedback on this document: Send an e-mail to techpubs@c-cor.com mentioning the document number and page number(s) to which the feedback applies.
-
Page 4: Introduction
This document details the installation and operation of the Navicor 1550 Externally Modulated 1RU Transmitter (C-COR NA15T Series) and the Navicor 1550 Erbium Doped Fiber Amplifier or EDFA (C-COR NA25E Series). The transmitter converts RF signals to optical signals on optical fiber. The EDFA amplifies an input from several optical fibers and outputs it to one optical fiber. -
Page 5: Edfa (Na25E Series) Basic I/O Specifications
Table 2. EDFA (NA25E series) Basic Input/Output Specifications Input Power 0 to 12 dBm Wavelength 1555±5 nm Model Number NA25E- Output 19.0 22.0 13.3 16.3 16.0 15.5 15.25 24.0 (dBm Typical) ±0.25 ±0.25 Š3dBm Input with 15.5 at 15.3 at 14.75 Output each of... -
Page 6: Statement Of Warranty
Statement of Warranty C-COR shall, at its expense, correct any defect in material and workmanship in products manufactured by C-COR which may appear within the warranty period, as set forth herein. C-COR MAKES NO OTHER REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER. -
Page 7: Network Management
Network Management 1550 EDFA and Transmitters will be compatible with C-COR’s Cable Network Management (CNM™) system (to be added by C-COR). Call C-COR for more information. Statements of Compliance FCC Compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Tools And Materials
PLUS ® Flat blade screwdrivers 1/4 inch, 5/16 inch may be required for small fasteners Fuse puller Non-conductive (C-COR Part Fuse removal and installation Number FP-1) Compressed air non-residue, inert gas, ultra-filtered Fiber cleaning to <0.2 microns; recommended for... -
Page 9: Fda/Ansi Classifications
ANSI Optical modules Optical Power/Wavelength Laser Class Service Group Transmitters between 6 and 8.5mW of Class 3b SG3b 1550 ±10nm radiation NA15T series EDFAs between 13 and 22mW of Class 3b SG3b 1550±10nm radiation NA25E series Introduction MX0860 Revision B... -
Page 10: Fiber Care And Cleaning
Fiber Care and Cleaning The fiber optic medium does not suffer from problems associated with copper-based coaxial cables, such as electromagnetic interference and increasing loss of signal power at higher frequencies and cable lengths. However, the ability of the optical fiber, a thin, flexible strand of silica glass, to enable light to travel through it with as little impedance as possible depends on the purity of the glass, the manner of its construction, and its care during handling, splicing, and installation. -
Page 11: Fiber Cleaning
Fiber Cleaning Using compressed air improperly on fiber cable connectors or bulkhead connectors can scratch the fiber endface or leave a residue and thereby degrade signal performance. Caution Dust caps do not keep connectors completely free of dust or contaminants. Perform the procedures below each time fiber is handled and connections are made. -
Page 12: Fiber Connectors
Fiber Connectors Before connecting fiber cable connectors to bulkhead connectors, use an optical power meter to ensure that the received optical power is within the specified range. Received optical power greater than the specified maximum level can damage forward optical receivers. 0.05 Caution FC connectors must have a keyway no wider than... -
Page 13: Bulkhead Connector Installation And Damage Examples
Fiber Tip Installing/removing fiber connector Unbroken ceramic sleeve (ensure that fiber tip enters parallel to (with slot visible) ceramic sleeve in bulkhead connector) Ceramic sleeve cracked and completely Section of ceramic collapsed along the connector sleeve broken out within the connector Figure 2. -
Page 14: Unpacking
Examine all units for any damage due to transit. If damage is discovered, file a claim with the carrier immediately. Notify your C-COR representative as soon as possible. Product deemed defective by the original purchaser must be returned to C-COR prepaid in the original packing material (or equivalent) with a Return Material Authorization (RMA) from the C-COR Equipment Service Center (+1-814-231-4444). - Page 15 Unpacking MX0860 Revision B...
-
Page 16: Mounting The Units In A Rack
Mounting the Units in a Rack The following steps are designed to be performed in sequence. Refer to Figure 3 as necessary. Standard EIA 19 inch rack Figure 3. Mounting Units in a Rack Place the module into the rack following these guidelines: Maintain 1.75 inches (1 rack unit) of vertical space between a transmitter module and other units within a rack EDFA units do not require space in between for mounting... -
Page 17: Transmitter Controls And Indicators
Transmitter Controls and Indicators Figure 4. Navicor 1550 Transmitter Transmitter Controls and Indicators MX0860 Revision B... -
Page 18: Transmitter Controls And Indicators
Table 5. Transmitter Controls and Indicators Item Label Function STATUS LED LED lights green to indicate that RF is present and that the transmitter is functioning normally with laser active. LED lights yellow (Minor Alarm) to indicate a parameter that will not cause damage or affect operation of the transmitter, but may be near an operational limit. - Page 19 Table 5. Transmitter Controls and Indicators (continued) Item Label Function VIDEO LED LED lights when in Video mode. In Video mode, the AGC accounts for power and carrier peak level changes associated with carrier modulated envelopes and maintains proper RF gain through the path to provide correct operation with actual carriers.
-
Page 20: Setting Up A Transmitter
Setting Up a Transmitter Laser Warning For Sevice Group SG3b: Disconnected optical connectors may emit DANGER invisible optical radiation. Avoid direct eye exposure to the beam. Laser light, visible or laser light invisible, can seriously injure eyes or even cause blindness. Never turn on a laser transmitter if all optical connectors are not covered. -
Page 21: Analog Input Levels
The 4 values above represent 40 channels NTSC & PAL, 60 channels PAL, 79 Channels NTSC, and 112 channels NTSC respectively Figure 5. Analog Input Levels Connect the RF cable to the F-type, RF input connection on the back panel of the transmitter as per your system map. -
Page 22: Edfa Controls And Indicators
EDFA Controls and Indicators Front View (AC Rear View (AC Model) Rear View (-48V Model) Figure 6. Navicor 1550 EDFA Controls and Indicators MX0860 Revision B EDFA Controls and Indicators 21... -
Page 23: Edfa Controls And Indicators
Keyswitch shows the position of the keyswitch (ON or OFF) Pwr Supply gives the status of the power supply Model gives the C-COR model number of the unit S/N gives the C-COR serial number for the unit Rev gives the revision level of the unit... - Page 24 Table 6. EDFA Controls and Indicators (continued) Item Label Function buttons, raise or lower the output of the unit in increments of 0.25dB per RESET each press of the button. The output can be adjusted from -1.0dBm to: +0.5: 13 to 16dBm +.25: 19 to 24 dBm around the factory-preset output level.
-
Page 25: Edfa Alarm Descriptions
EDFA Alarm Descriptions The EDFA will shut down under certain conditions. After shutdown, the EDFA may power up again if the monitored values return to normal. Table 7. EDFA Alarm/Status Descriptions Flashing Yellow Flashing Red Green Parameter WRNG ALRM (Normal) (Minor Alarm) (Major Alarm) Pwr In... - Page 26 Table 7. EDFA Alarm/Status Descriptions (continued) Flashing Yellow Flashing Red Green Parameter WRNG ALRM (Normal) (Minor Alarm) (Major Alarm) P2 Bias gives the status Display reads OK Fault appears if both Greater than 90 %, of pump 2 hardware and software display reads faults occur that allow WRNG:P2 Bias HI...
-
Page 27: Setting Up An Edfa Unit
Setting Up an EDFA Unit Laser Warning for Service Group SG3b: Disconnected optical connectors may emit DANGER invisible optical radiation. Avoid direct eye exposure to the beam. Laser light, visible or laser light invisible, can seriously injure eyes or even cause blindness. Never turn on an EDFA unit if all optical connectors are not covered. -
Page 28: General System Performance Considerations
10.0 General System Performance Considerations EDFA (optional) Transmitter Receiver RF Input RF Output Figure 7. A Fiber Optic Link with EDFA 10.1 A Quick Overview of a Fiber Link A fiber optic link consists of a transmitter, the fiber itself, a receiver, and any other components in between (splitters, EDFAs, etc.). -
Page 29: Effects Of Adjusting Transmitter Rf Modulation
10.2 Effects of Adjusting Transmitter RF Modulation Depth and EDFA Output Levels Refer to the individual component descriptions for information on how to adjust the transmitter RF modulation depth or EDFA output level. At the receiver output, RF signal: At the transmitter, as RF modulation is: CTB and XMOD Increased 1 unit... -
Page 30: Table Of Contents
